Accessories for thin brick formliners.

Caulkless corners, arch returns, underlayment, soldier courses and rustication, made by Advanced to fit its thin brick liners.

See the parts Installation guide (PDF)

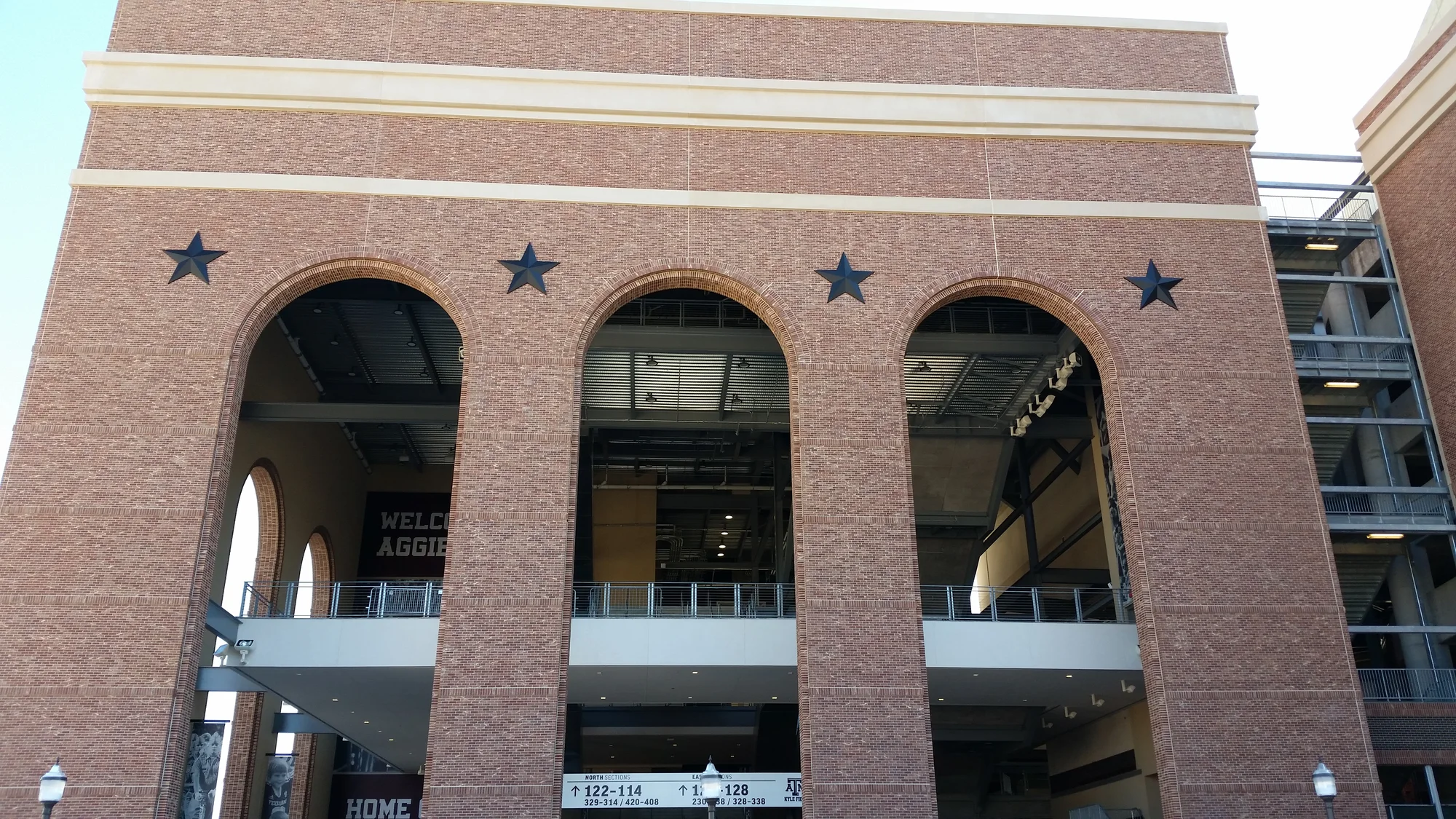

Kyle Field, Texas A&M. Arches, returns and coursing, all cast. Advanced Formliners.

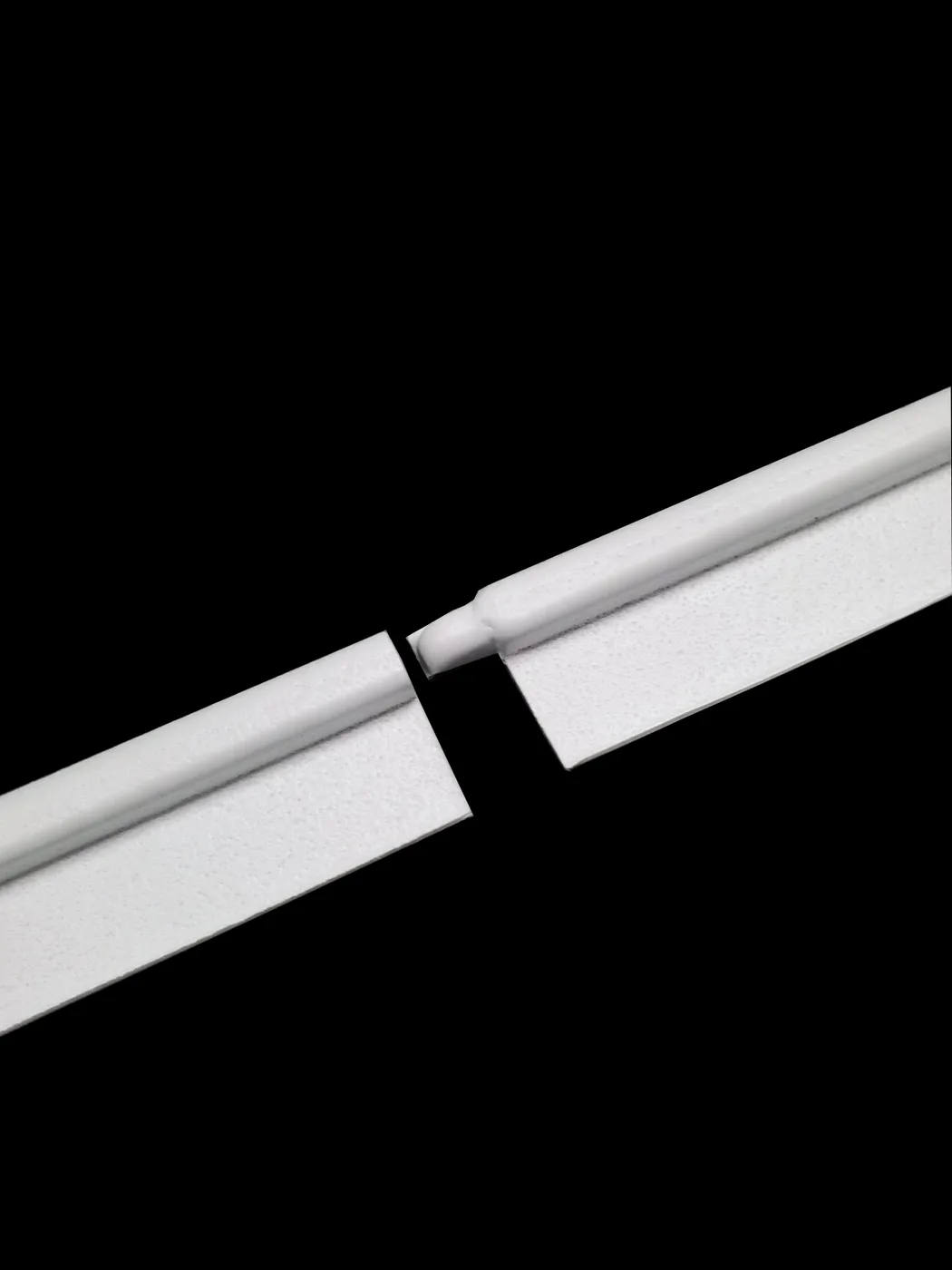

Advanced rail strips meeting at an overlapping joint

What the accessories do on the bed.

Corners with no caulk

Caulkless corners and edge caps turn the brick into a return or a window opening. There is no caulk joint to run and no squeeze-out to grind off the finished panel.

No concrete under the liner

Underlayment strips go on the rails and every 4 feet across the bed, and the liner sheets lock over them, so concrete stays out from under the liner at the joints.

Details that repeat panel to panel

Soldier courses, headers, rowlocks, arch returns and rustication come as parts. A banding detail or an arch is set once and casts the same on every panel of the job.

Made and patented by Advanced

The parts are made by Advanced in Sparta, Wisconsin, to fit its own liners, and the line carries US 10,060,143 B2 and two design patents. There are Australian-format versions (ASTL), and a part that is not in the catalog is tooled when a job needs it.

The parts.

Codes and part names from the Advanced catalog. Most parts come in series variants: the 1000 series parts fit the 1000 and 4000 beds, the 2000 series parts fit the 2000 and 3000 beds, and the header and rail strip fit the 1000, 2000, 3000 and 4000 series. Ask Bob or Dawson for the cut sheet with dimensions.

Caulkless corners and returns

Turn a corner, run a return or line a window or door blockout without caulking the joint by hand. The corner liners go down the sides of a blockout and the edge cap runs across it, and both index to the brick coursing so the brick turns the corner without stopping and restarting.

Takes off the bed: Caulking every corner by hand, then grinding the squeeze-out off the finished panel.

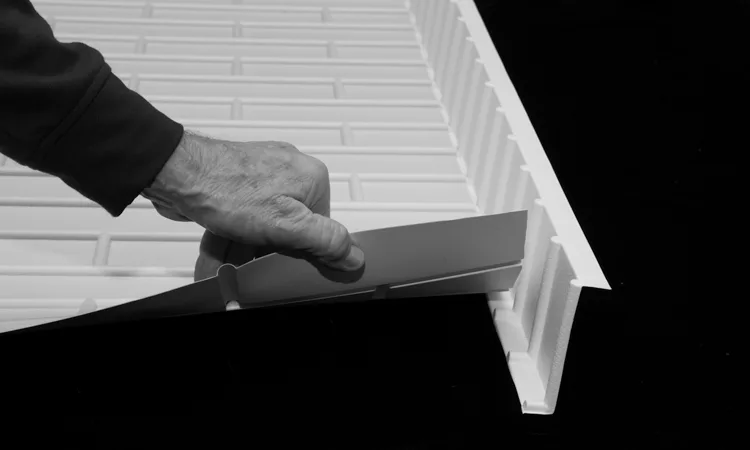

CC4

3-5/8" caulkless corner

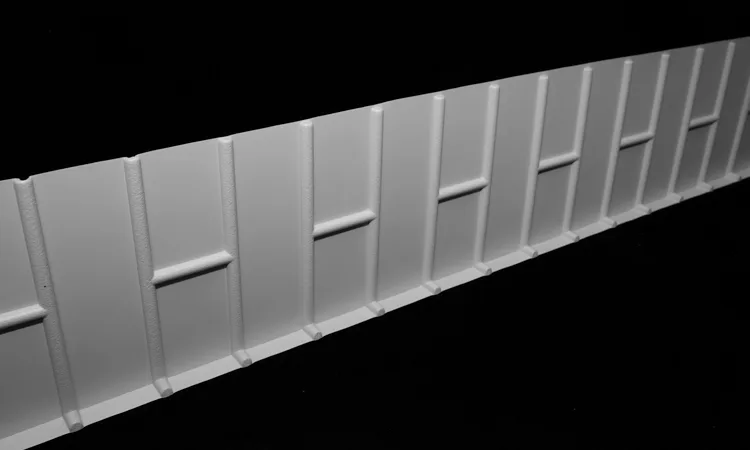

CC8

7-5/8" caulkless corner

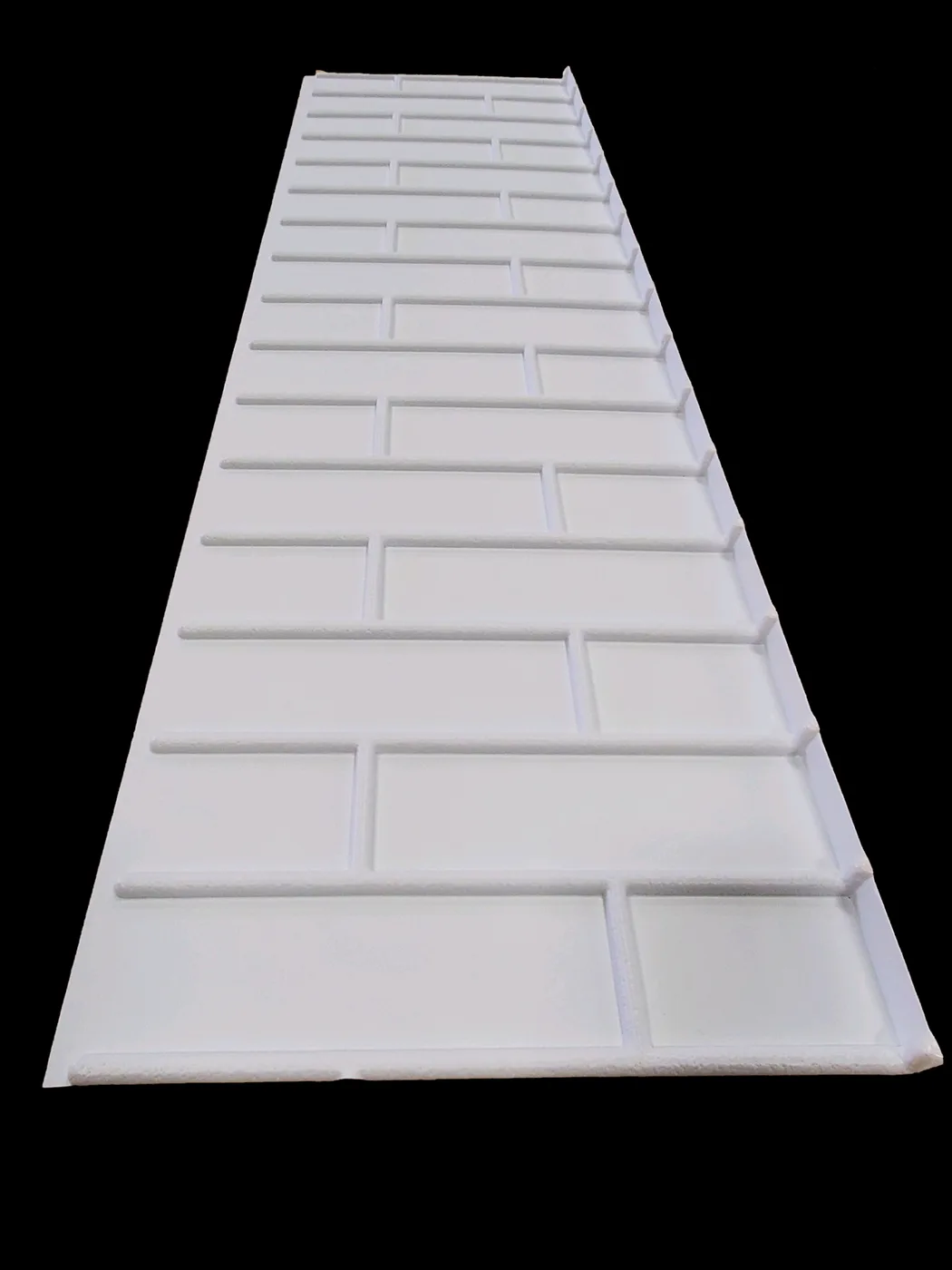

CC12

11-5/8" caulkless corner

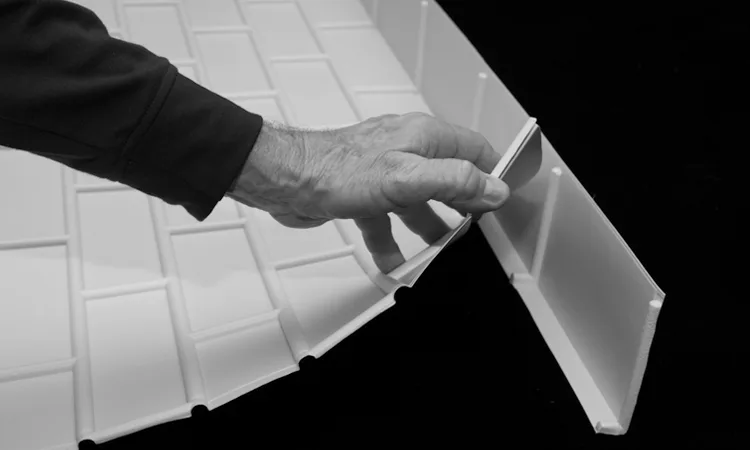

EC

3-5/8" caulkless edge cap

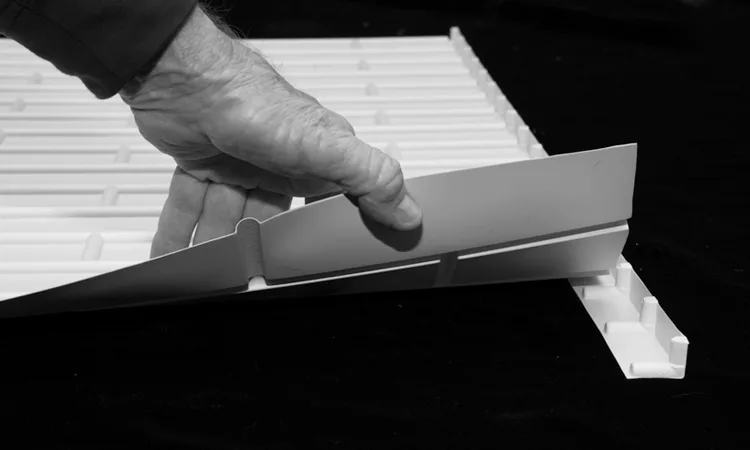

C

1" corner for large returns

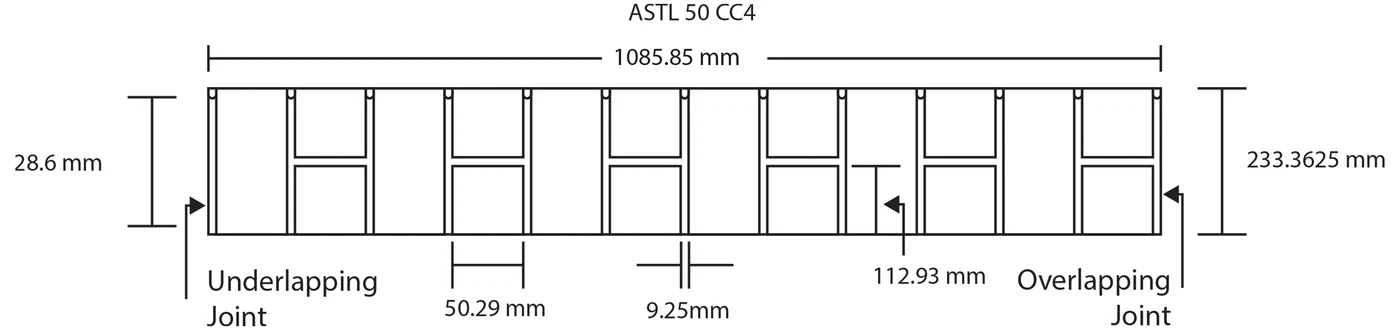

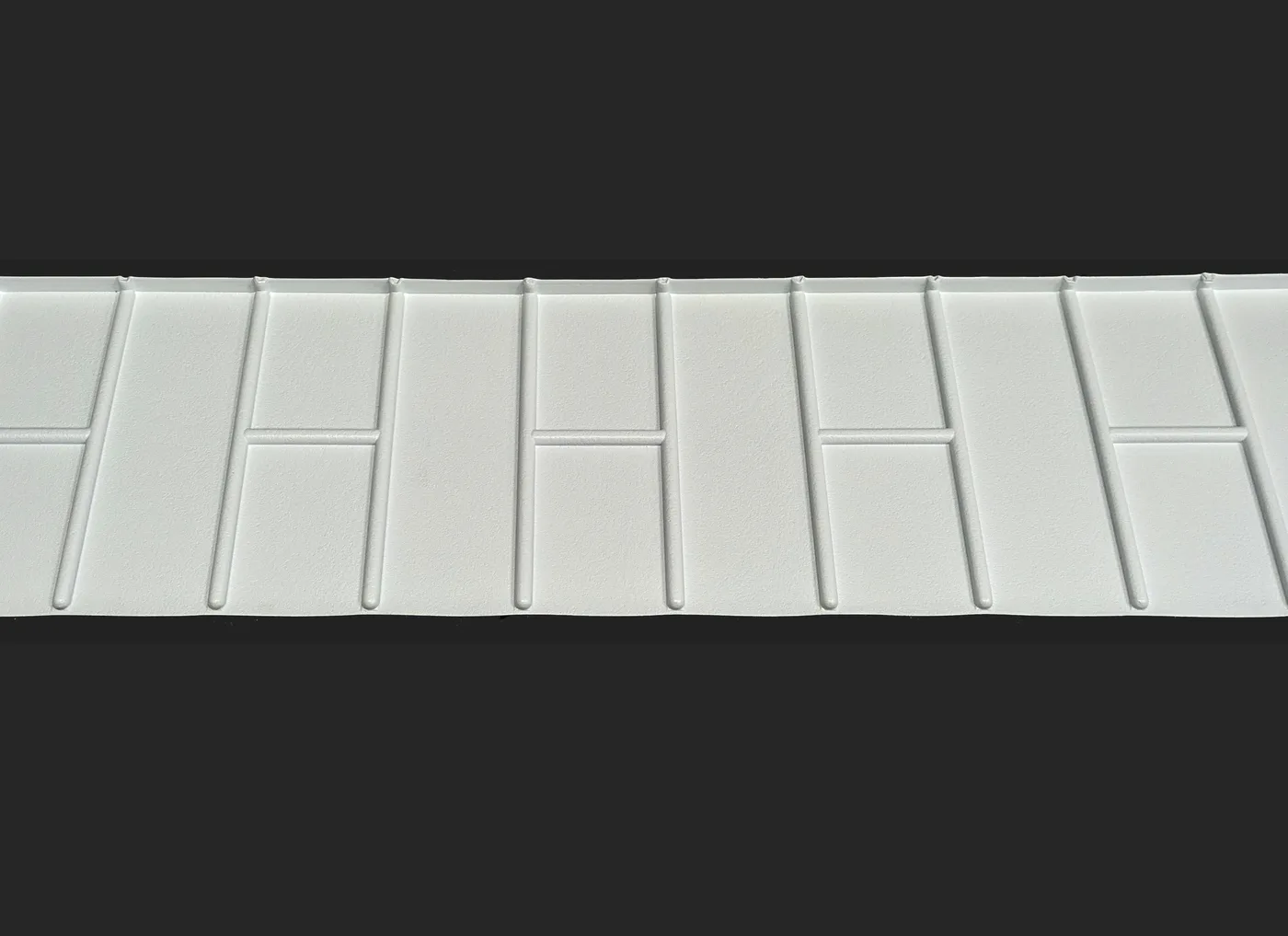

CC4-ASTL-50

Caulkless corner, ASTL-50

Australian brick format

Dimensioned drawing →

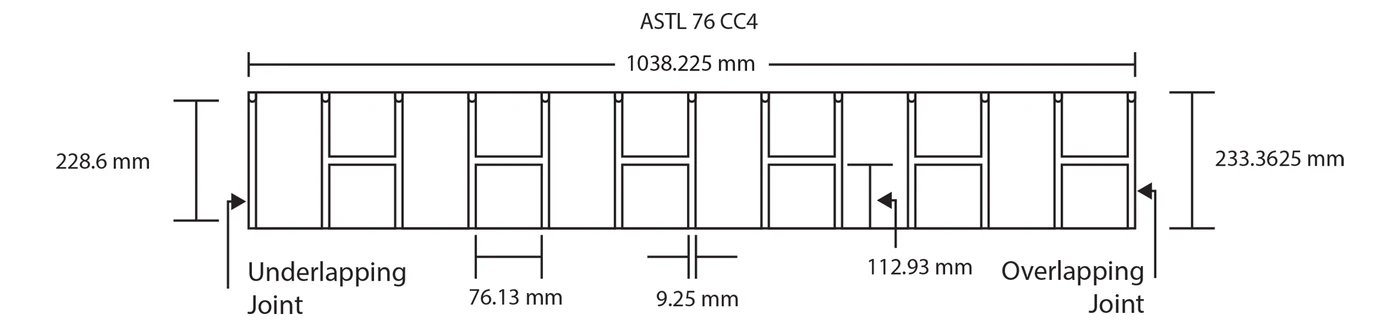

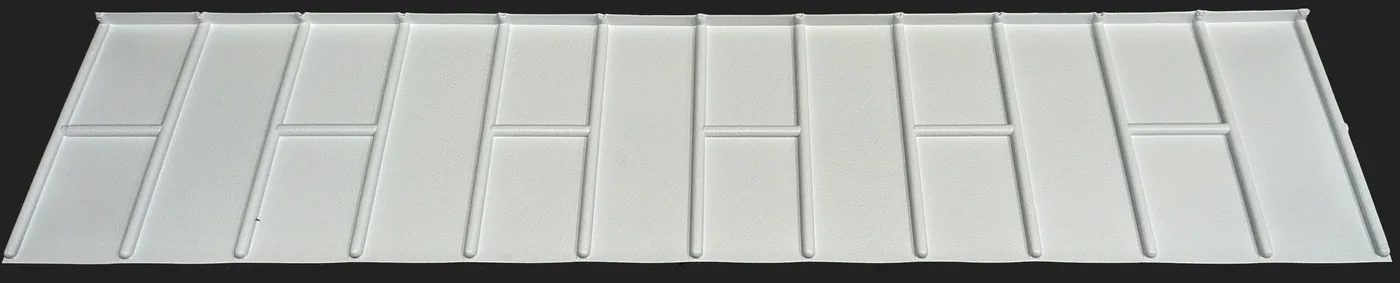

CC4-ASTL-76

Caulkless corner, ASTL-76

Australian brick format

Dimensioned drawing →

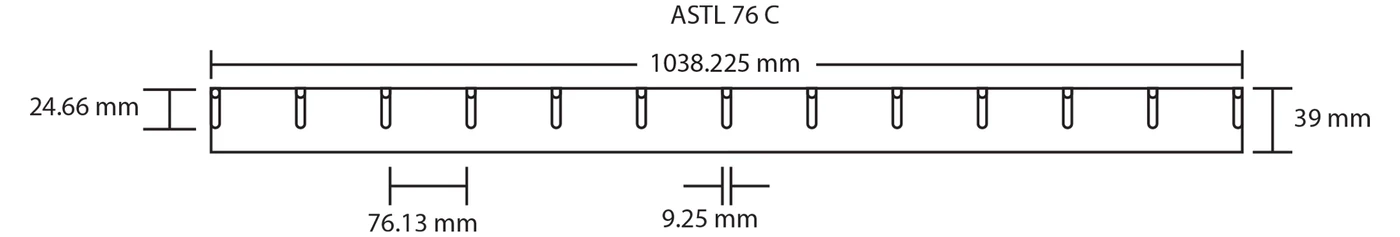

C-ASTL-76

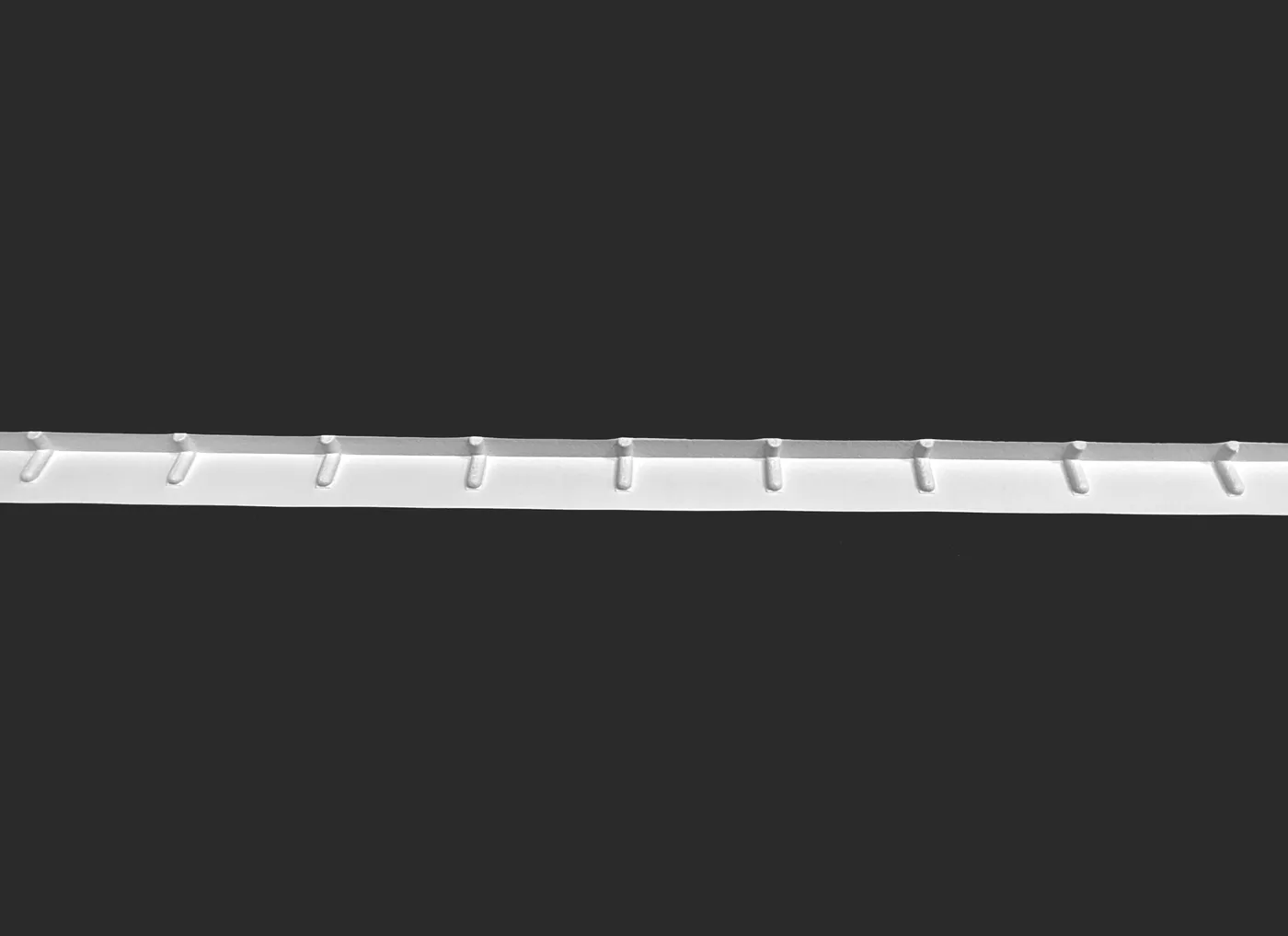

Corner, ASTL-76

Australian brick format

Dimensioned drawing →

Arches and arch returns

Cast a true arch with the coursing following the curve. The universal arches come in stacked and half bond so the arch matches the field pattern rather than fighting it.

Takes off the bed: Laying out and cutting an arch by hand on the bed, which is slow and rarely repeats identically panel to panel.

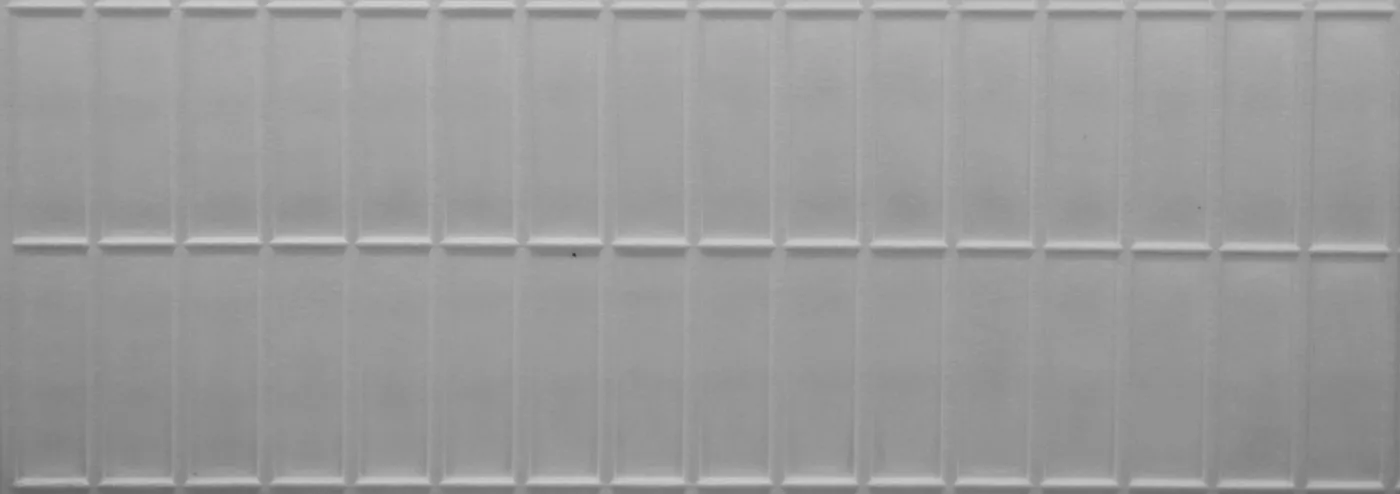

UA1

Universal arch, stacked bond

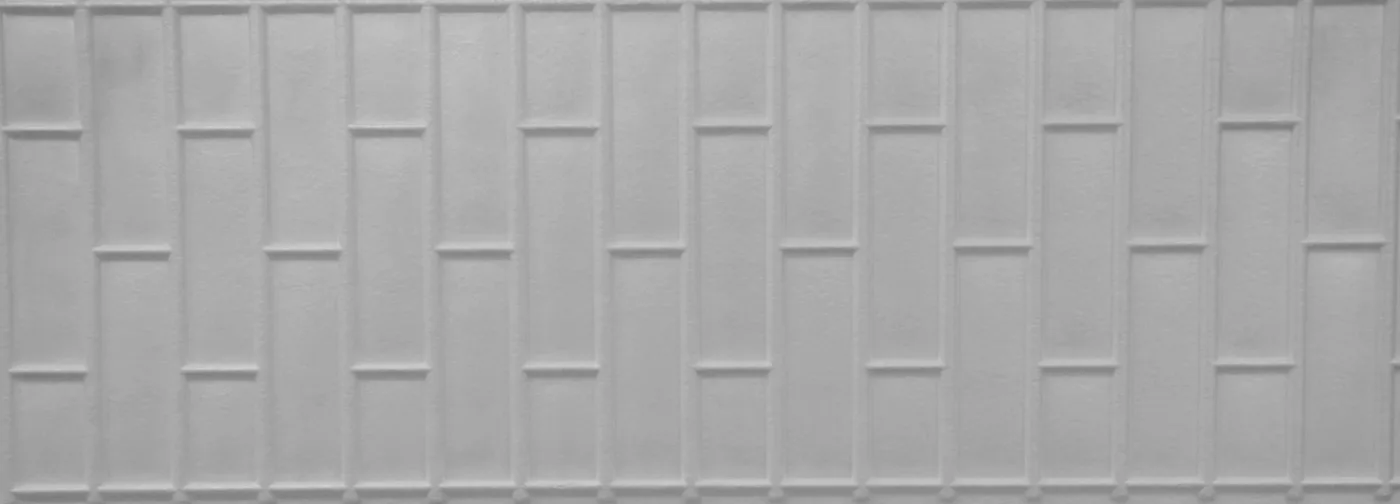

UA2

Universal arch, half bond

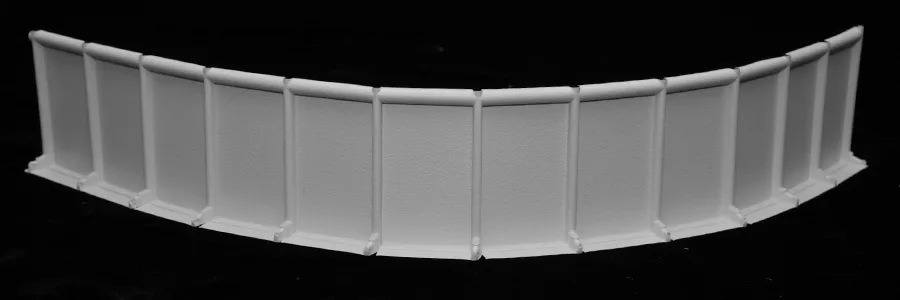

AR4

3-5/8" arch return

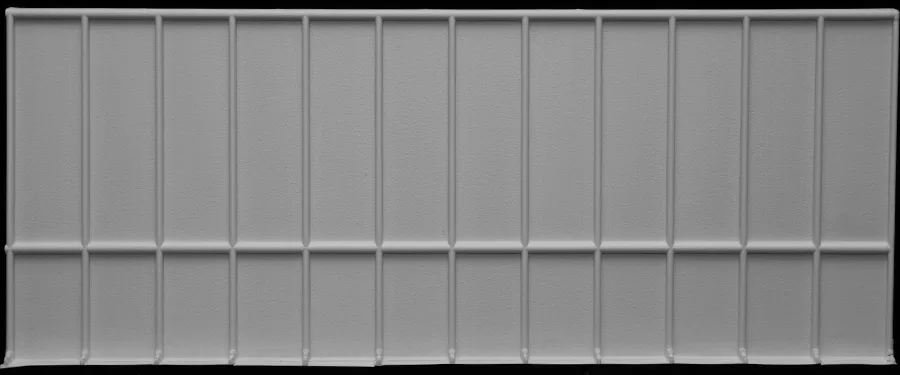

AR12

12" arch return

Underlayment strips

The liner sheets lock over these strips. Edge underlayment goes on the side rails of the bed, horizontal edge underlayment on the top and bottom rails, and underlayment strips every 4 feet across the bed, so concrete cannot migrate under the liner at the joints.

Takes off the bed: Concrete under the liner at the sheet joints, and the cleanup on the brick face that follows.

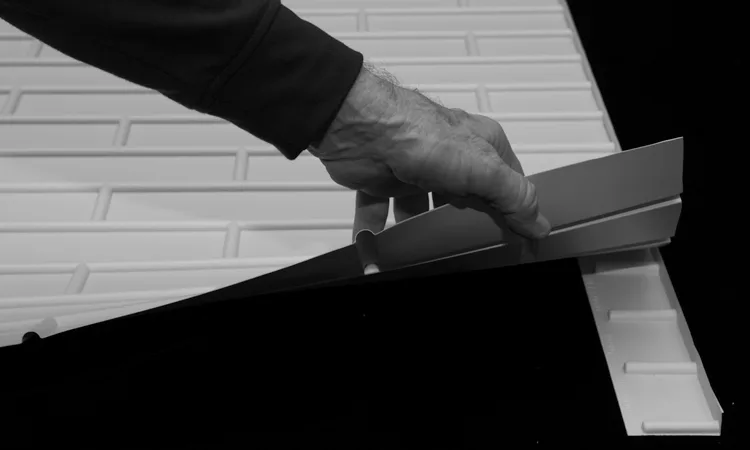

EUS

Edge underlayment strip
HEUS

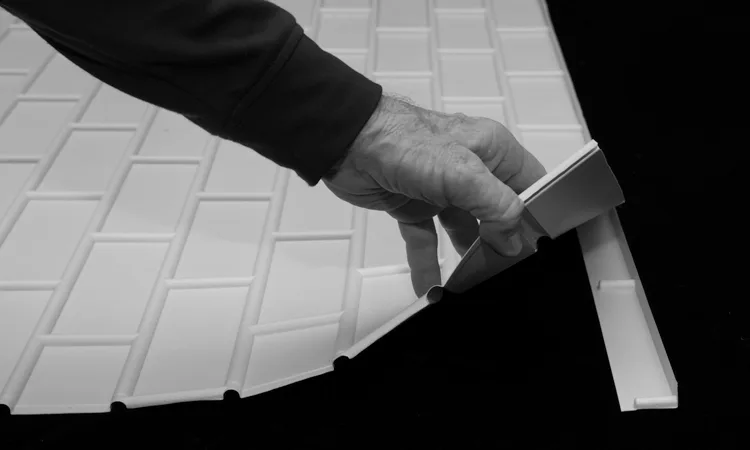

Horizontal edge underlayment

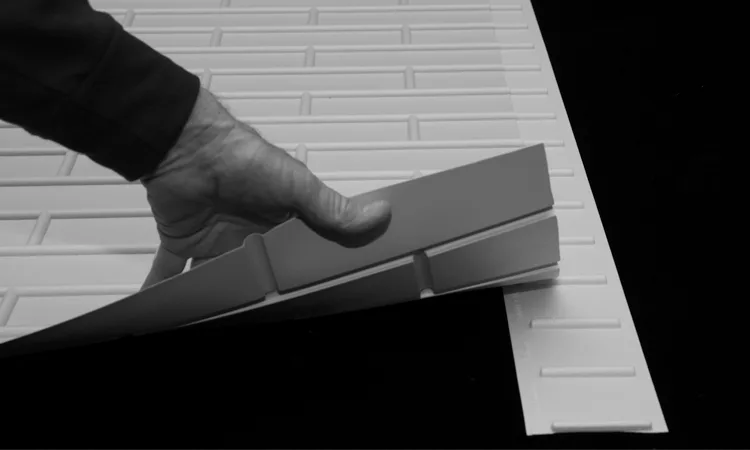

US

Underlayment strip

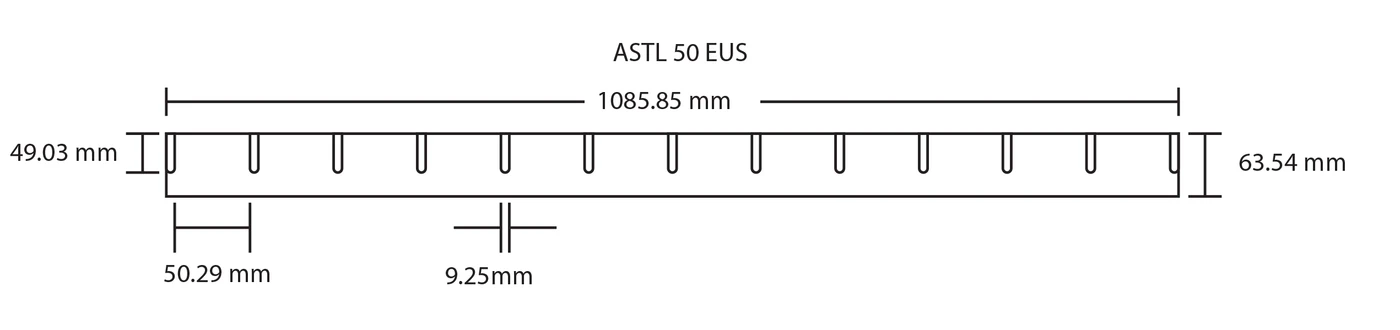

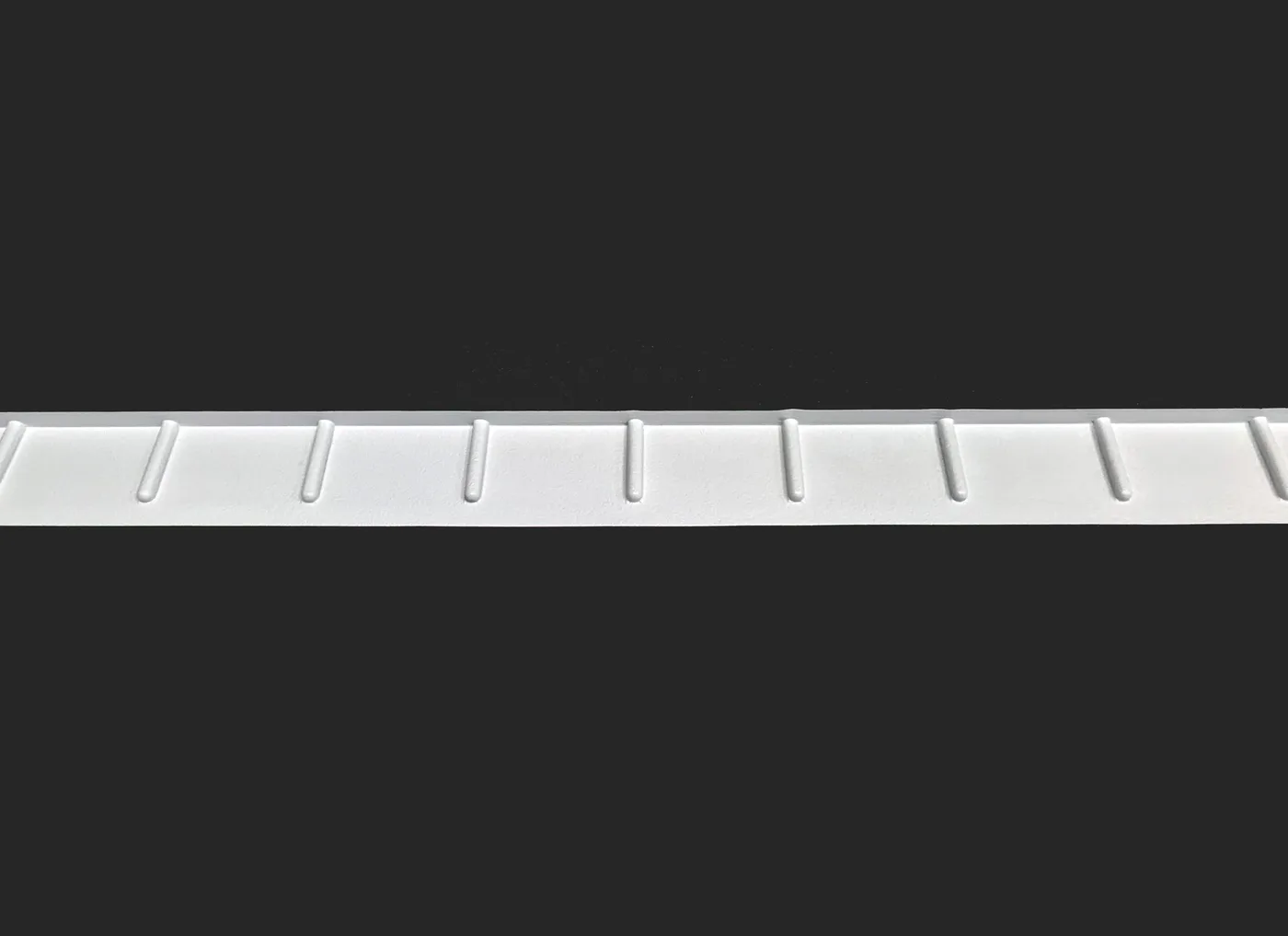

EUS-ASTL-50

Edge underlayment strip, ASTL-50

Australian brick format

Dimensioned drawing →

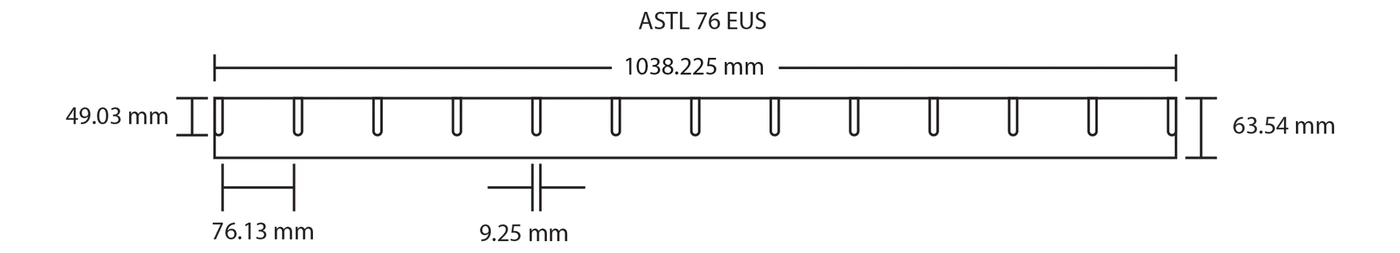

EUS-ASTL-76

Edge underlayment strip, ASTL-76

Australian brick format

Dimensioned drawing →

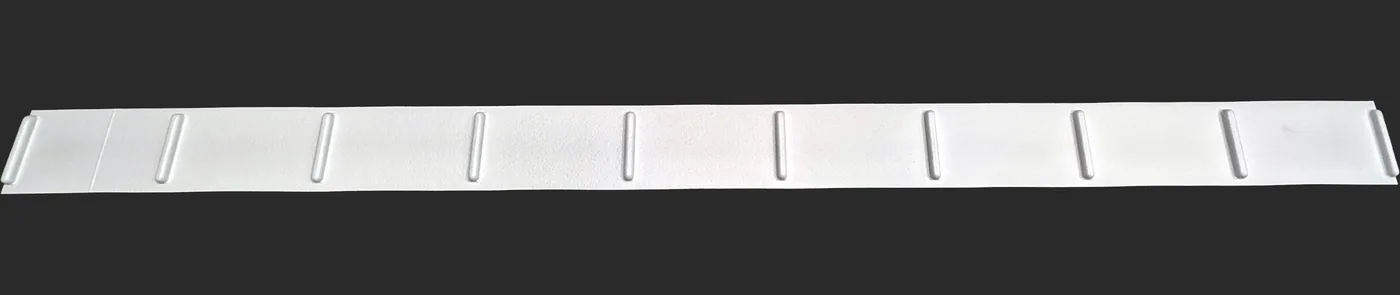

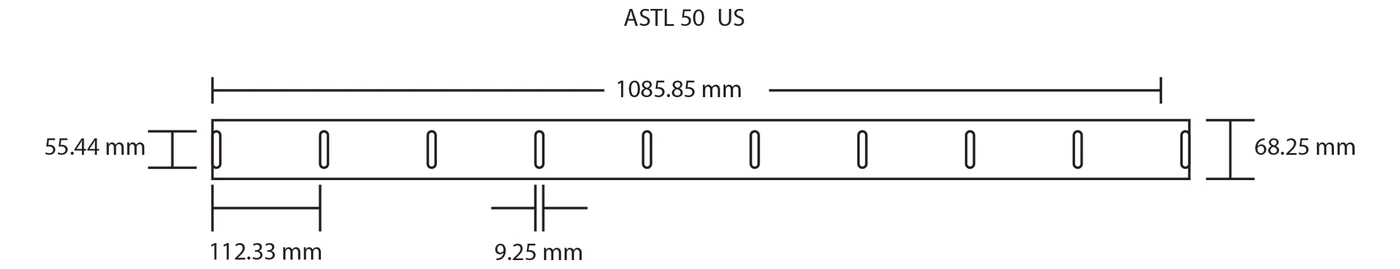

US-ASTL-50

Underlayment strip, ASTL-50

Australian brick format

Dimensioned drawing →

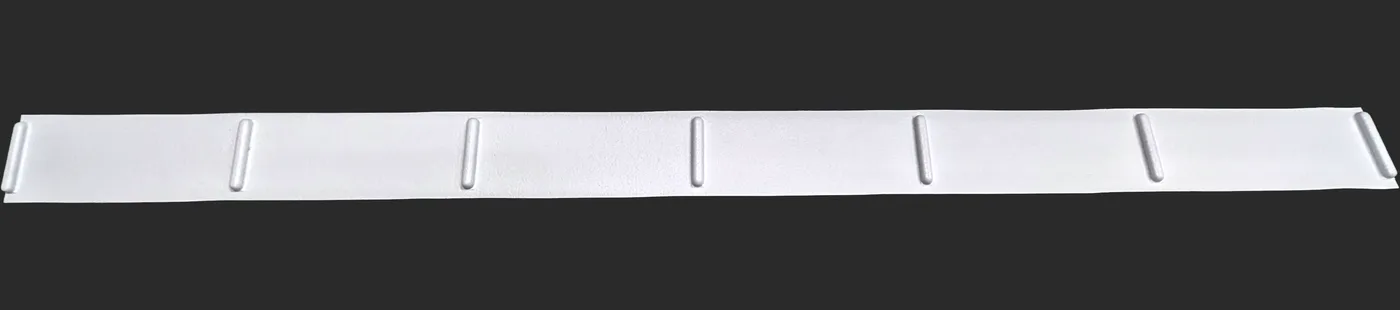

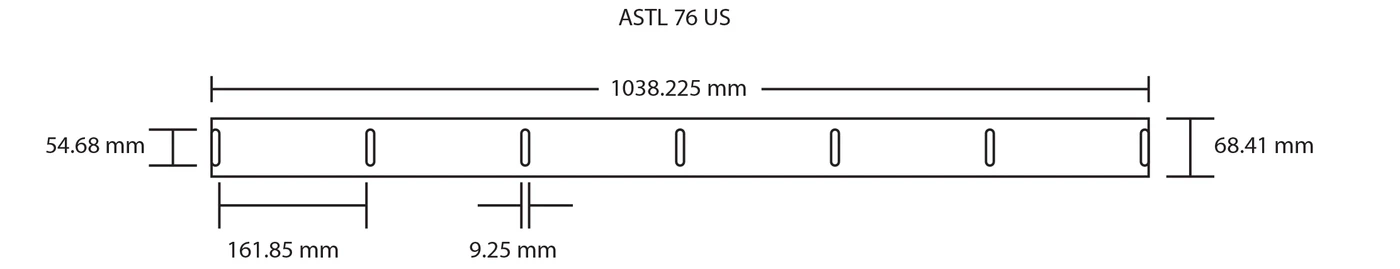

US-ASTL

Underlayment strip, ASTL

Australian brick format

Dimensioned drawing →

Coursing details

Soldier courses, headers, and rowlocks as real parts, so a banding detail is set once and repeats exactly across every panel on the job.

Takes off the bed: Hand-setting a banding course panel by panel and hoping it lines up across the elevation.

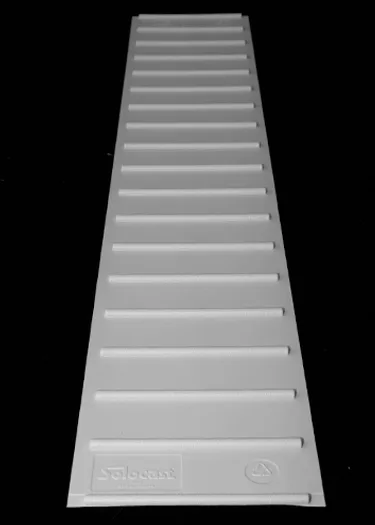

SC

Soldier course

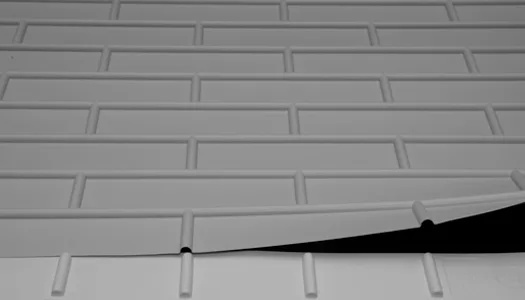

H

Header

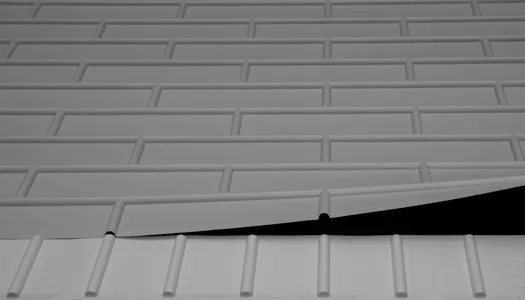

RL

Rowlock

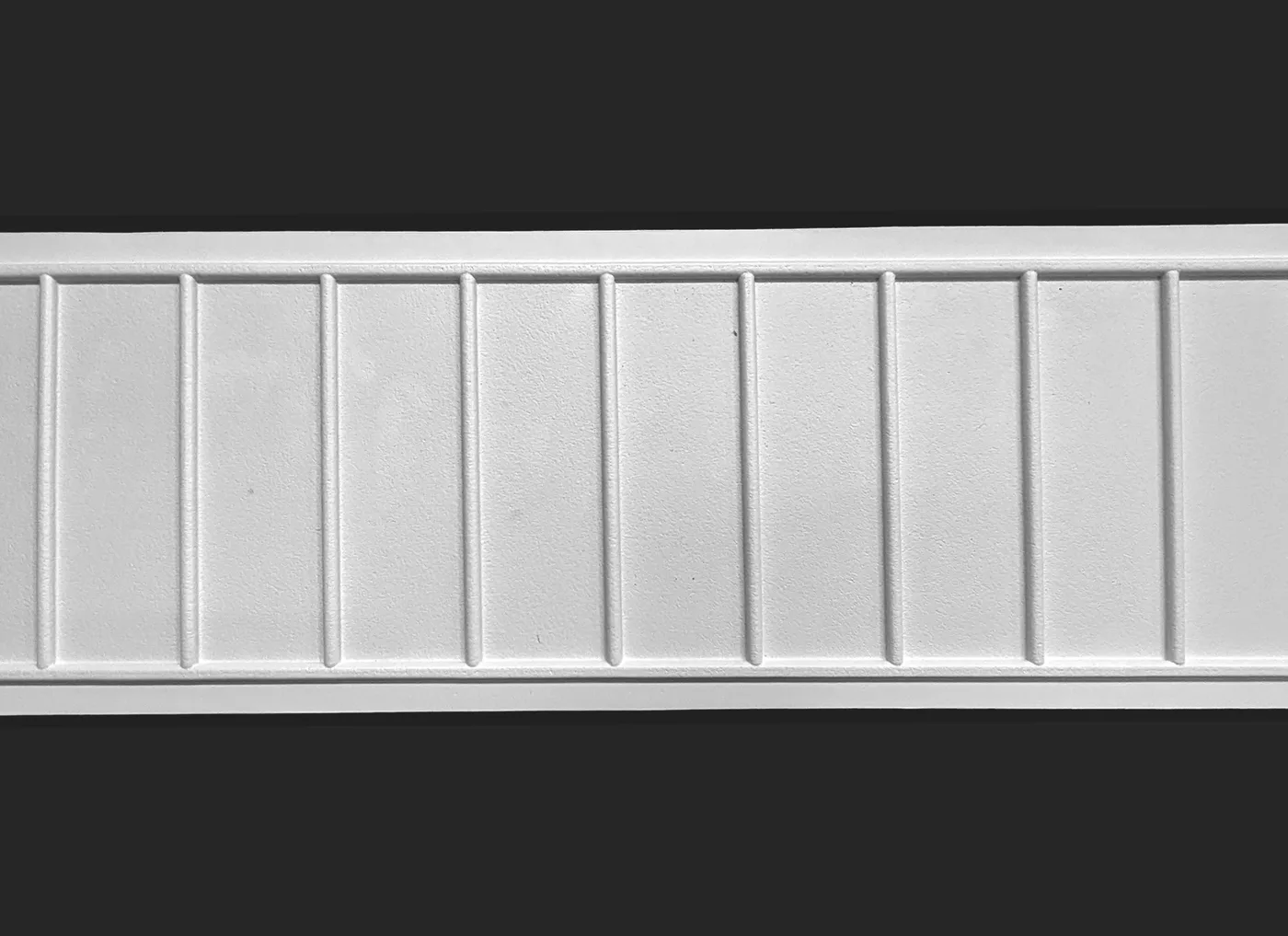

SC-ASTL-50

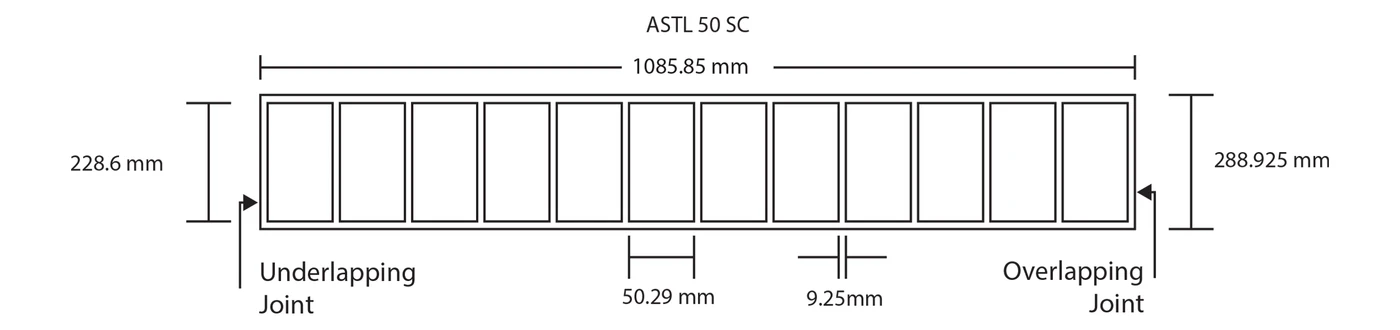

Soldier course, ASTL-50

Australian brick format

Dimensioned drawing →

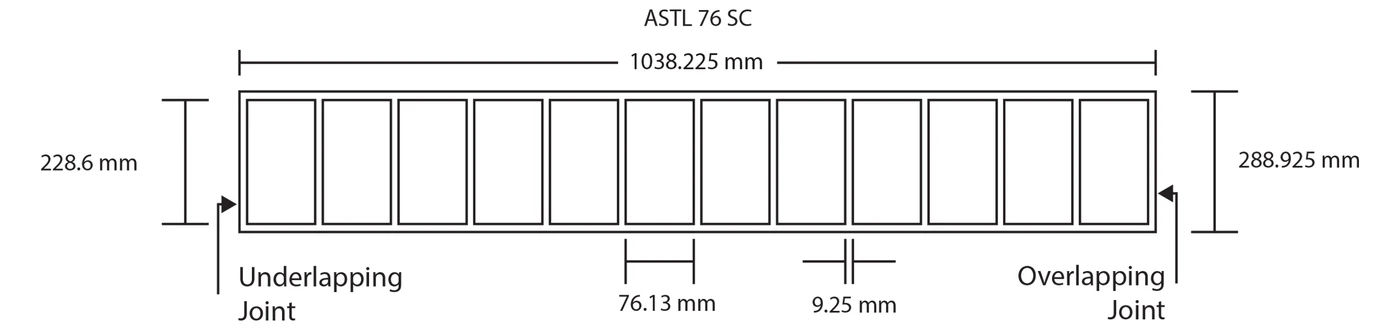

SC-ASTL-76

Soldier course, ASTL-76

Australian brick format

Dimensioned drawing →

Transitions and rustication

Move between brick and a smooth or textured field, or cut a deliberate reveal into the panel, without an improvised edge.

Takes off the bed: Building a one-off transition out of scrap on the bed, which never quite repeats.

TS1

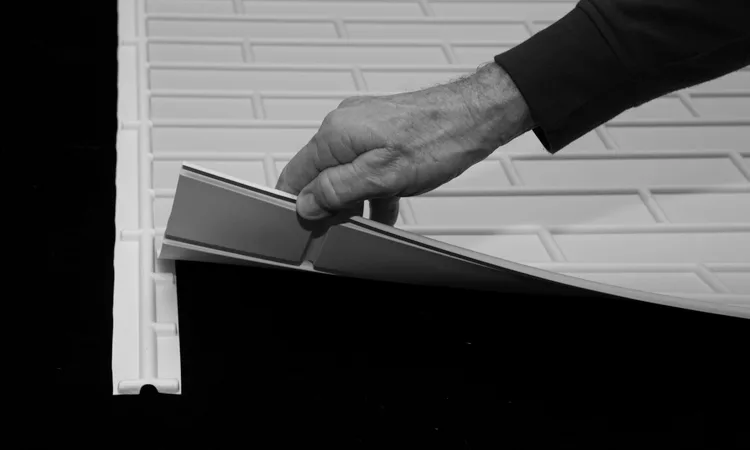

Transition strip 1

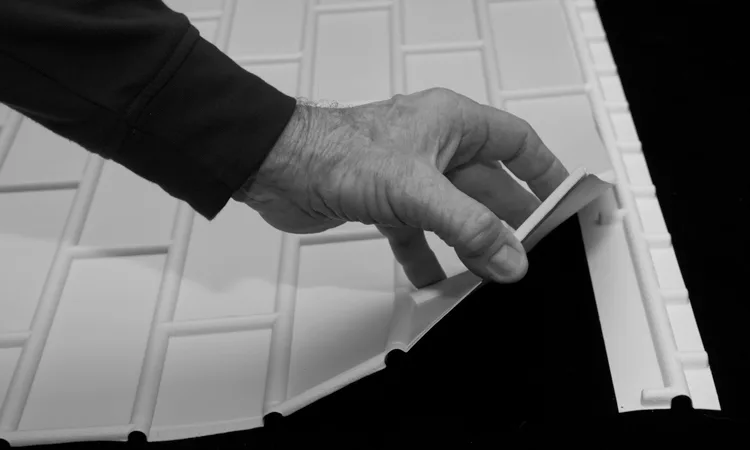

TS2

Transition strip 2

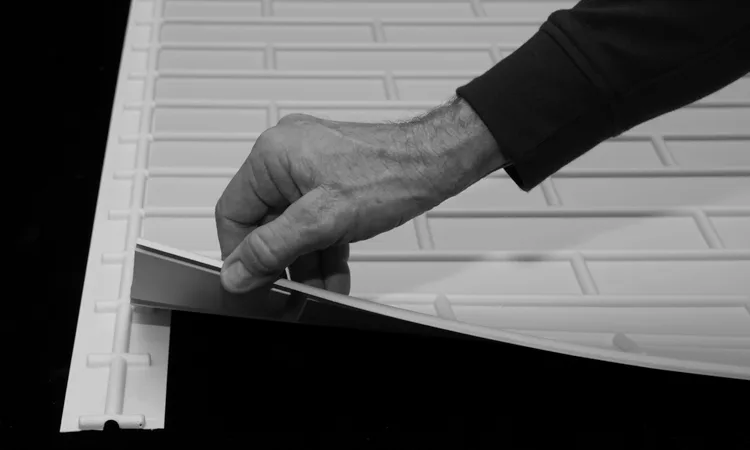

TS3

Transition strip 3
HRS

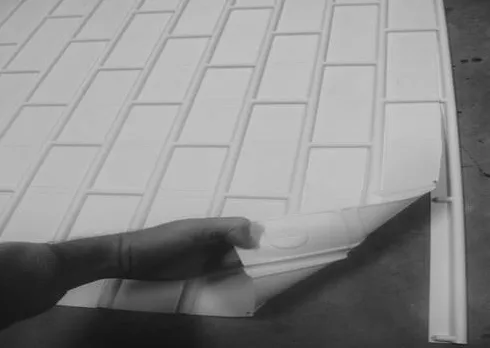

Horizontal rustication
VRS

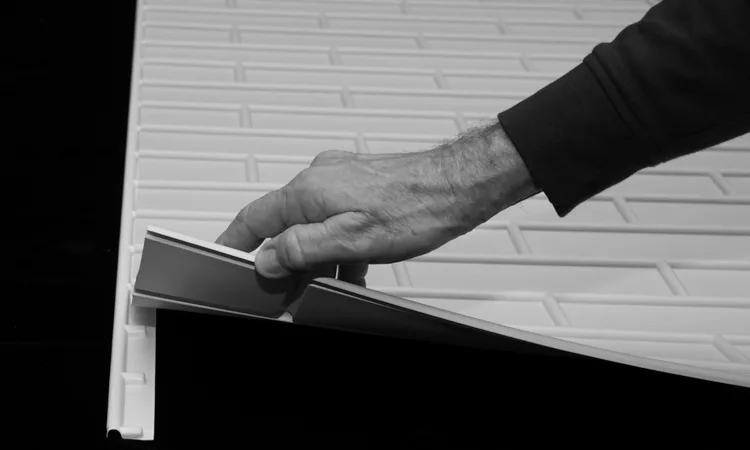

Vertical rustication

Rails and brand-specific parts

Hold a run straight over long pours, plus parts tooled for a specific brick line where the standard corner does not fit the unit.

Takes off the bed: Re-cutting a standard part to suit a brick it was never dimensioned for.

RS-6

6' rail strip
RS-12

RS-12

12" rail strip

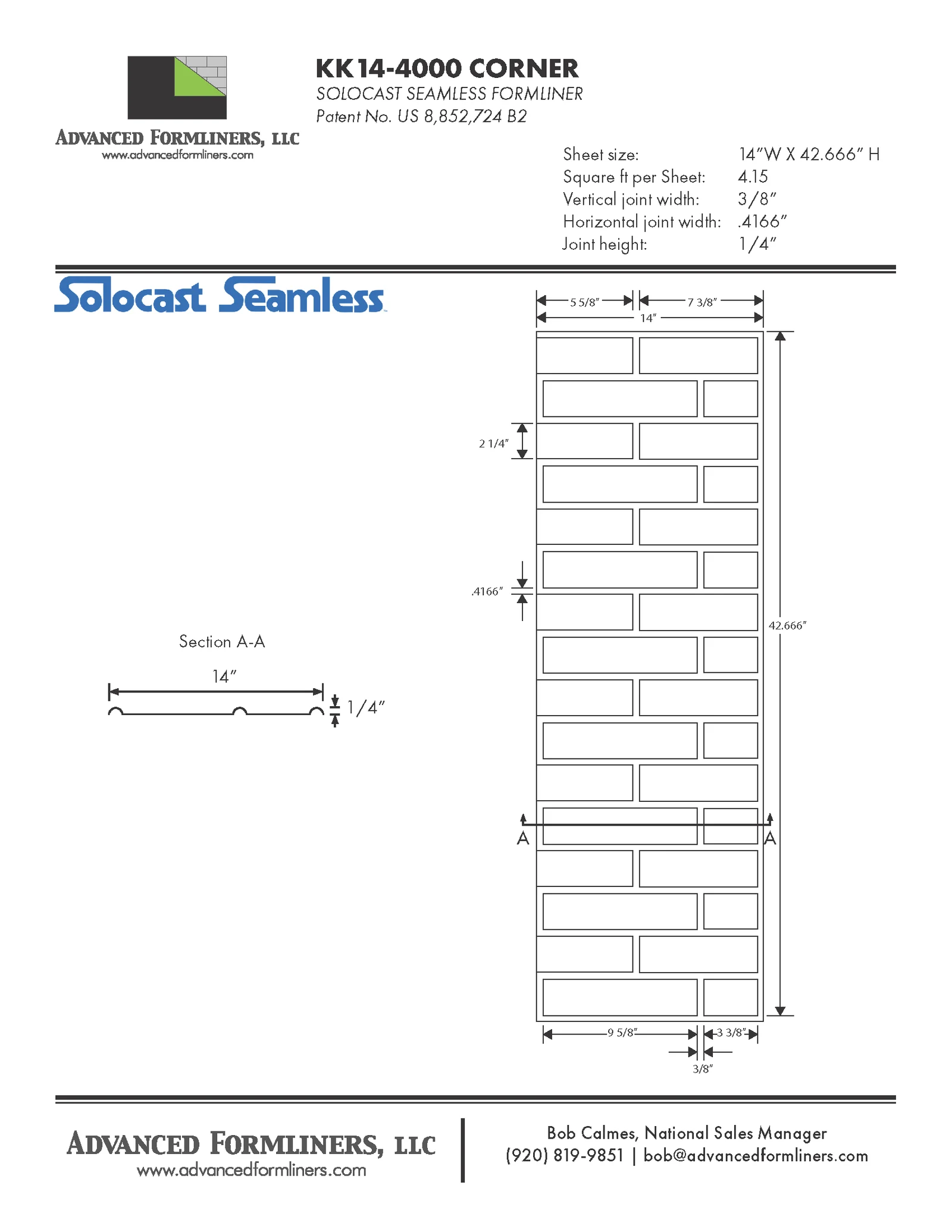

KK14

KK14

4000 corner, King Klinker

Dimensioned drawing →

Ask for a cut sheet Installation guide (PDF)

Part numbers by series.

Each part is cut for a liner series. These are the part numbers Advanced lists, with the series each fits. Ask Bob or Dawson for the cut sheet for the one on your job.

Accessory part numbers by liner series
Series	Fits	Part numbers
1000 series	1000 and 4000 series, except where noted	1000C, 1000CC4, 1000CC8, 1000CC12, 1000CC12WC, 1000XLCC4WC, 1000EC90, 1000EUS, 1000US, 1000HRS, 1000VRS, 1000SC, 1000RL, 1000XLRL (1000 series), 1000TS1, 1000TS2, 1000TS3, 1000AR4, 1000AR12, 1000AU1, 1000AU2, 1000HEUS (1000 and 2000 series)
2000 series	2000 and 3000 series	2000C, 2000XLCC4, 2000XLCC8, 2000XLCC12, 2000EC90, 2000EUS, 2000US, 2000XL US, 2000VRS, 2000SC, 2000TS1, 2000TS2, 2000TS3
3000 series	By part	3000HRS, 3000RL, 3000SC
4000 series	By part	4000SC
7000 series	By part	7000C, 7000EC90, 7000HC
All series	1000, 2000, 3000 and 4000 series	H (header), 6 in. RS (rail strip)

How they go on the bed.

From the Advanced installation guide. The accessories are glued down and the liner sheets are not.

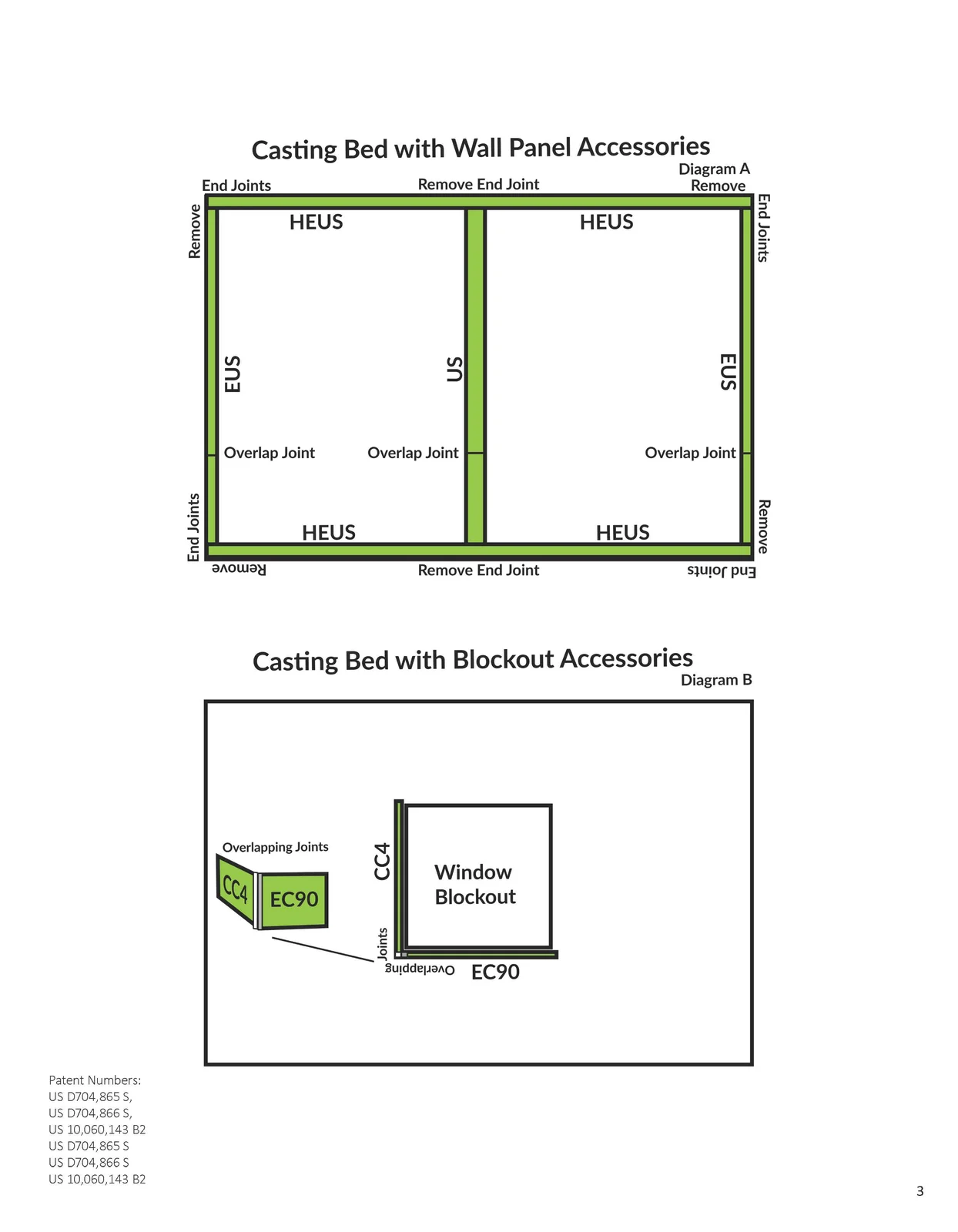

Casting bed layout showing edge underlayment on the rails and underlayment strips every 4 feet

Wall panels

Edge underlayment strip (EUS) on the side rails. Start at the top left and work down, overlap the strip joints, and line the joints up with the control joints marked every 4 feet.
Underlayment strip (US) every 4 feet across the bed, left to right and top to bottom, cut flush at the rails.
Horizontal edge underlayment (HEUS) on the top and bottom rails.
Glue the strips down. The liner sheets go over them, which locks the strips in place and keeps concrete from migrating under the liner at the horizontal joints.

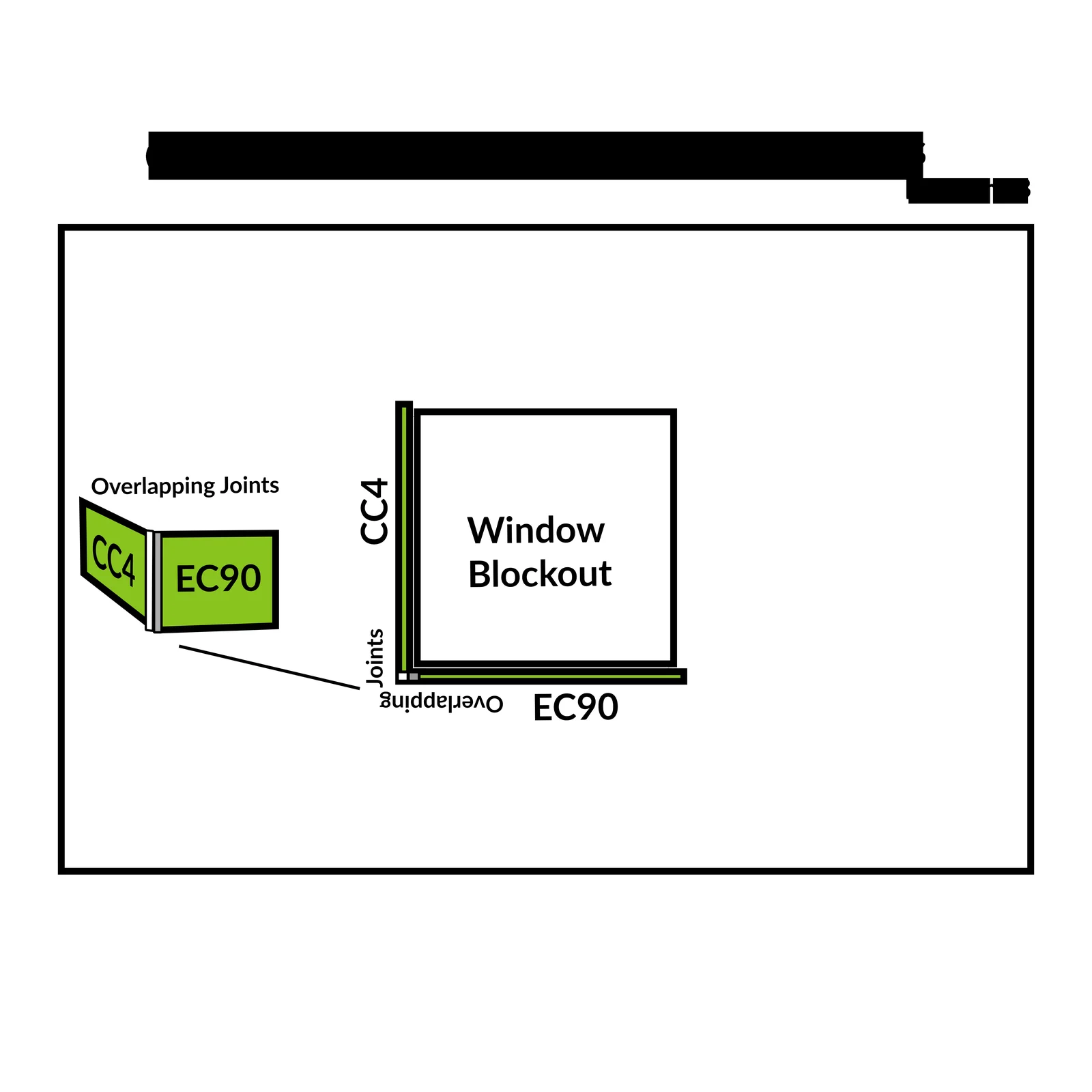

Casting bed layout with a window blockout lined with caulkless corners and edge caps

Window and door blockouts

Caulkless 90 degree corner (CC4, CC8 or CC12) down the sides of the blockout. Leave the first and last joint so they run past the blockout at the top and bottom, and overlap the joints between pieces.
Caulkless 90 degree edge cap across the blockout, butted up to the overhanging corner joints.
Glue the corners and caps down.
Lay the liner sheets, trimmed back 1/4 inch from the joint so they overlap the corner and the cap. The liner is not glued.
