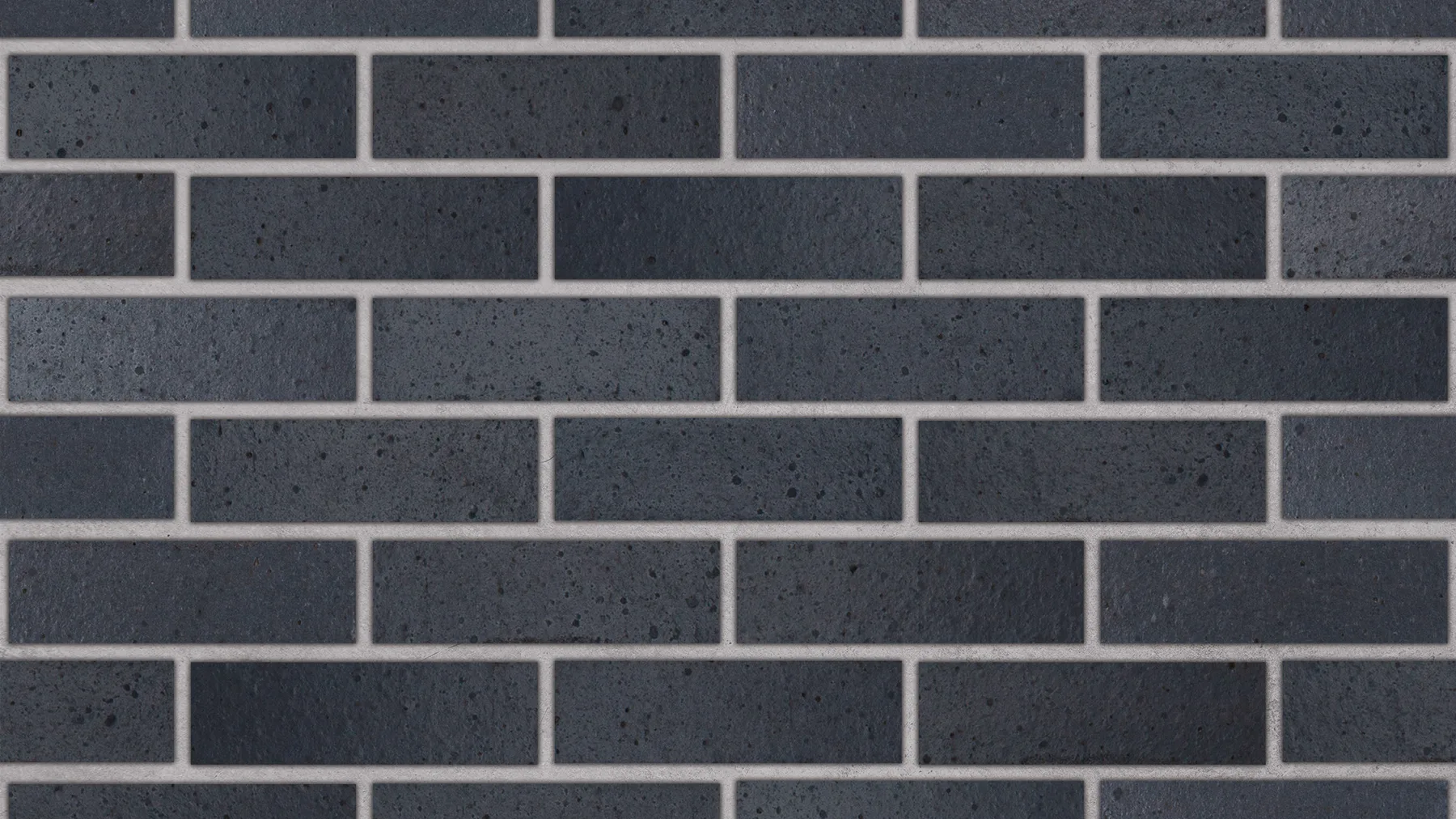

Endicott Manganese Ironspot thin brick laid in running bond

Endicott logo

Endicott thin brick for precast

See the colors Request samples

Endicott Manganese Ironspot, smooth texture.

Distributed by Advanced Formliners.

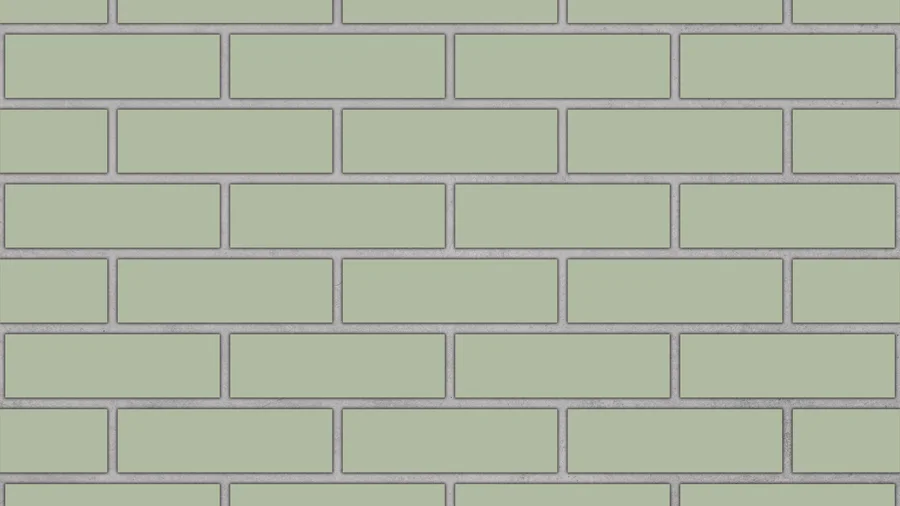

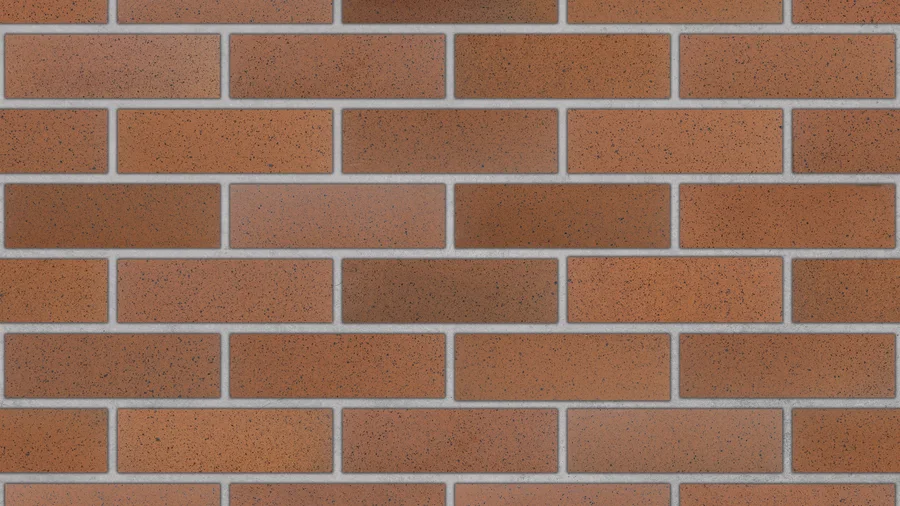

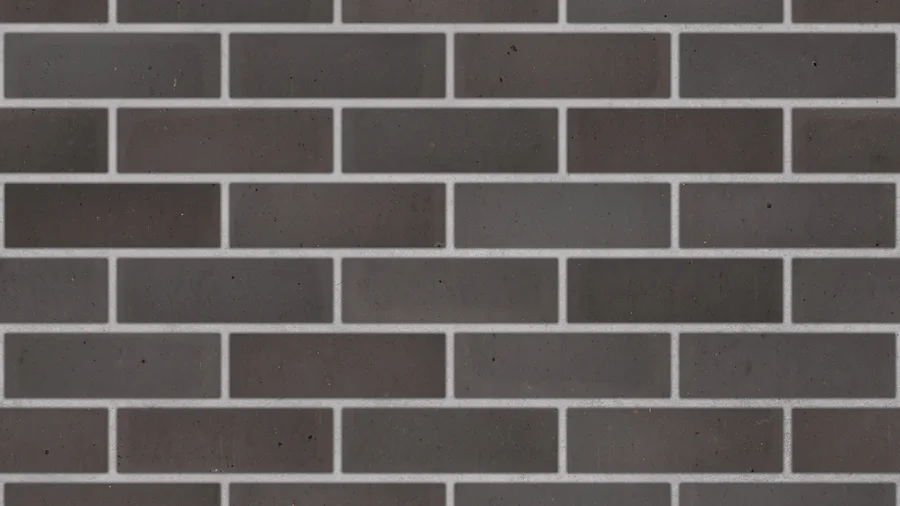

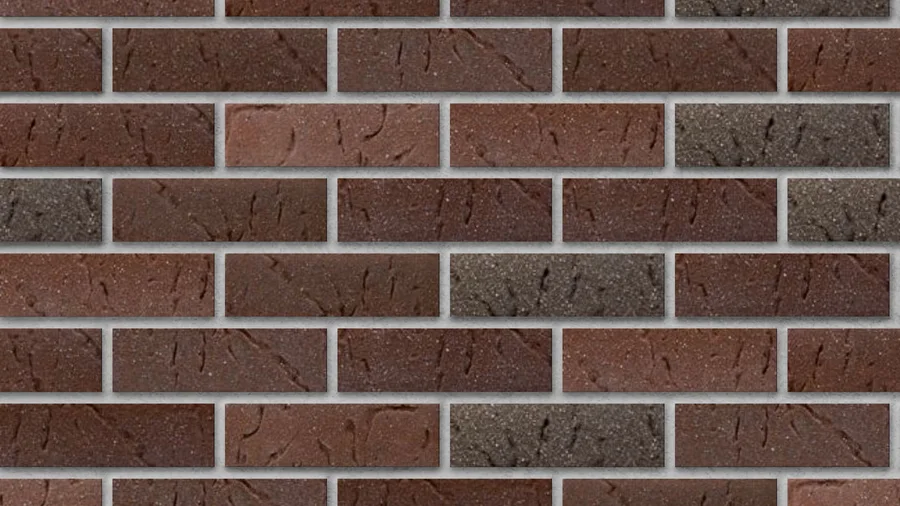

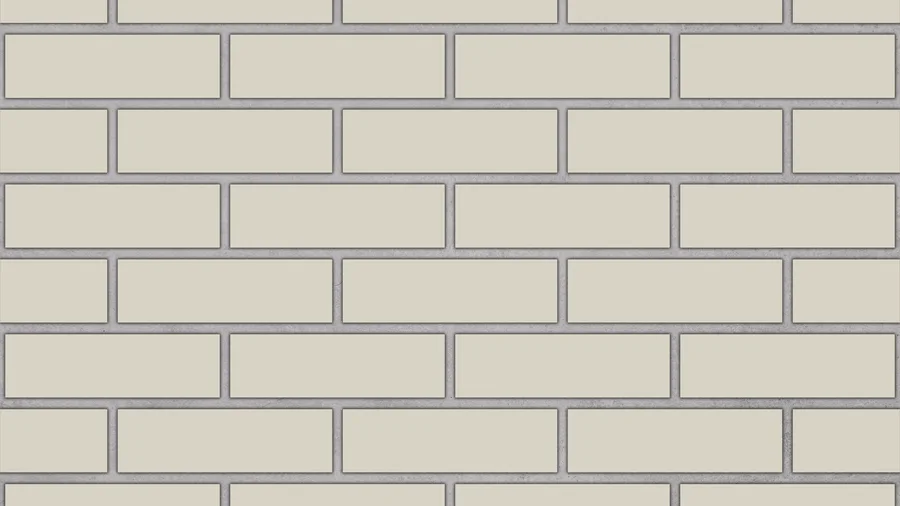

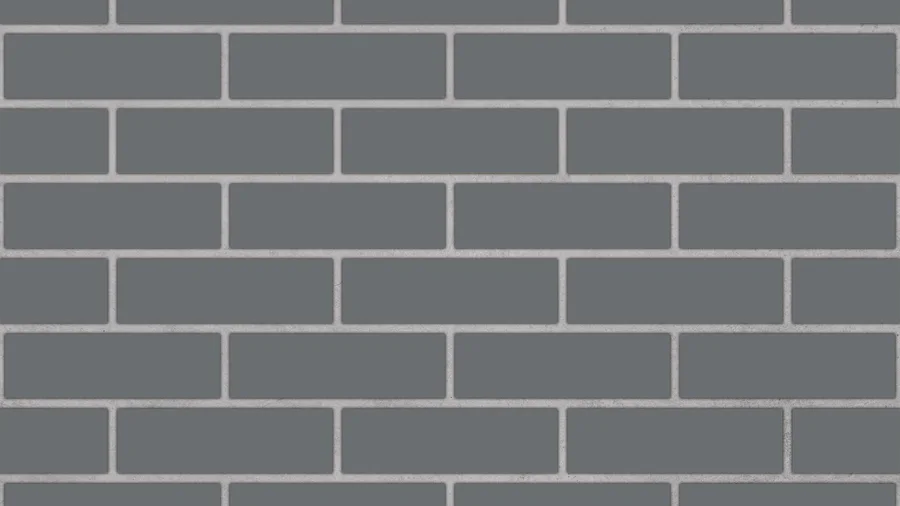

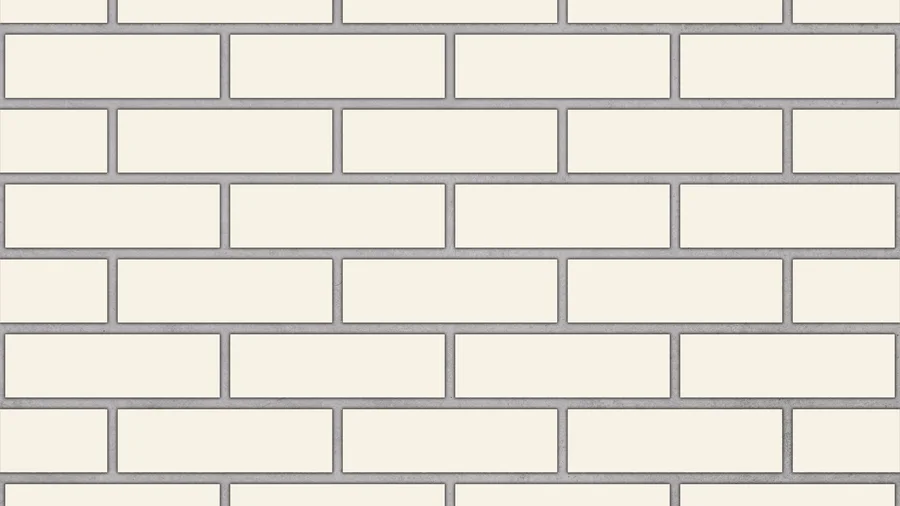

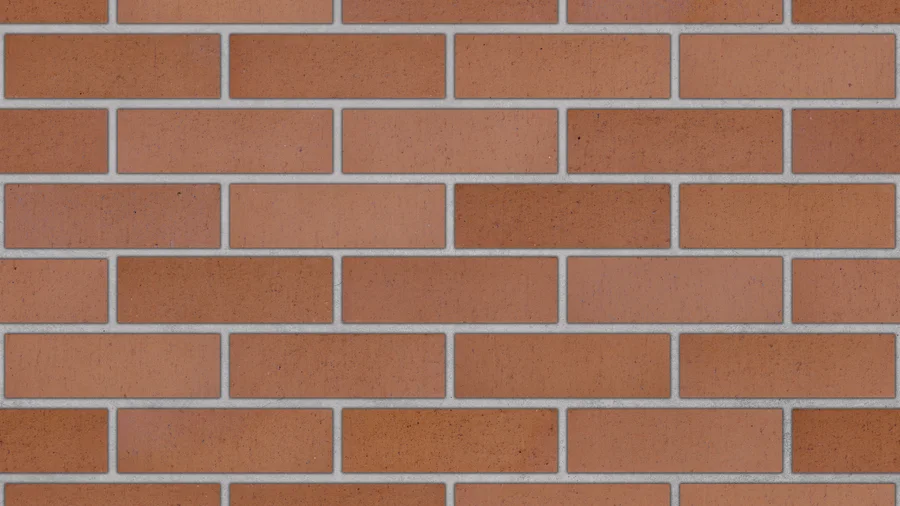

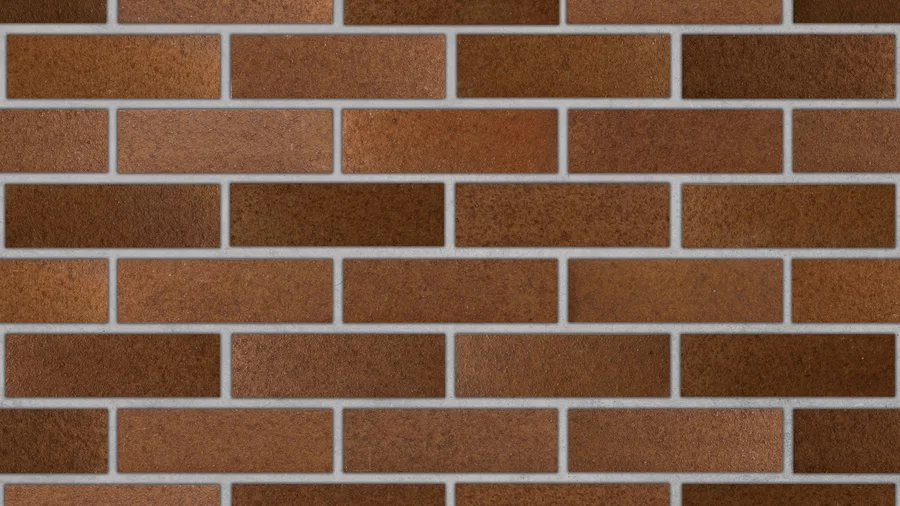

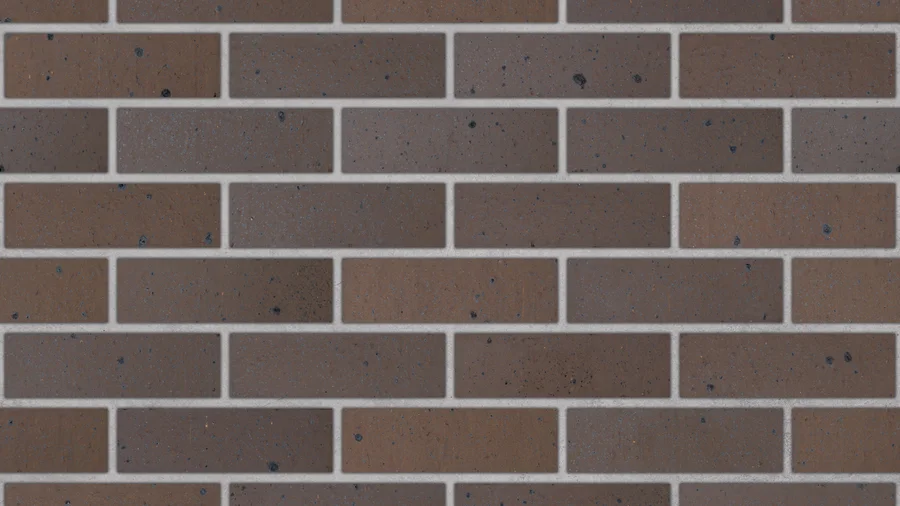

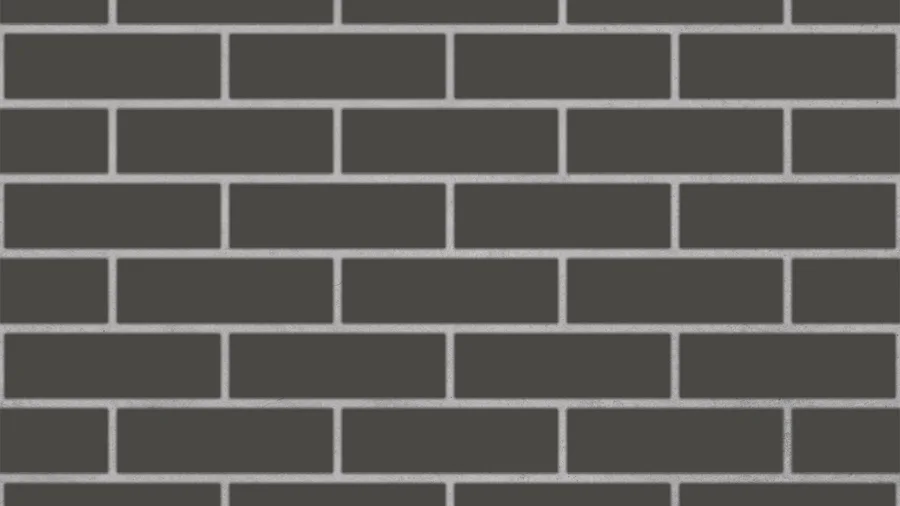

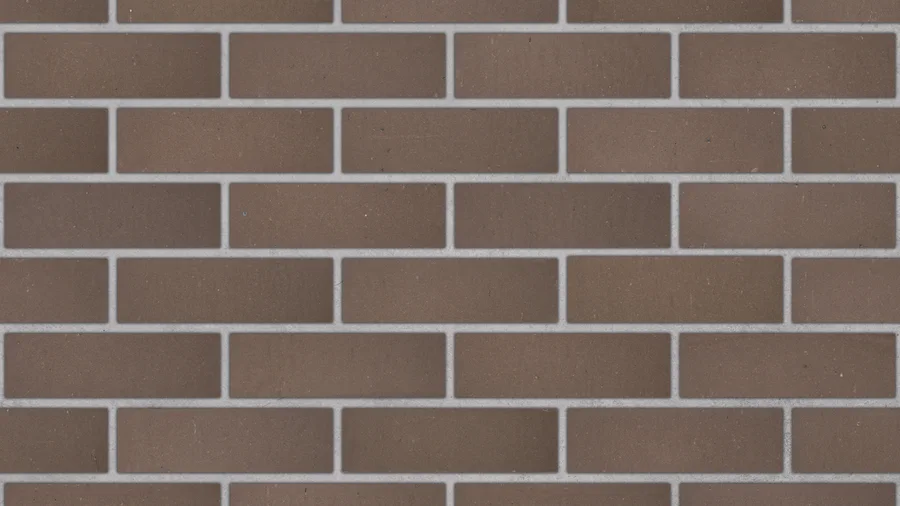

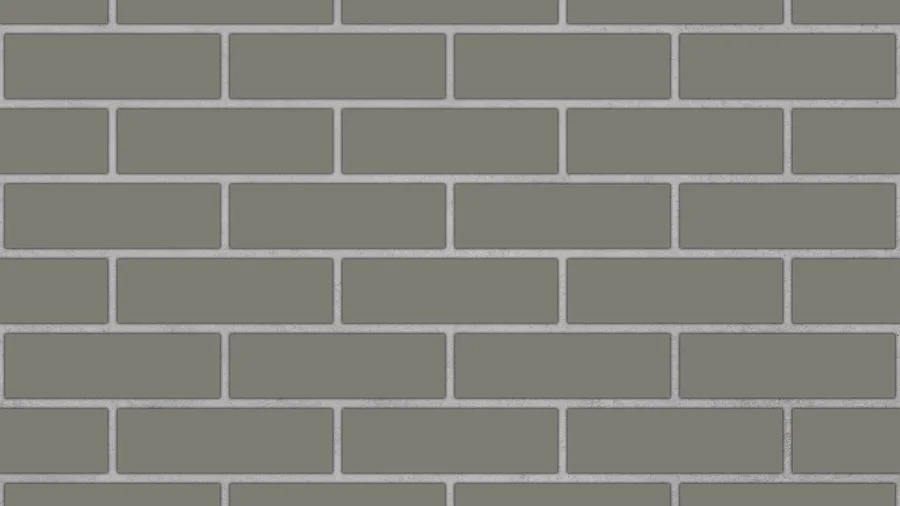

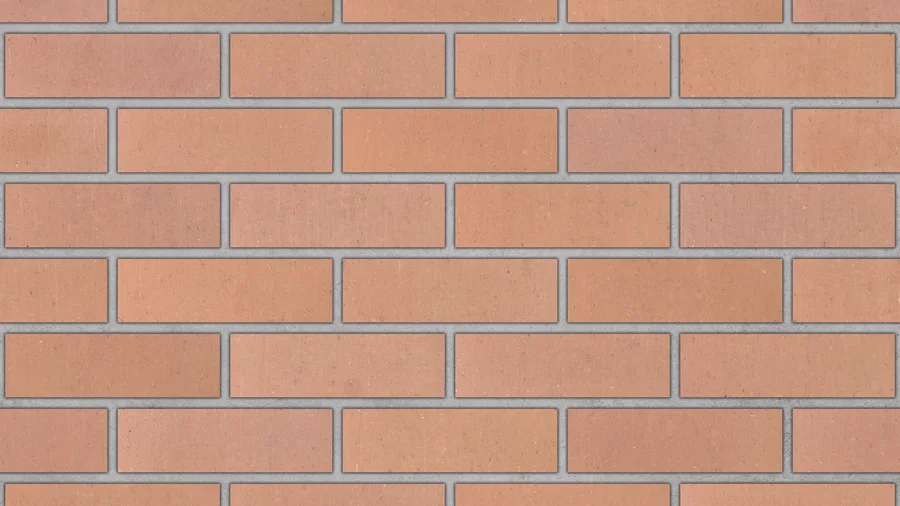

Endicott colors.

Filter and compare in the gallery

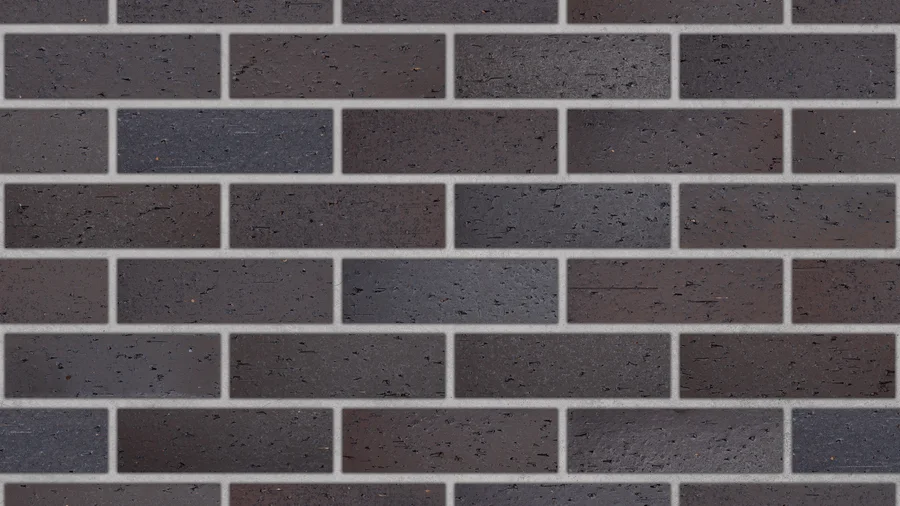

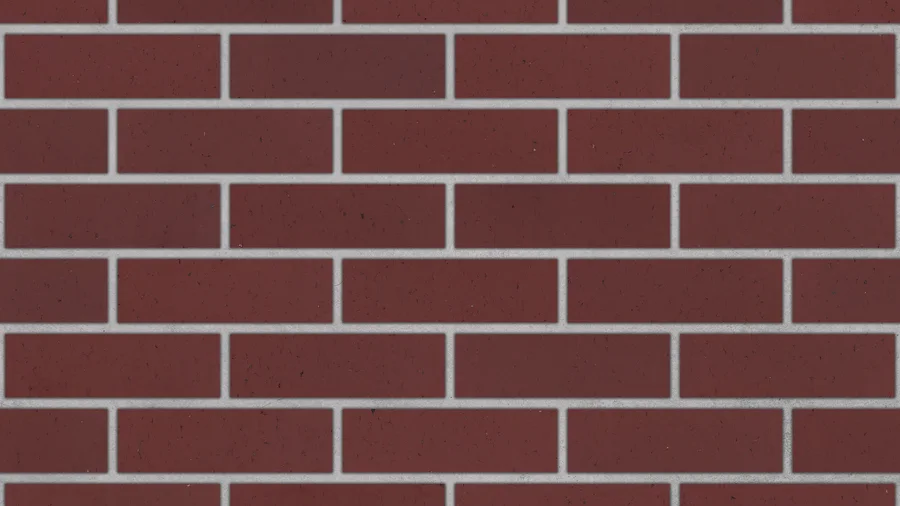

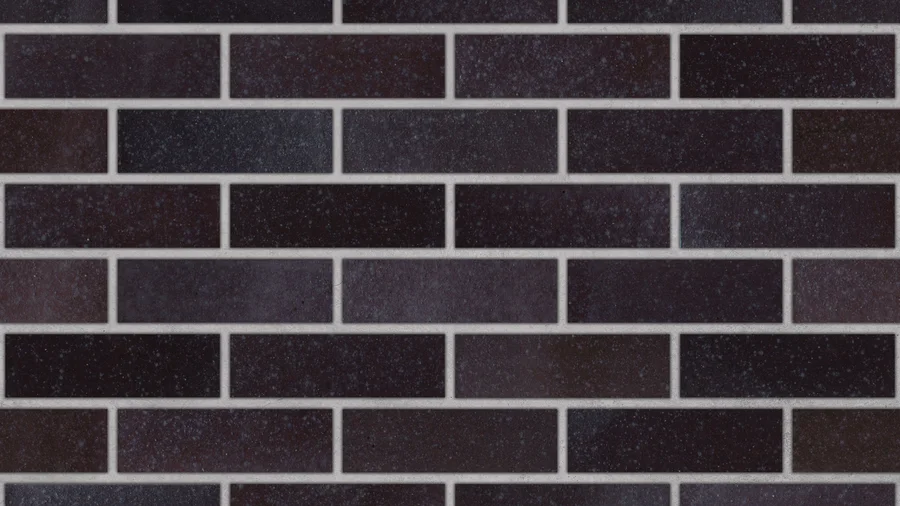

Black and manganese

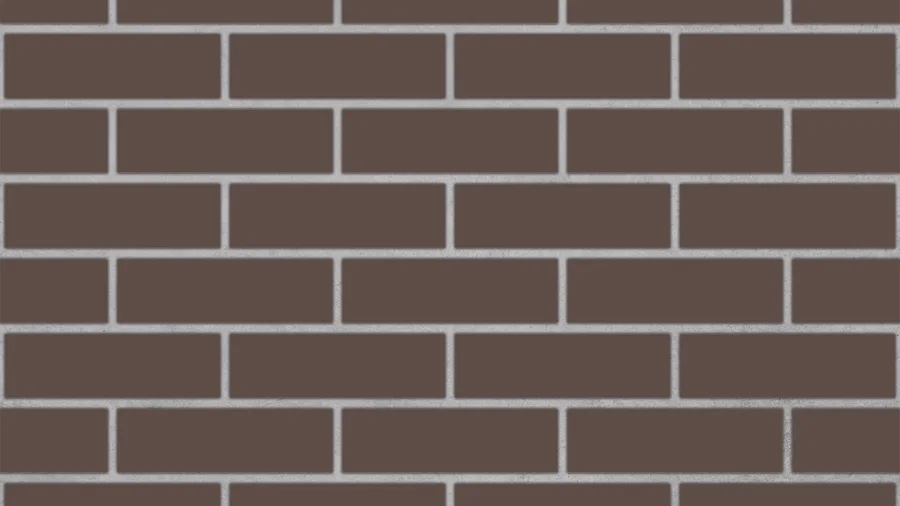

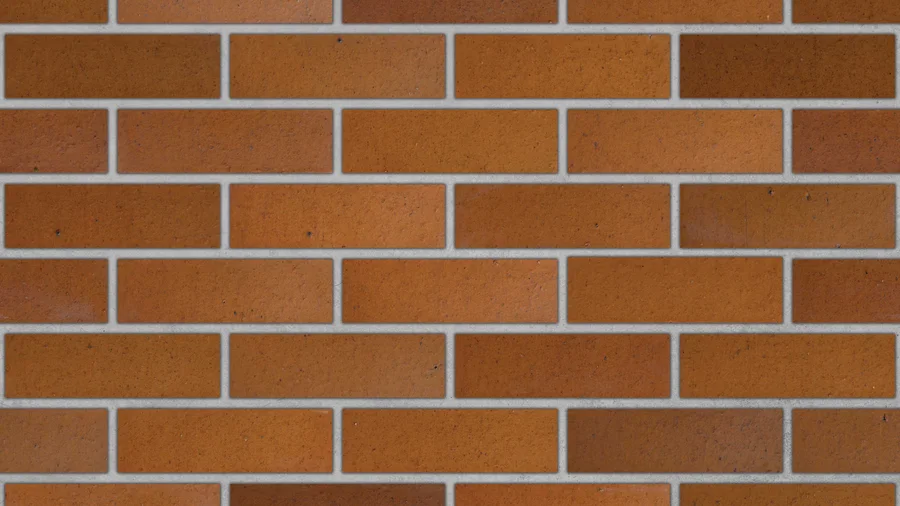

Brown

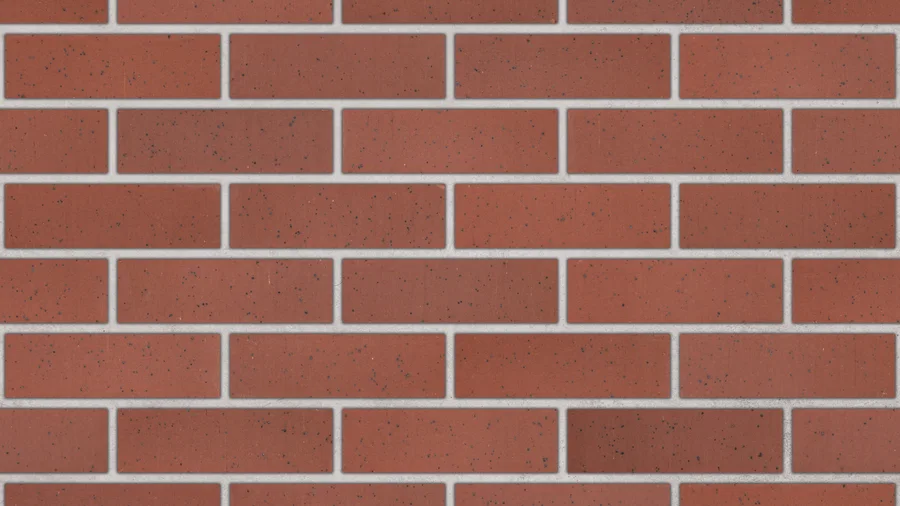

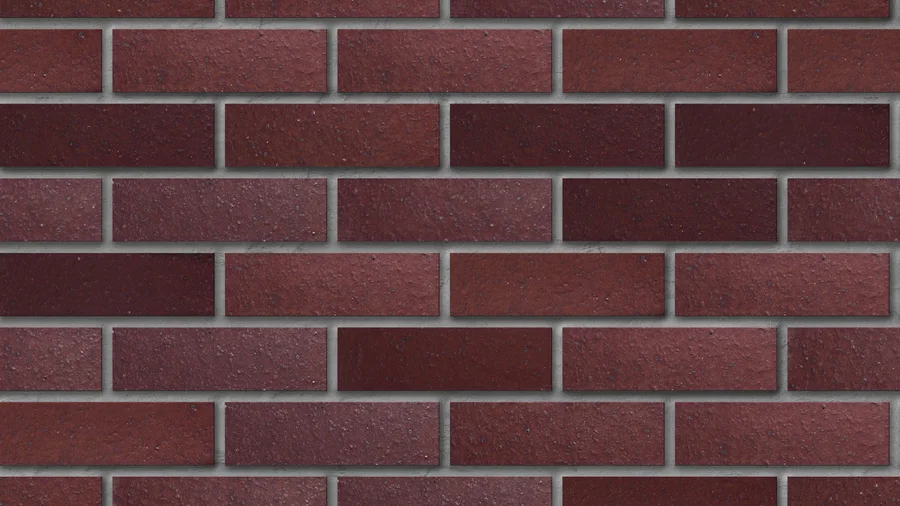

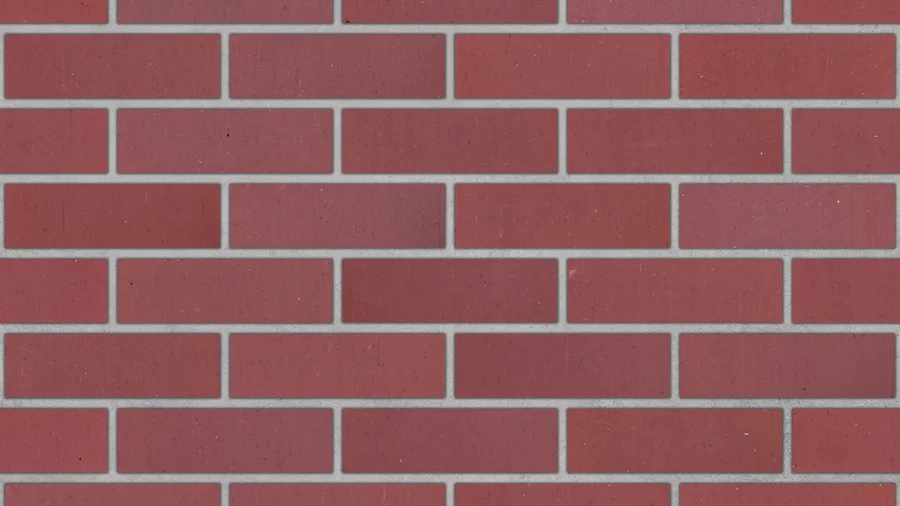

Red

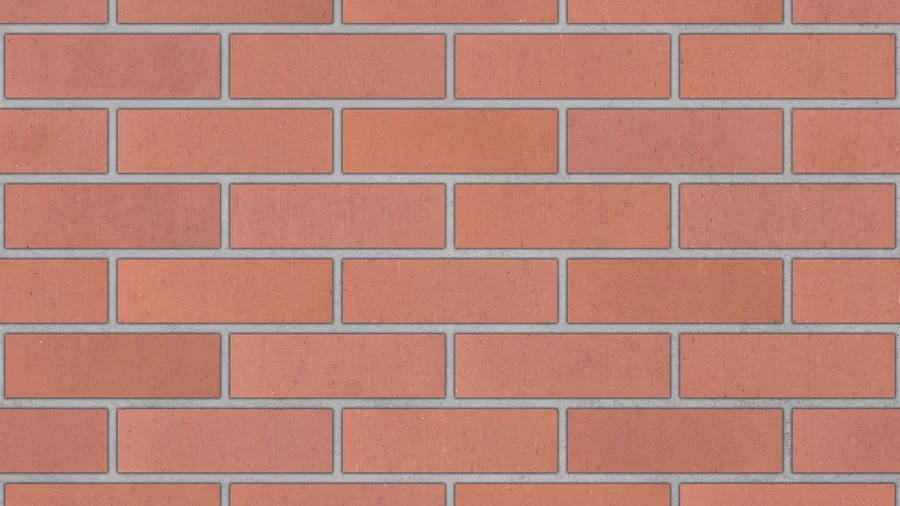

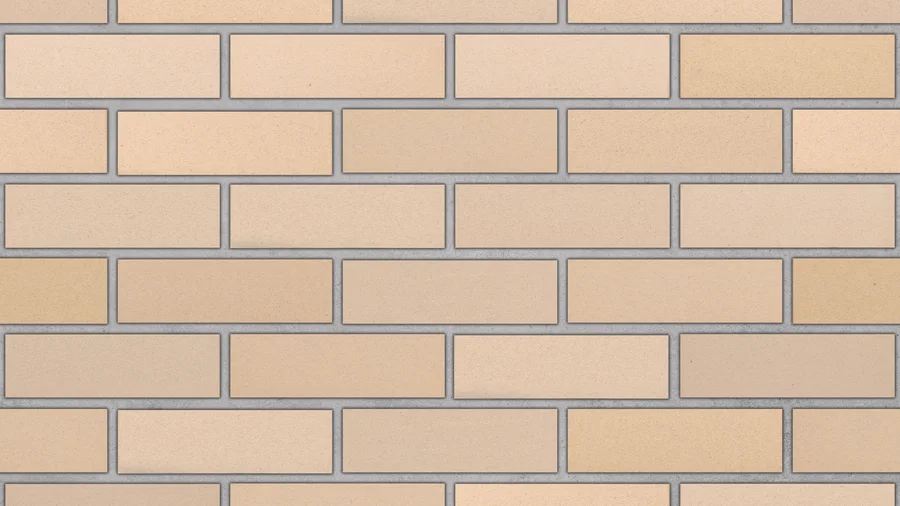

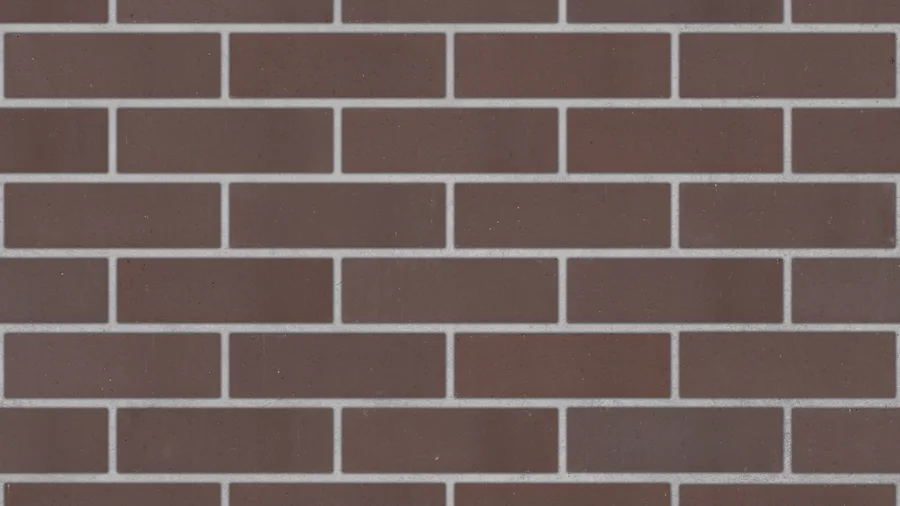

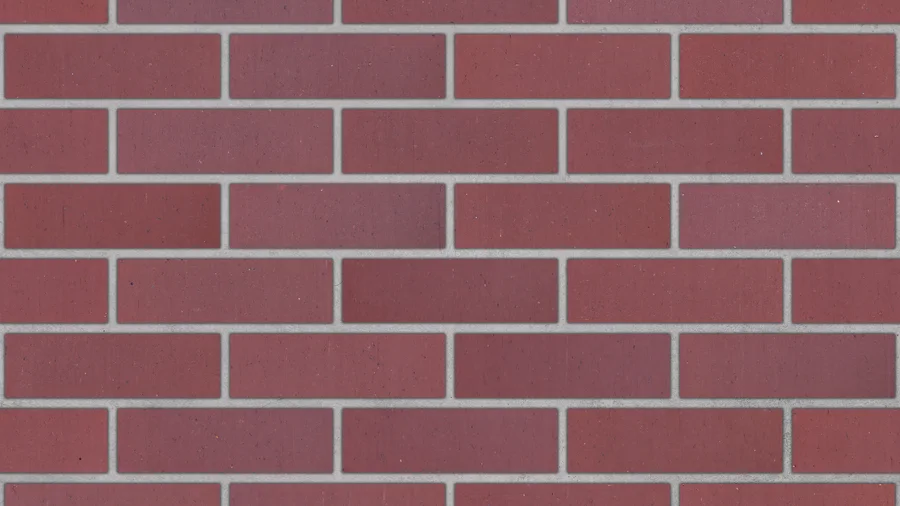

Blends

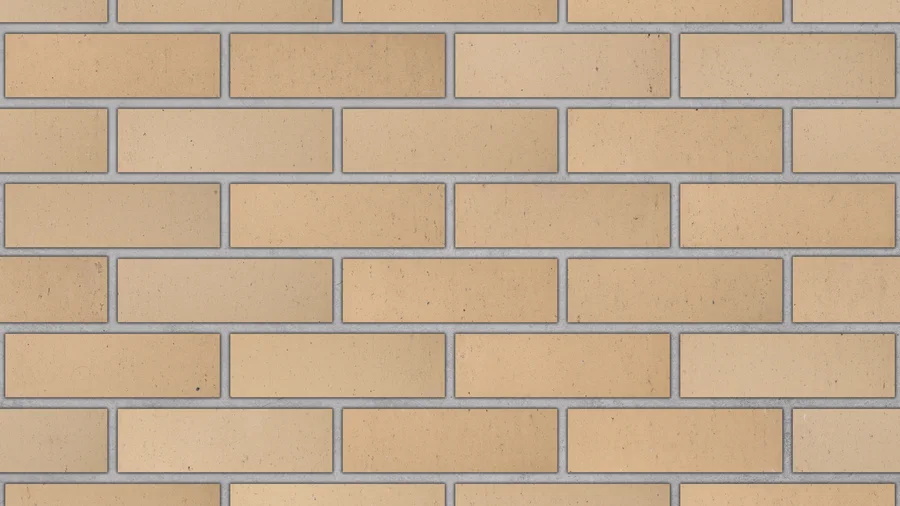

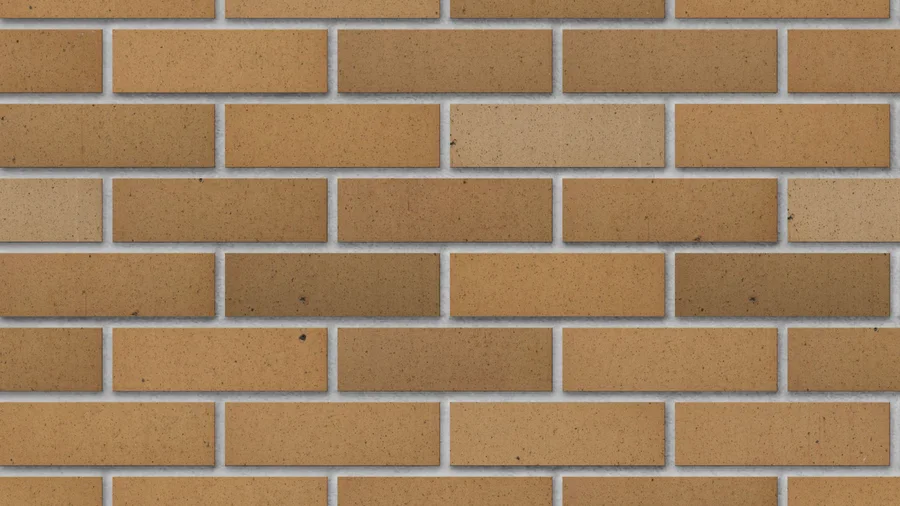

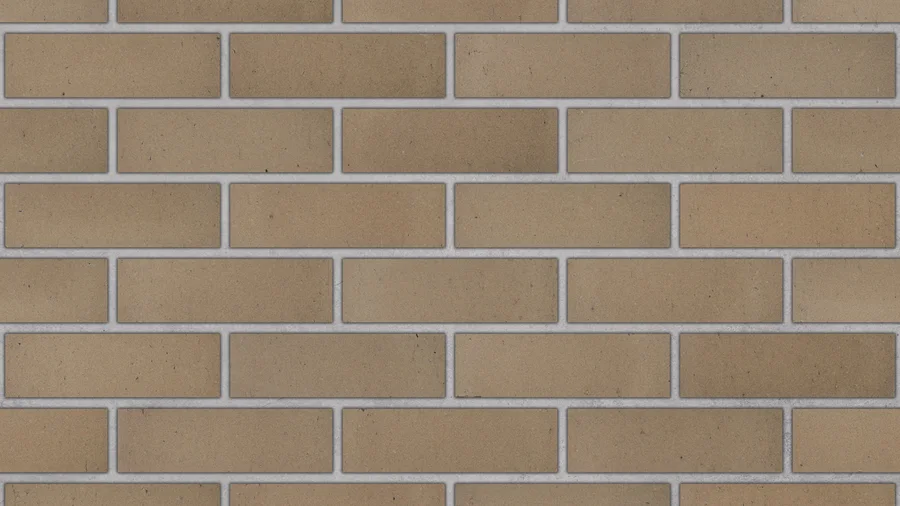

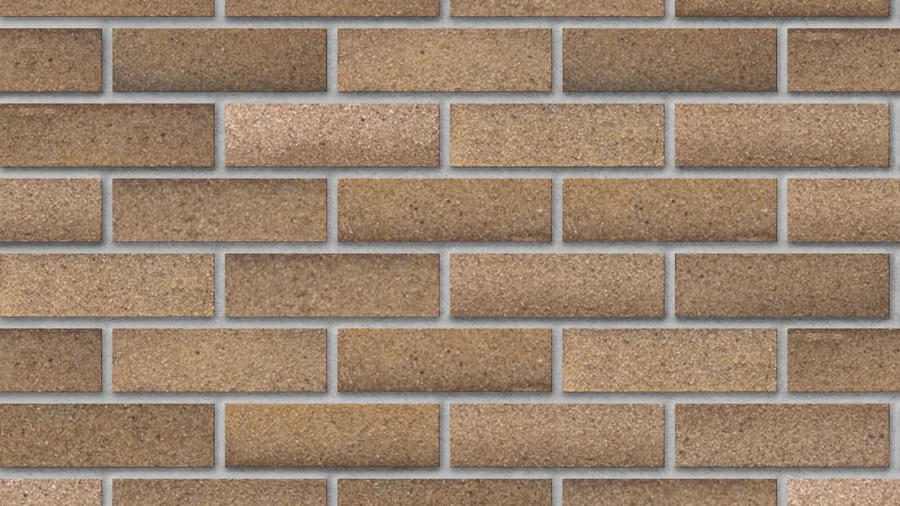

Tan and buff

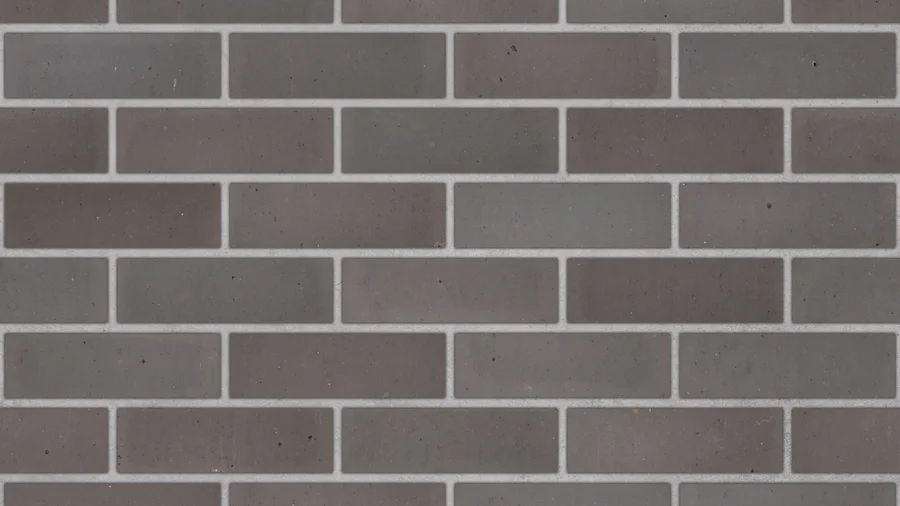

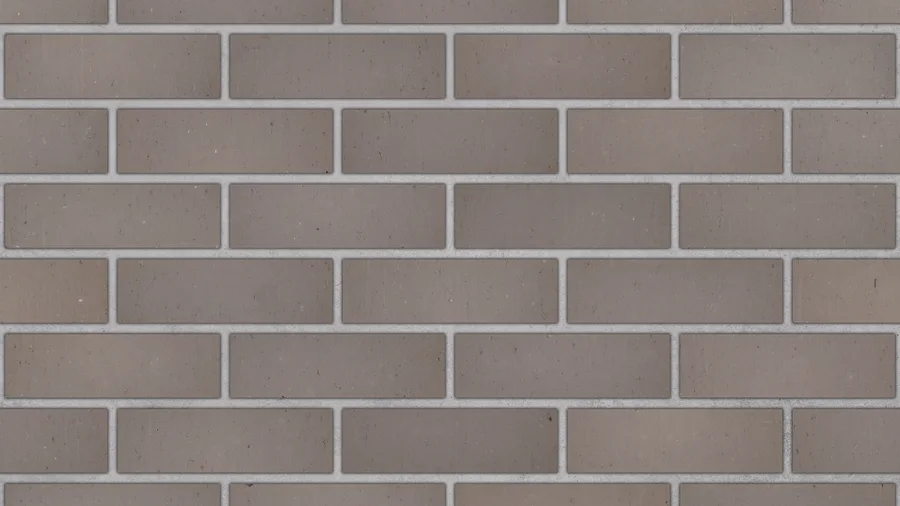

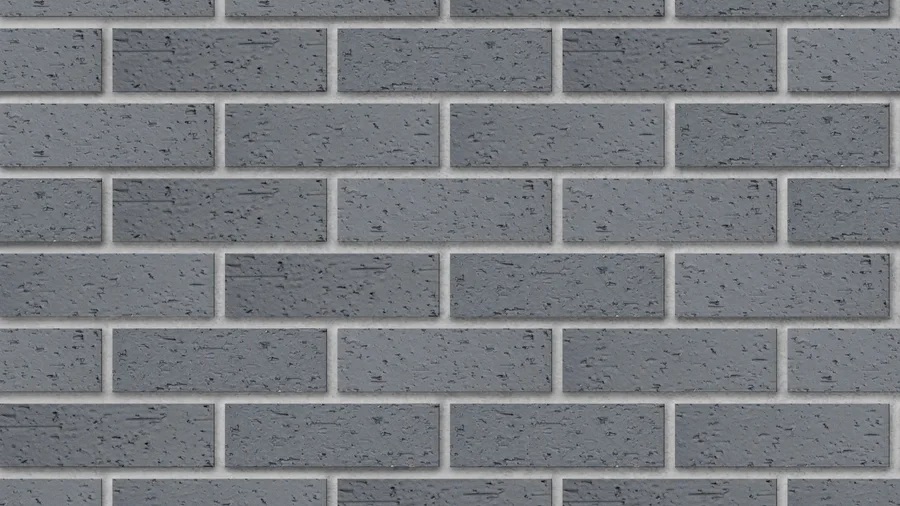

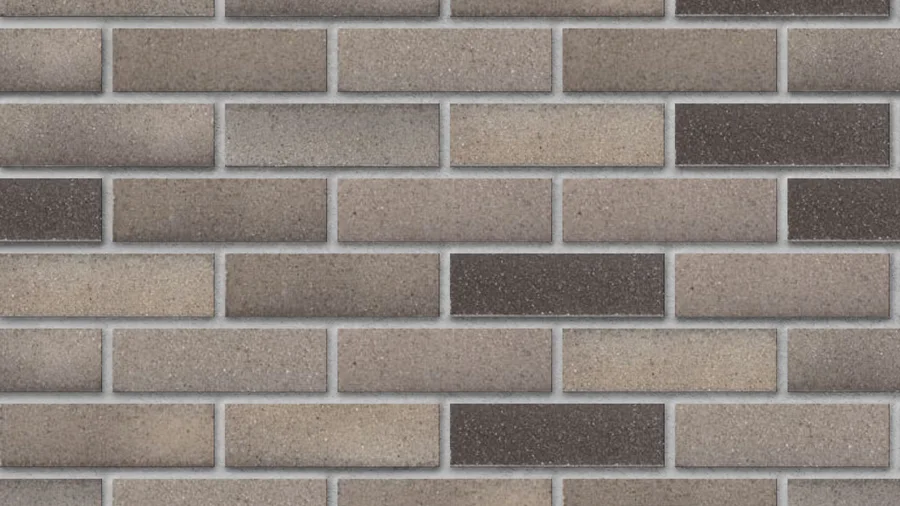

Gray

White and cream

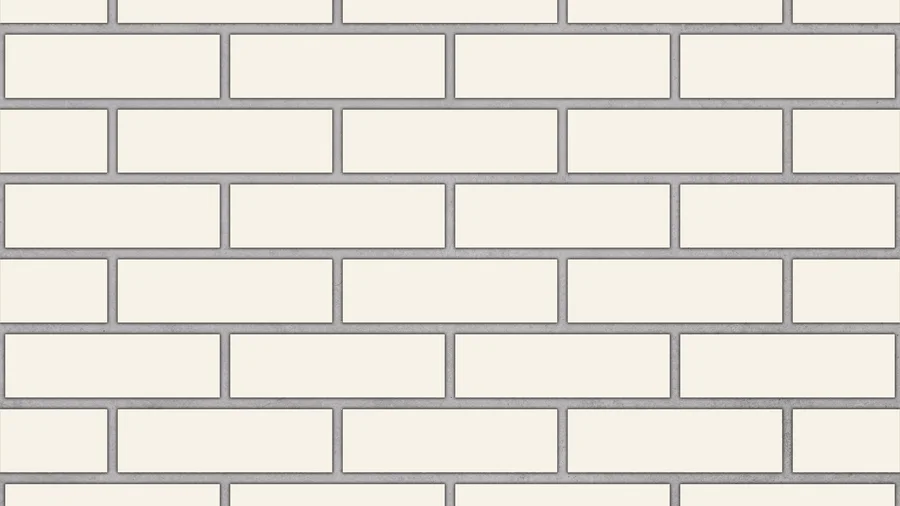

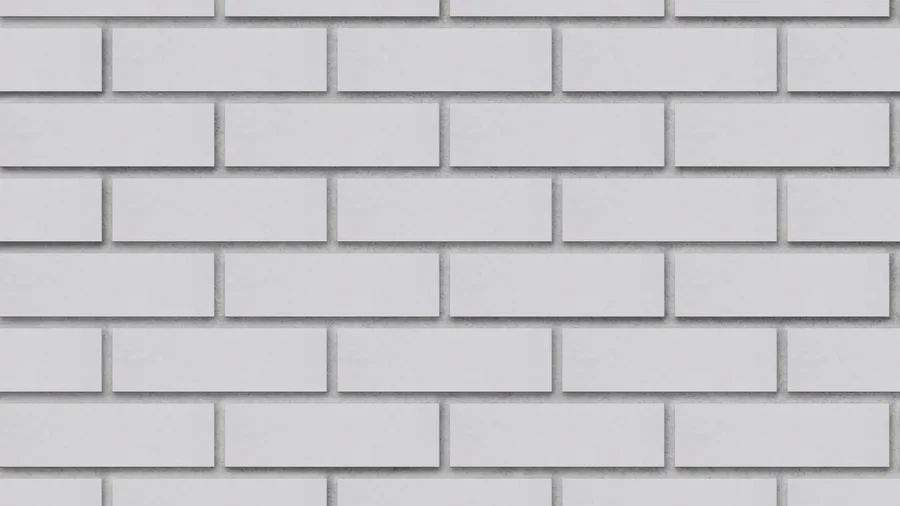

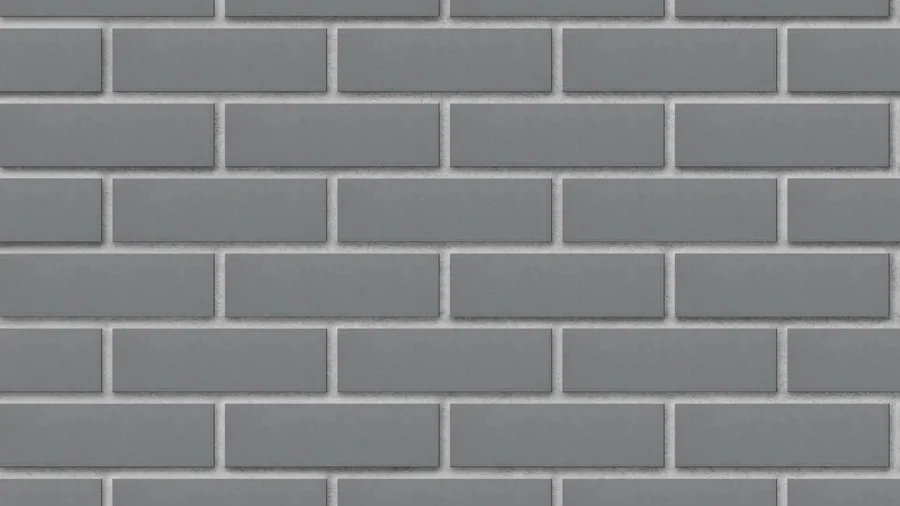

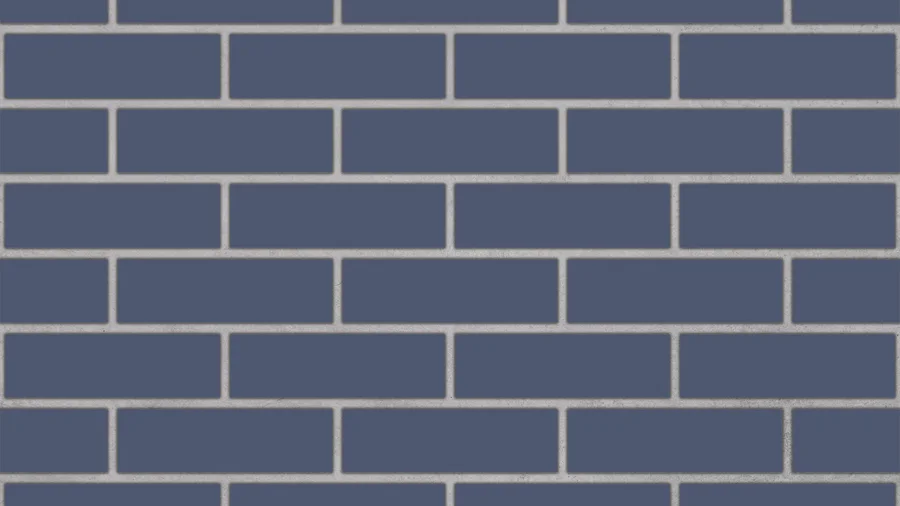

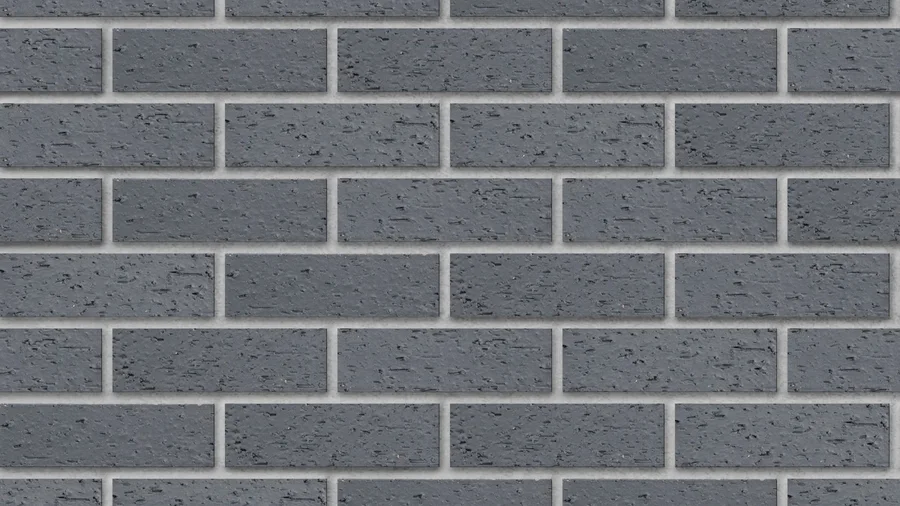

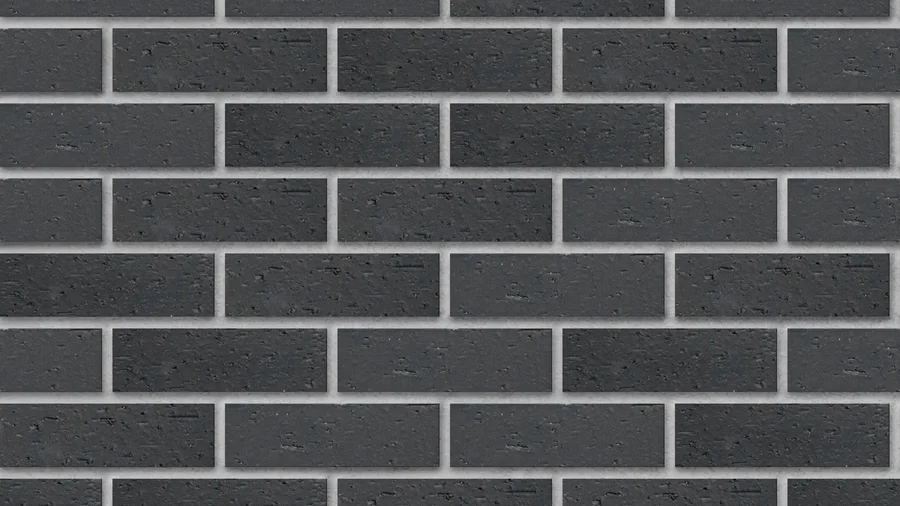

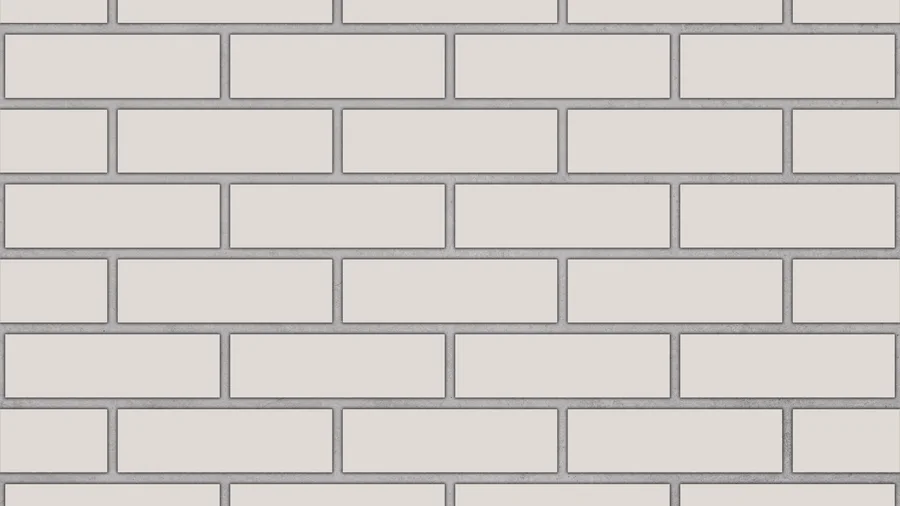

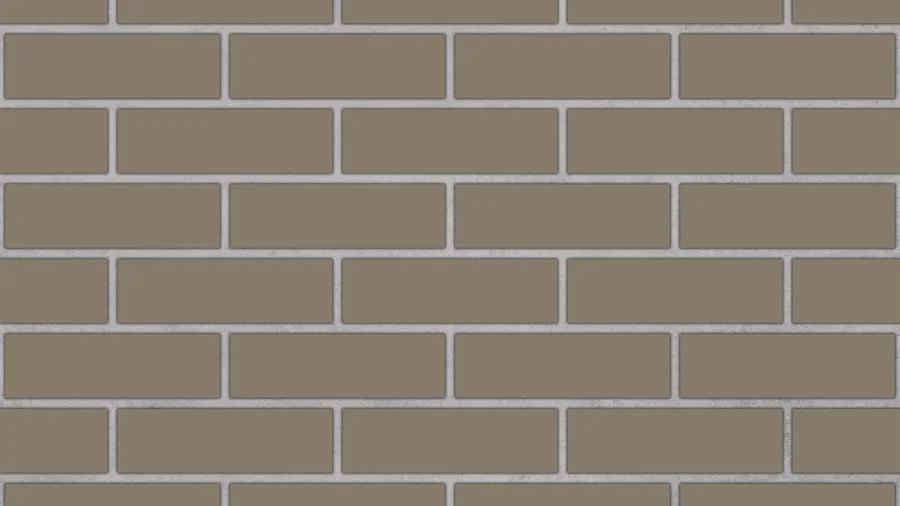

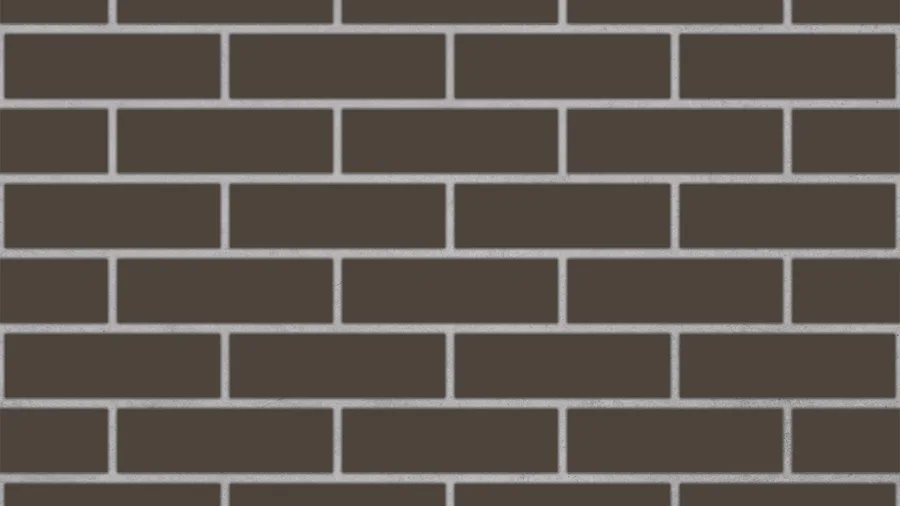

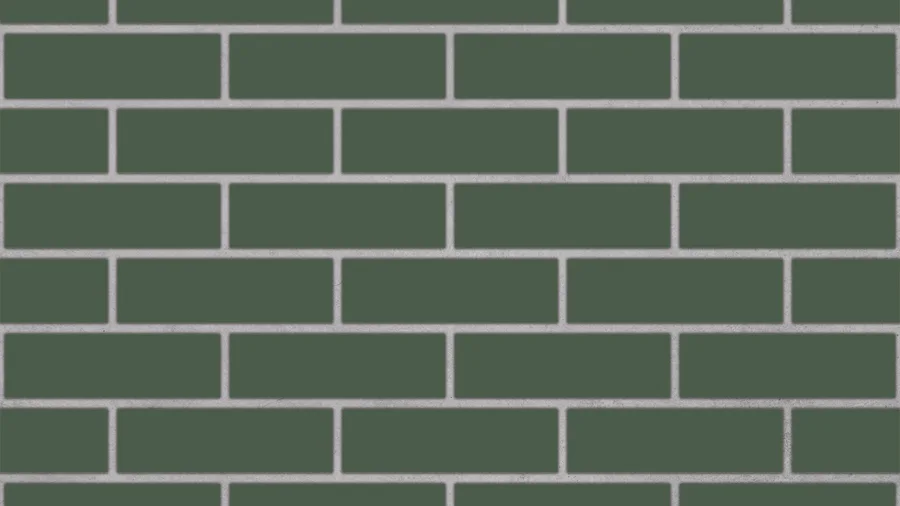

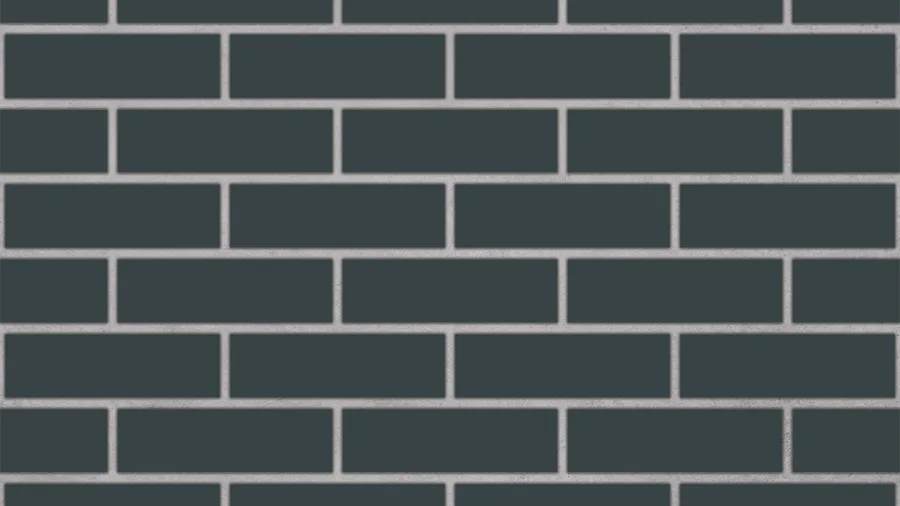

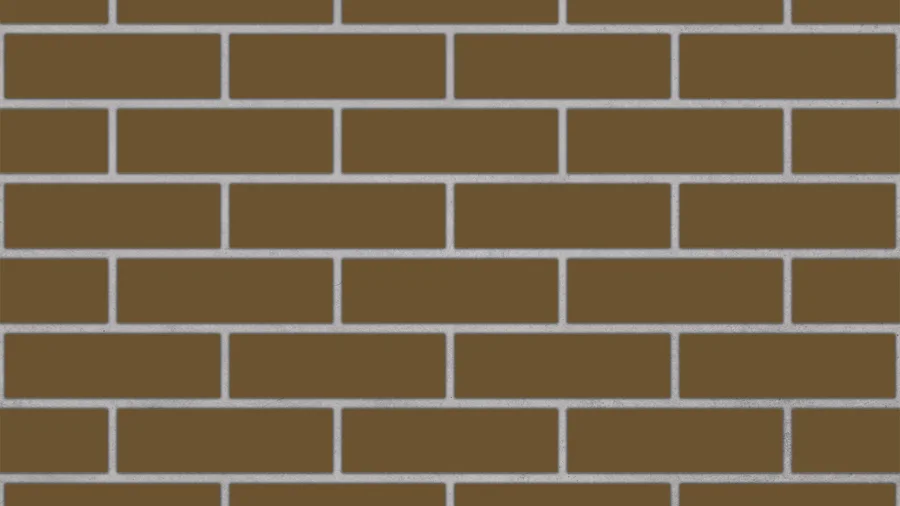

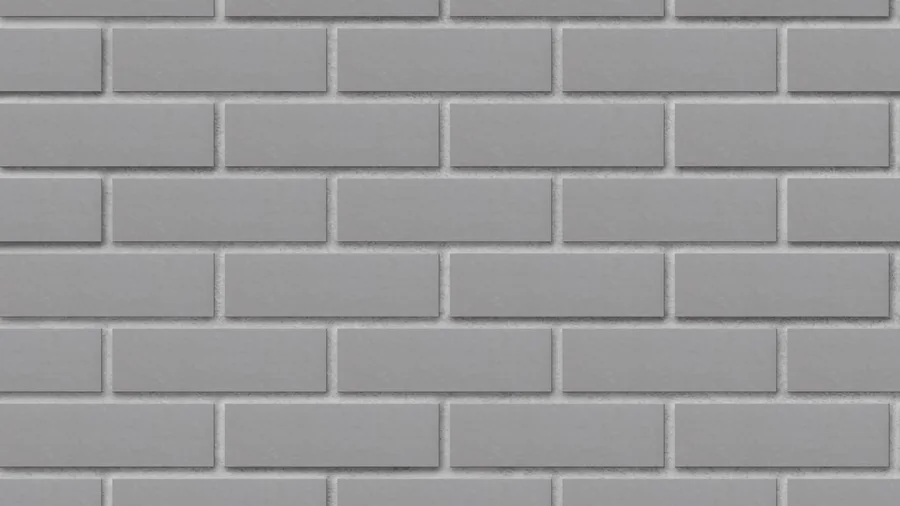

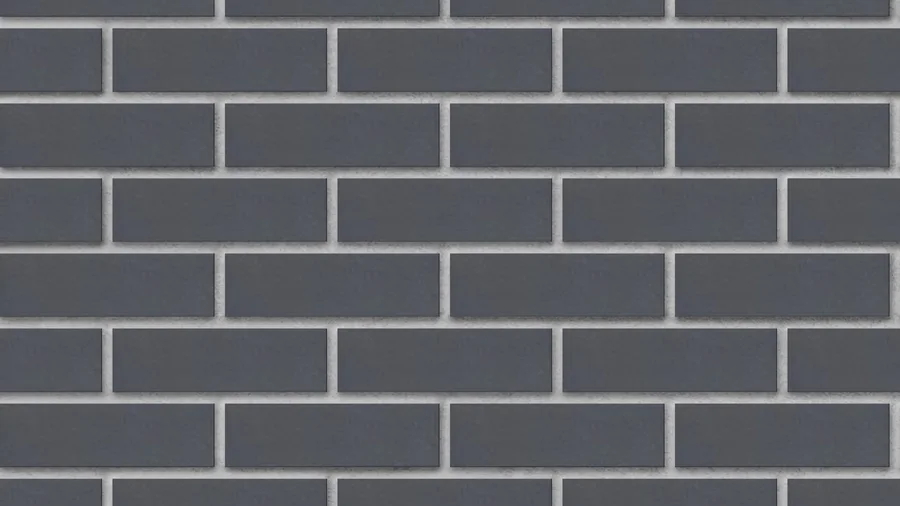

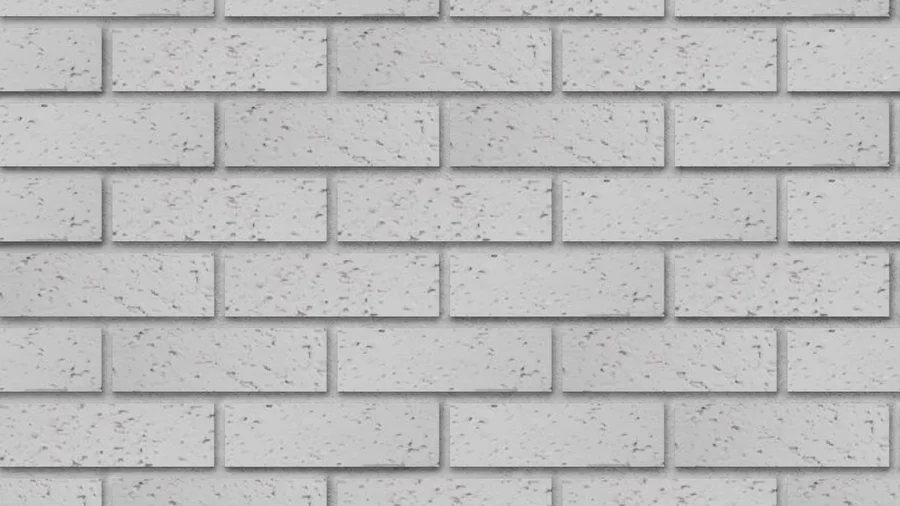

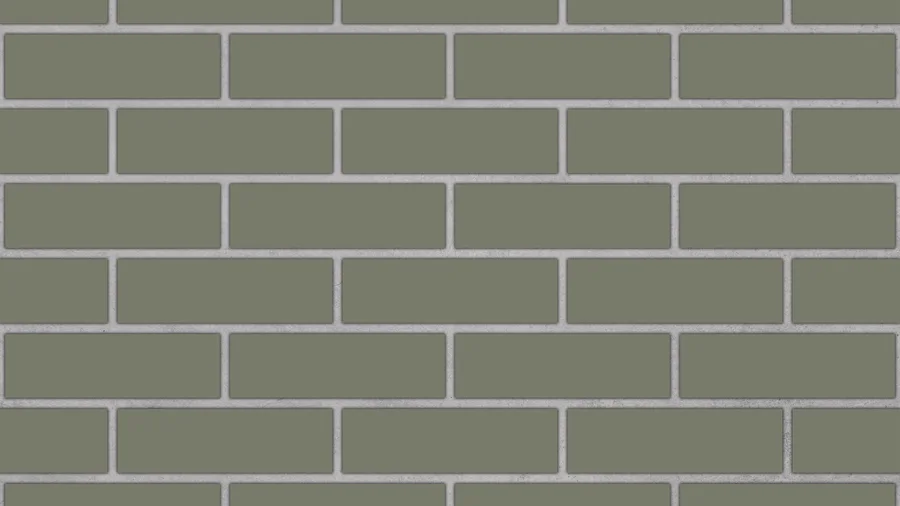

Glazed, glossy and matte

Face sizes and thicknesses.

Endicott's seven thin brick face sizes drawn to one scale, with the three thicknesses
Drawn by Advanced to the dimensions in Endicott thin brick brochure END-TBB-0322, p.9 and p.11.
From brochure END-TBB-0322, p.9 and p.11, and 042313 sections 2.2 C and D

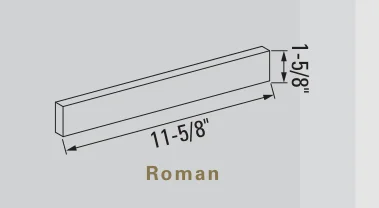

Roman 1-5/8 by 11-5/8 in.

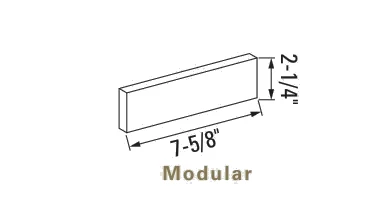

Modular 2-1/4 by 7-5/8 in.

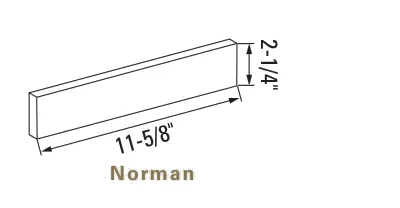

Norman 2-1/4 by 11-5/8 in.

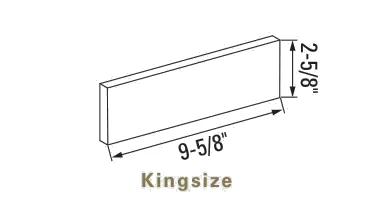

Kingsize 2-5/8 by 9-5/8 in.

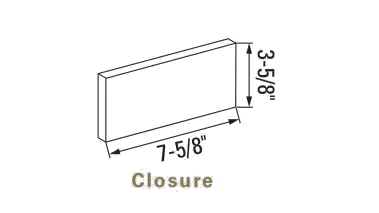

Closure 3-5/8 by 7-5/8 in.

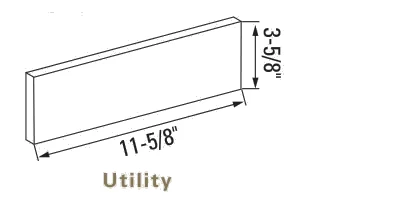

Utility 3-5/8 by 11-5/8 in.

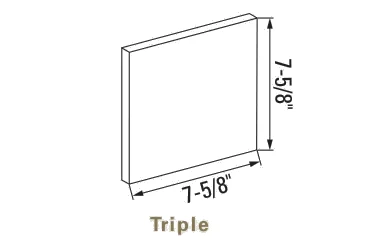

Triple 7-5/8 by 7-5/8 in., in 1/2 in. and 5/8 in. only.
Thicknesses 1/2 in., 5/8 in. and 1 in. The 5/8 in. textures run in Modular and Closure only.

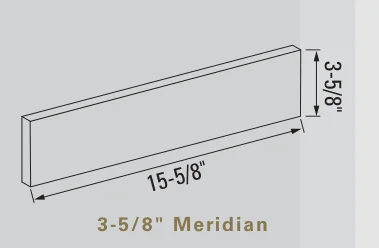

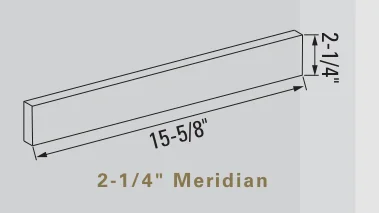

Long units The 042313 section also lists 15-5/8 in. long units at 1 in. thick, on the 2-1/4 in. and 3-5/8 in. faces, in certain colors.

Corners, edge caps and sills.

The corner code reads height, then return, then face length in nominal inches.

Dimensions read height by face length by return

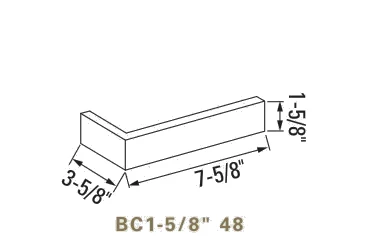

BC1-5/8"48 3-5/8 by 7-5/8 in. with a 1-5/8 in. return, for the Roman face.
BC1-5/8"412 3-5/8 by 11-5/8 in. with a 1-5/8 in. return. 1 in. thick only.

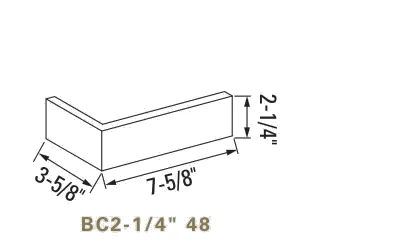

BC2-1/4"48 3-5/8 by 7-5/8 in. with a 2-1/4 in. return, for Modular and Norman.

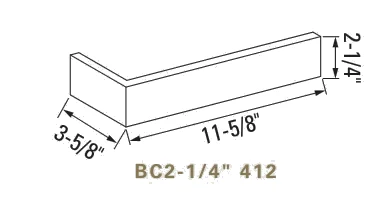

BC2-1/4"412 3-5/8 by 11-5/8 in. with a 2-1/4 in. return. 1 in. thick only.

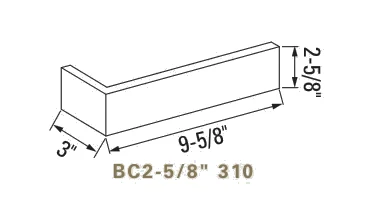

BC2-5/8"310 3 by 9-5/8 in. with a 2-5/8 in. return, for Kingsize.

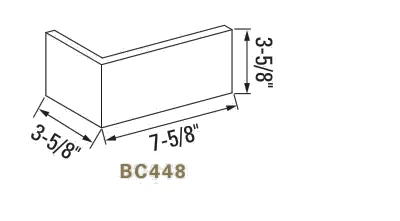

BC448 3-5/8 by 7-5/8 in. with a 3-5/8 in. return, for Closure and Utility.

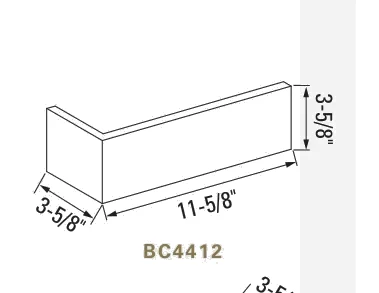

BC4412 3-5/8 by 11-5/8 in. with a 3-5/8 in. return. 1 in. thick only.
BC848 3-5/8 by 7-5/8 in. with a 7-5/8 in. return, for the Triple.

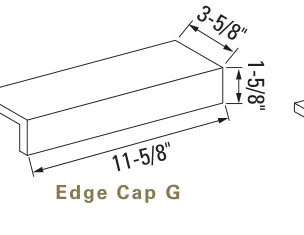

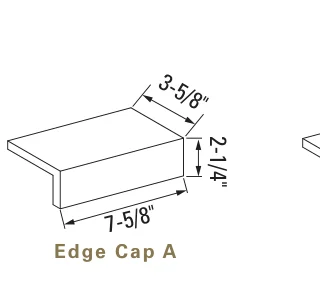

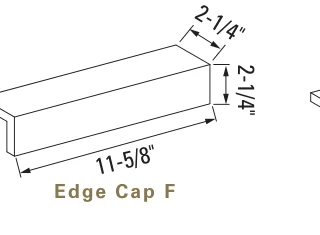

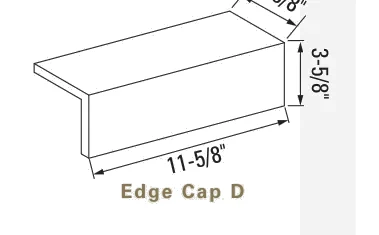

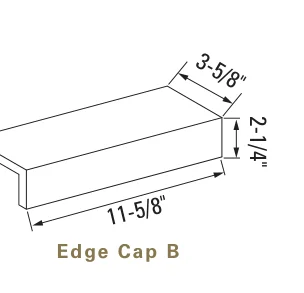

Edge caps A to H A 3-5/8 by 7-5/8 by 2-1/4 in. B 3-5/8 by 11-5/8 by 2-1/4 in. C 3-5/8 by 7-5/8 by 3-5/8 in. D 3-5/8 by 11-5/8 by 3-5/8 in. E 2-1/4 by 7-5/8 by 2-1/4 in. F 2-1/4 by 11-5/8 by 2-1/4 in. G 3-5/8 by 11-5/8 by 1-5/8 in. H 1-5/8 by 11-5/8 by 1-5/8 in.

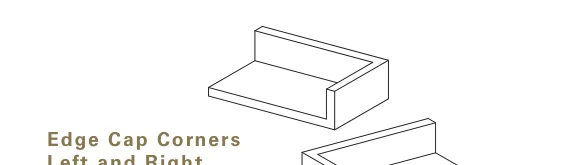

Edge cap corners Left and right. The three-sided left and right units carry the edge cap dimensions above.
Rolok sill 2-1/4 by 3-1/2 by 3-5/8 in. Internal corner 4-1/2 by 2-1/2 by 3-5/8 in. External corner 2-1/4 by 4-3/4 by 3-5/8 in.

PCI and test data.

Endicott meets PCI tolerances and standards. Tumbled and handmade units fall outside PCI tolerances.

What the PCI standard requires Which liner fits your brick
From Endicott's 042313 section and thin brick brochure
Made at Endicott, Nebraska.
Type TBX or TBS under ASTM C1088, tested per ASTM C67, per the 042313 section. Not printed on the individual color pages.
Back Keyback, so the concrete keys into the back of the unit.
Absorption, freeze thaw, efflorescence Not published. Endicott issues no per-color technical data sheet. Ask a rep for reports on the color you are specifying.
Packaging Not published. The 042313 section asks that units arrive on pallets with faces protected, are kept dry and are not double stacked.
Applications named Precast embedded, thin bed with a leveling coat over precast or poured concrete, mortar bed over CMU or stud, panel systems, and metal panel wall systems.

Textures.

Each texture with the thickness and faces it runs in.

Smooth 1/2 in. and 1 in. All six faces, and the Triple on the Ironspot, Blend, Graphite and Coppertone colors.
Velour 1/2 in. and 1 in. The same faces as Smooth.

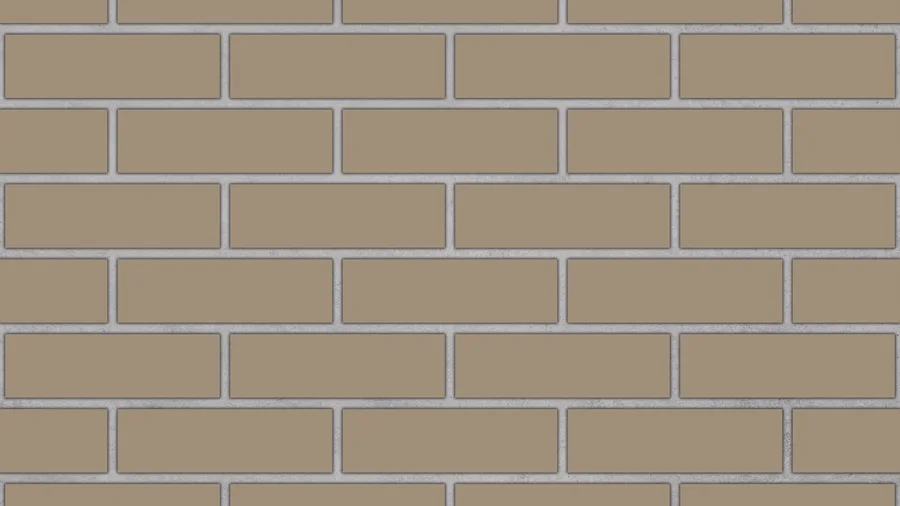

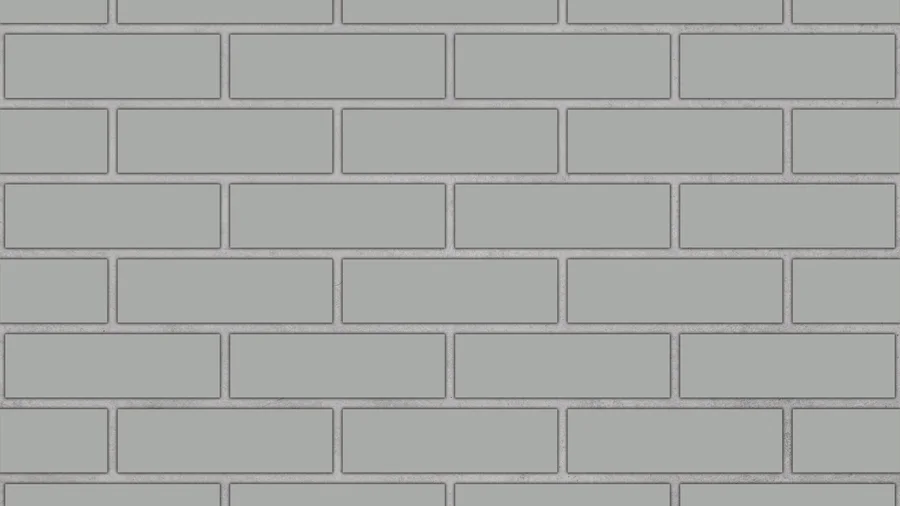

Matt 5/8 in. only, in Modular and Closure.
Vertical Score 5/8 in. only, in Modular and Closure. Not photographed on the Endicott color pages, so ask a rep for a sample.
Artisan 5/8 in. only, in Modular and Closure.

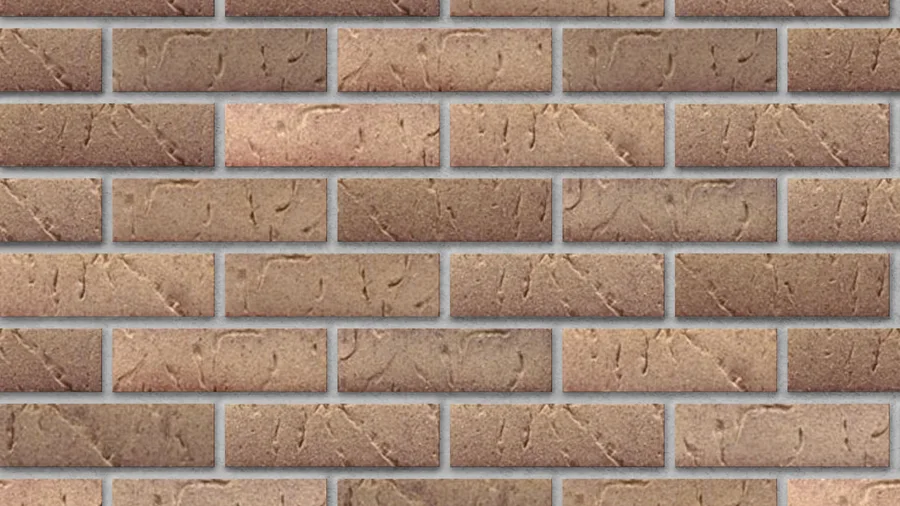

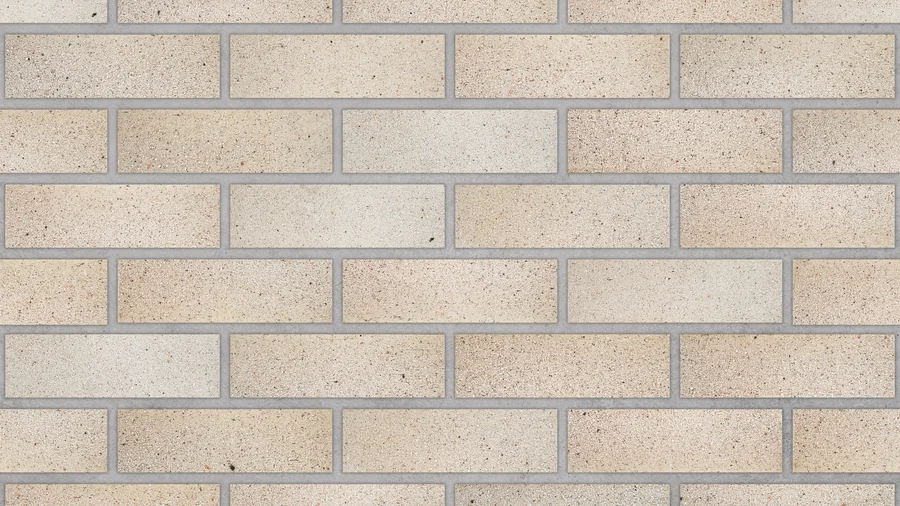

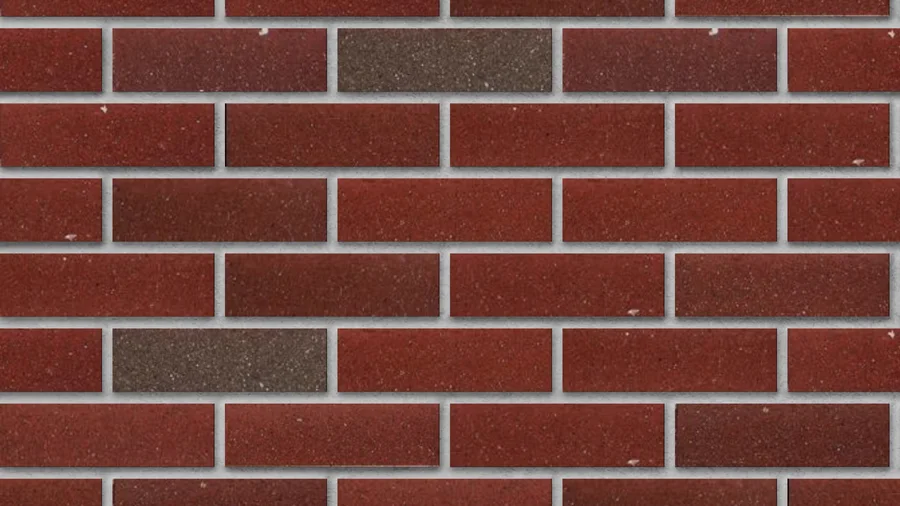

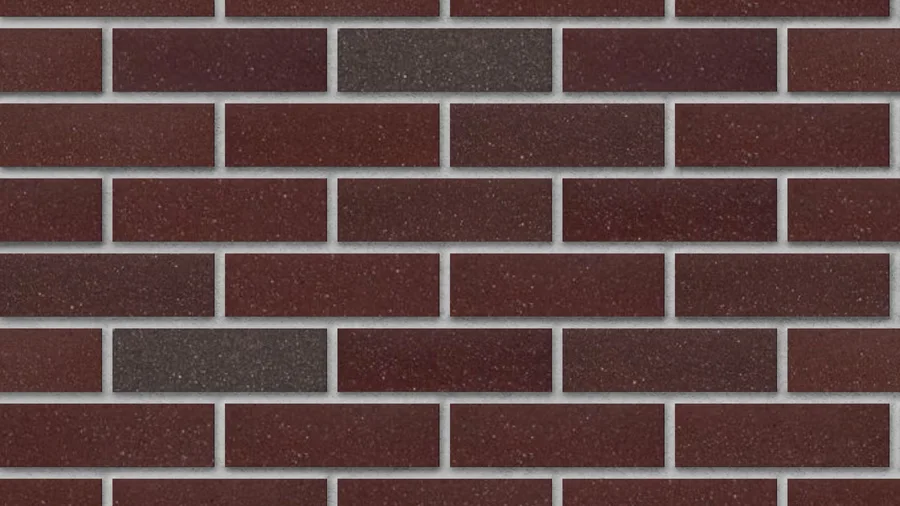

Heritage 5/8 in. and 1 in., on the Sands colors.
Square Edge, no texture 1/2 in. only, on the Sands colors.

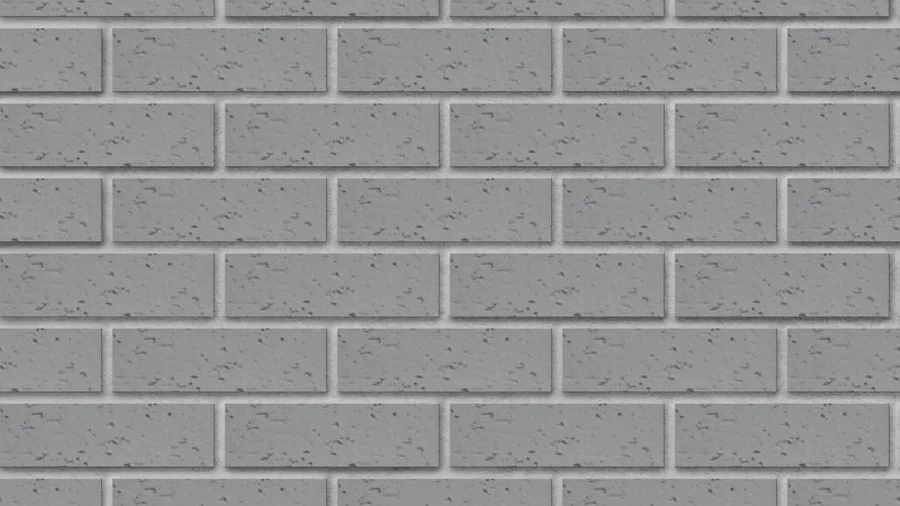

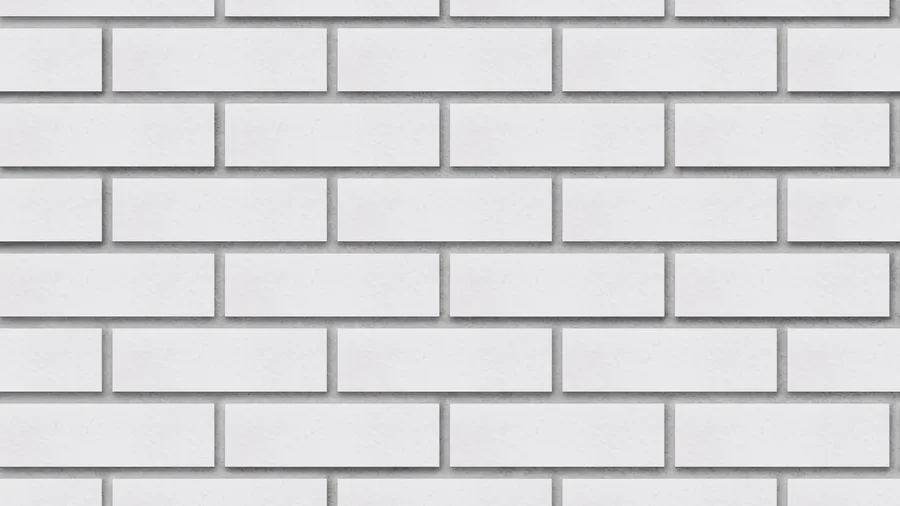

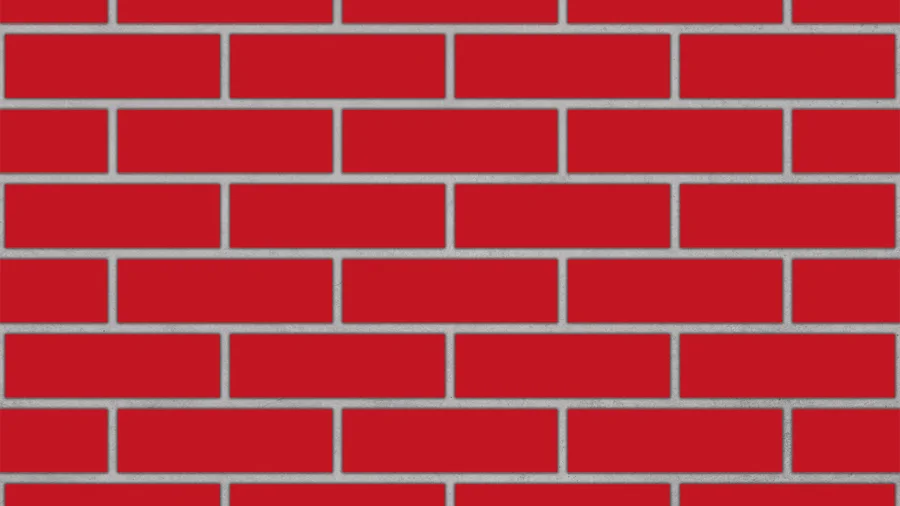

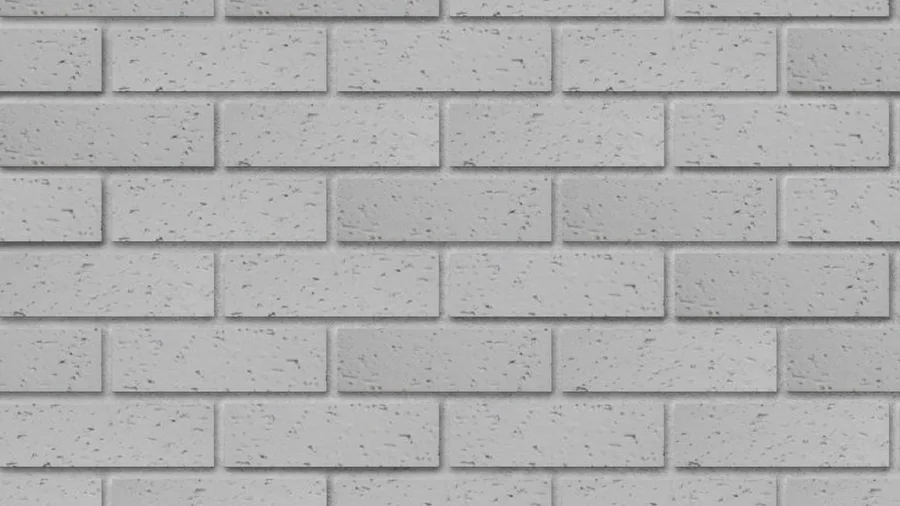

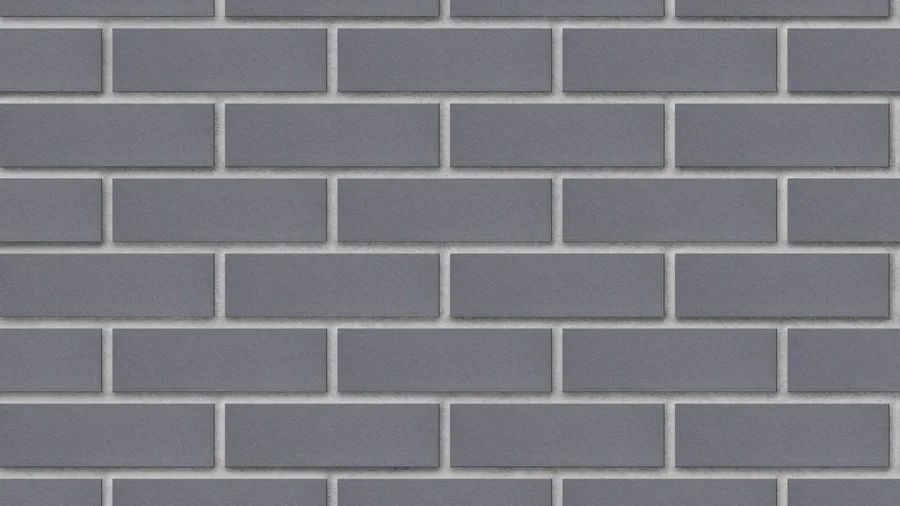

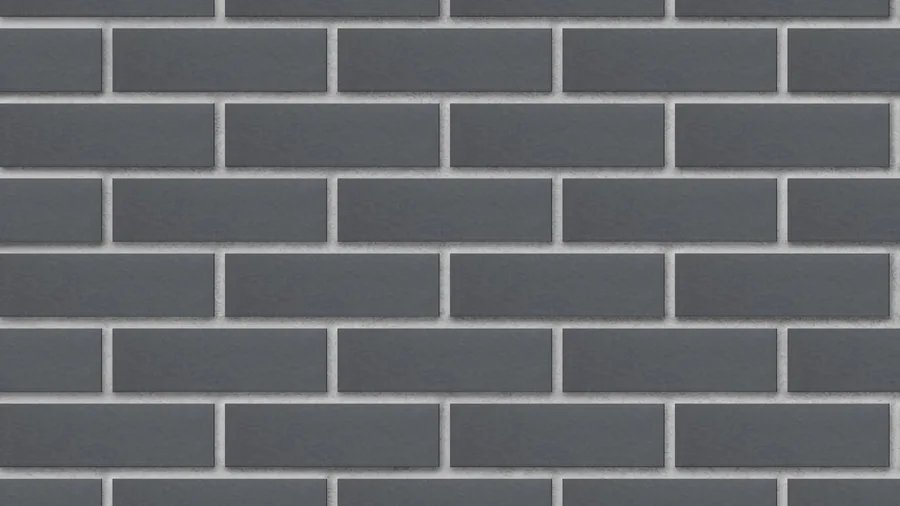

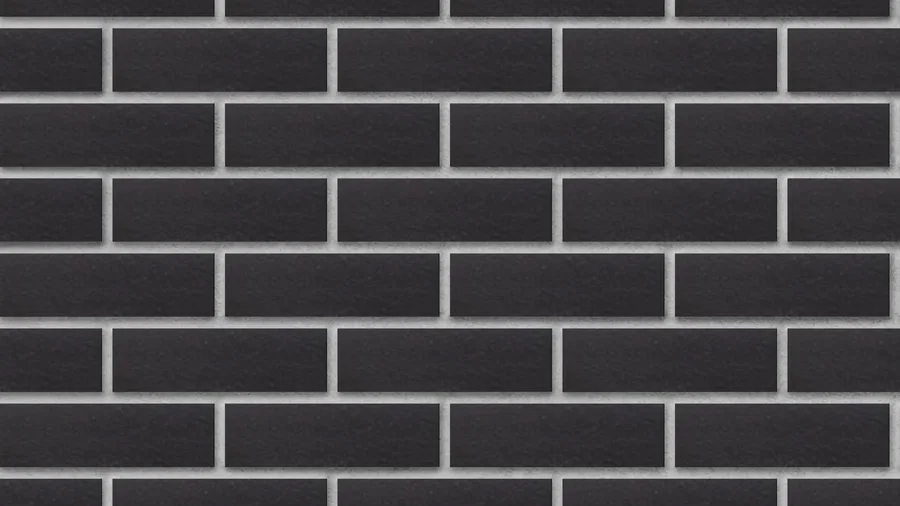

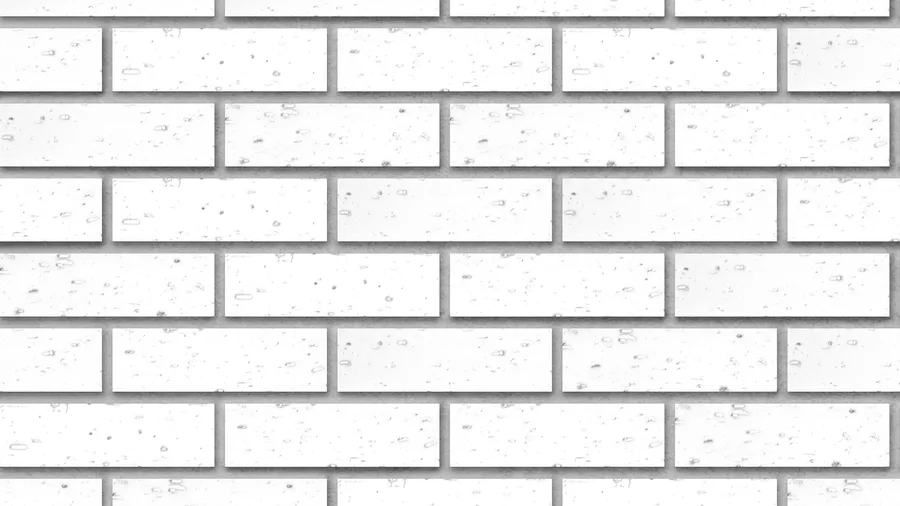

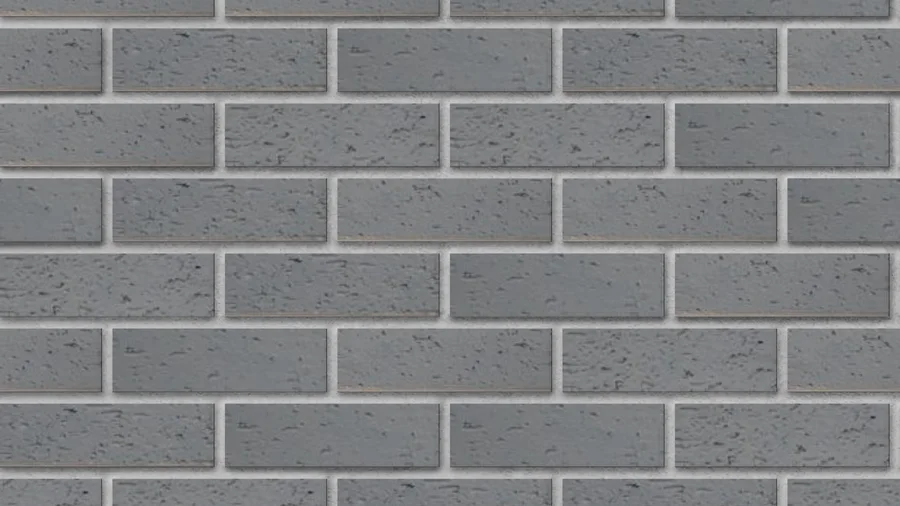

Glazed 1/2 in. only. SN is a smooth glazed face and VC a velour glazed face. The District Series glossy and matte colors run in Smooth and Velour.

Documents.

Published by Endicott and served from endicottfiles.com
Thin brick brochure, END-TBB-0322 Open, PDF
Three-part specification 042313 Open, Word
PCI Thin Brick Specification and Best Practice Open, PDF
Size drawings Roman · Modular · Norman · KingSize · Closure · Utility · Triple
Product collections brochure, END-PCB-0123 Open, PDF
Brick Brief, efflorescence prevention Open, PDF
Brick Brief, manganese staining Open, PDF

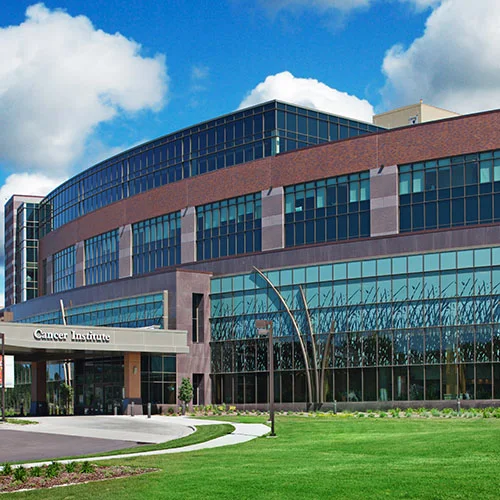

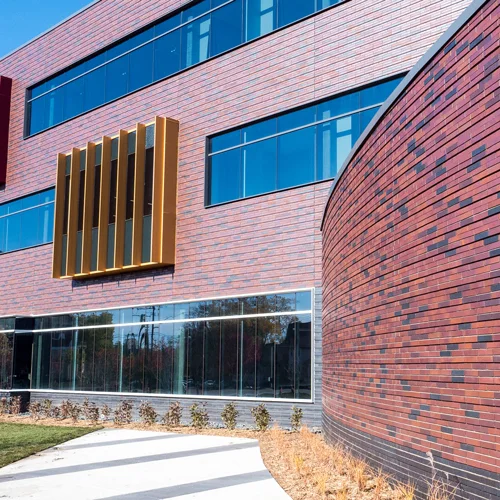

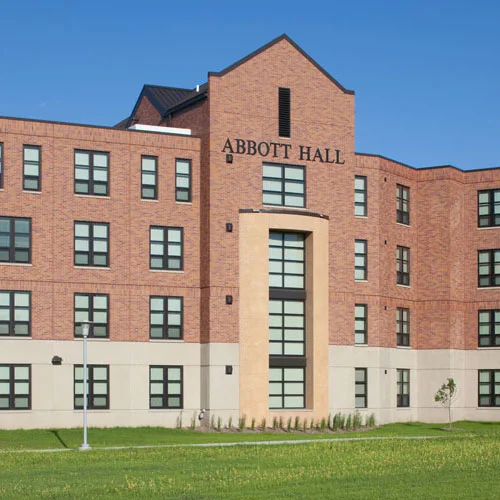

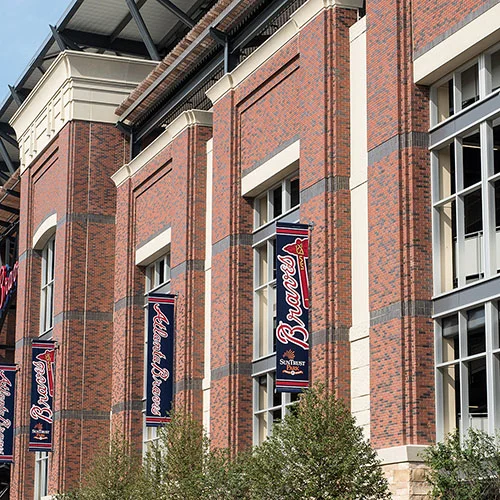

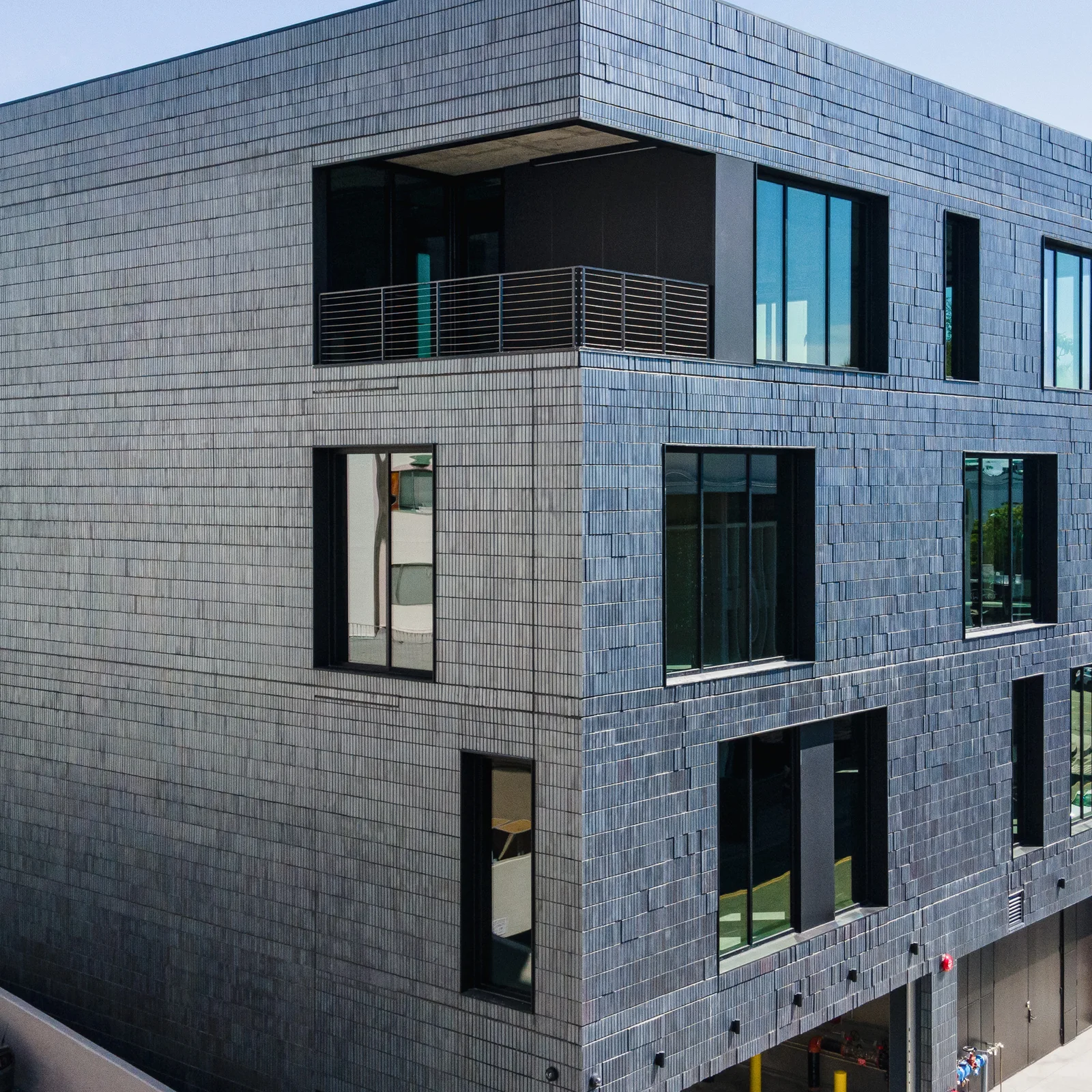

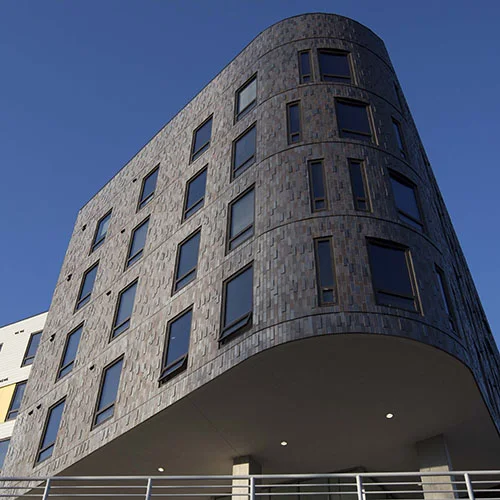

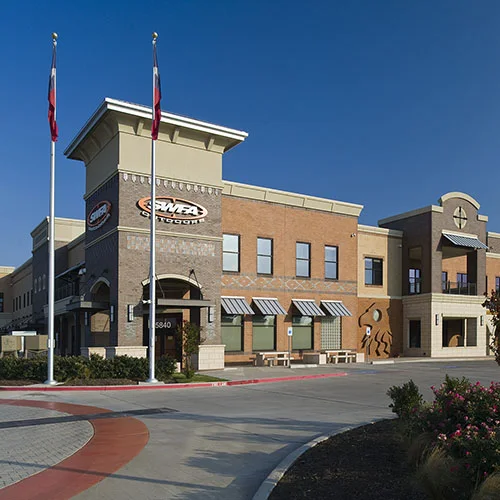

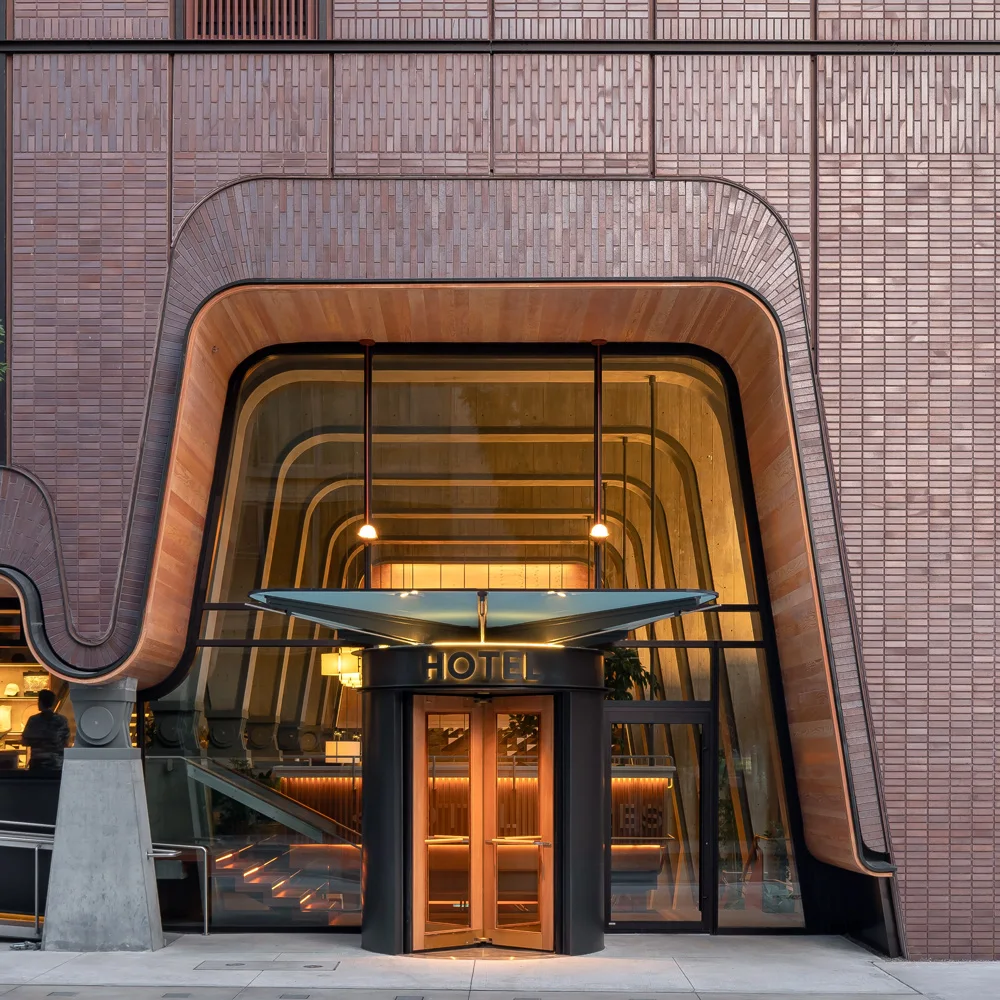

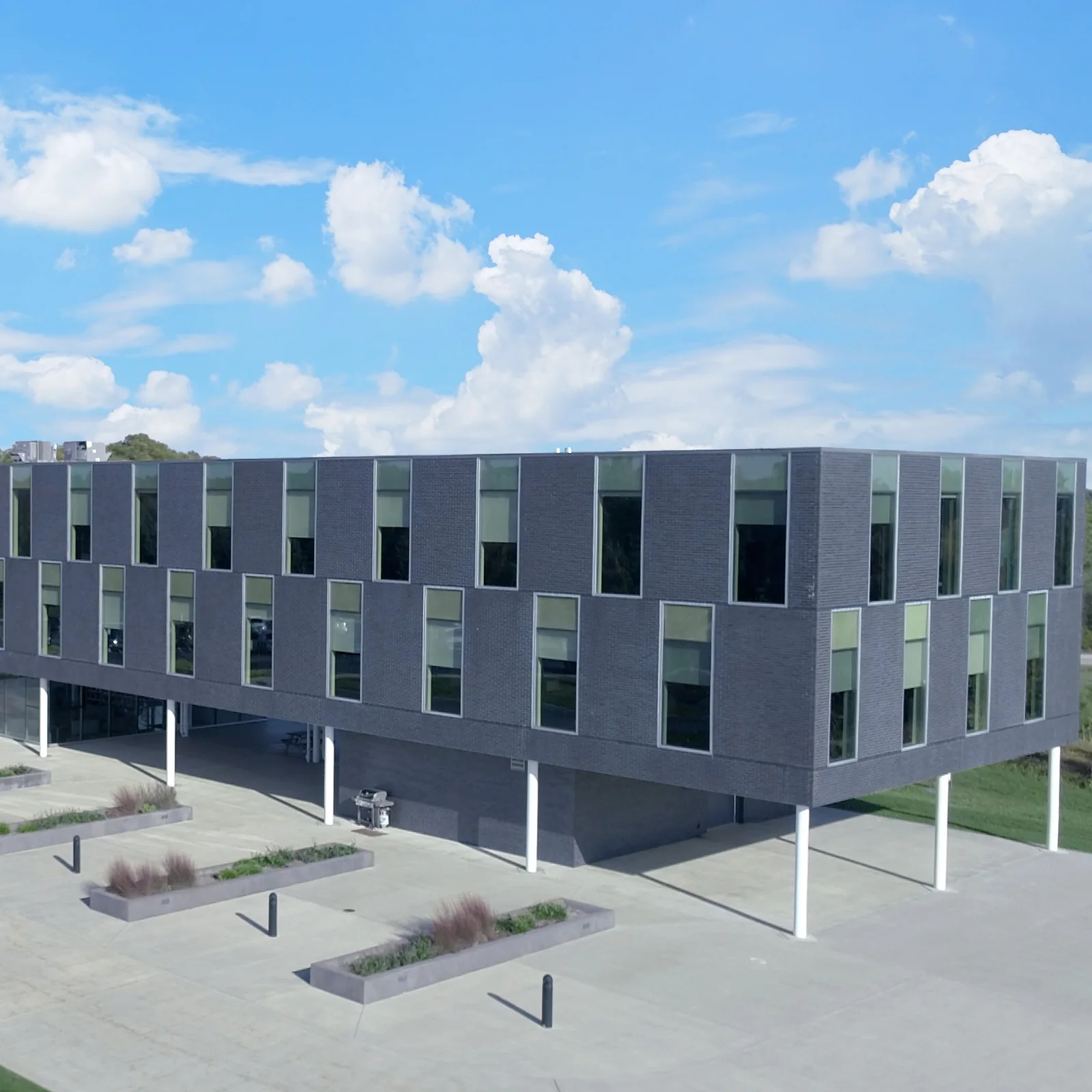

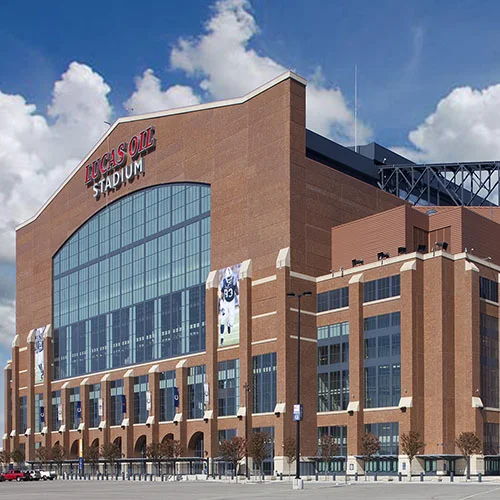

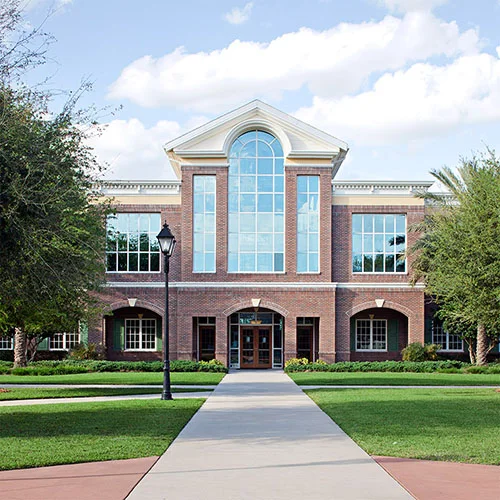

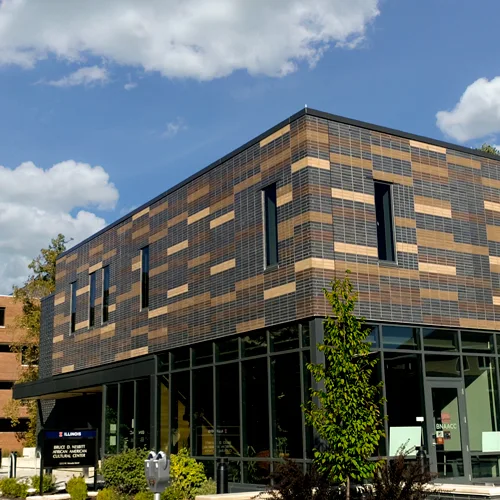

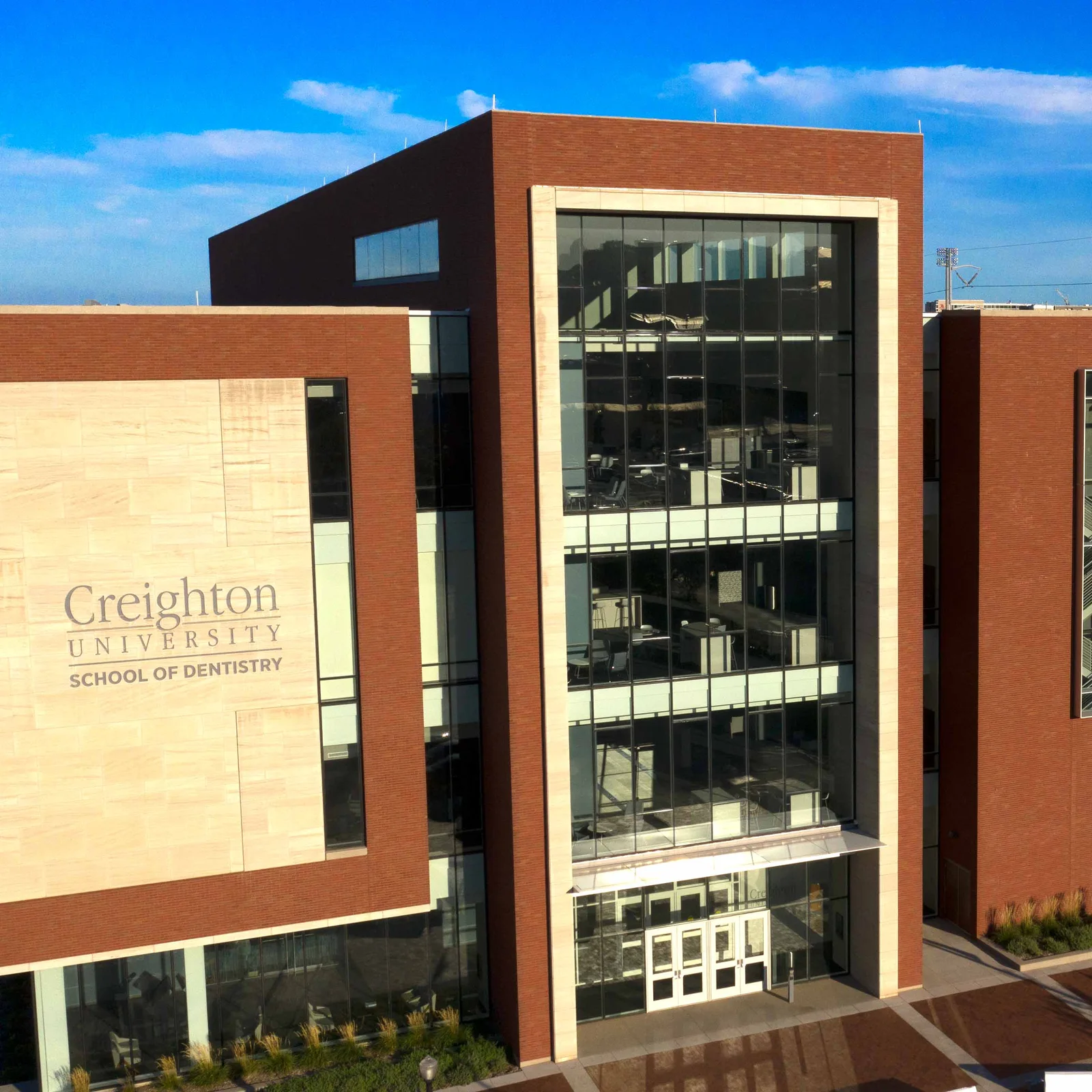

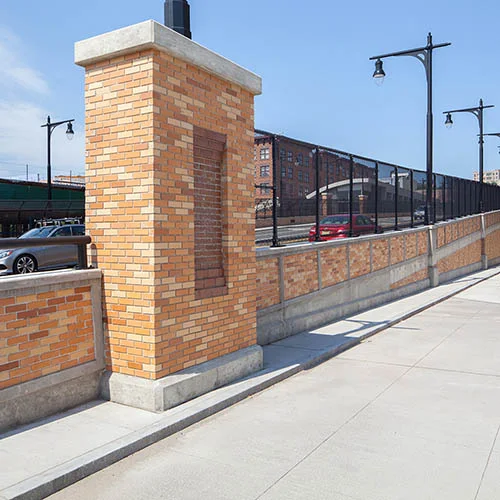

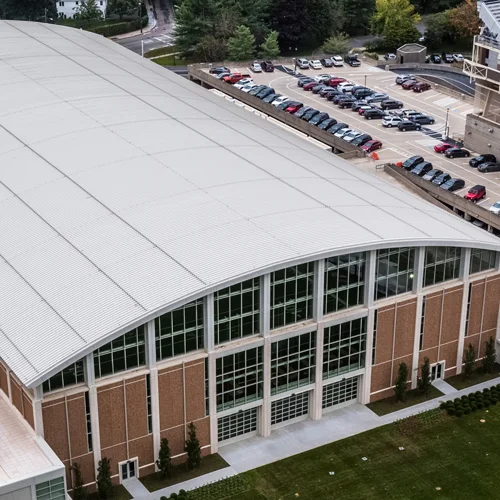

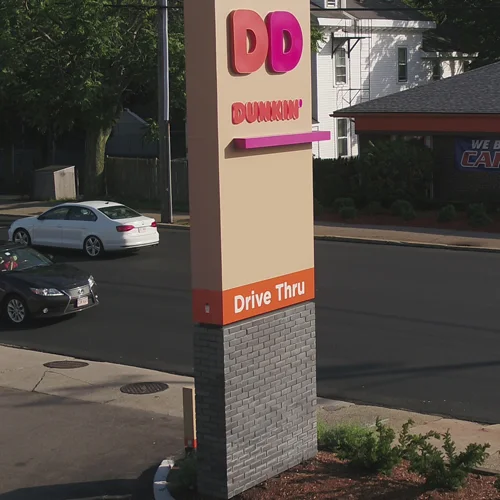

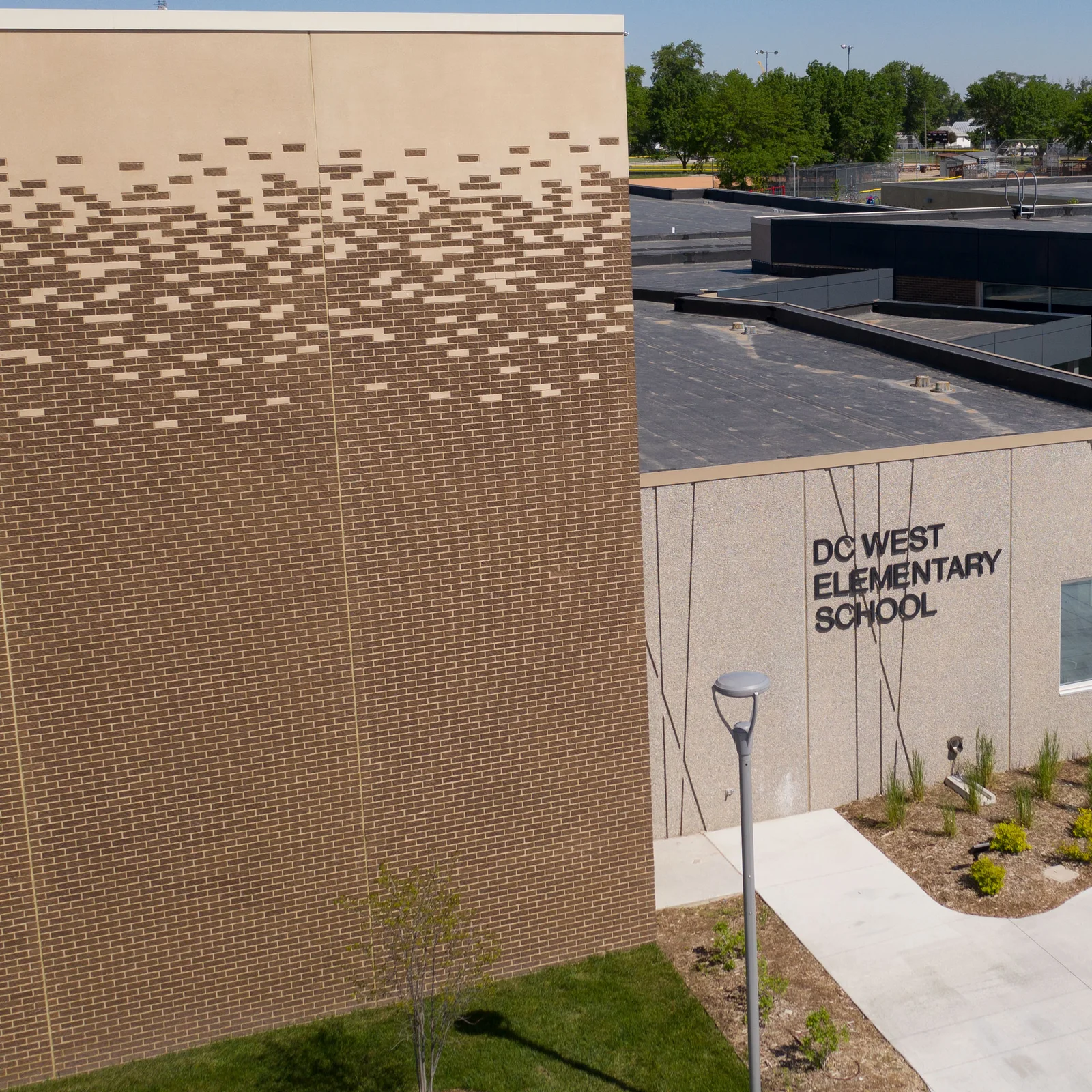

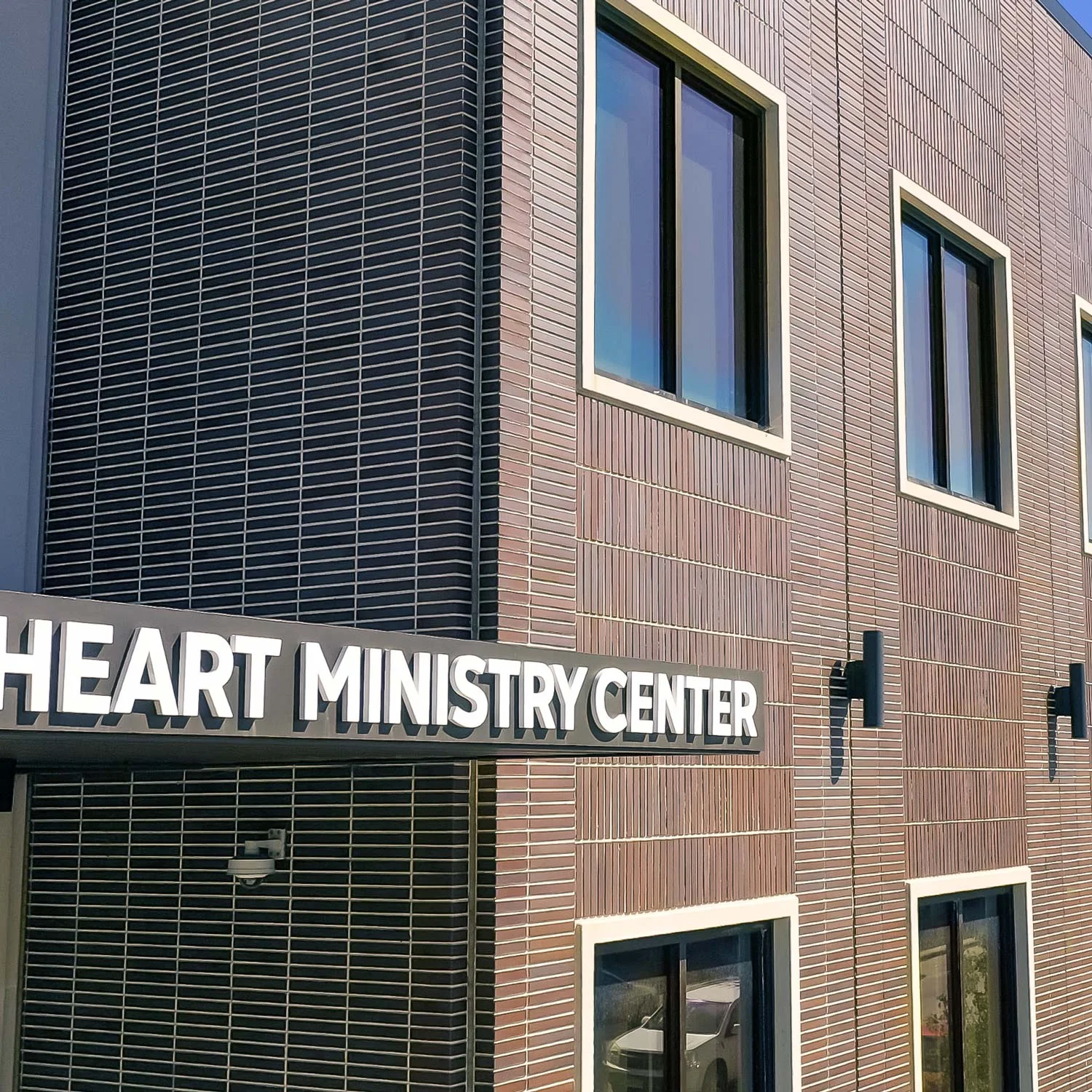

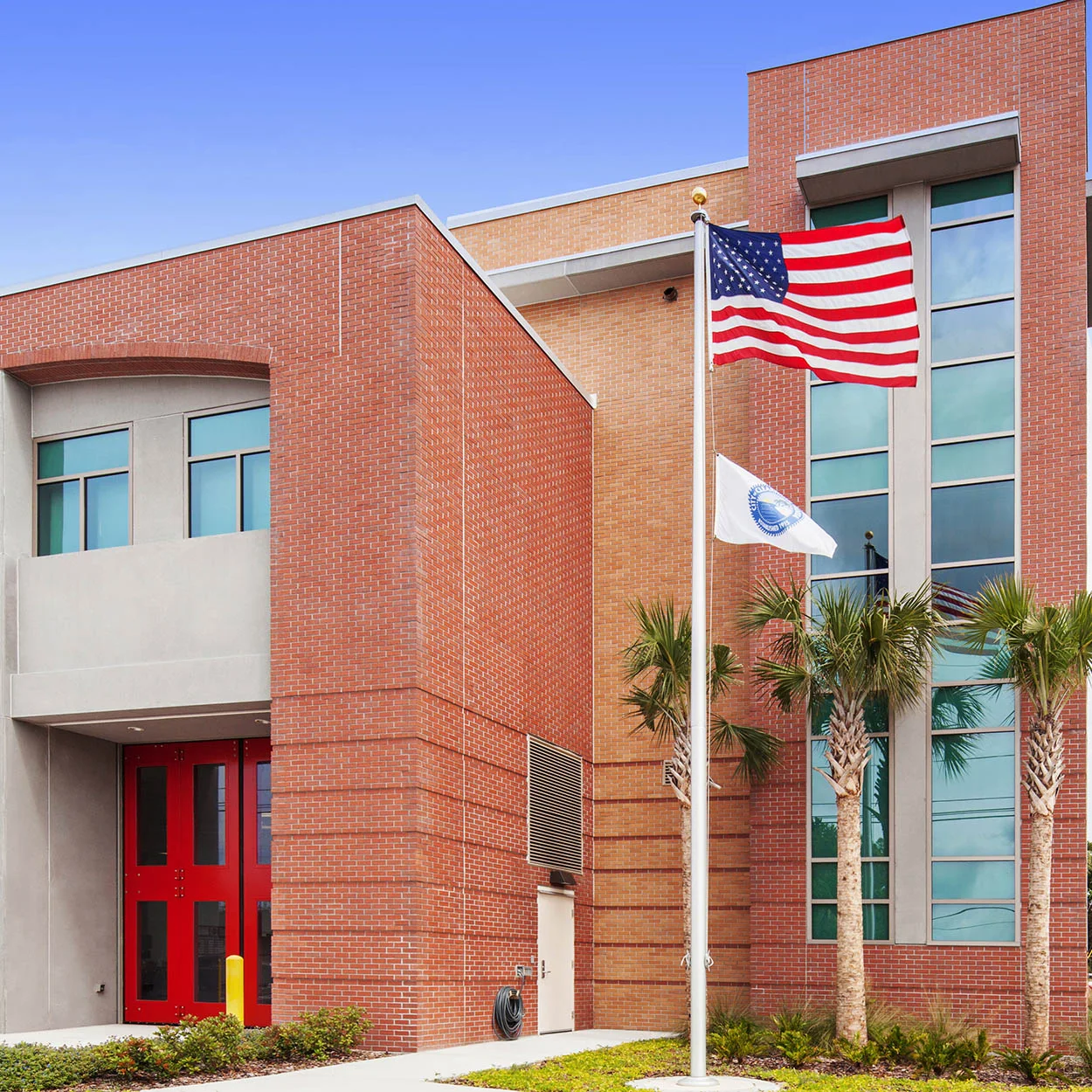

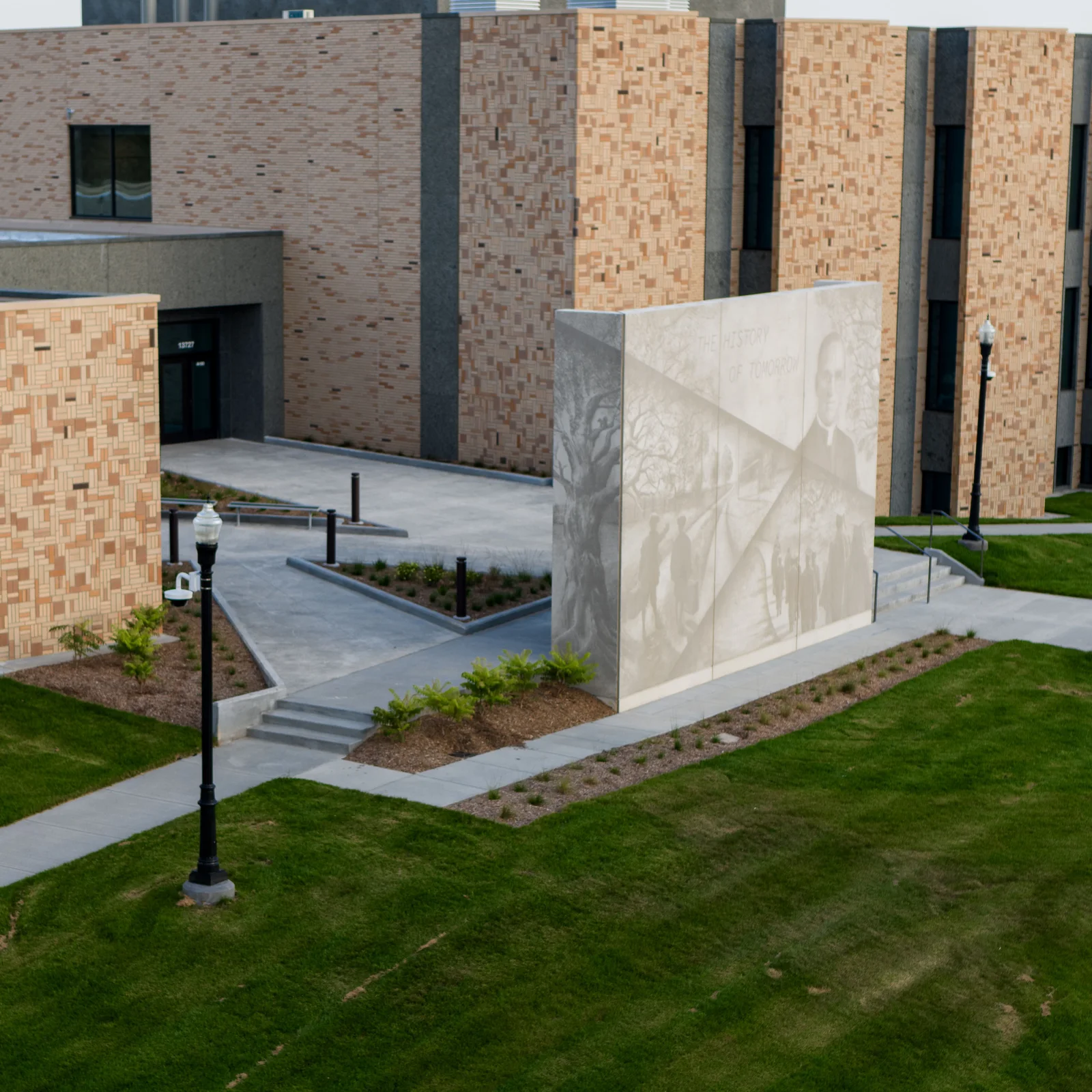

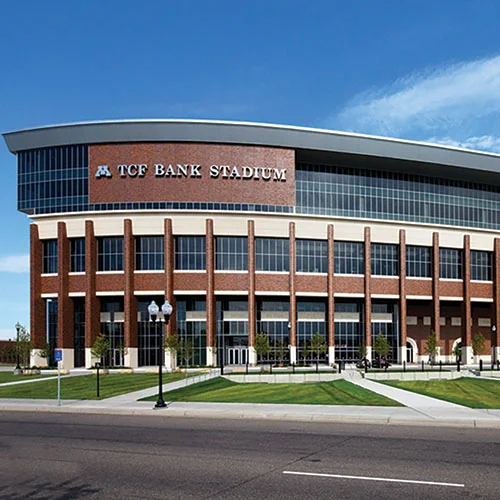

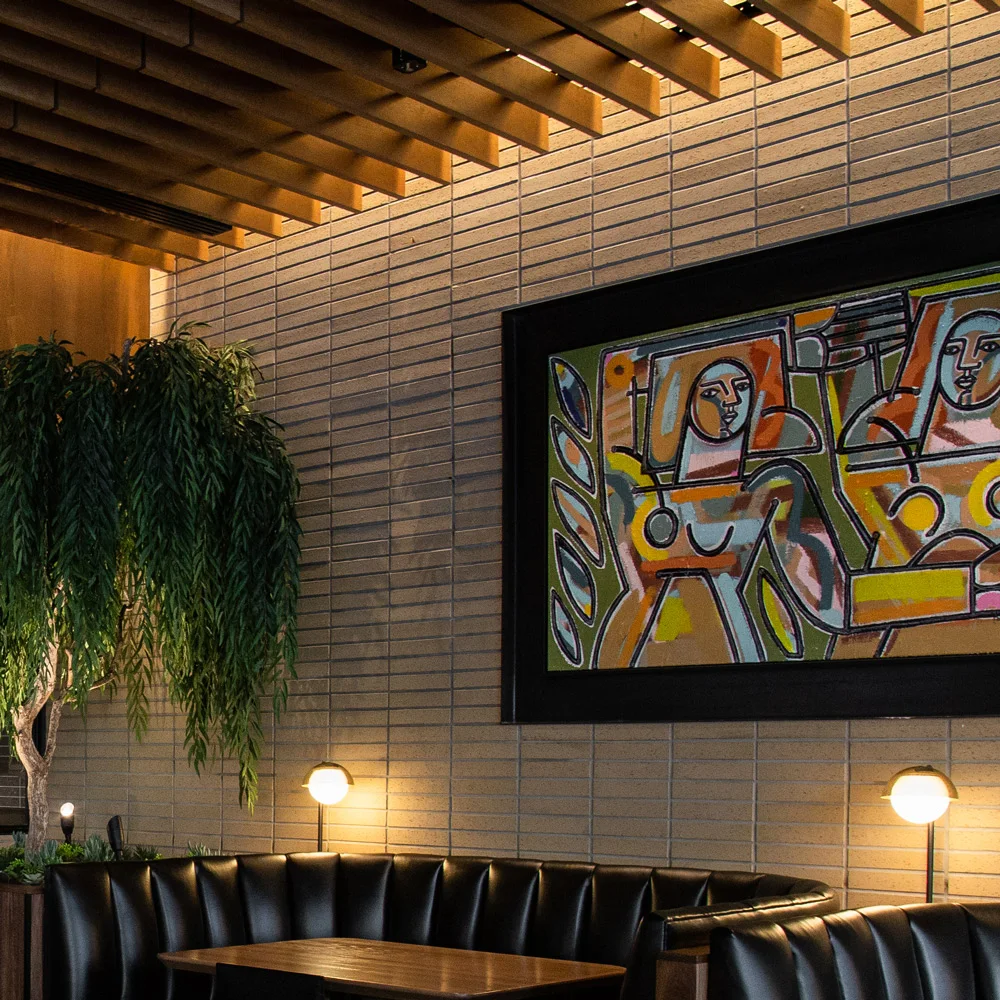

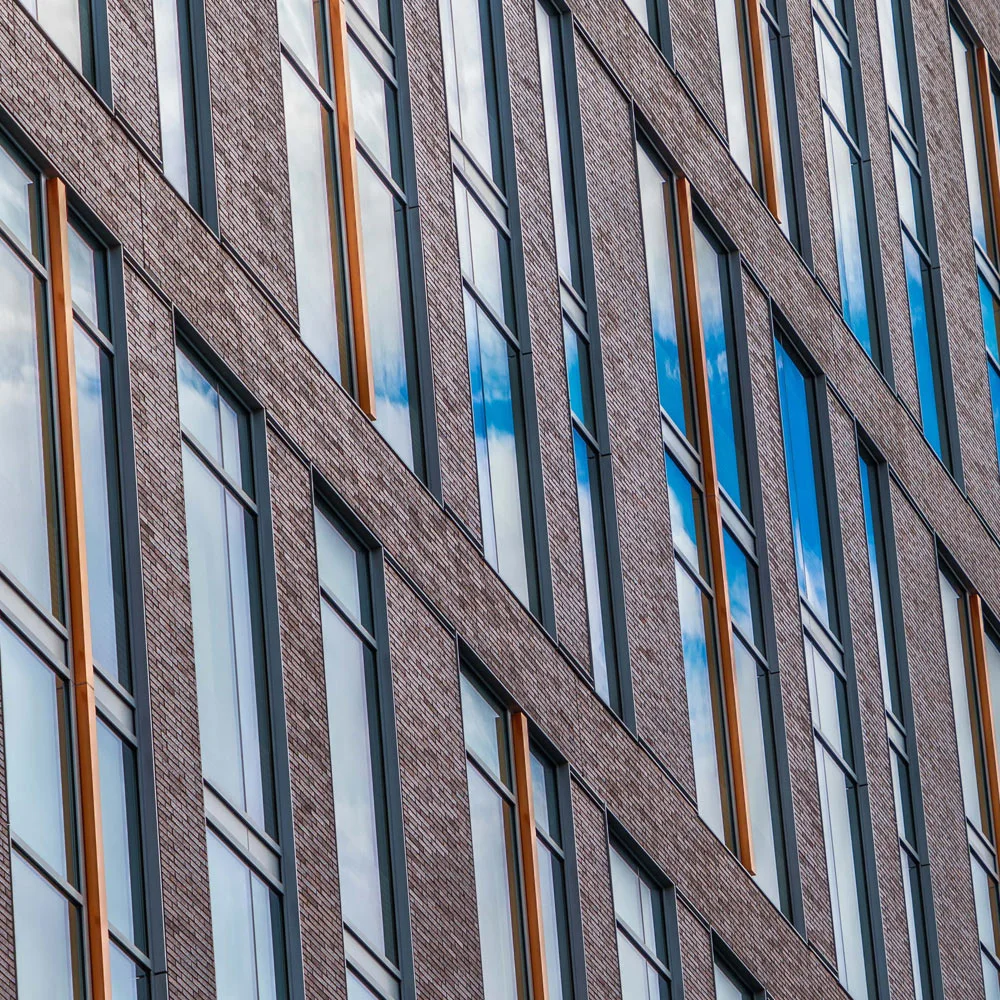

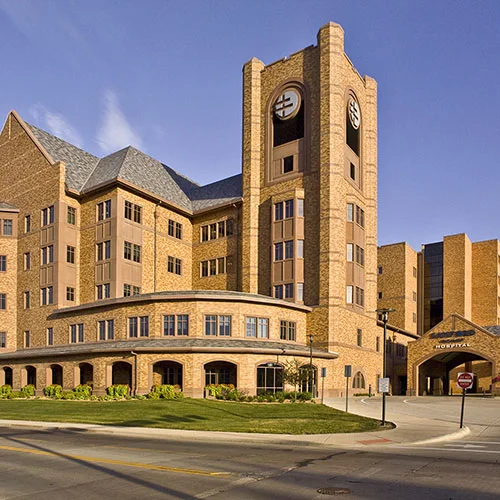

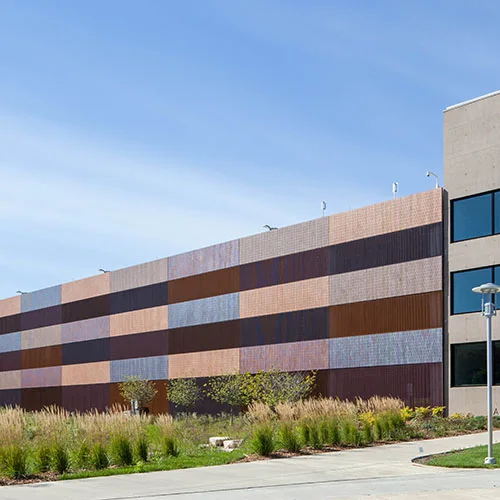

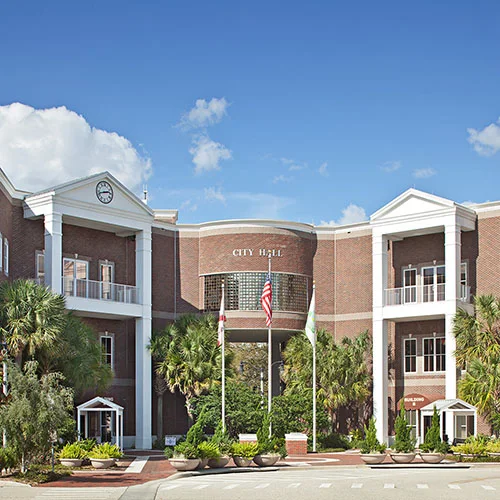

Endicott on real buildings.

Each opens the job with its photos, colors and sizes.

Advanced liners for each format.

The formliners tooled for the brick sizes Endicott makes. Each links to its pattern page and its spec sheet.

FormatBondLinerSpec sheet
ModularBasketweaveBasketweave modular 1900PDF
ModularDutch bondDutch bond modular 1500PDF
ModularHalf bondHalf bond modular 1000PDF
ModularHerringboneModular herringbone 1400PDF
ModularStacked bondStacked bond modular 1750PDF
ClosureHalf bondHalf bond closure 2000PDF
ClosureHalf bondHalf bond closure 2000XXXLRPDF
ClosureStacked bondStacked bond closure 2750PDF
UtilityHalf bondHalf bond utility 3000PDF
UtilityHalf bondHalf bond utility 3000VSPDF
UtilityStacked bondStacked bond utility 3750PDF
UtilityThird bondThird bond utility 3013PDF
NormanHalf bondHalf bond norman 4000PDF
NormanStacked bondStacked bond norman 4750PDF
NormanThird bondThird bond norman 4013PDF
RomanHalf bondHalf bond roman 6000PDF
KingsizeAnyTooled to the brickFrom your rep
TripleAnyTooled to the brickFrom your rep

Price band by size.

Bands run from $ to $$$$ and compare one size with another across every maker Advanced carries. Your rep quotes the job.

Modular $$
Closure $$
Kingsize $$
Norman $$$
Utility $$$
Roman $$$
Triple $$$$
Glazed, any size $$$$
