Solocast single-use thin brick formliner
For casting thin brick into precast and tilt-up panels.
Solocast embedded thin brick. Advanced Formliners.
Solocast specifications.
| Use | Single use |
|---|---|
| Joint depth | 1/4 in. on every standard model |
| Brick held | Thin brick set into the liner, cast into the panel face |
| Ledge | Seals around the brick with no ledge |
| Joint profile | Raked, concave, vee and more |
| Bond patterns | Half, stacked, third, Flemish, herringbone, basketweave and wild bond |
| Series | Modular, closure, utility, Norman, tile, Roman, queen and king, block, Imperial and Australian |
Patents
- US 10,060,143 B2, Formliner layout member. In force.
- US D704,865 S, Formliner. In force.
- US D704,866 S, Formliner. In force.
Standard models by brick series.
The code sets the brick size and the bond. A second sheet is another size, or the metric drawing.
Modular
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 1000XL | Half Bond Modular | Half Bond | 1000XL sheet (PDF) 1000XXL sheet (PDF) |
| 1000XLR | Half Bond Modular Raked | Half Bond | Spec sheet (PDF) |
| 1400 | Herringbone Modular | Herringbone | On request |
| 1600XXL | Flemish Bond Modular | Flemish Bond | Spec sheet (PDF) |
| 1750XL | Stacked Bond Modular | Stacked Bond | Spec sheet (PDF) |
| 1750XLR | Stacked Bond Modular Raked | Stacked Bond | Spec sheet (PDF) |
| 1900 | Basketweave Modular | Basketweave | Spec sheet (PDF) |
Closure
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 2000XXL | Half Bond Closure | Half Bond | Spec sheet (PDF) |
| 2750XL | Stacked Bond Closure | Stacked Bond | Spec sheet (PDF) |
Utility
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 3000 | Half Bond Utility | Half Bond | 3000XXL sheet (PDF) 3000XL sheet (PDF) |
| 3013XL | Third Bond Utility | Third Bond | 3013XXL sheet (PDF) 3013XL sheet (PDF) |
| 3013XLR | Third Bond Utility | Third Bond | Spec sheet (PDF) |
| 3013XLRS | Third Bond Utility Raked | Third Bond | Spec sheet (PDF) |
Norman
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 4000XXL | Half Bond Norman | Half Bond | Spec sheet (PDF) |
| 4013XXL | Third Bond Norman | Third Bond | Spec sheet (PDF) |
| 4013XXLS | Third Bond Norman - Step | Third Bond | Spec sheet (PDF) |
| 4750XL | Stacked Bond Norman | Stacked Bond | Spec sheet (PDF) |
Tile
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 5000 | Half Bond 8x8 Tile | Half Bond | Spec sheet (PDF) |
| 5750 | Stacked Bond 8x8 Tile | Stacked Bond | Spec sheet (PDF) |
Roman
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 6000XXL | Half Bond Roman | Half Bond | Spec sheet (PDF) |
| 6000XXL | Roman Soldier Course | Half Bond | Spec sheet (PDF) |
| 6001XXL | Wild Bond | Wild Bond | Spec sheet (PDF) |
| 6013XXL | Third Bond Roman | Third Bond | Spec sheet (PDF) |
| 6750XL | Stacked Bond Roman | Stacked Bond | Spec sheet (PDF) |
Queen and King
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 7013XXL | Third Bond King Size | Third Bond | Spec sheet (PDF) |
Block
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 8000 | Half Bond 8x16 Block | Half Bond | Spec sheet (PDF) |
Imperial
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 9100XXLWC | Half Bond Meridian - Wire Cut | Half Bond | Spec sheet (PDF) |
| 9200XXXL | Half Bond | Half Bond | Spec sheet (PDF) |
| 9300XXL | Half Bond Meridian | Half Bond | Spec sheet (PDF) |
Australian
| Code | Model | Bond | Spec sheet |
|---|---|---|---|
| 1000ASTL 50 | Half Bond | Half Bond | Imperial sheet (PDF) Metric sheet (PDF) |
| 1000ASTL 76 | Half Bond | Half Bond | Imperial sheet (PDF) Metric sheet (PDF) |
| 1750ASTL 50 | Stacked Bond | Stacked Bond | Imperial sheet (PDF) Metric sheet (PDF) |
| 1750ASTL 76 | Stacked Bond | Stacked Bond | Imperial sheet (PDF) Metric sheet (PDF) |
Work out the order.
The calculator takes the wall and returns brick, bundles, pallets and freight. Your rep confirms reuse counts and the schedule against the real job.
Solocast work.
-

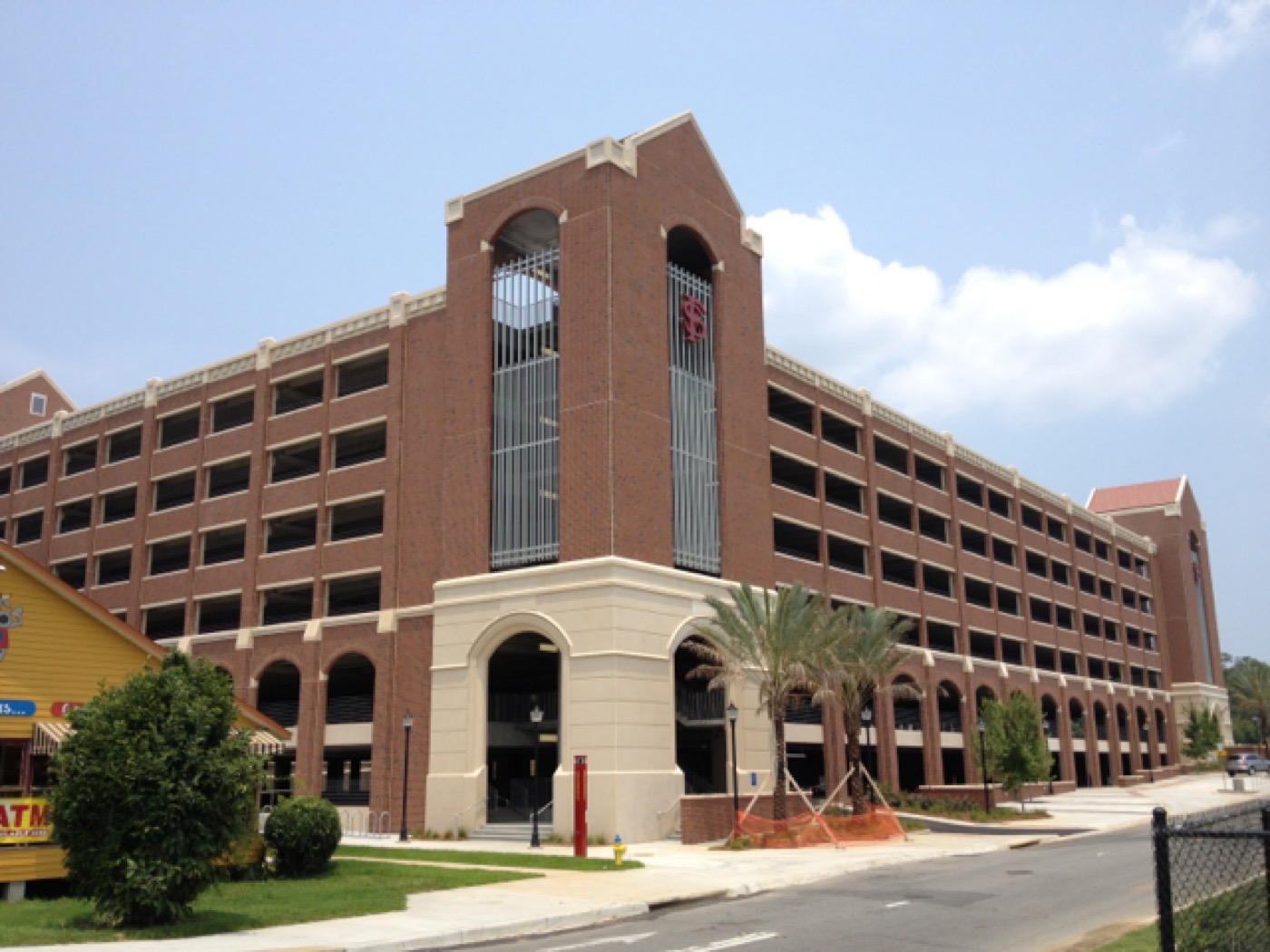

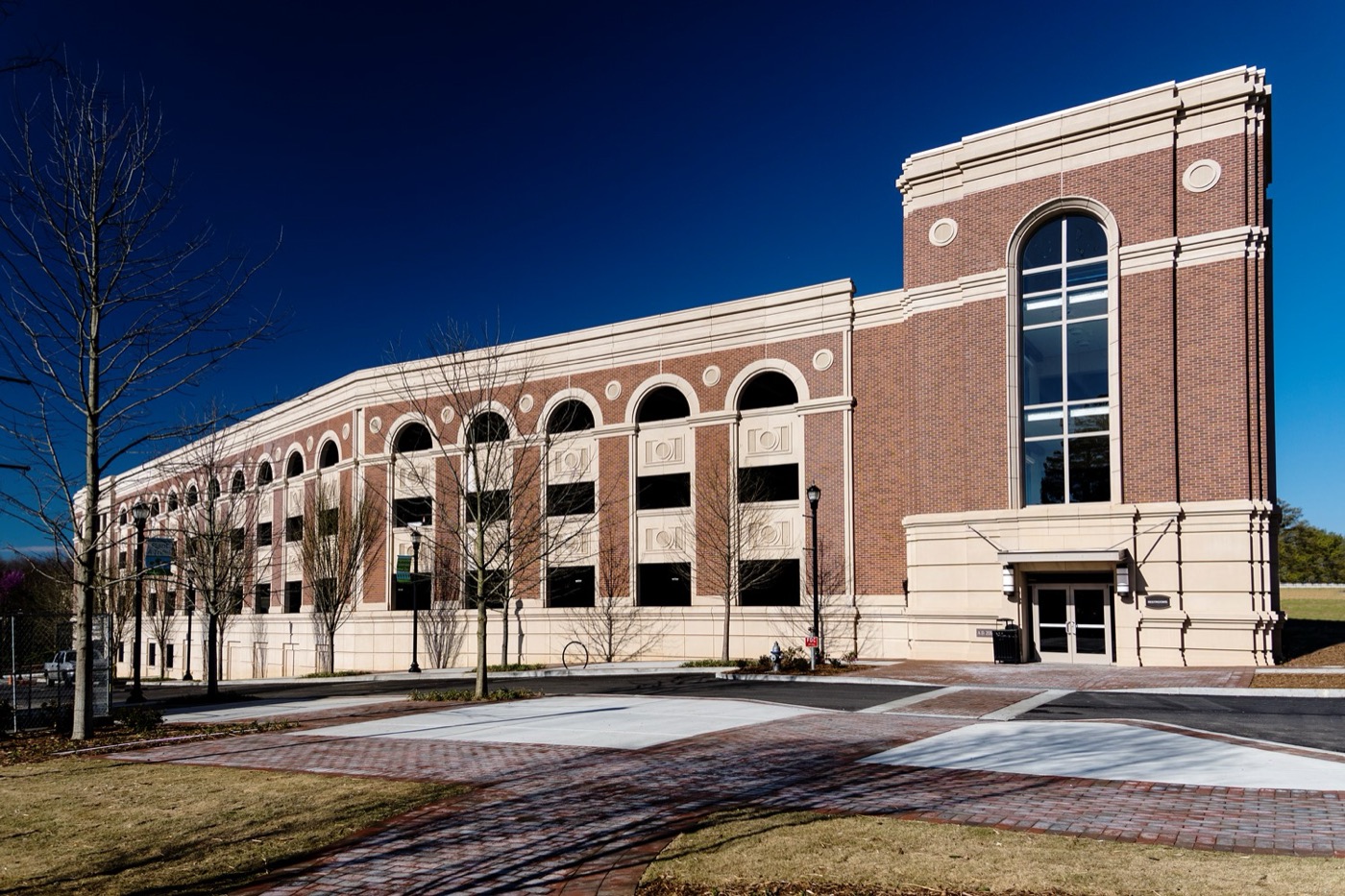

Parking structure with brick arches and a tower. -

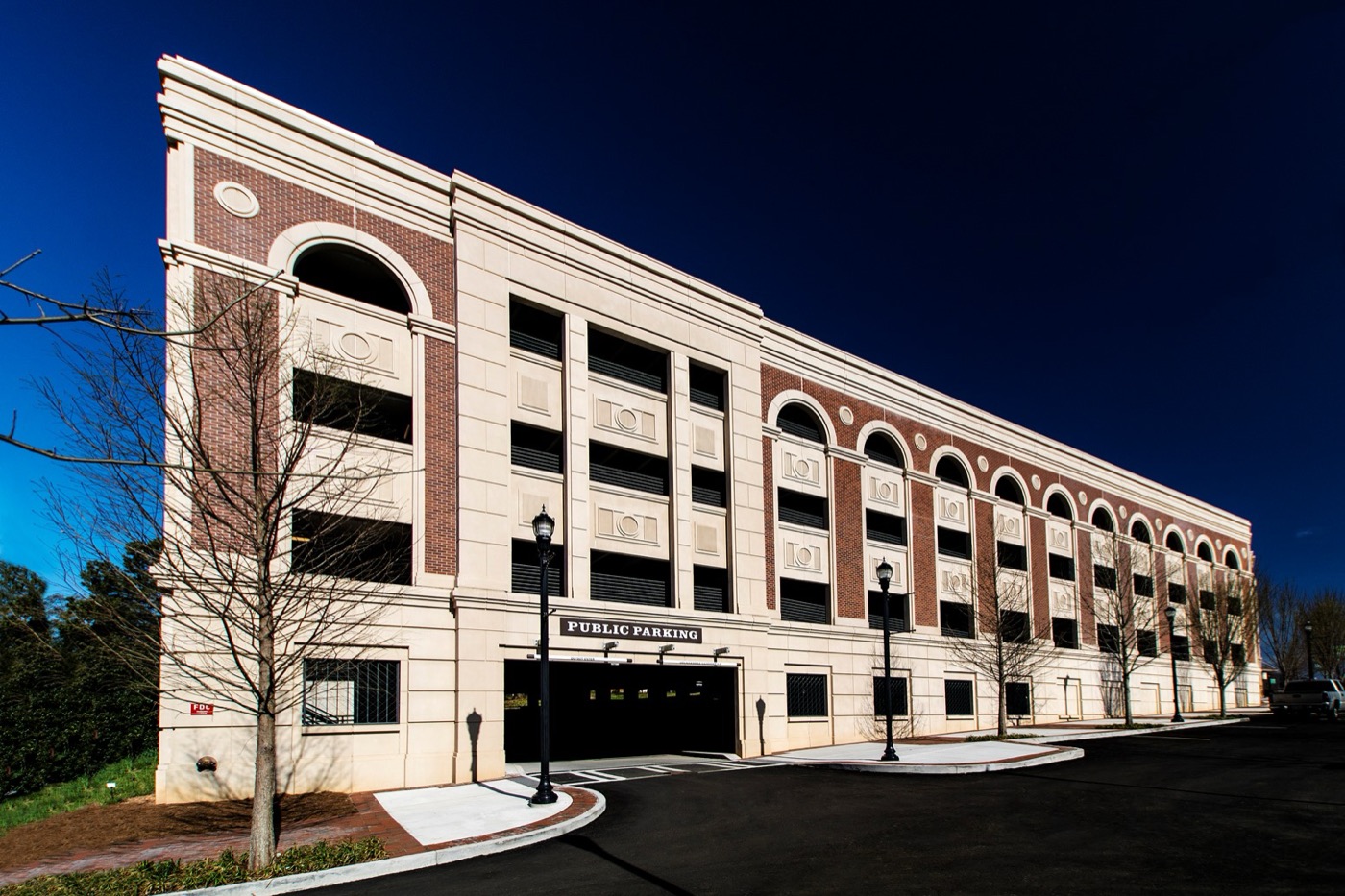

Brick columns and arches cast as panels. -
Liner specimen, Norman format.
Samples and spec support
Send us the project details and we will get the right liner sample, the technical data and specification support back to you.
Writing the section yourself? Write a specification: six steps, and it comes back by email as a Word file.
