King Klinker thin brick

Where precast meets thin brick perfection.

Thin brick ground and waxed for precast. Advanced holds the exclusive US rights and makes the liners that set it.

See the colors Request samples

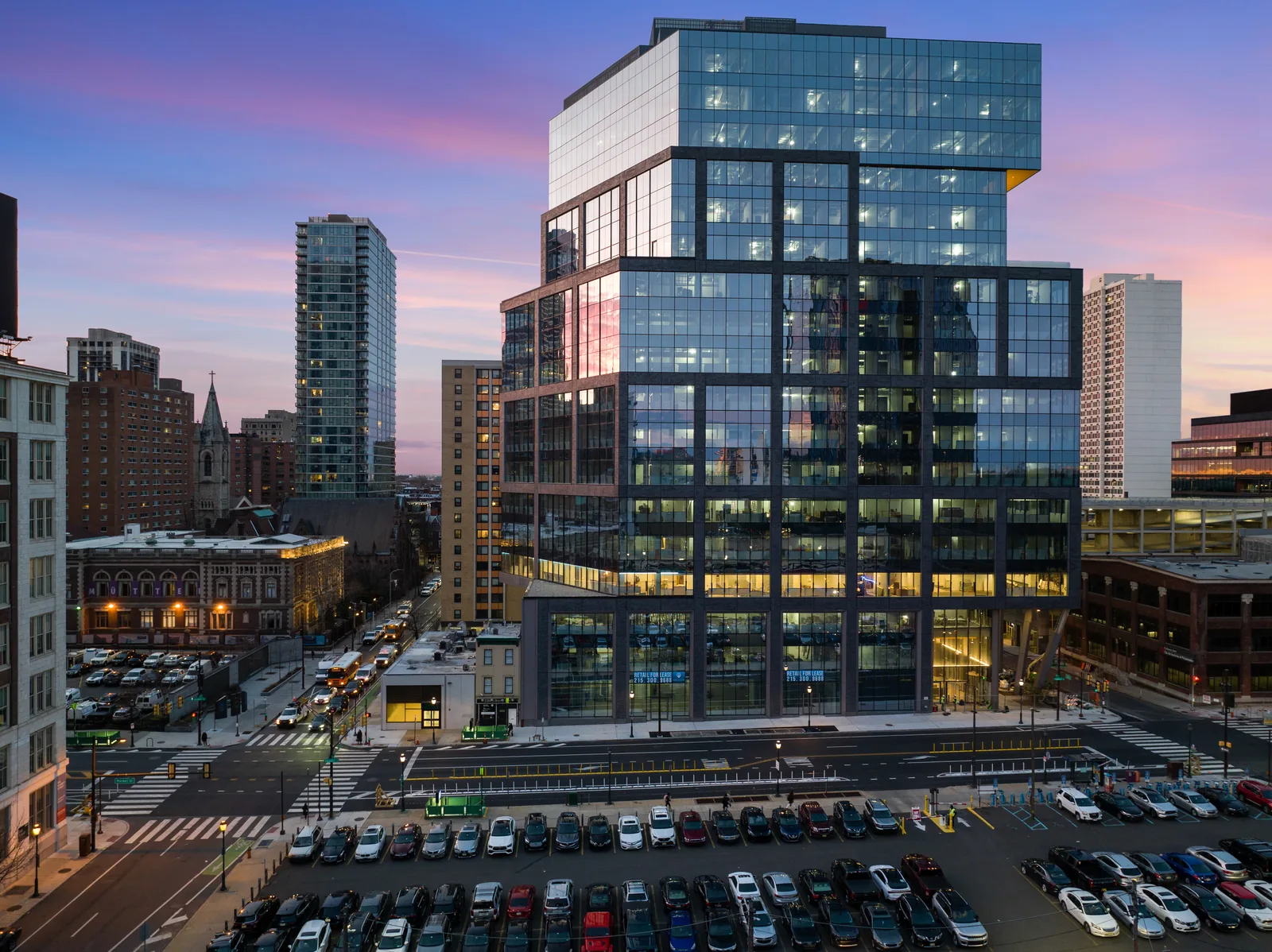

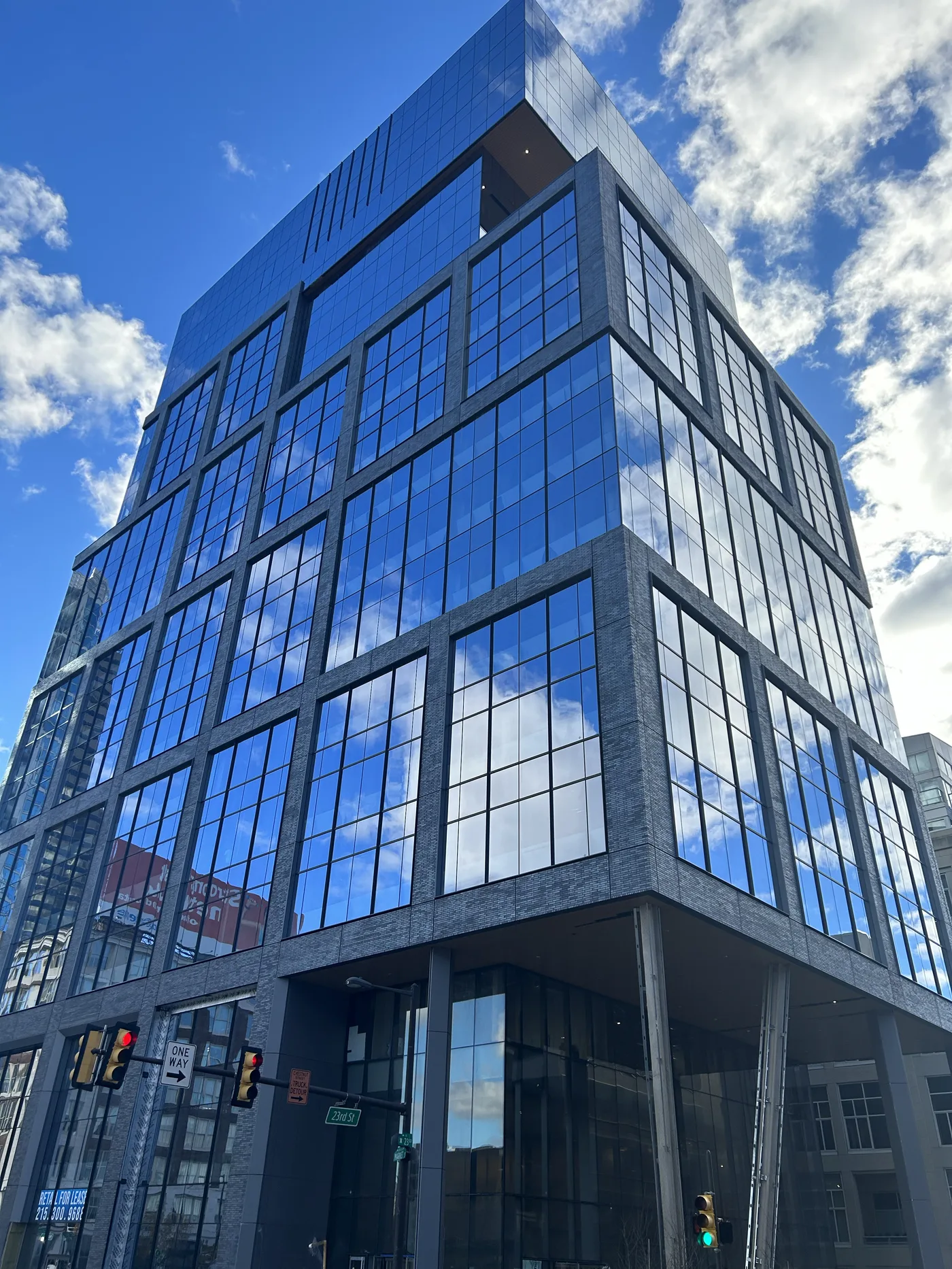

2222 Market Street, Philadelphia. Gensler. King Klinker Obsidian Shadow.

Exclusive United States distribution by Advanced Formliners.

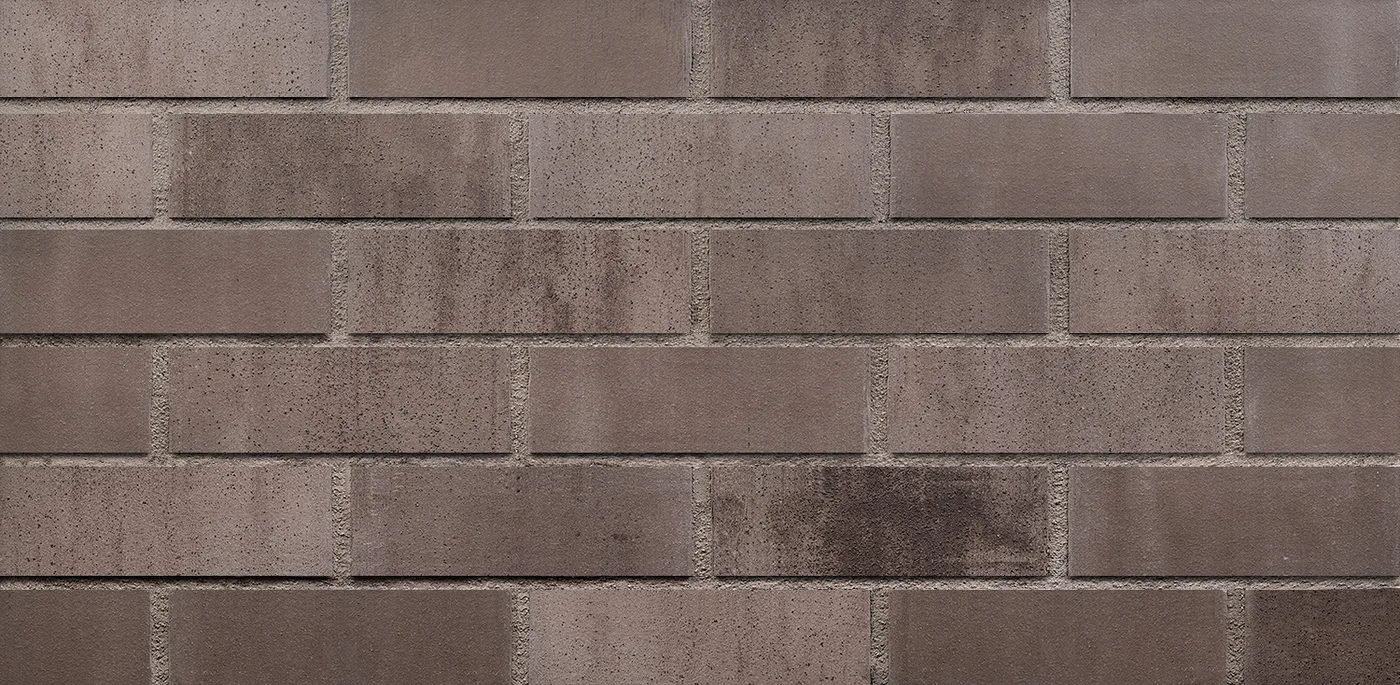

Roman. $$

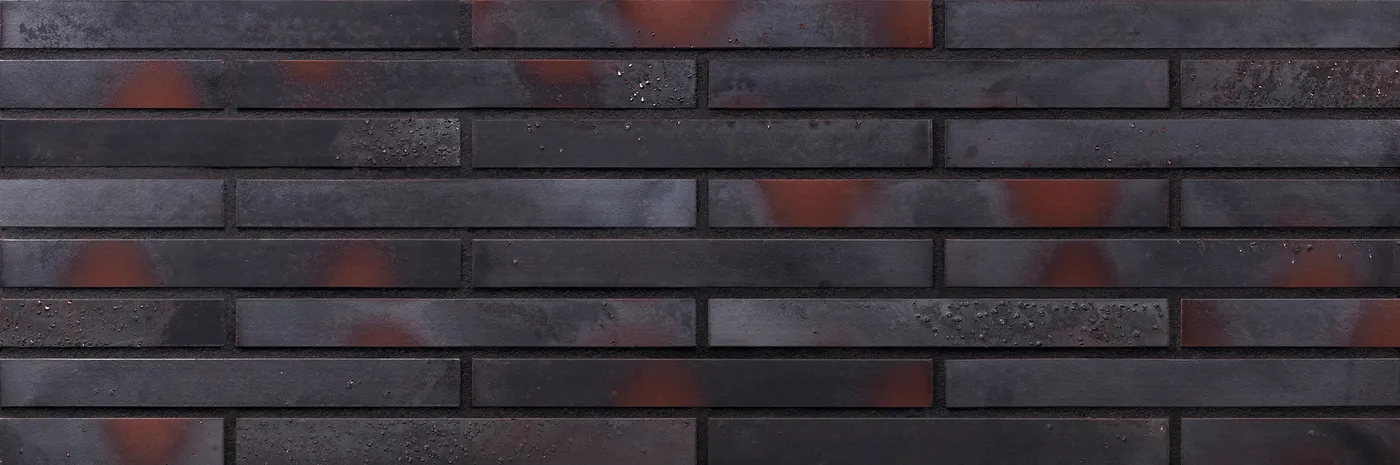

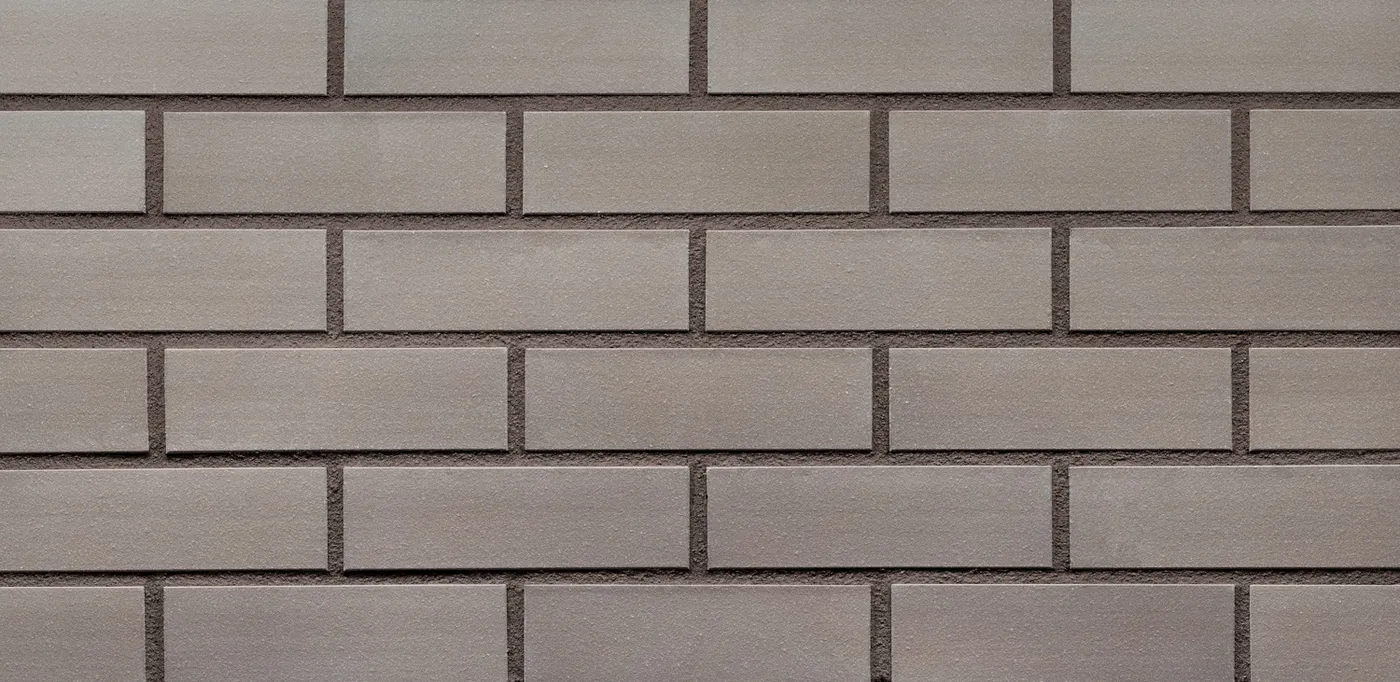

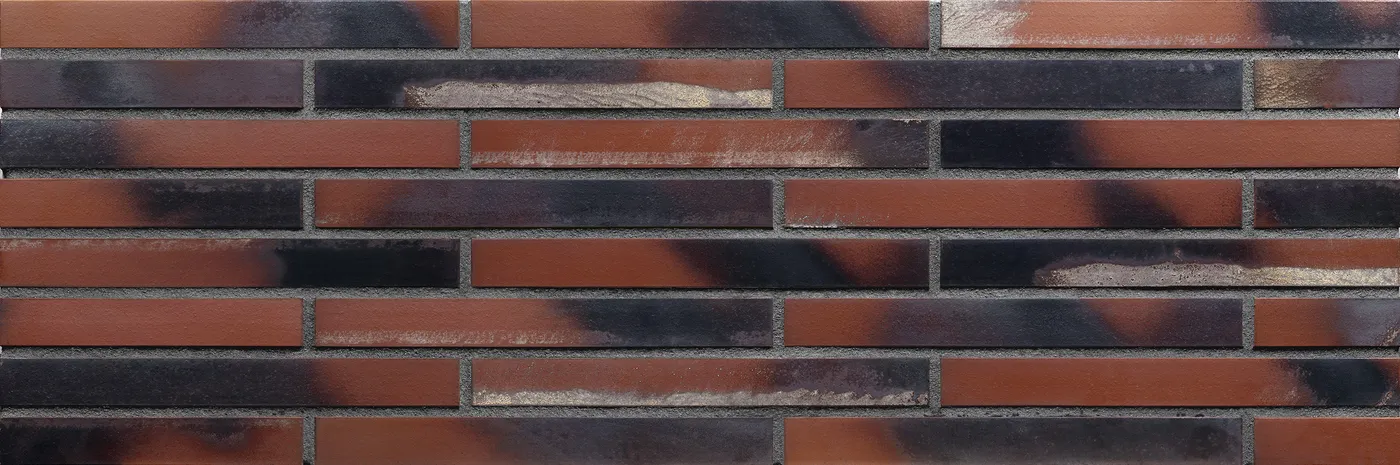

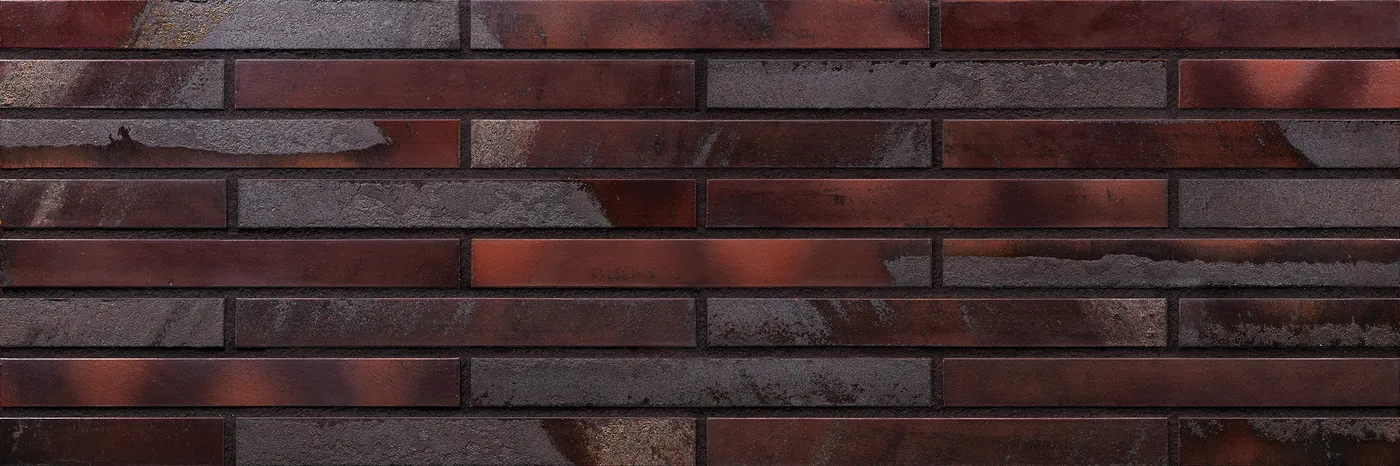

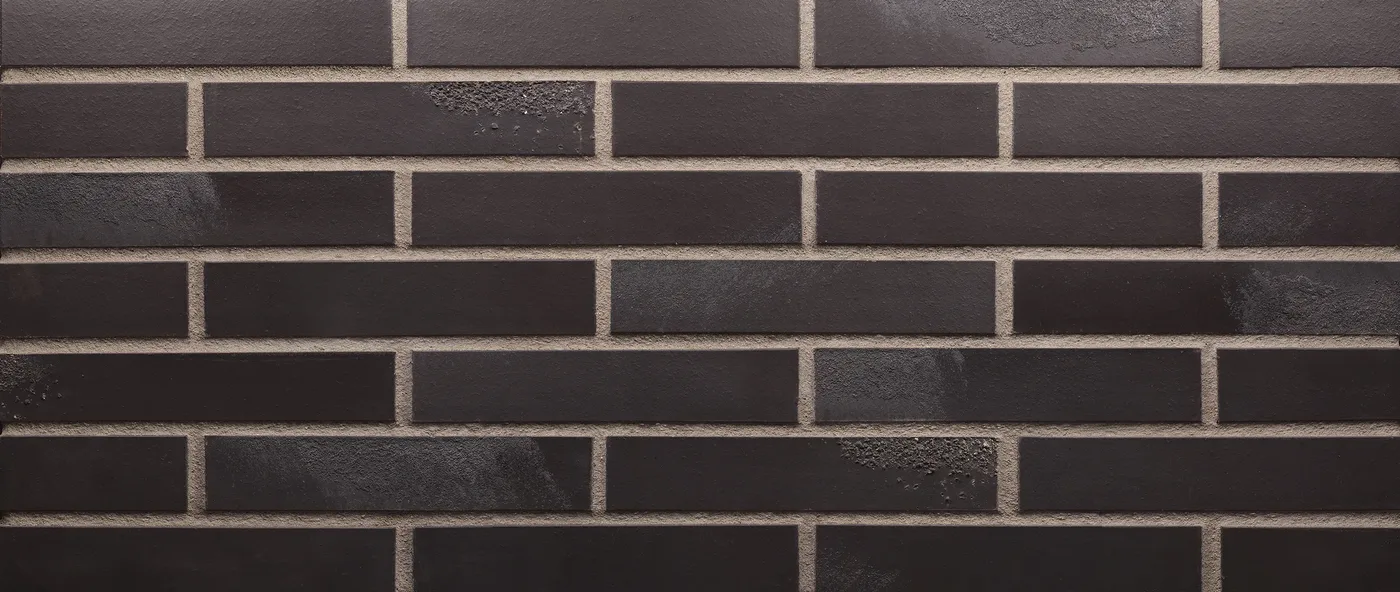

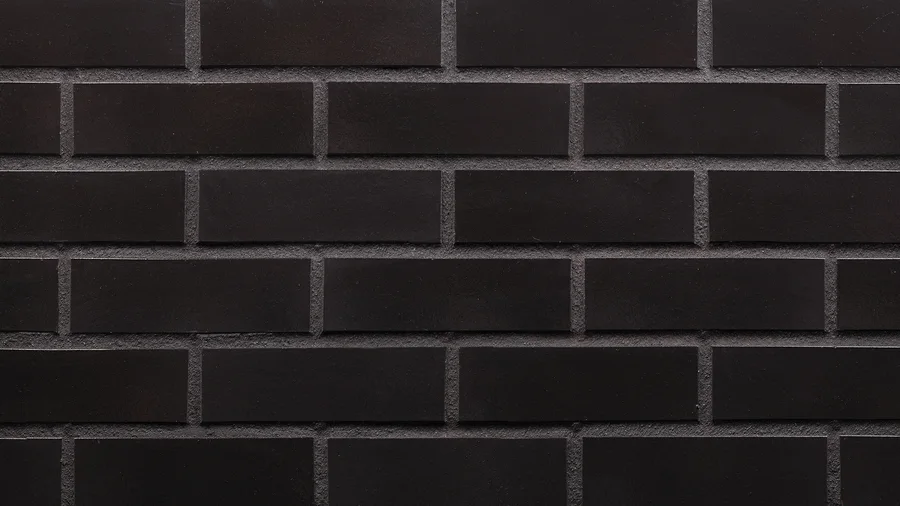

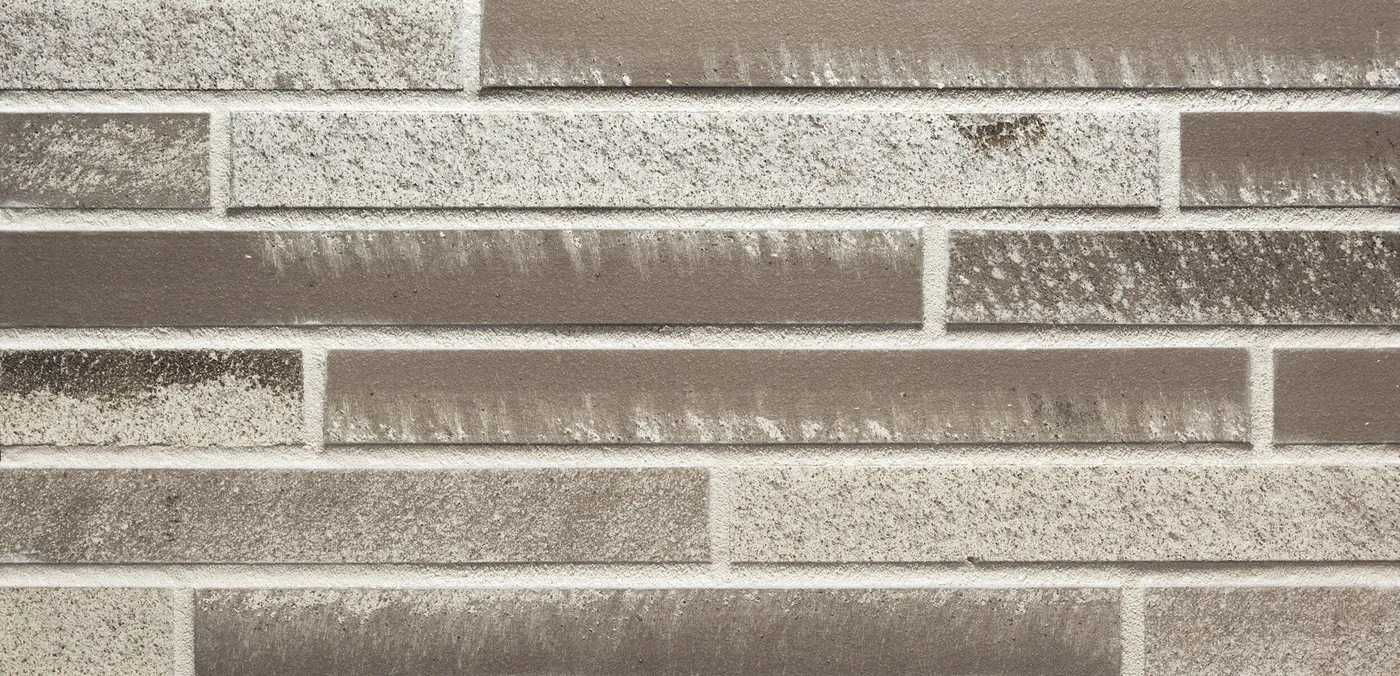

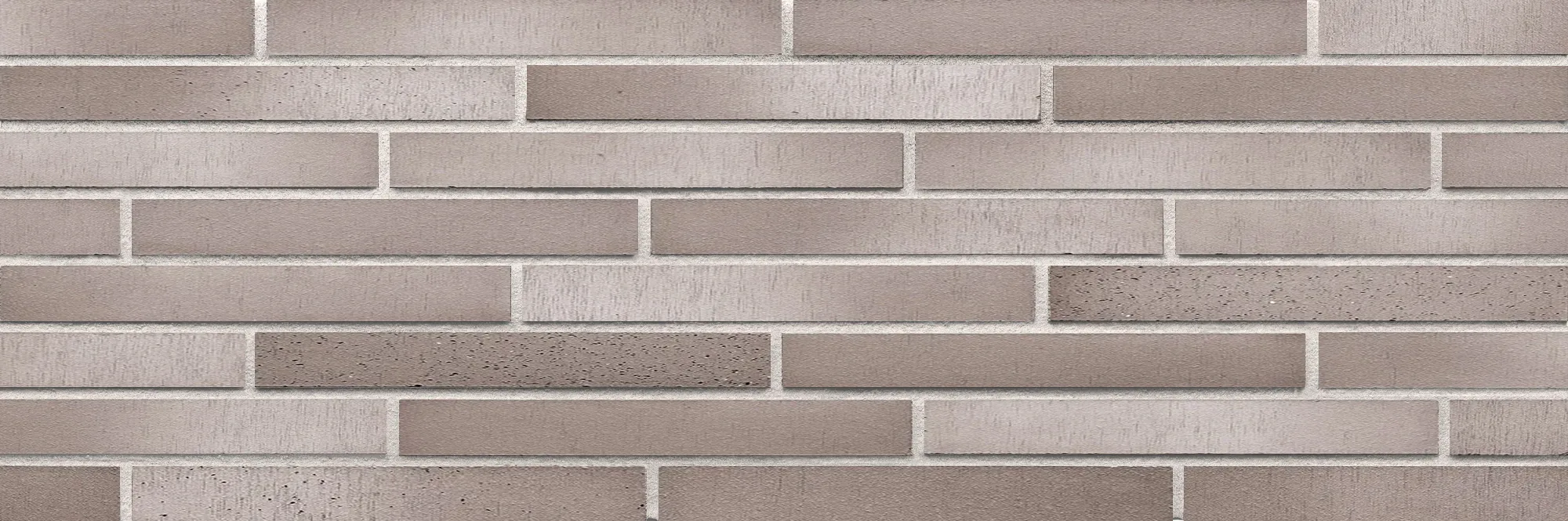

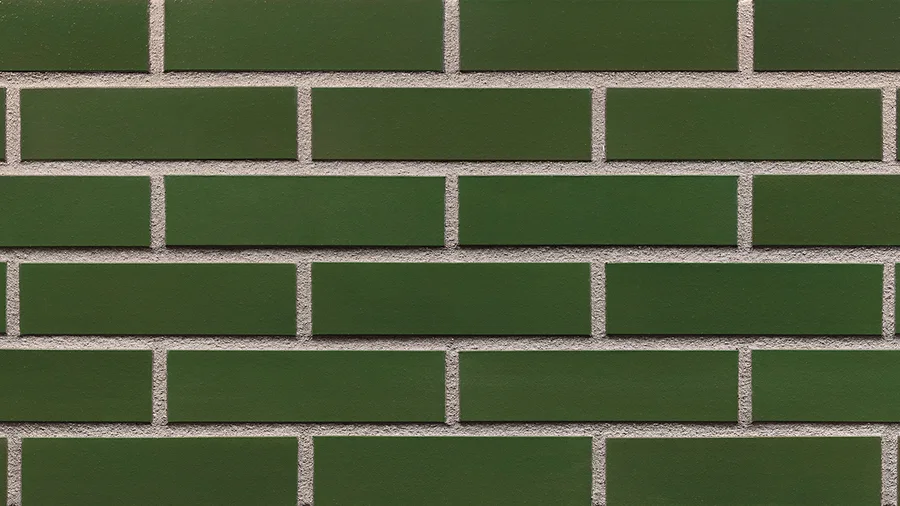

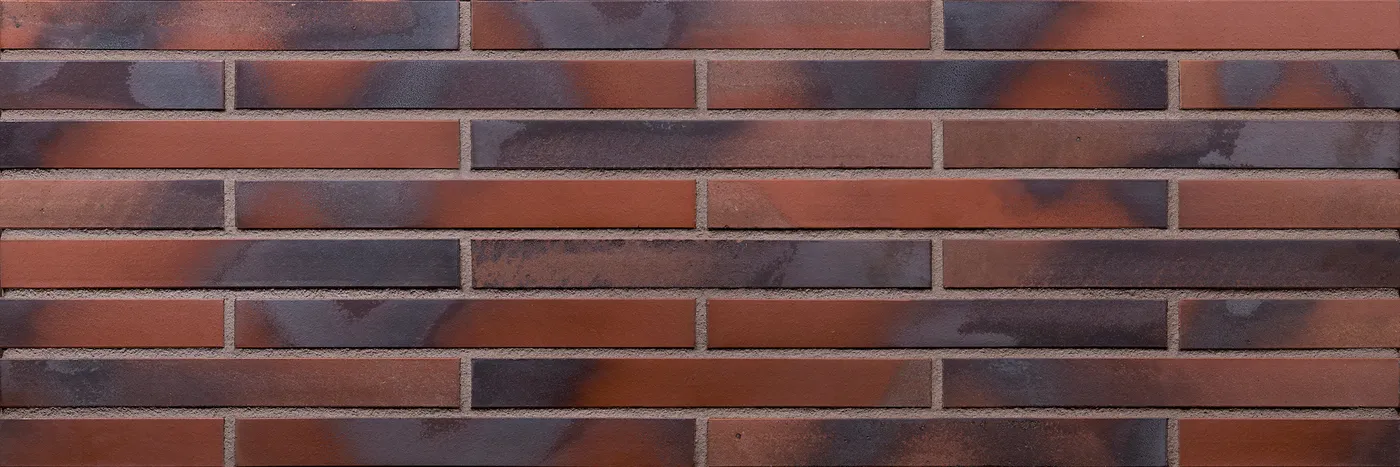

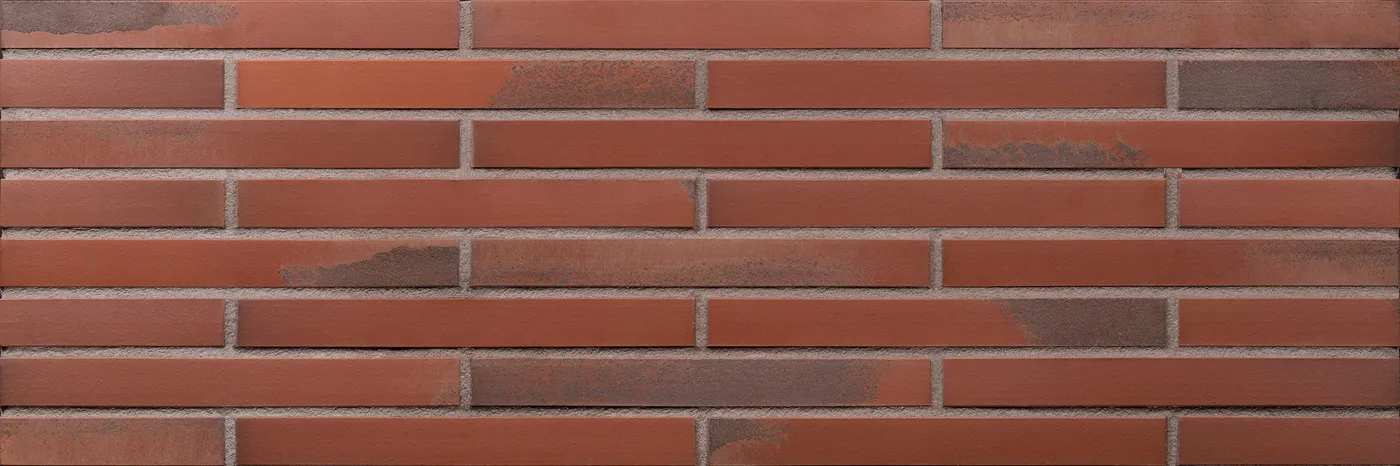

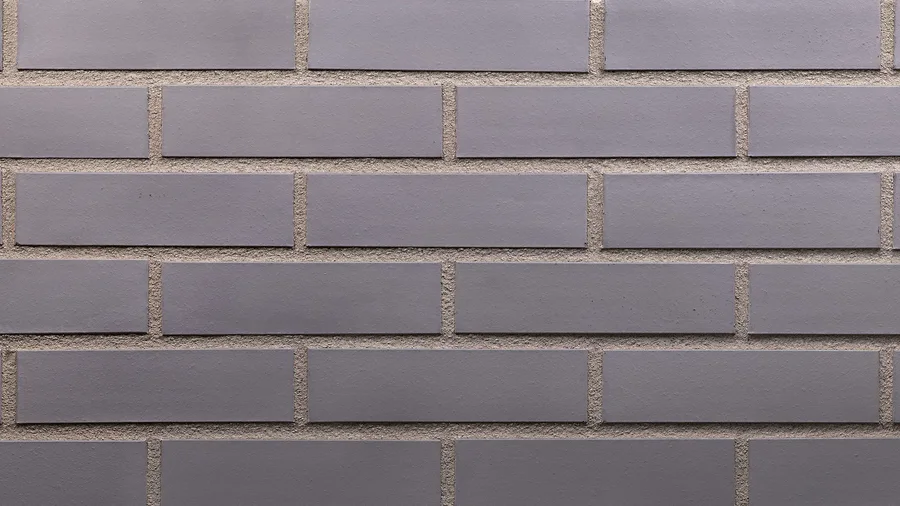

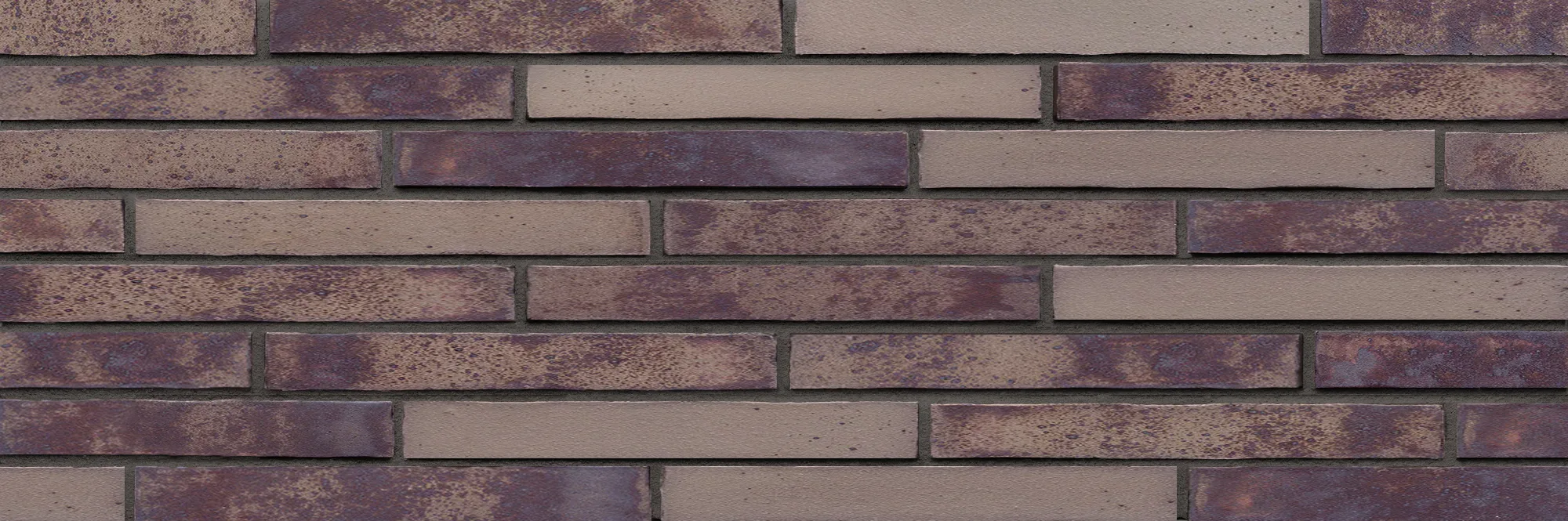

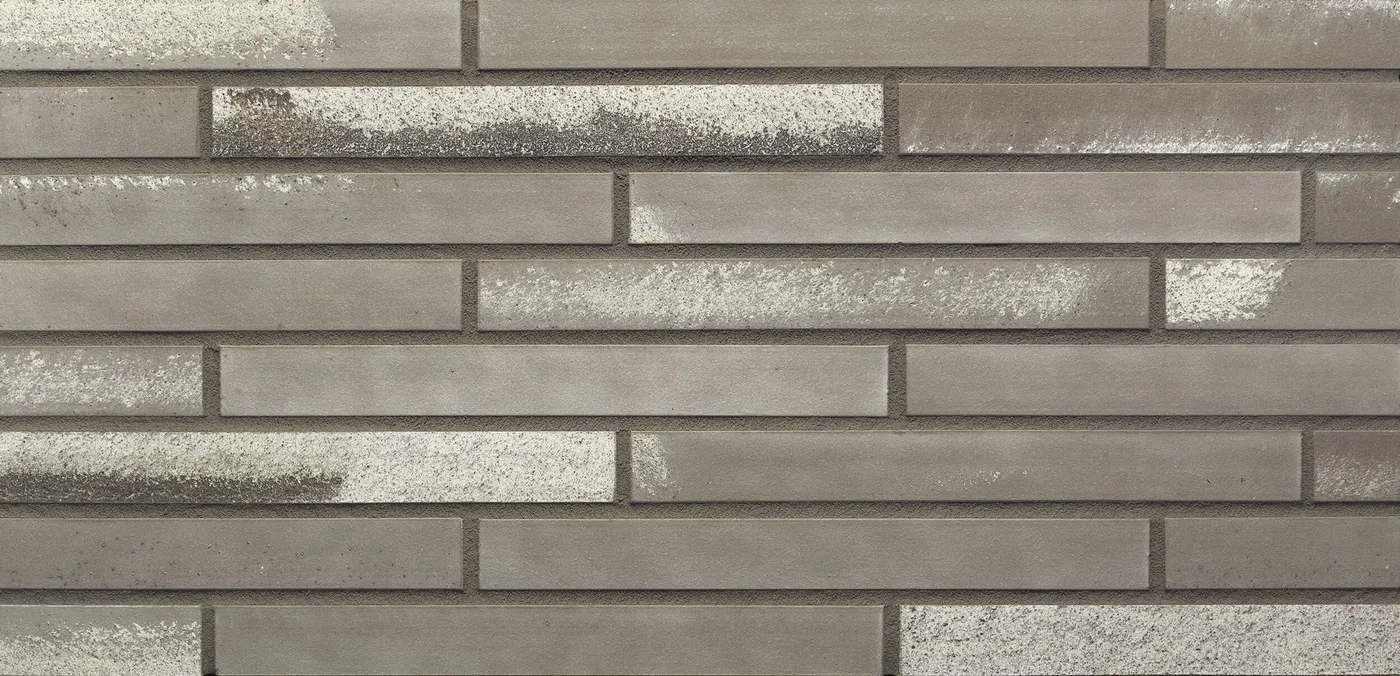

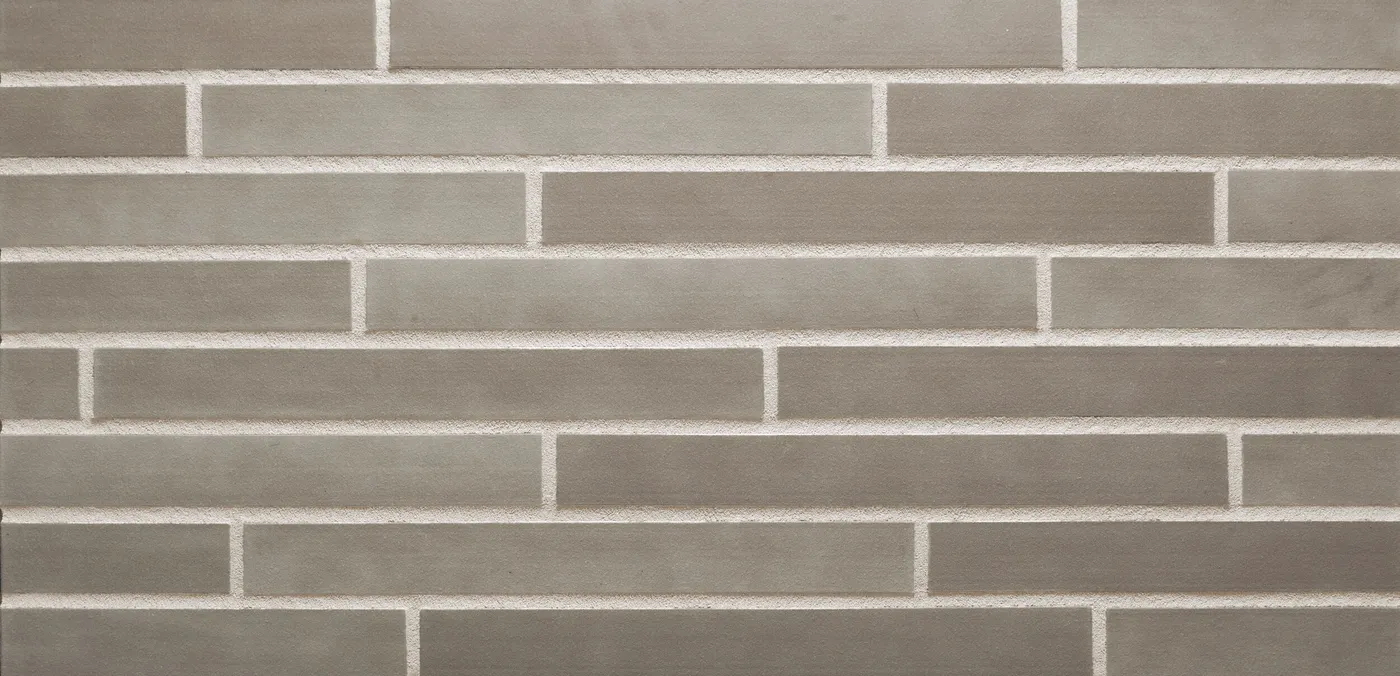

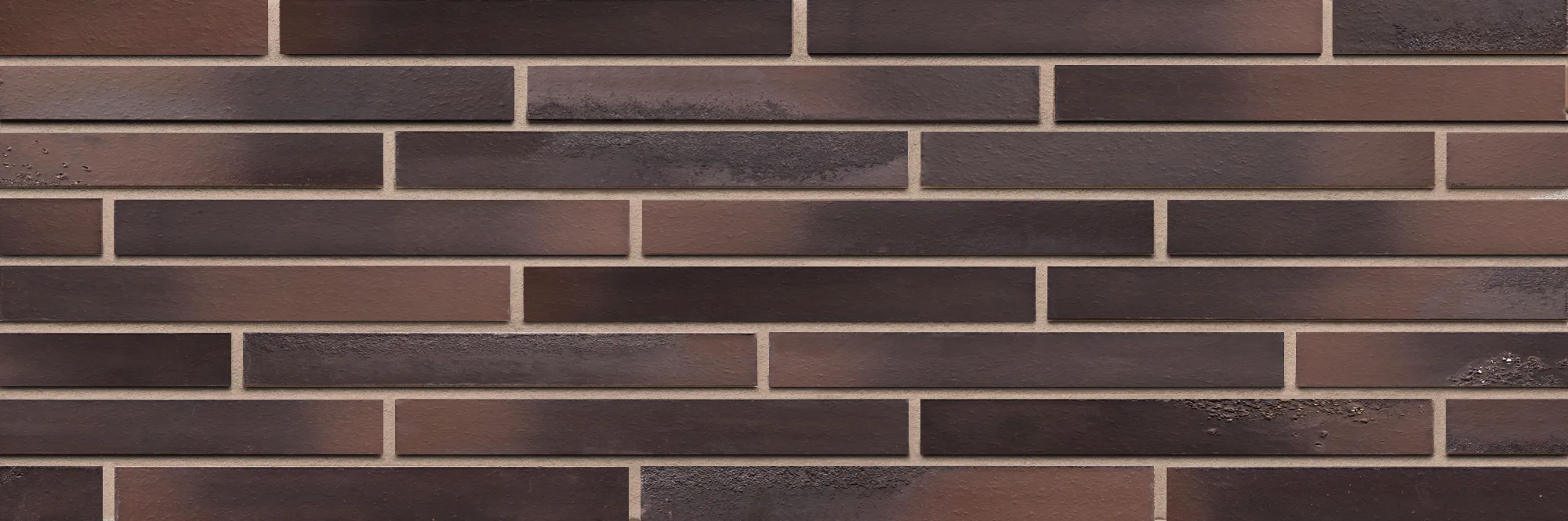

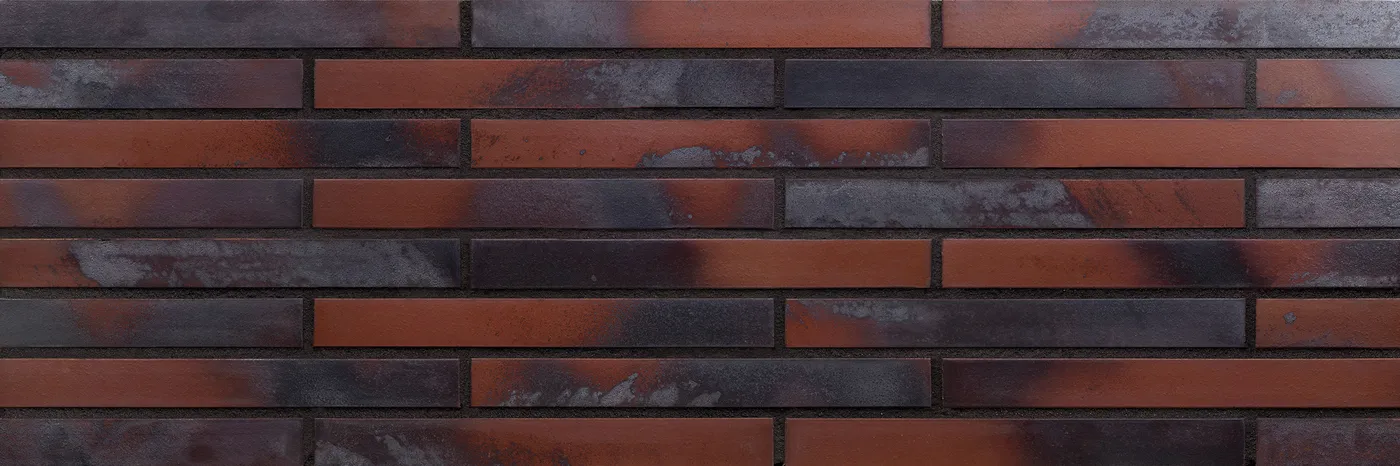

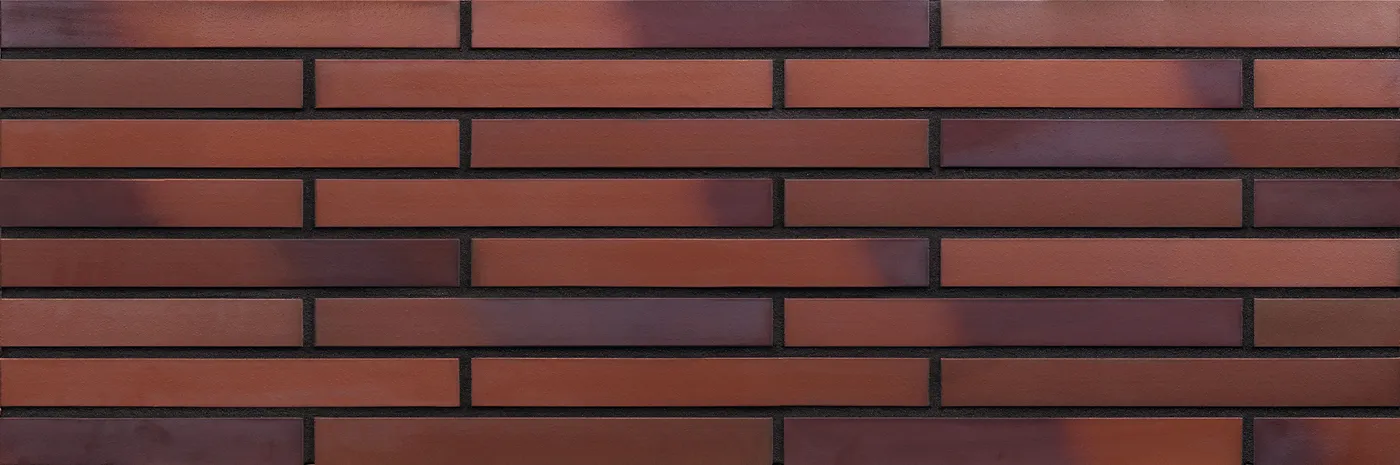

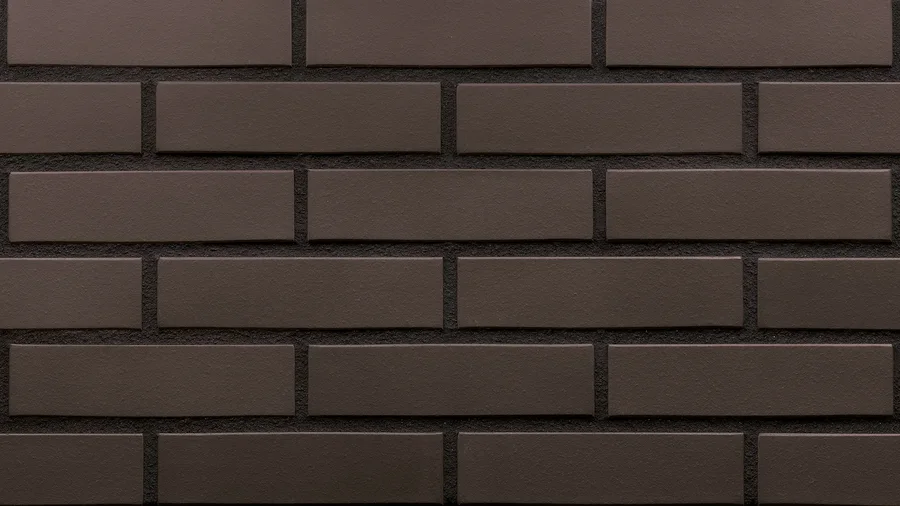

Every Norman and Meridian color is also made in Roman, 1-9/16 by 11-5/8 in. Pictured in the long King Size format King Klinker makes in Europe, or in Norman or Meridian, until Roman photos are taken.

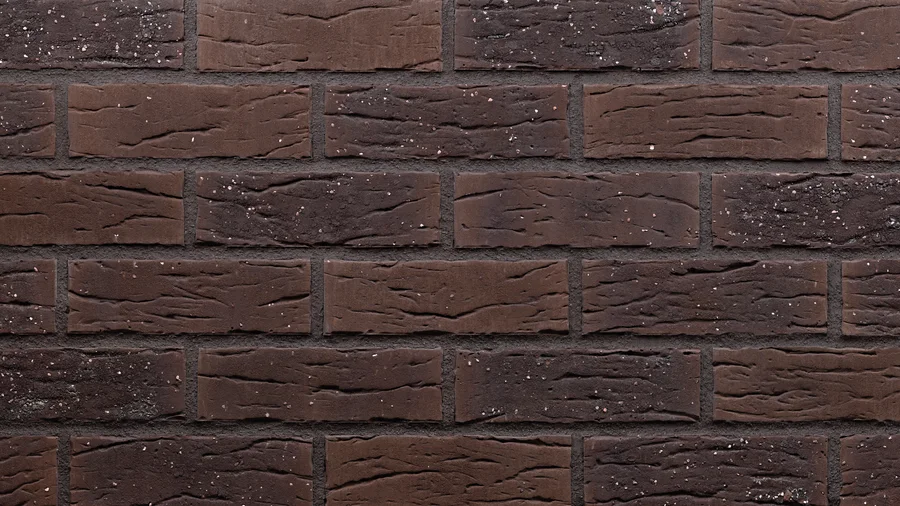

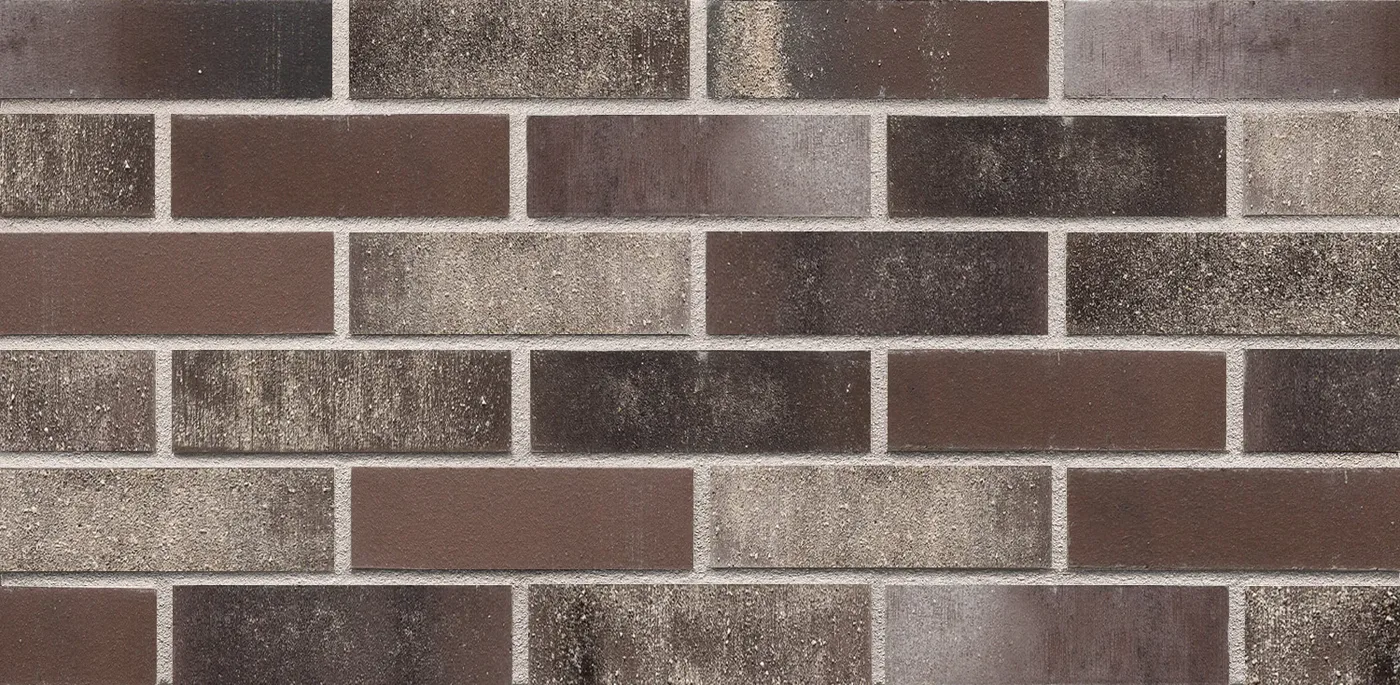

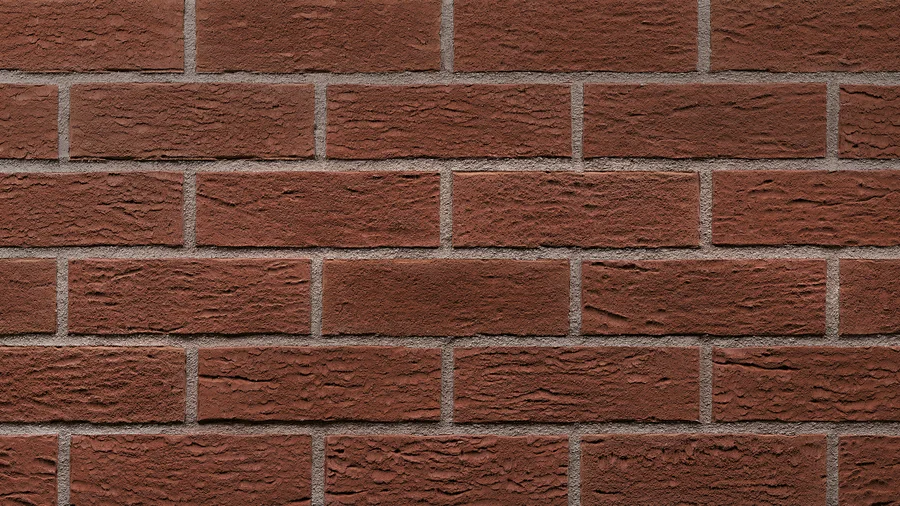

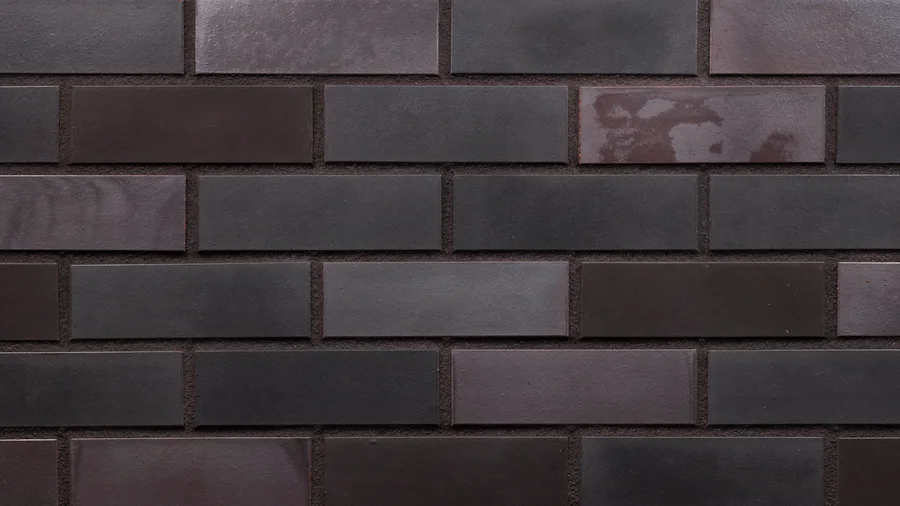

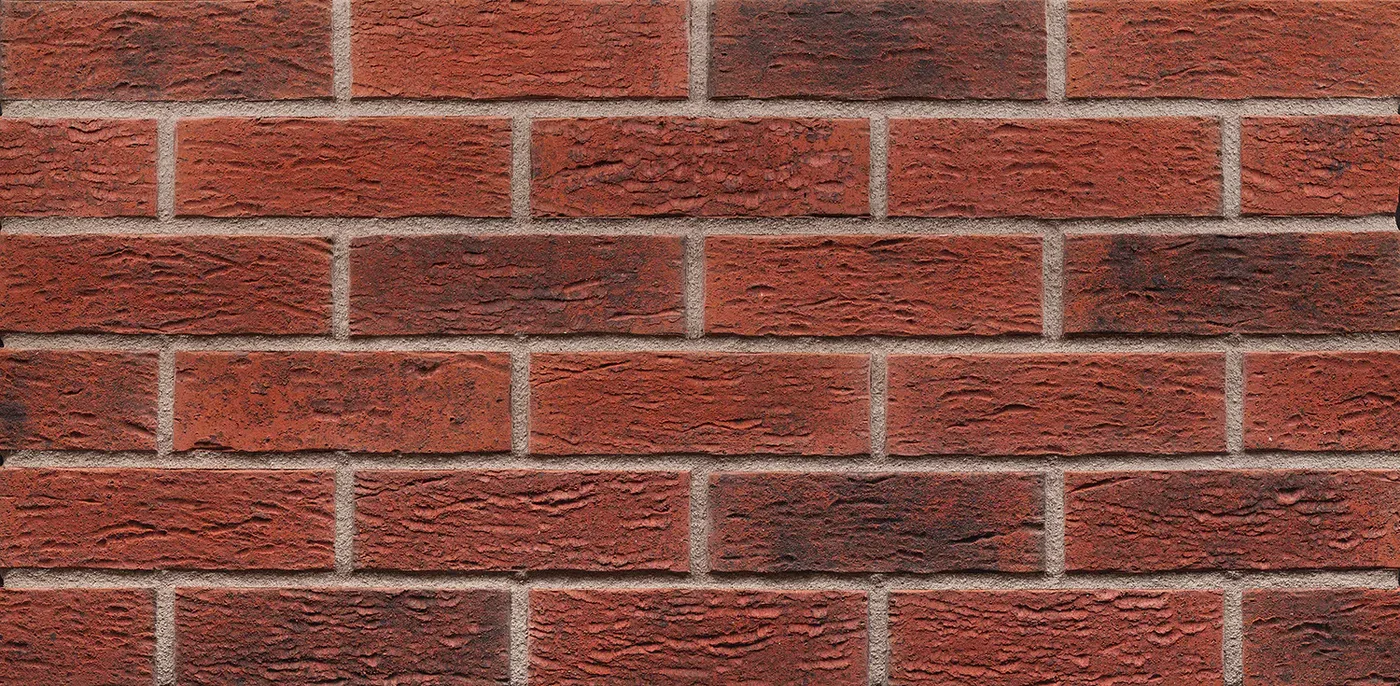

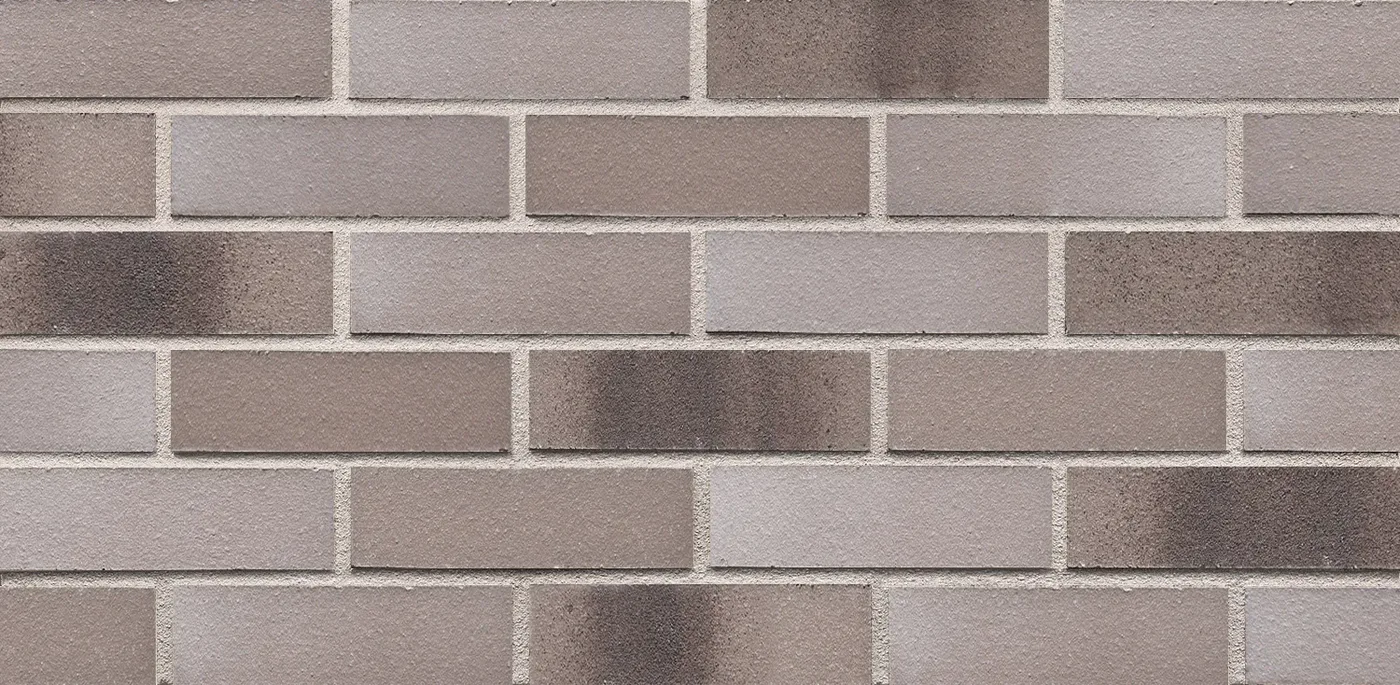

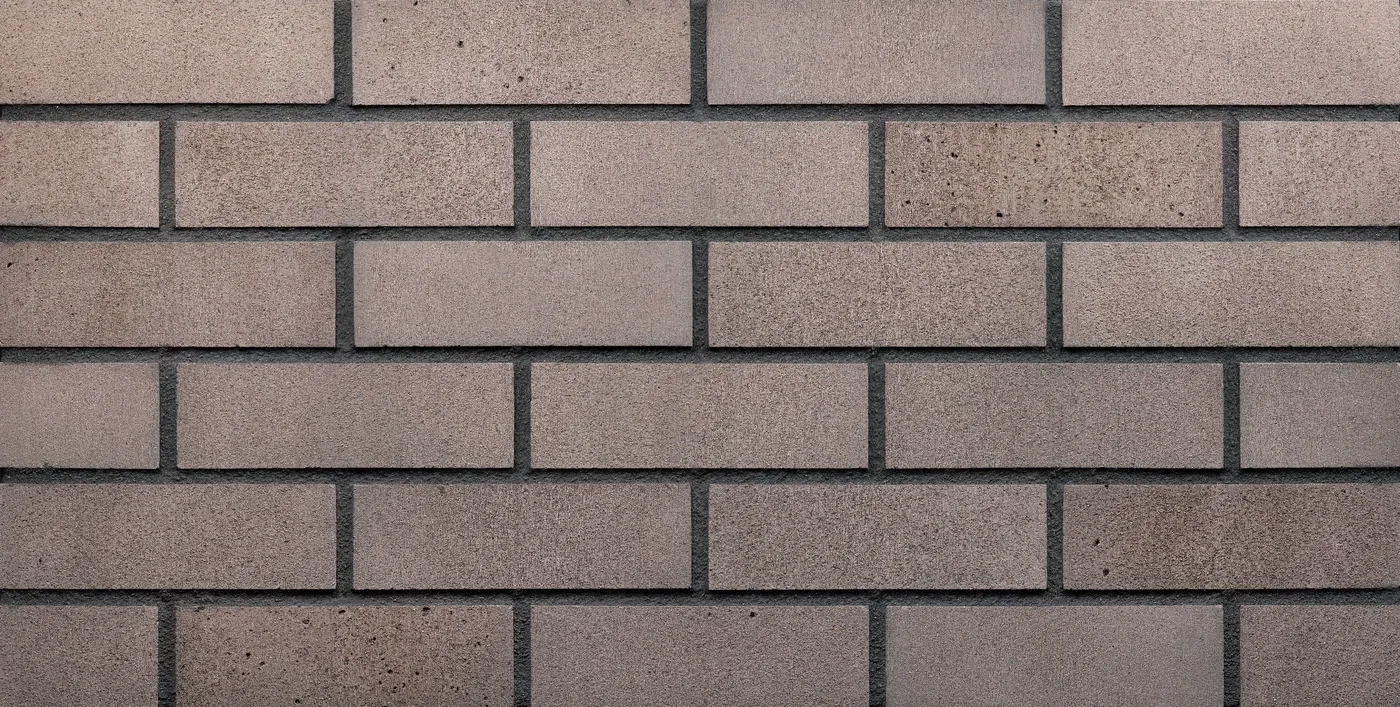

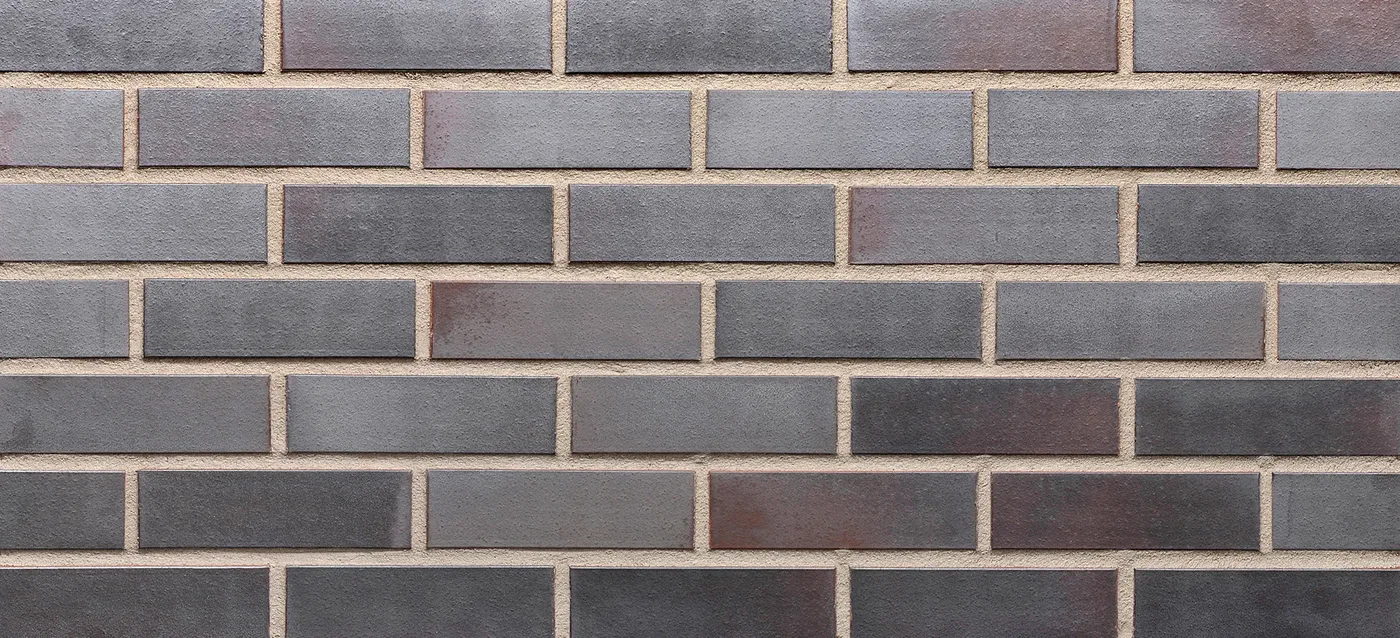

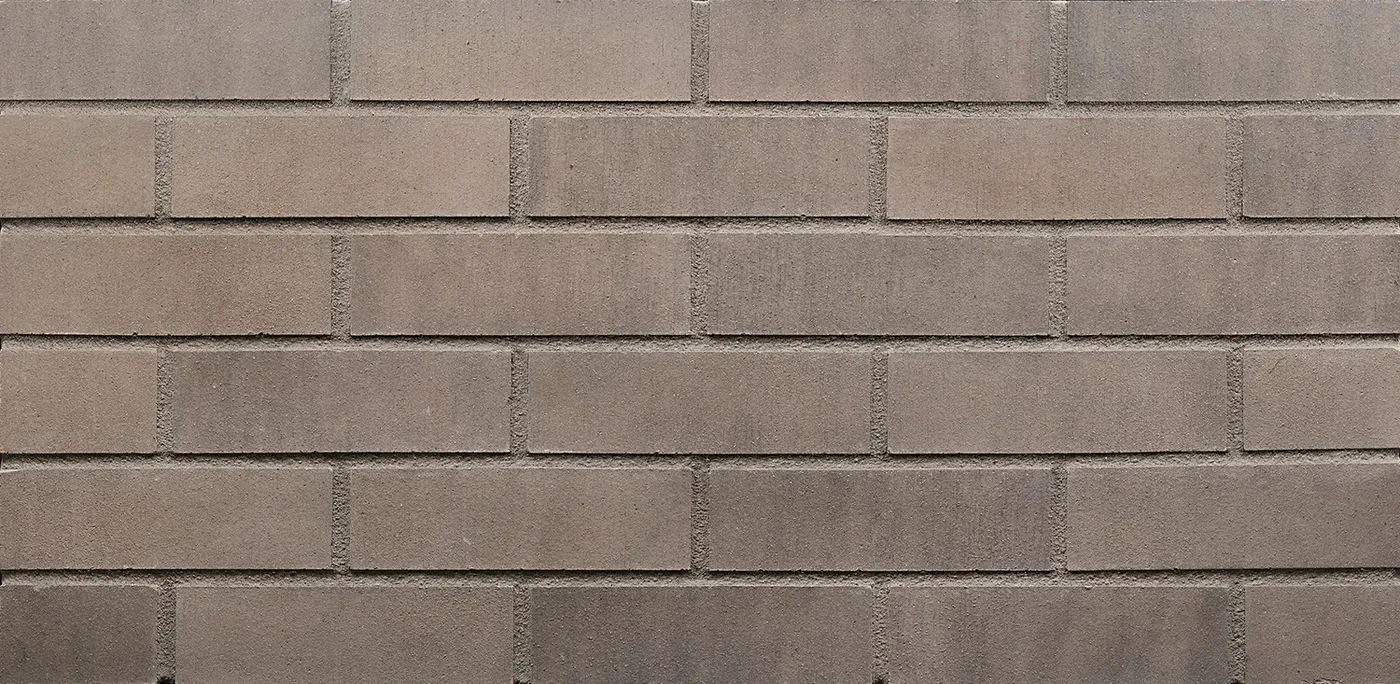

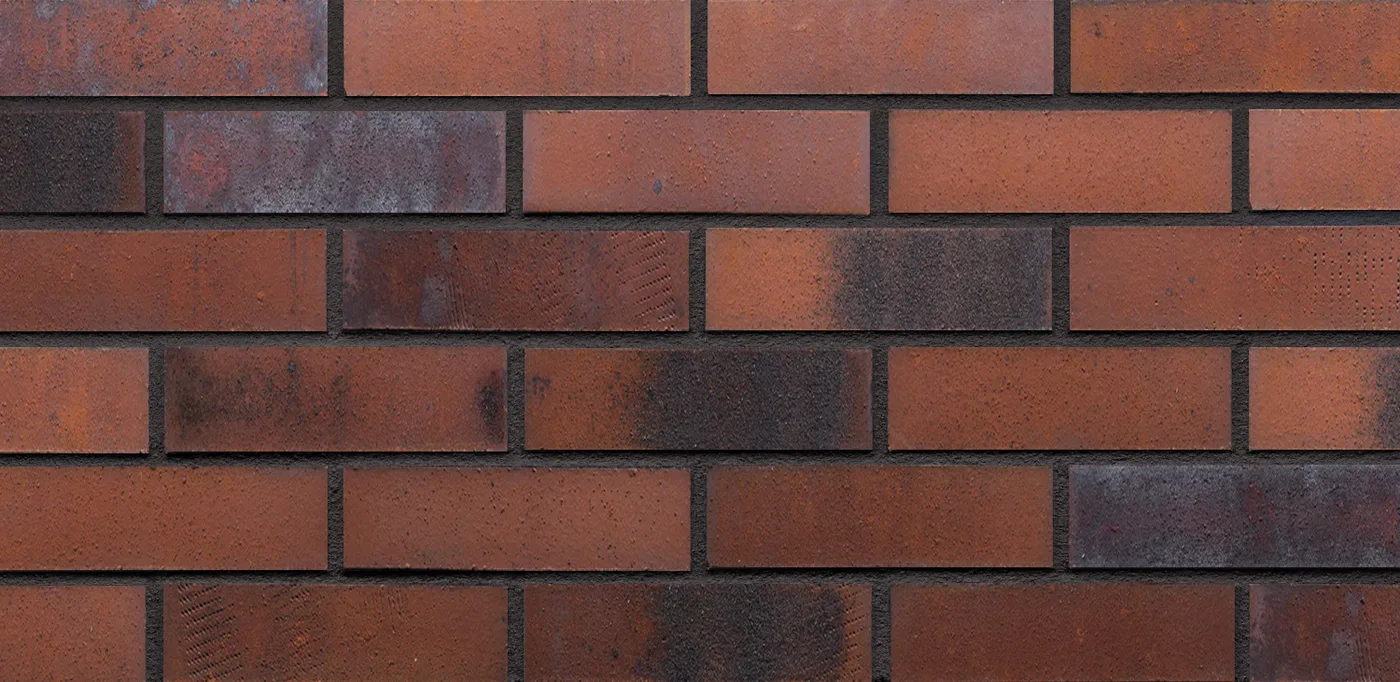

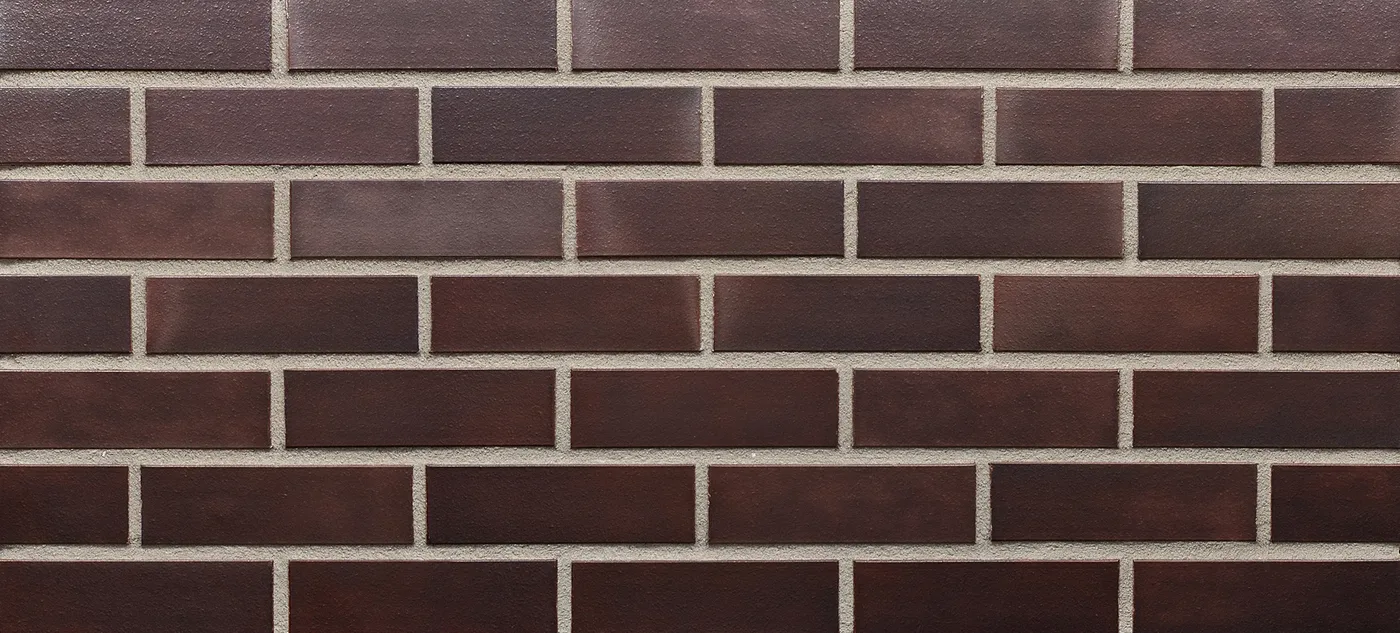

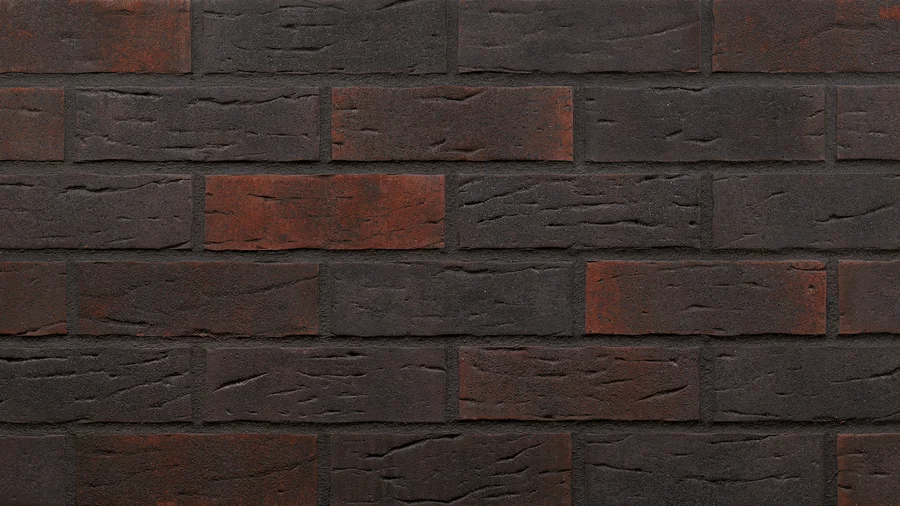

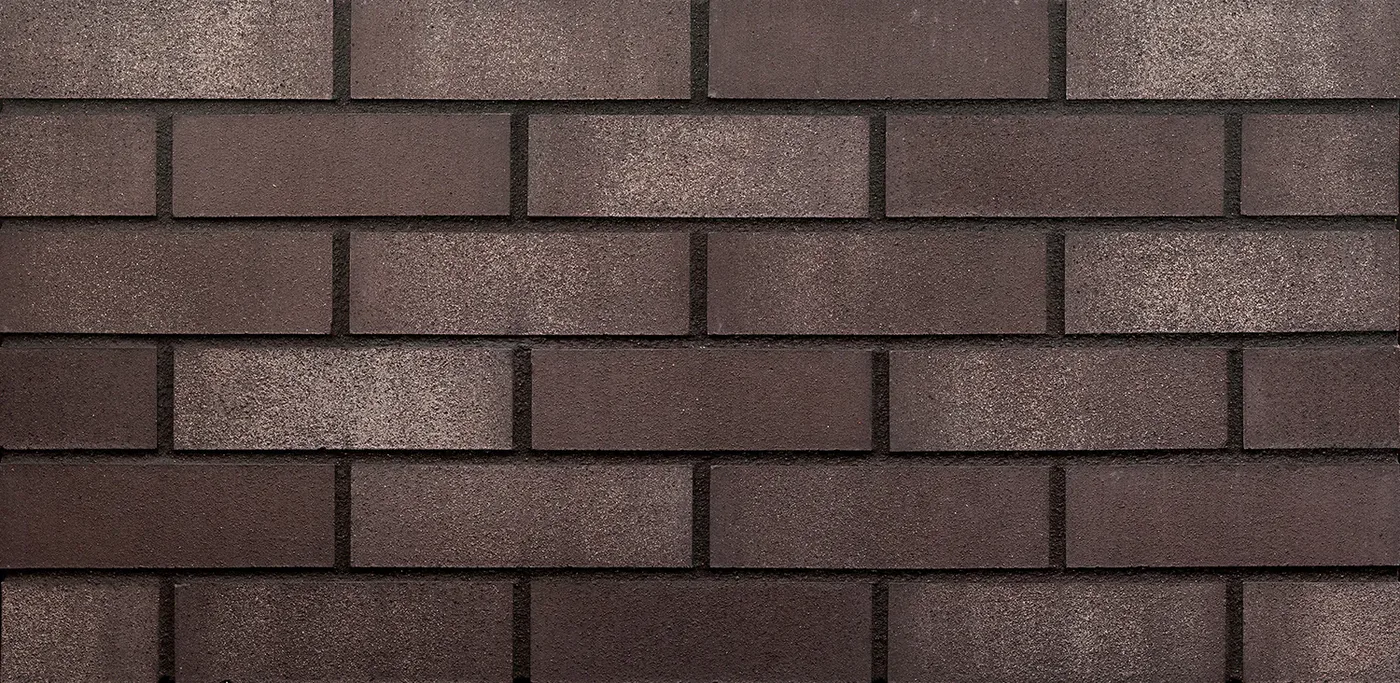

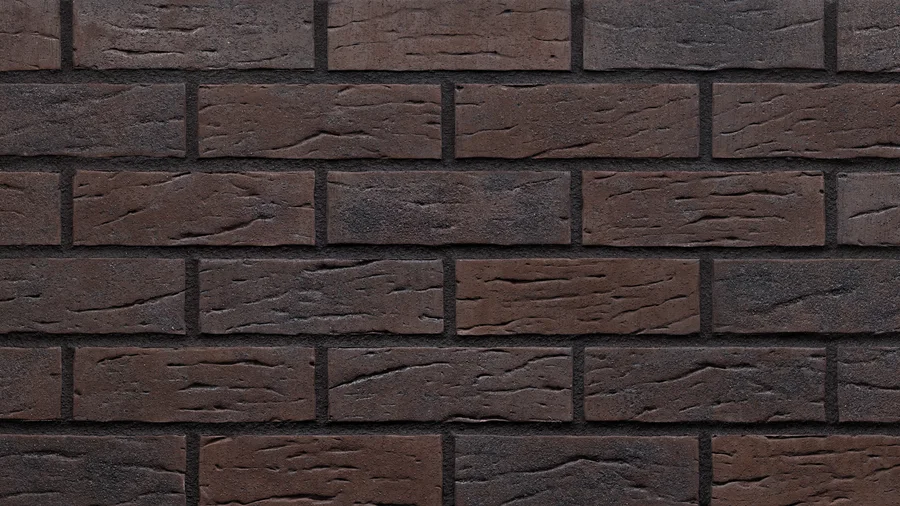

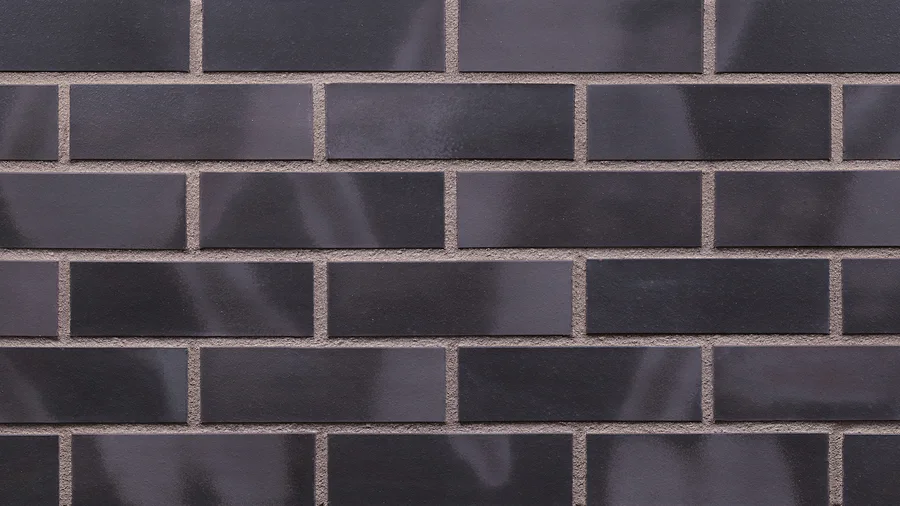

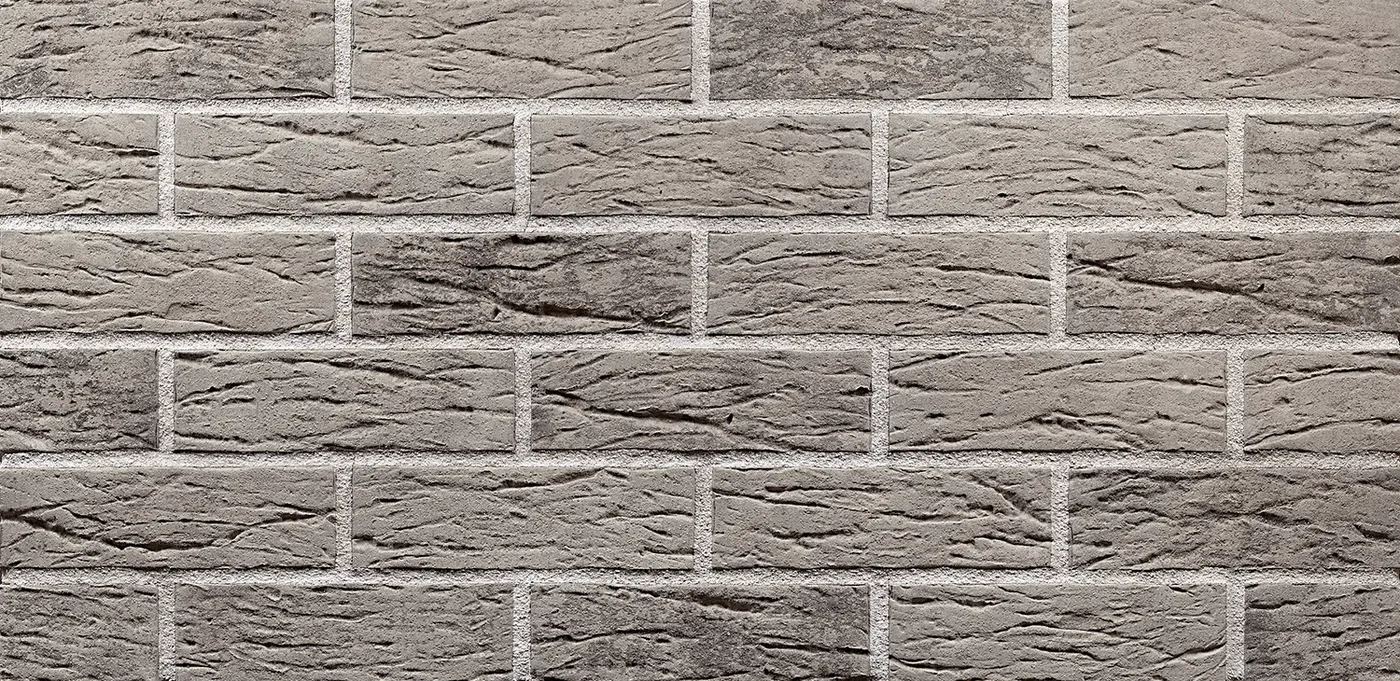

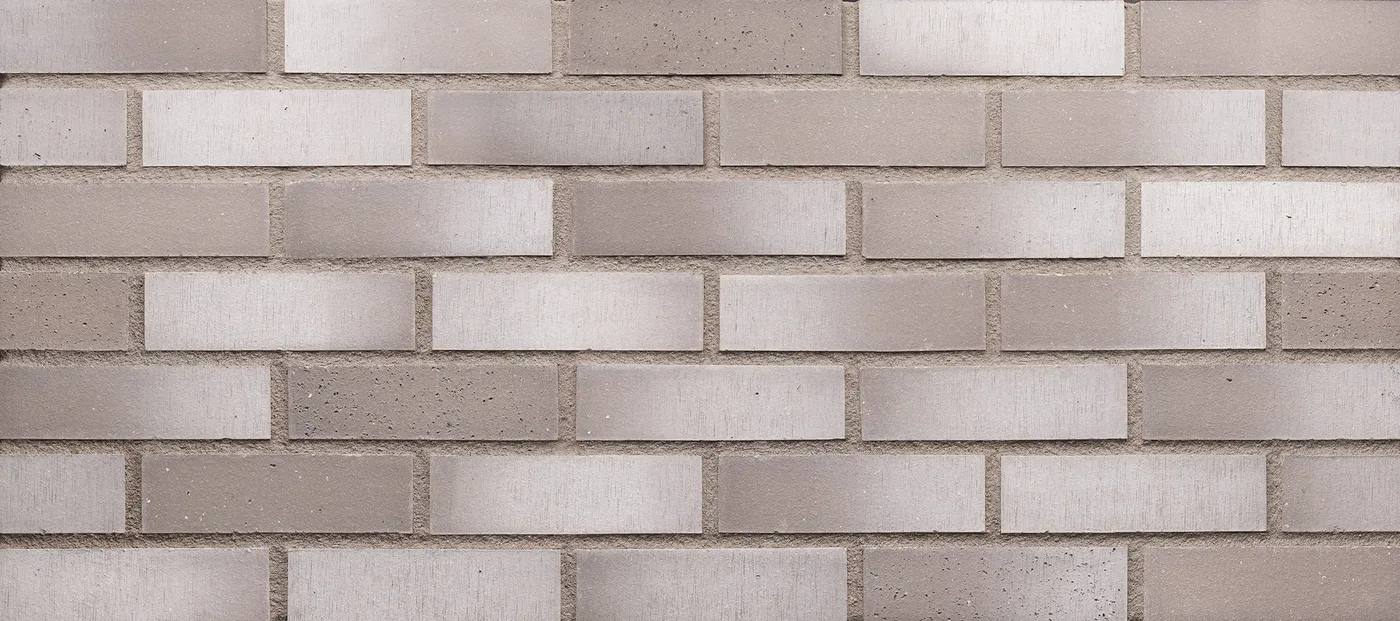

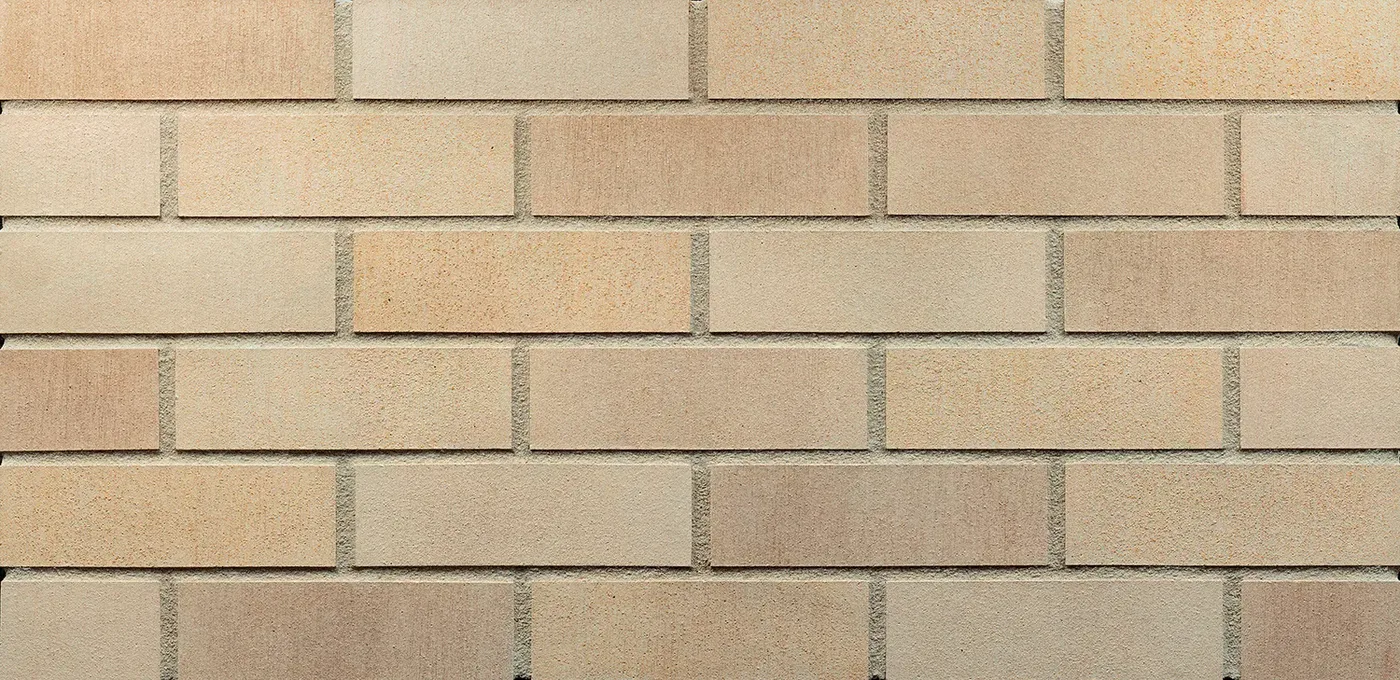

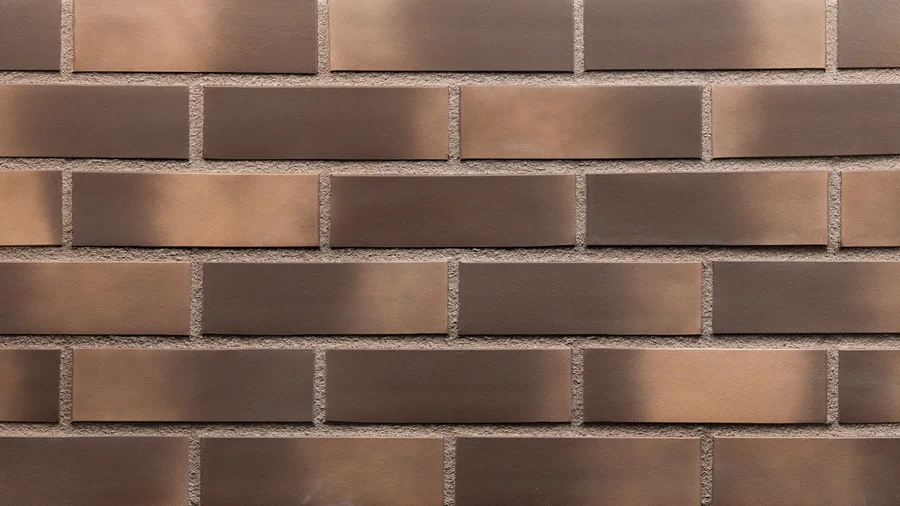

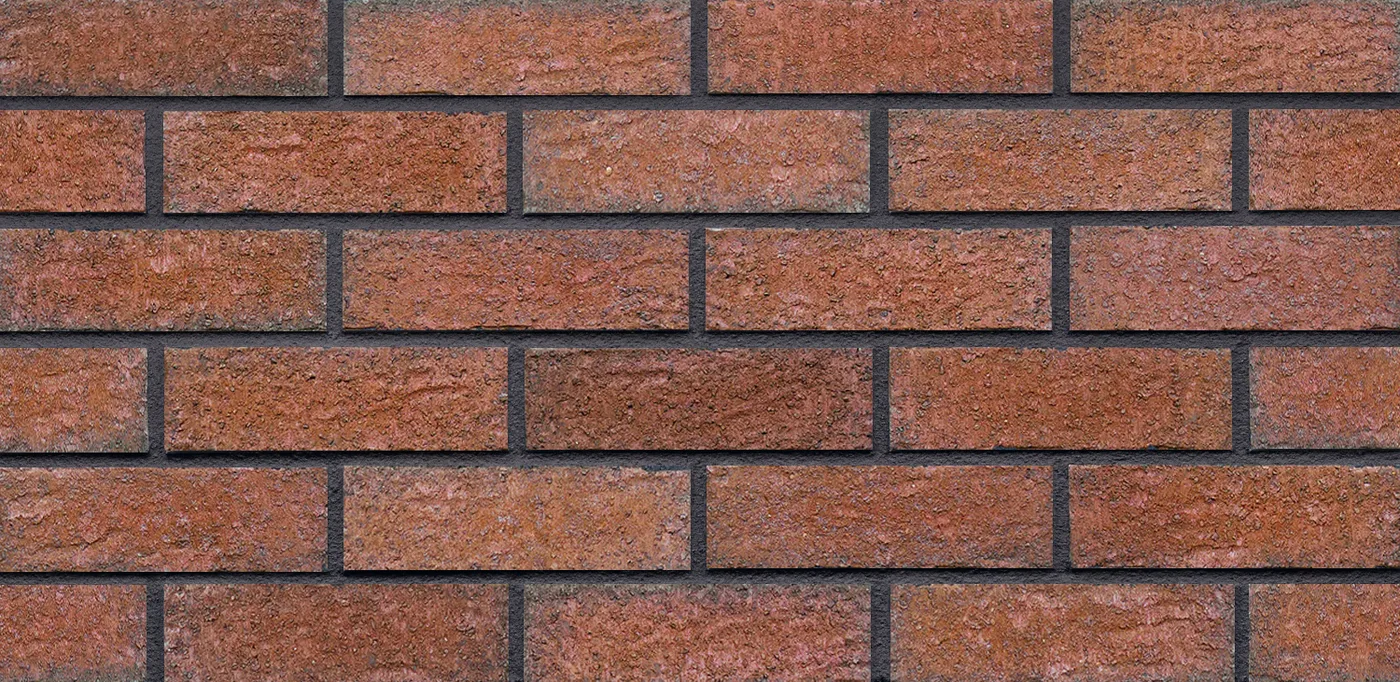

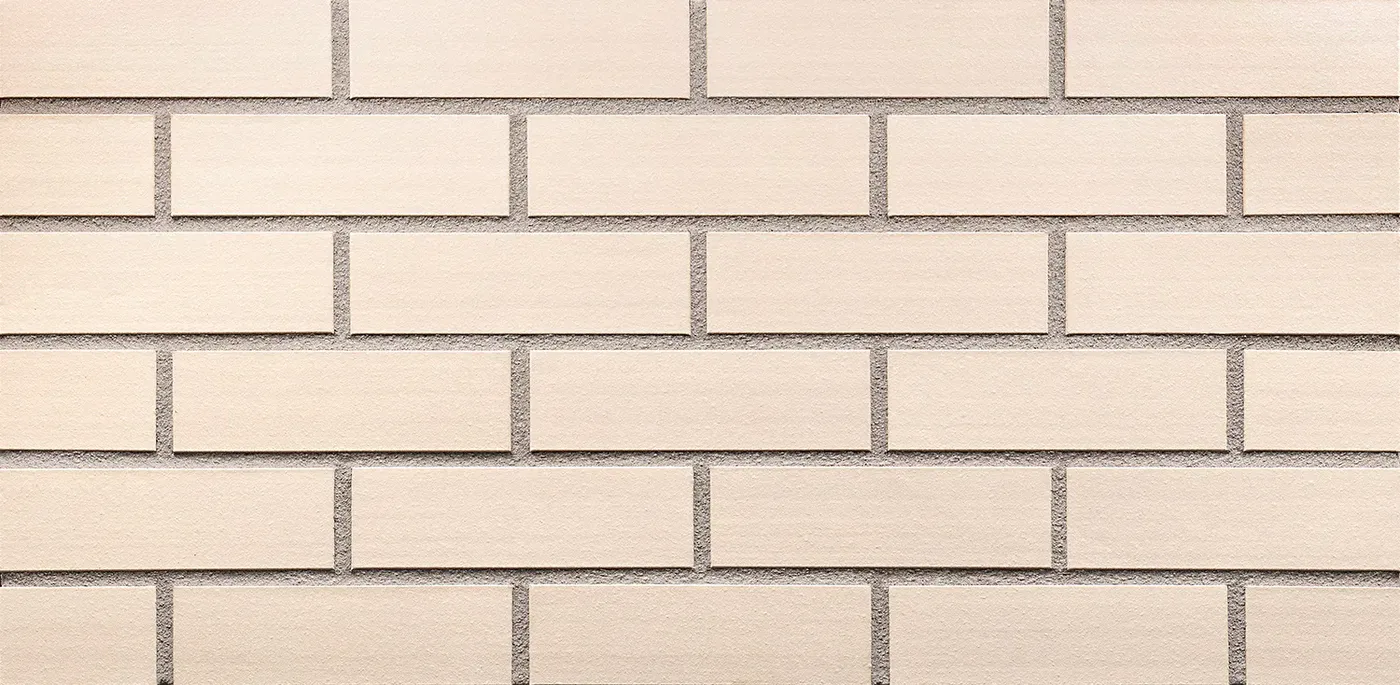

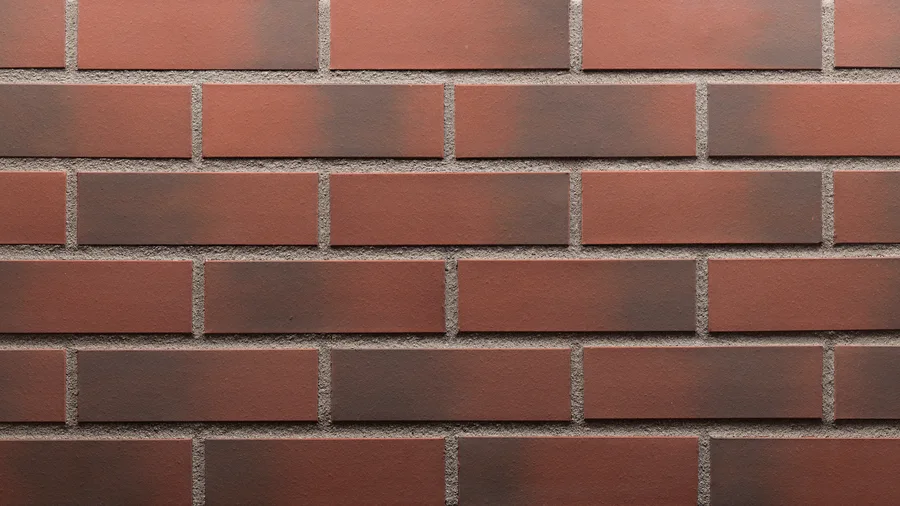

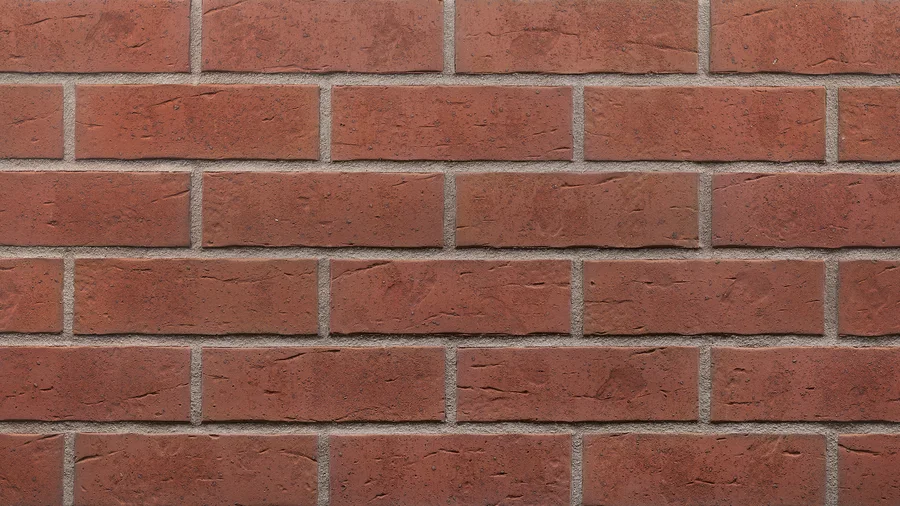

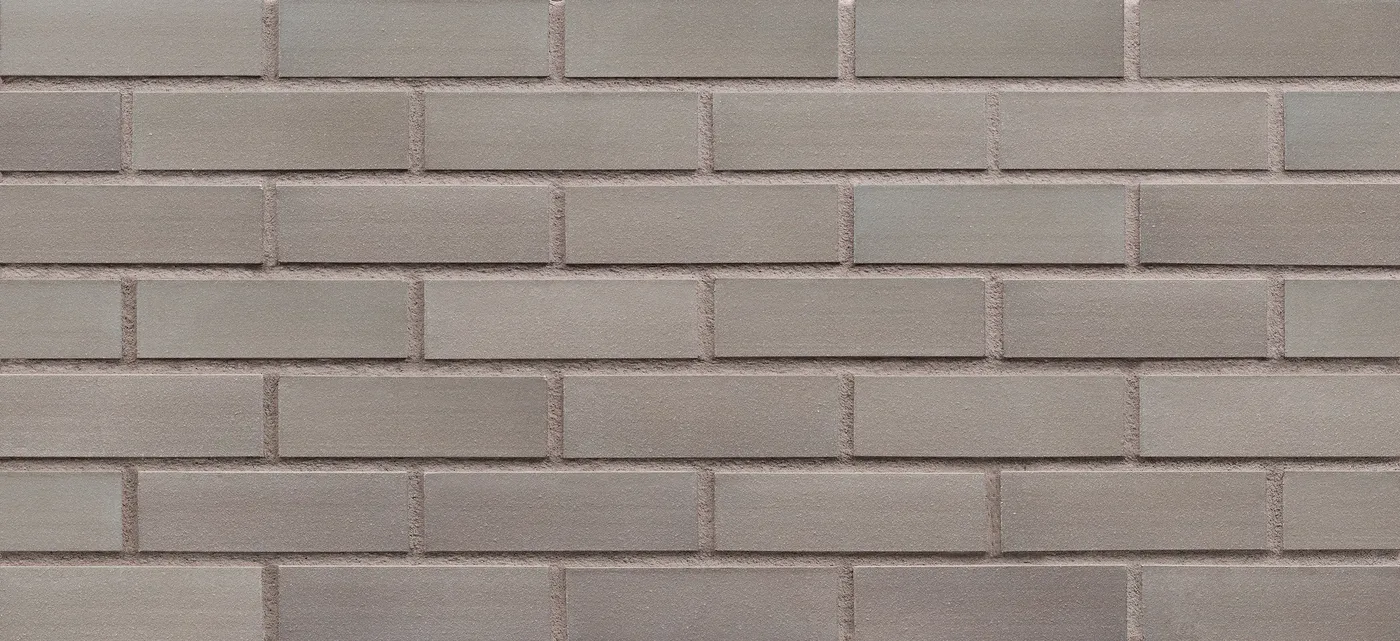

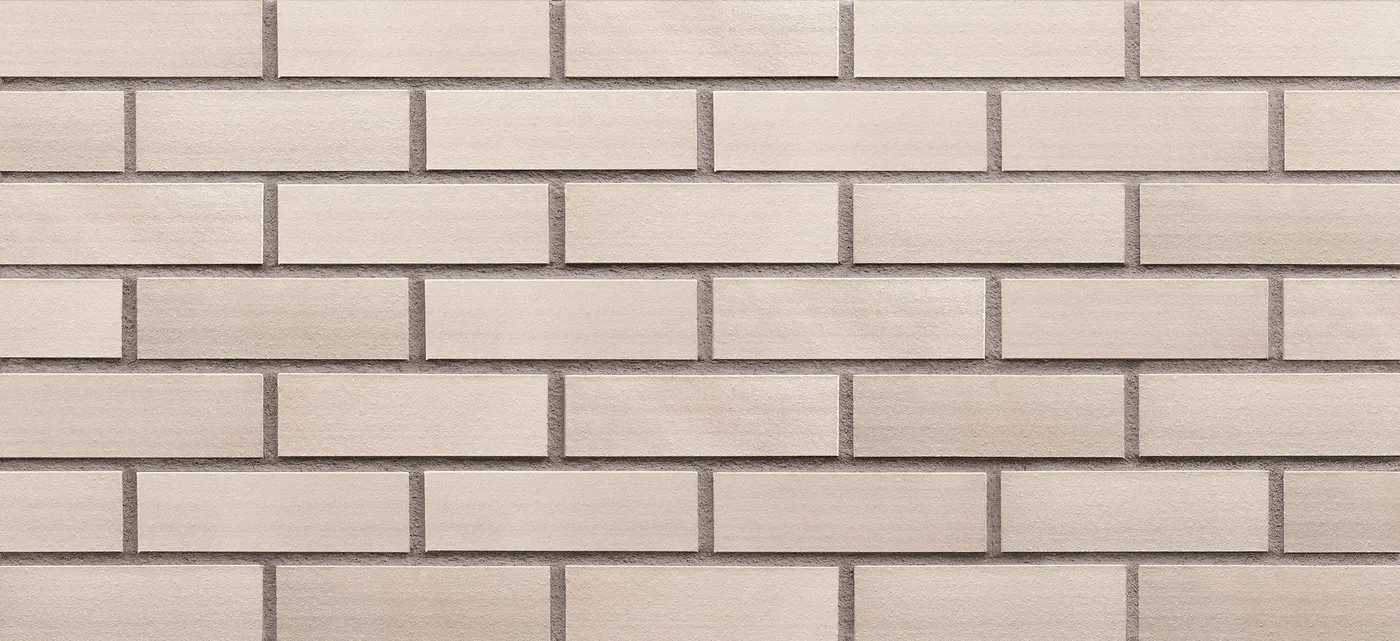

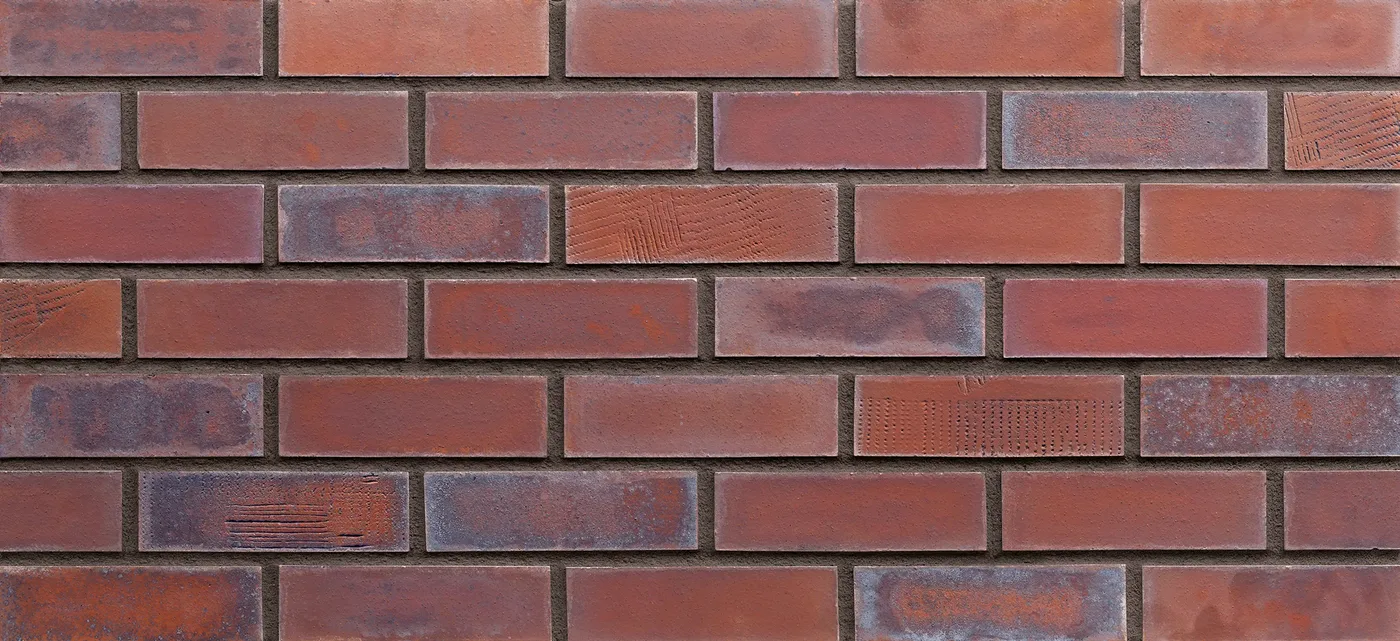

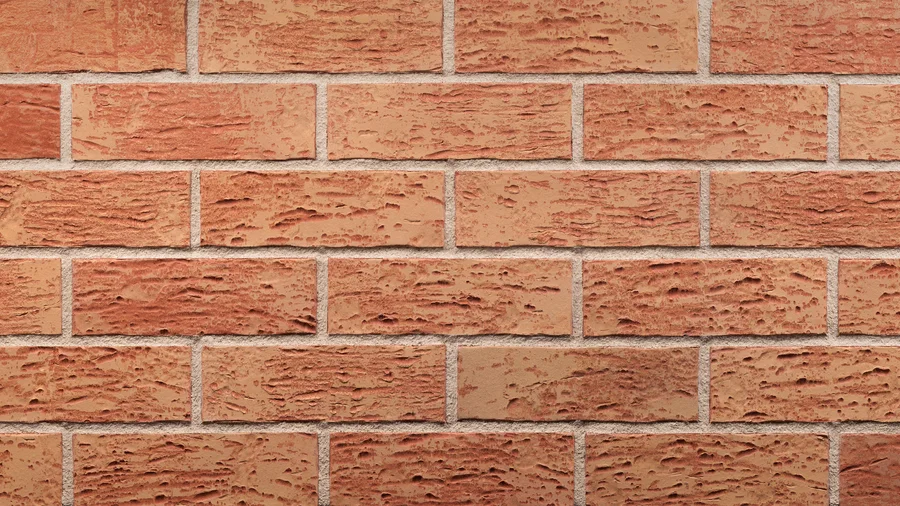

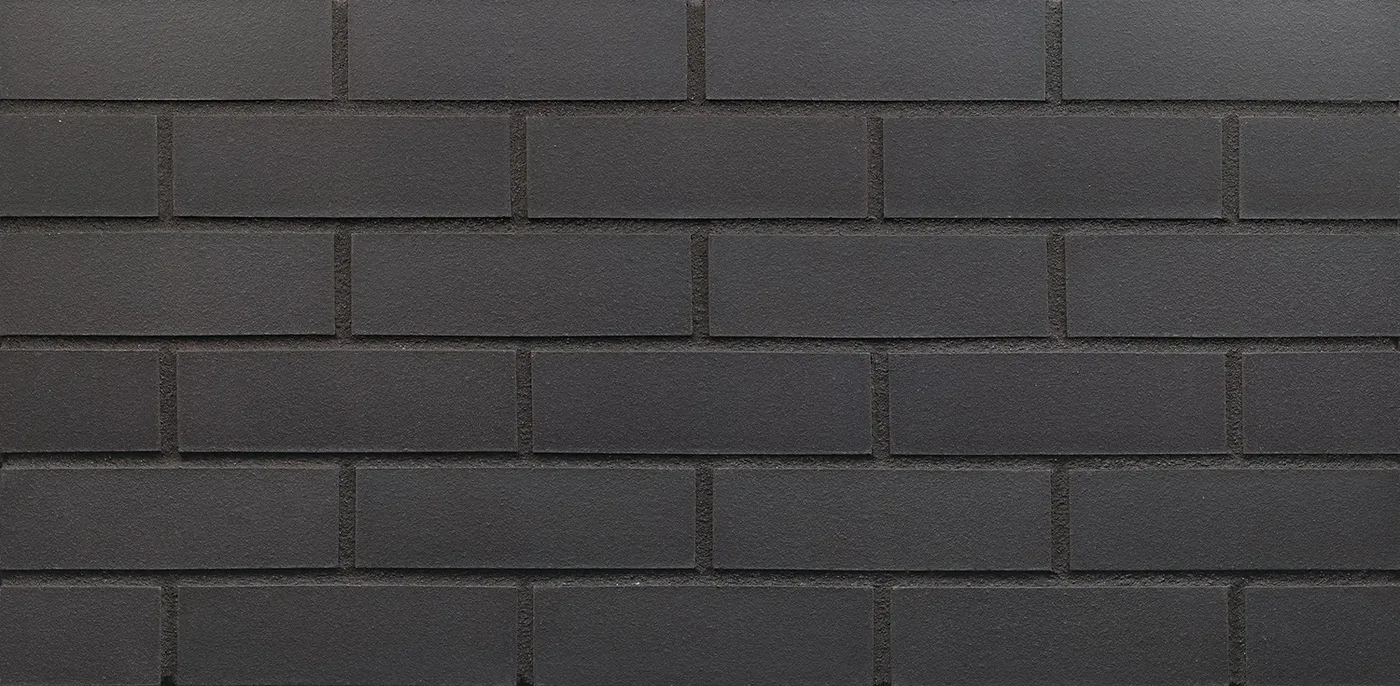

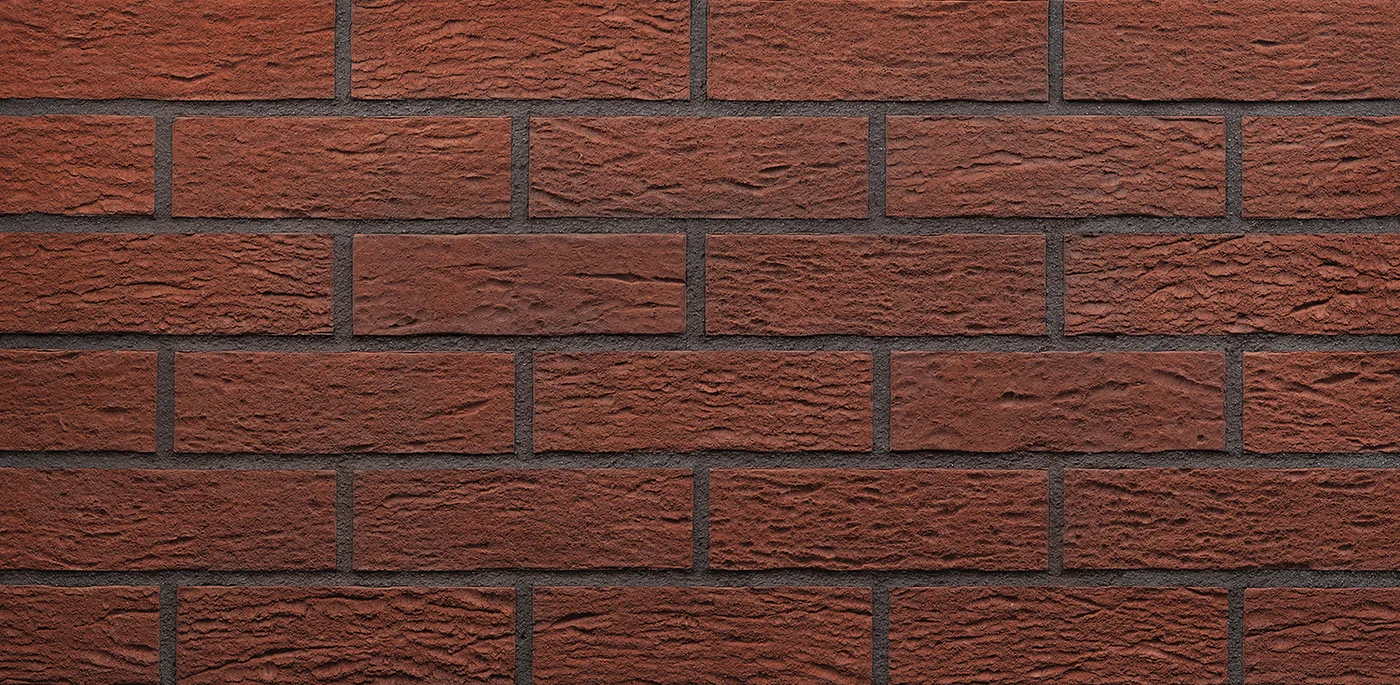

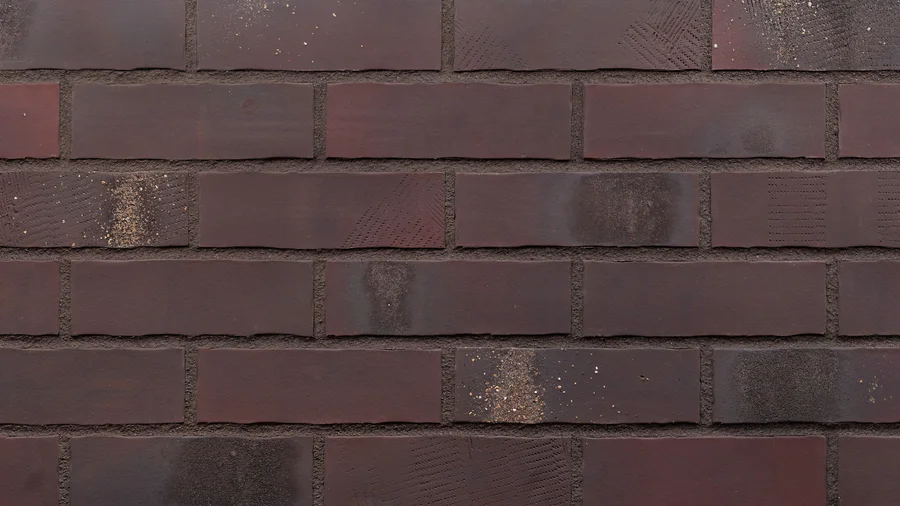

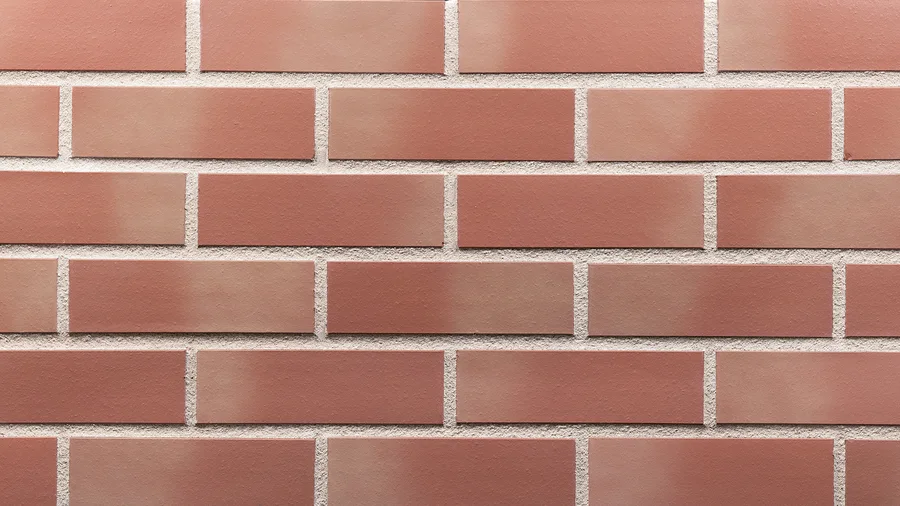

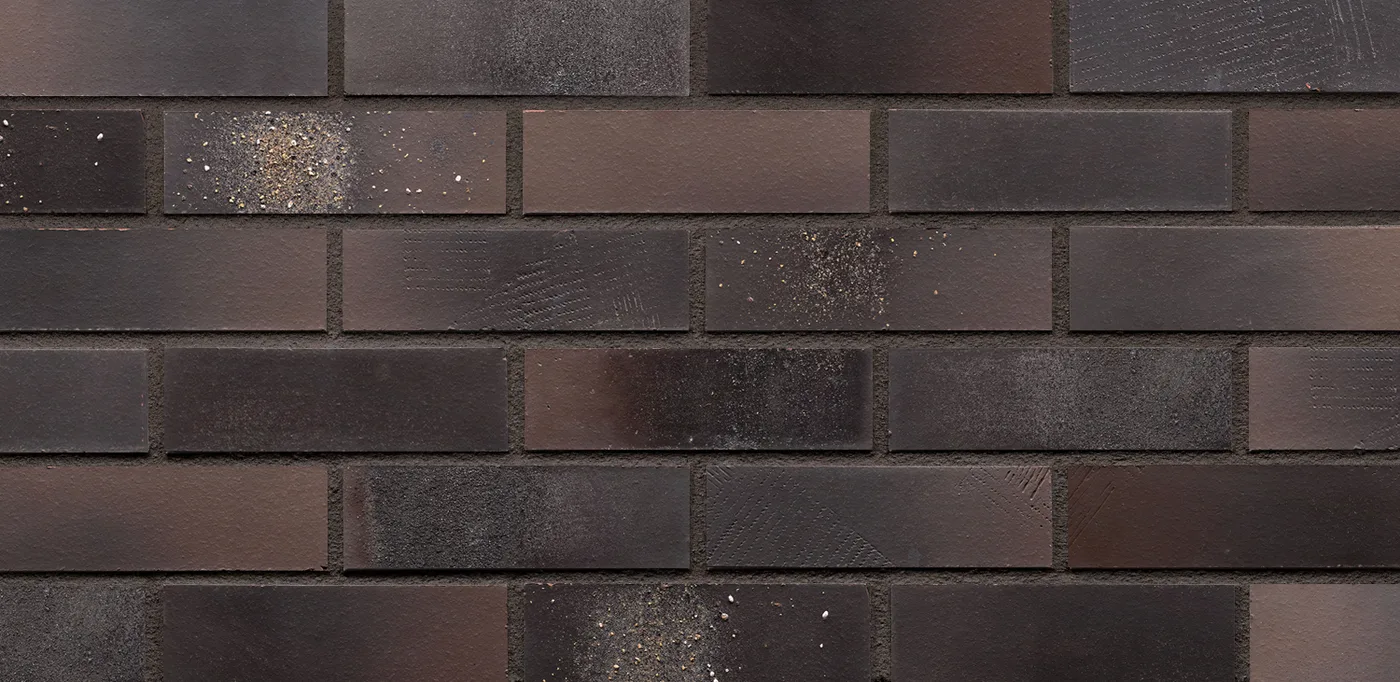

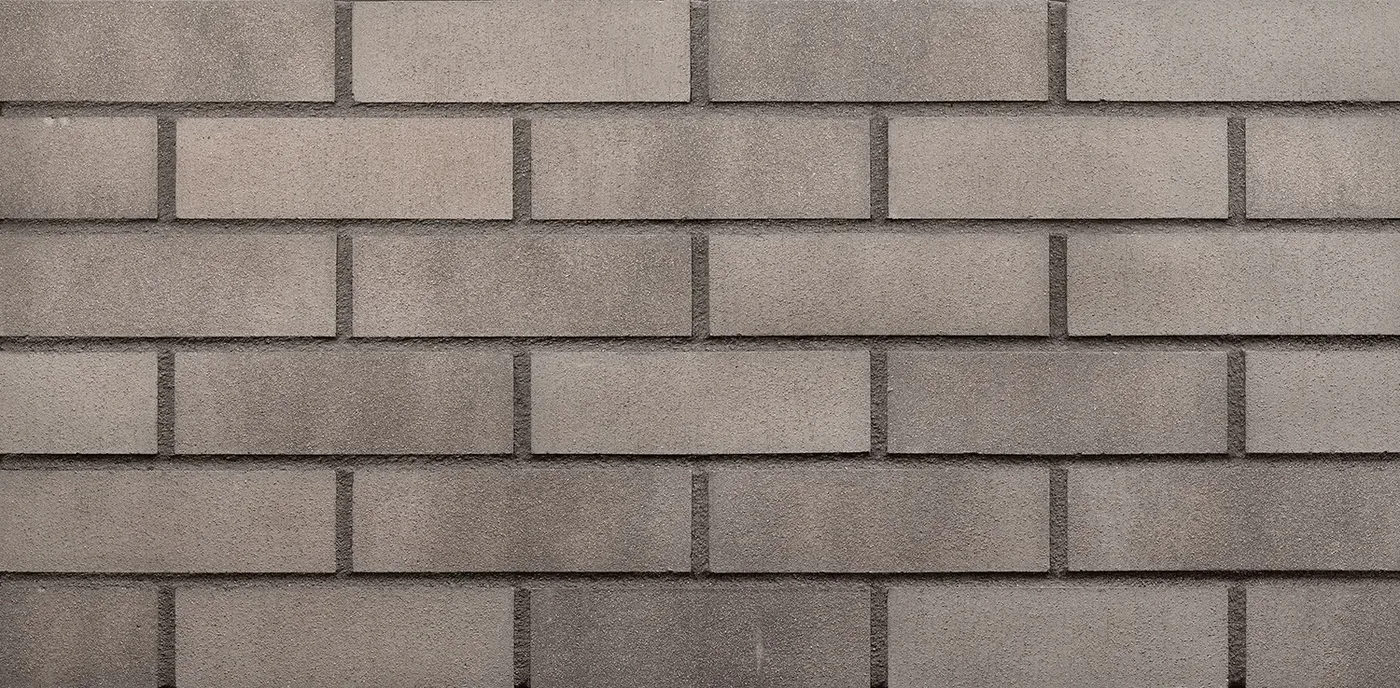

Modular. $$

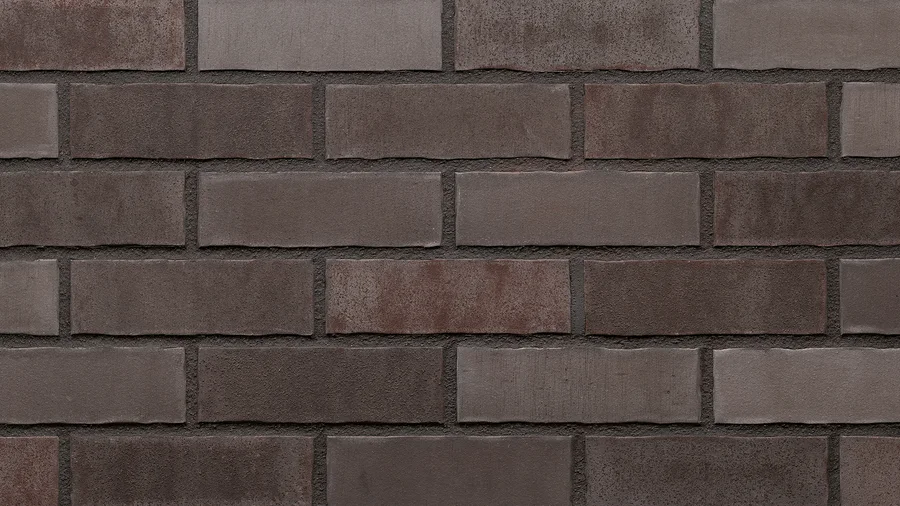

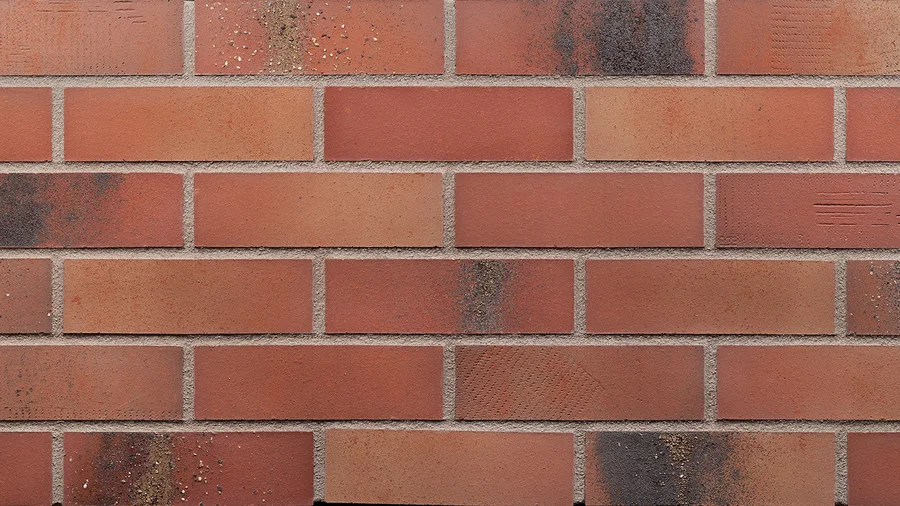

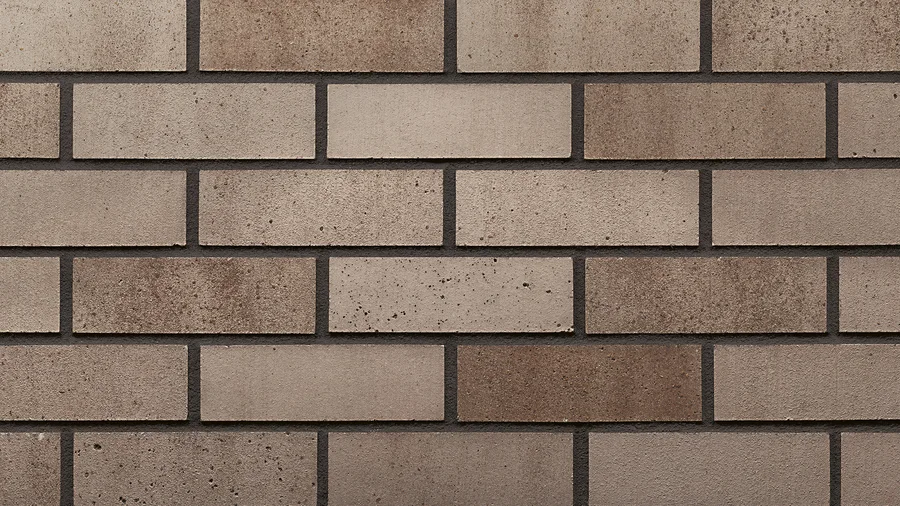

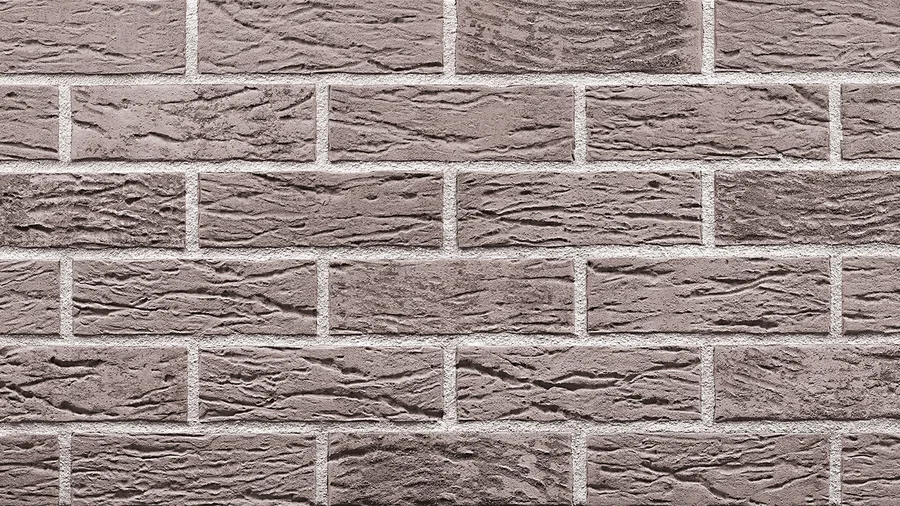

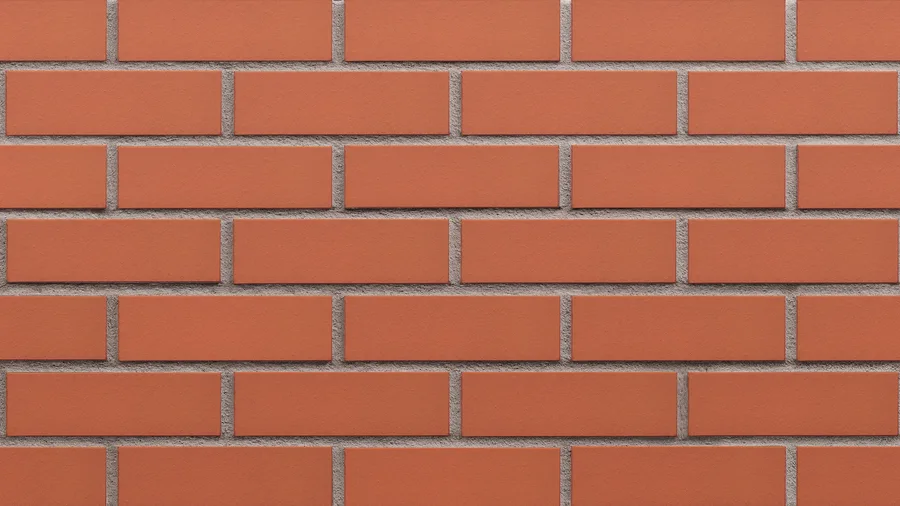

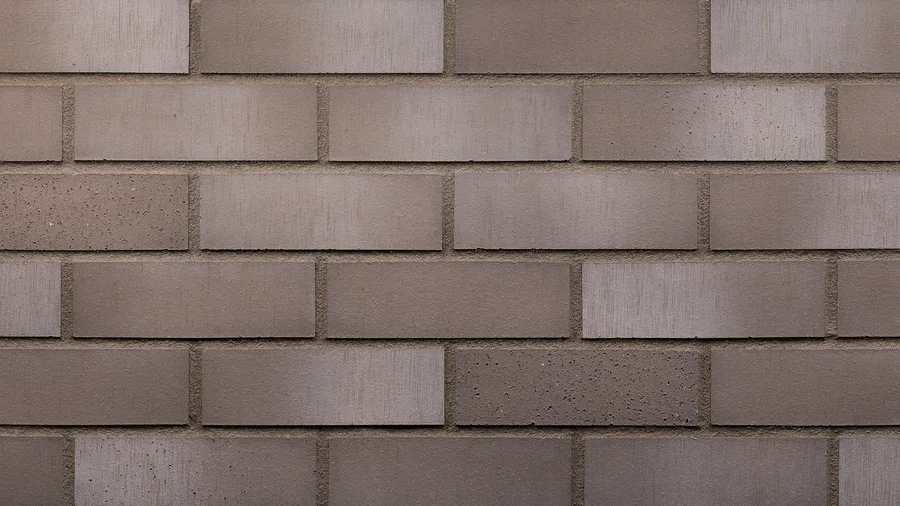

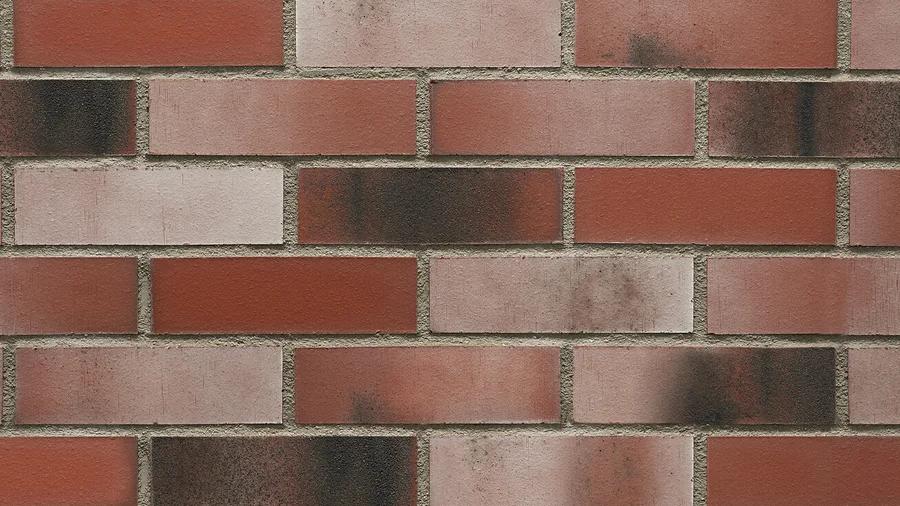

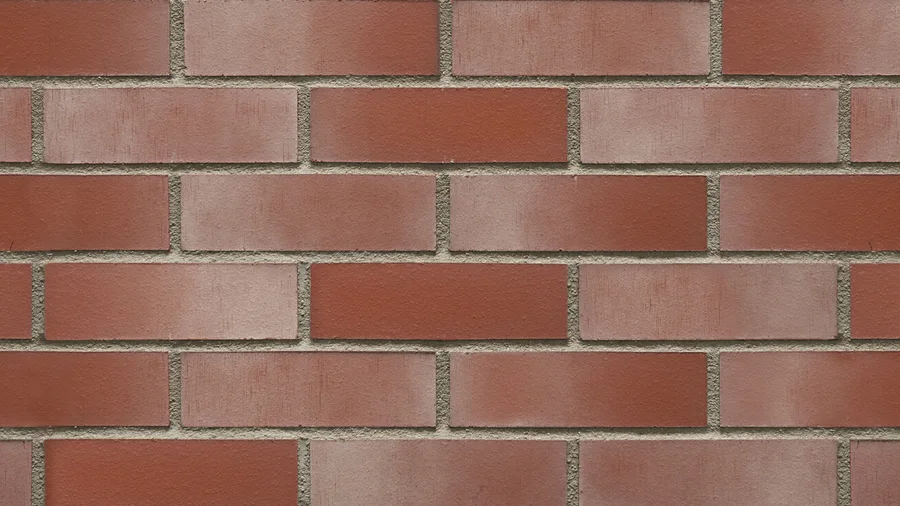

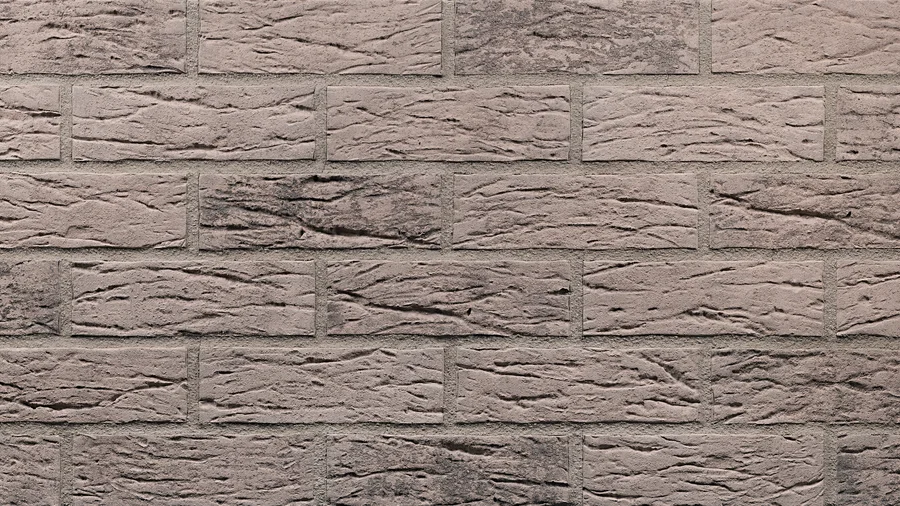

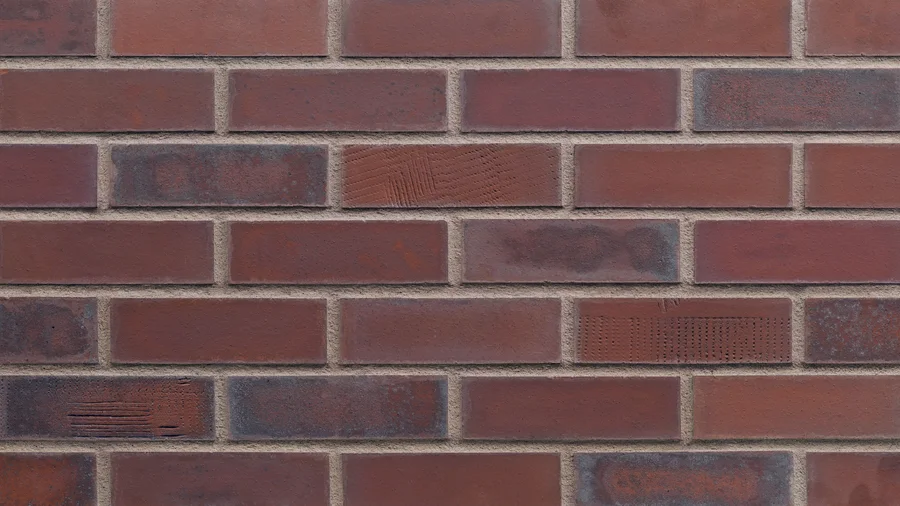

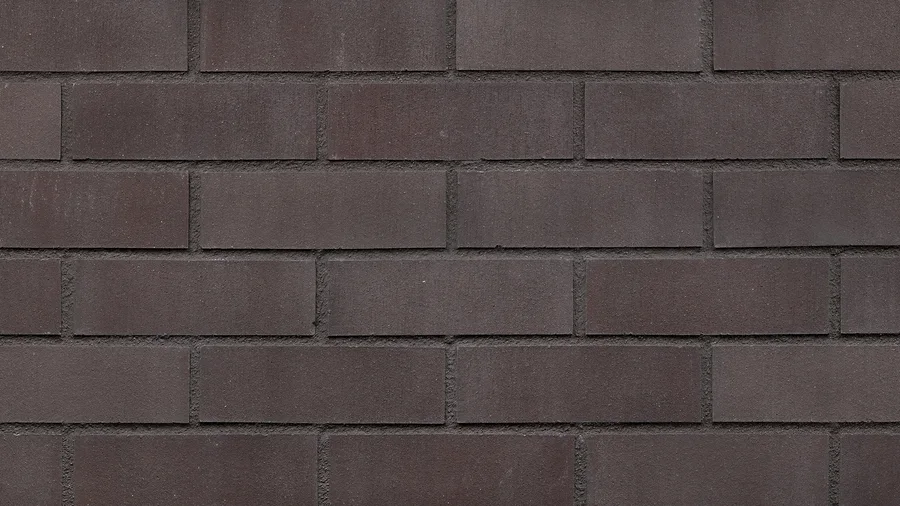

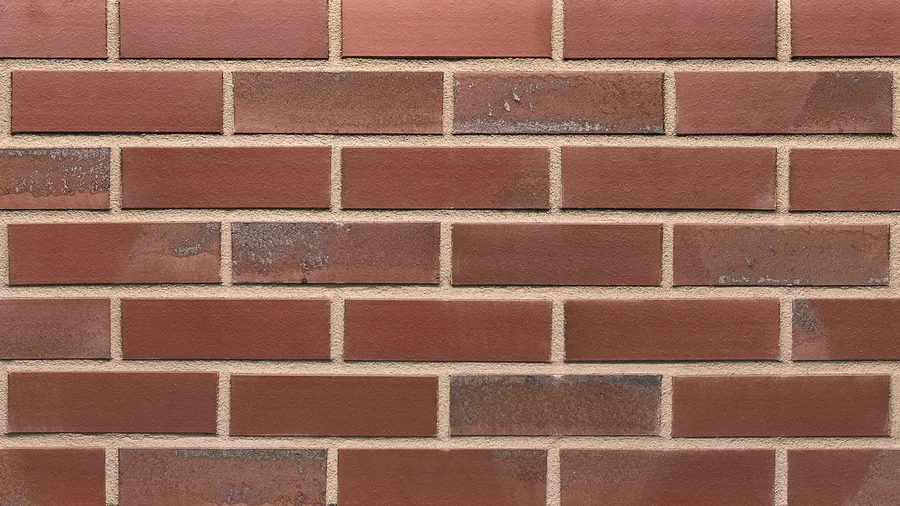

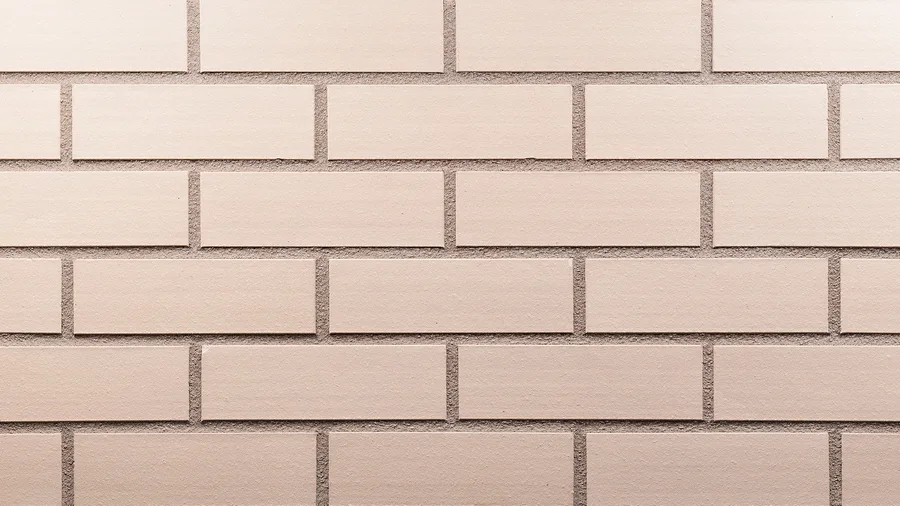

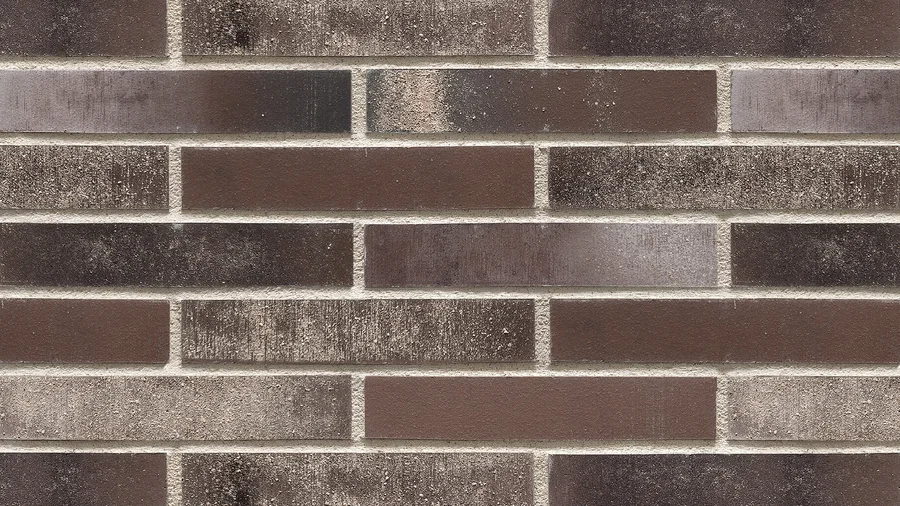

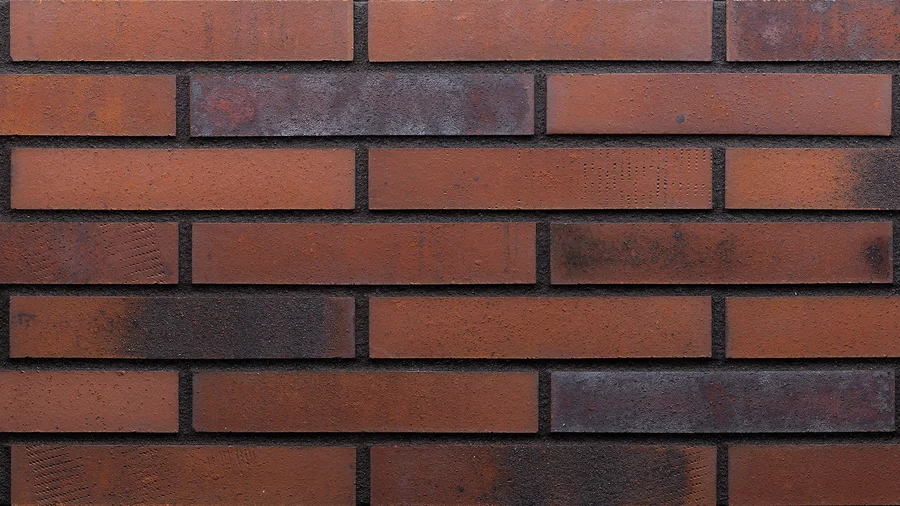

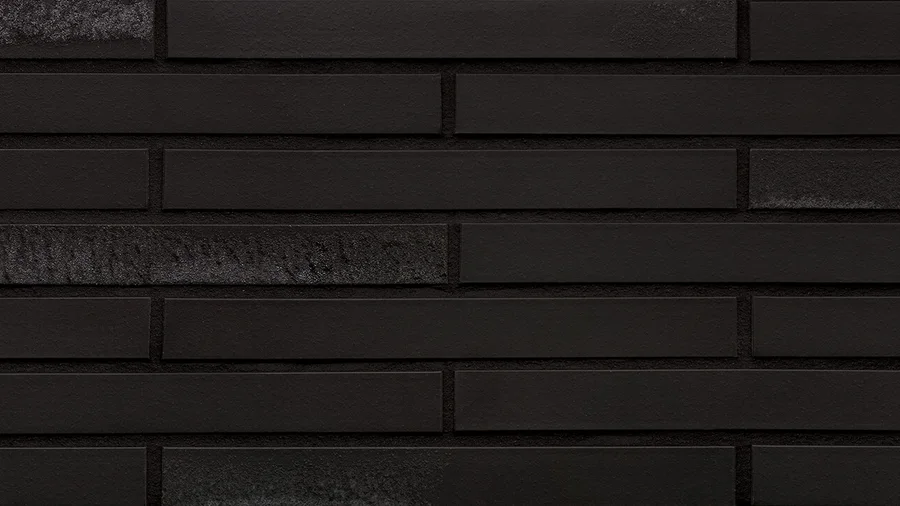

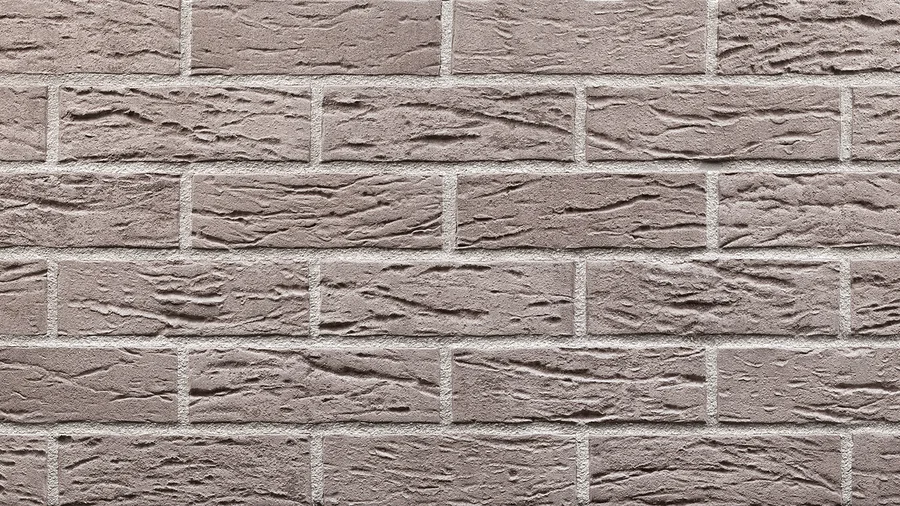

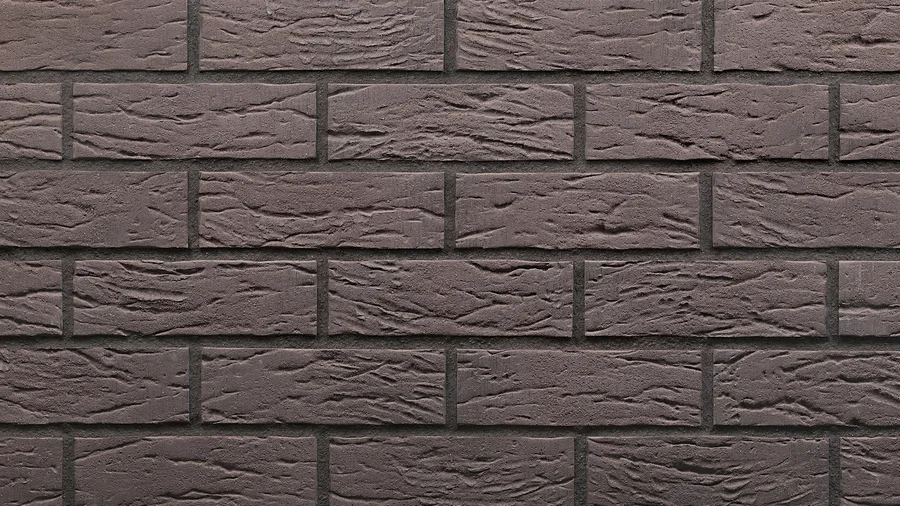

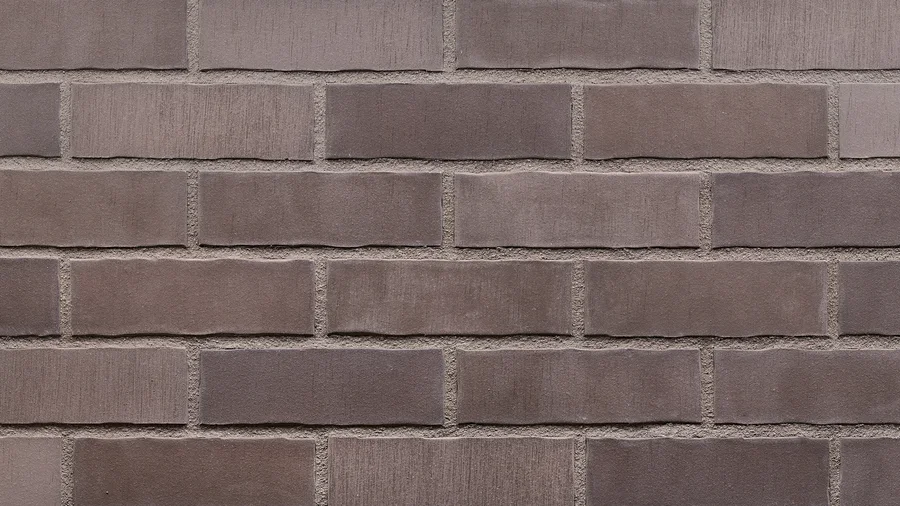

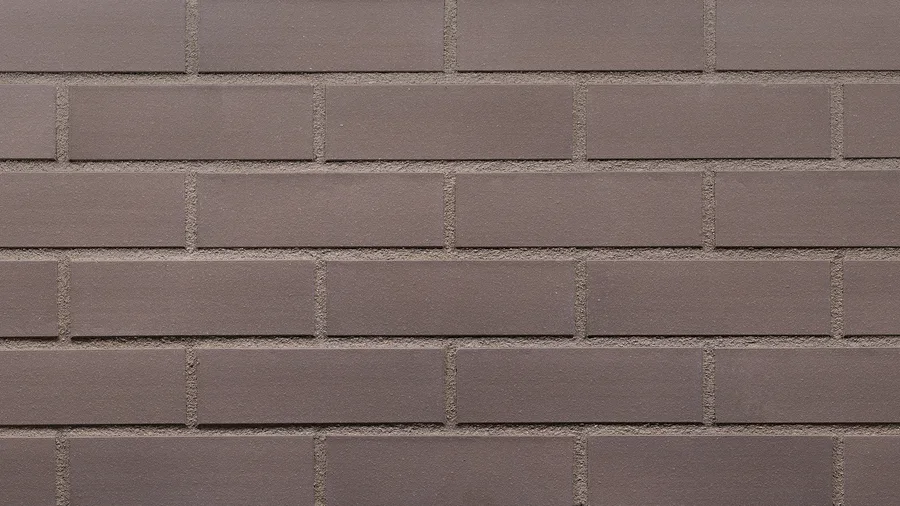

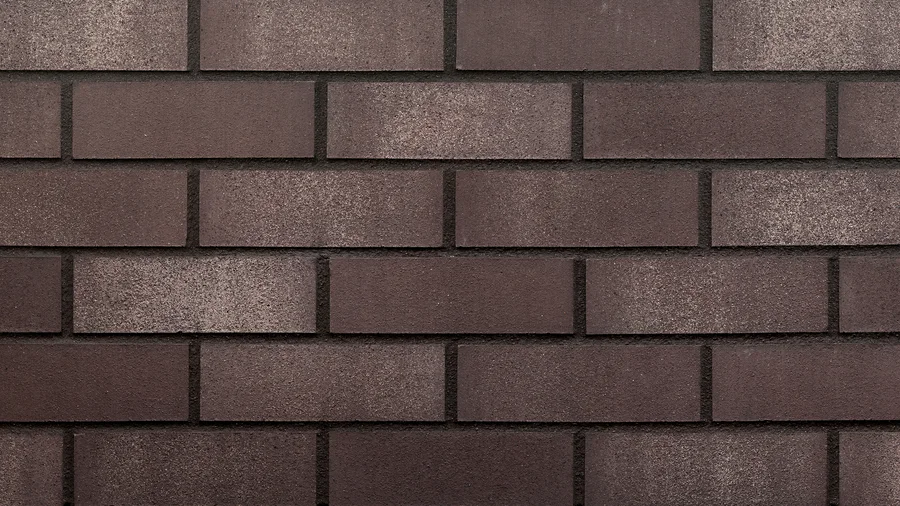

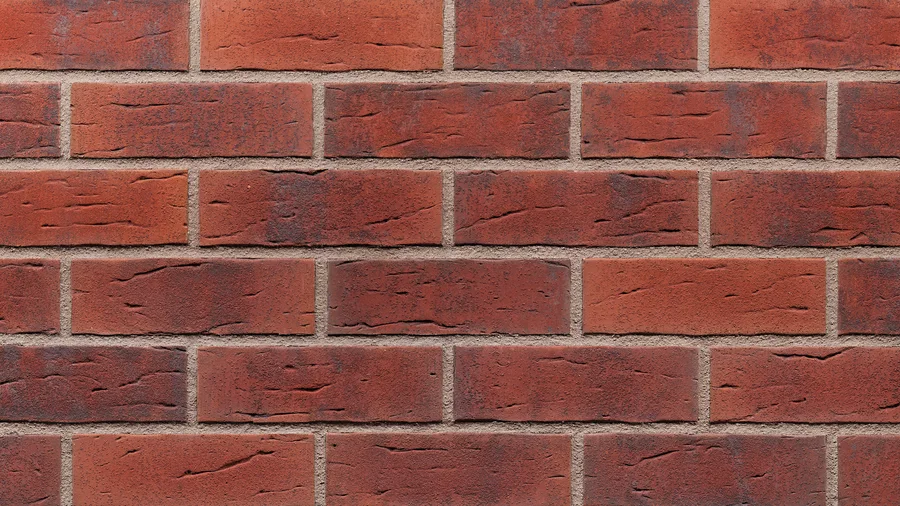

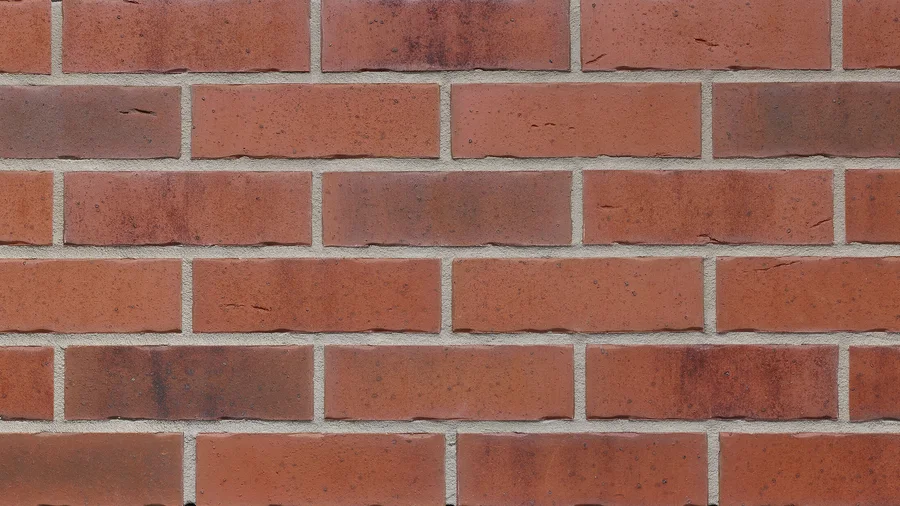

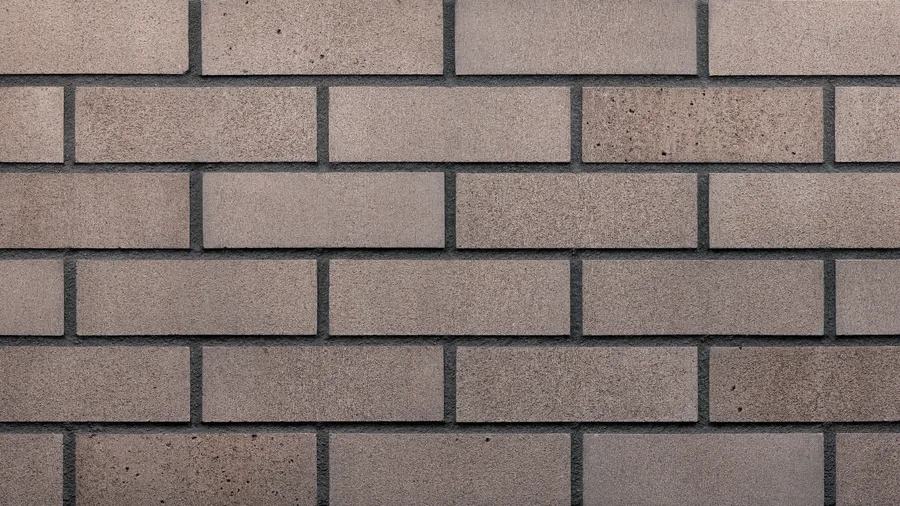

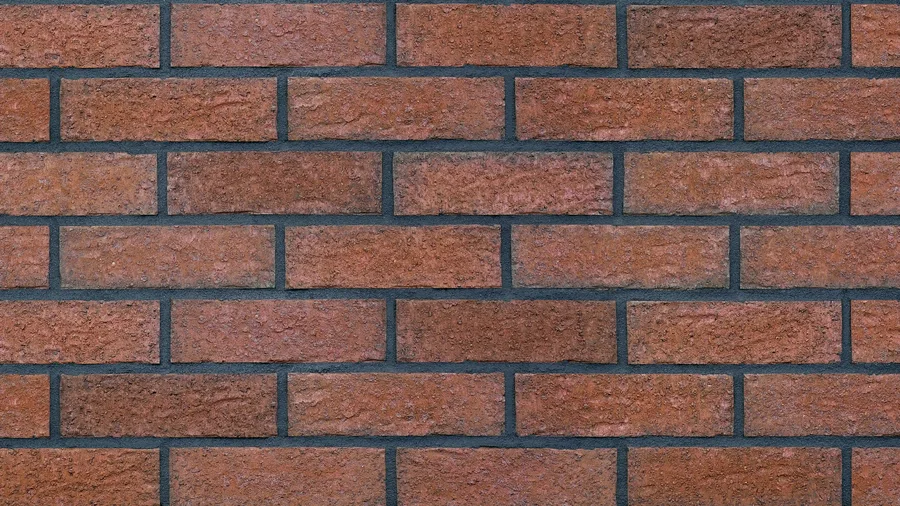

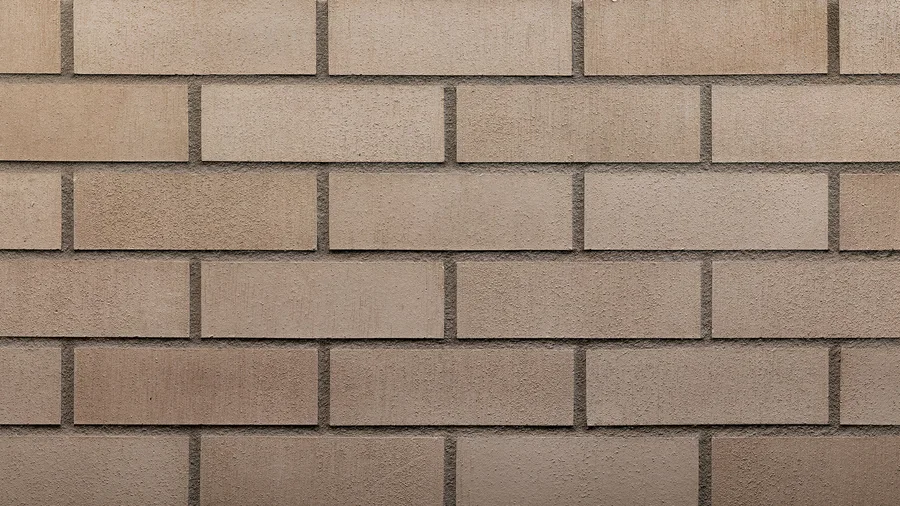

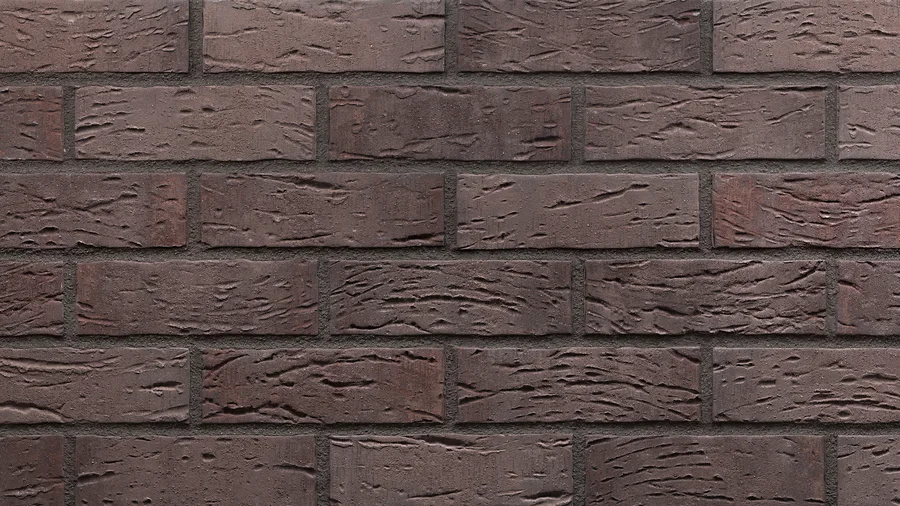

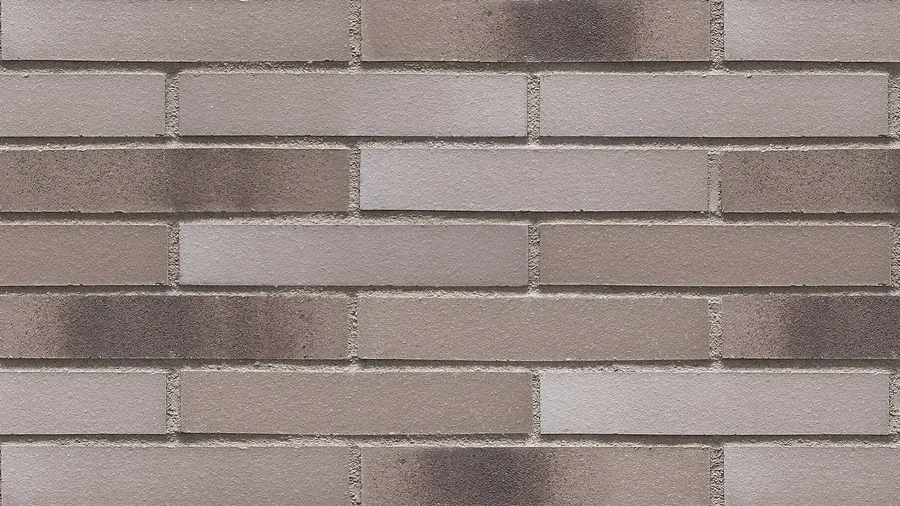

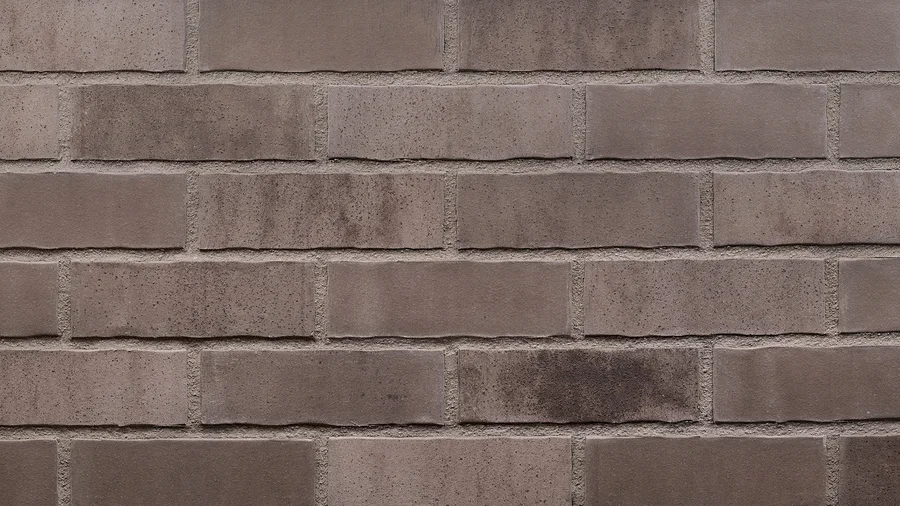

Expanded Modular. $

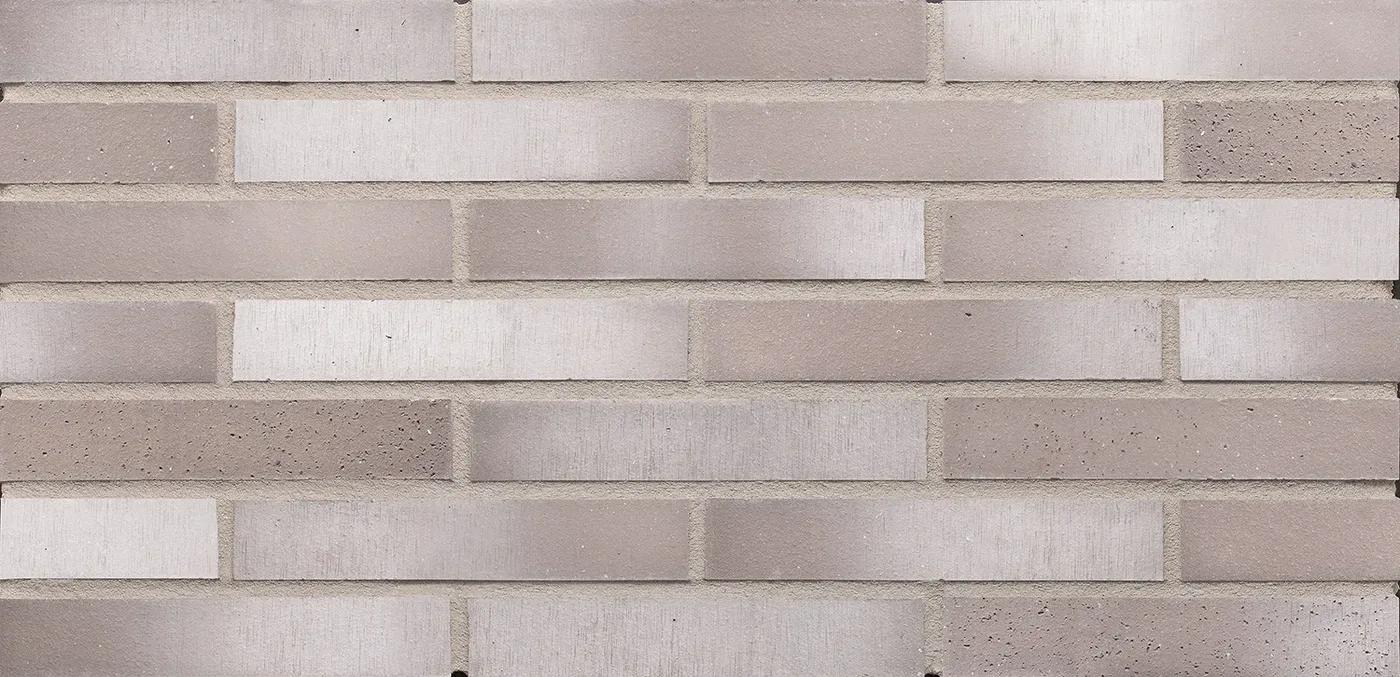

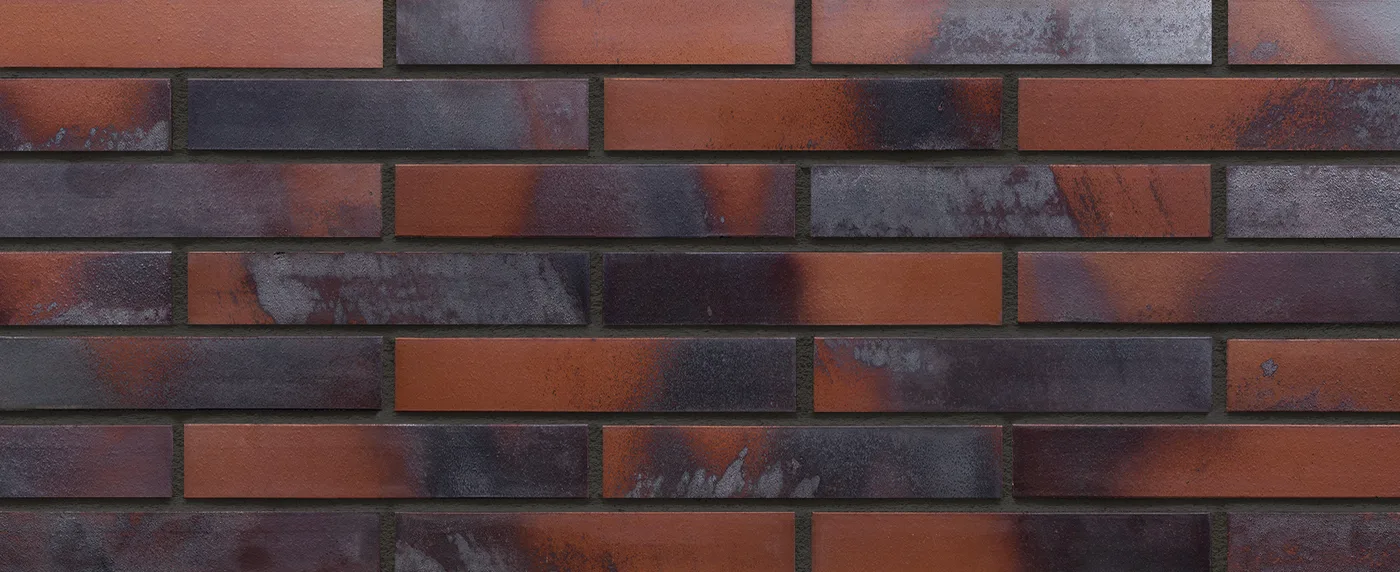

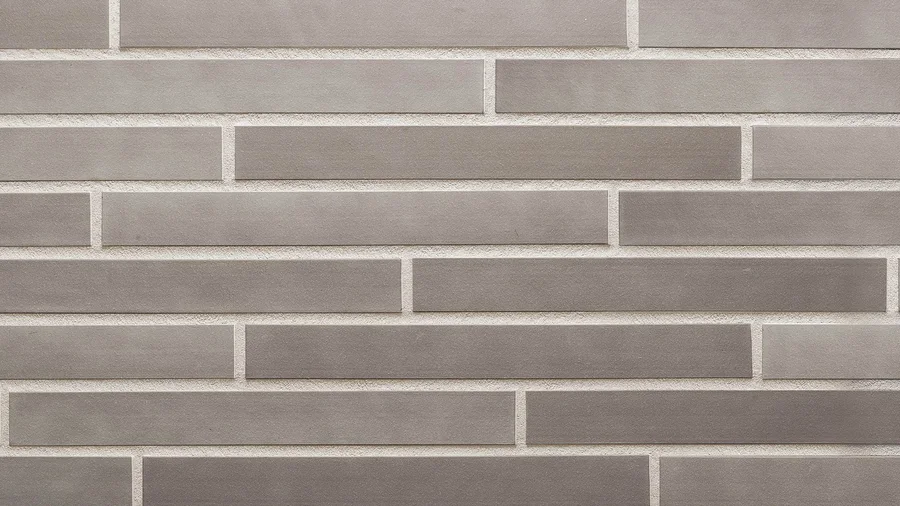

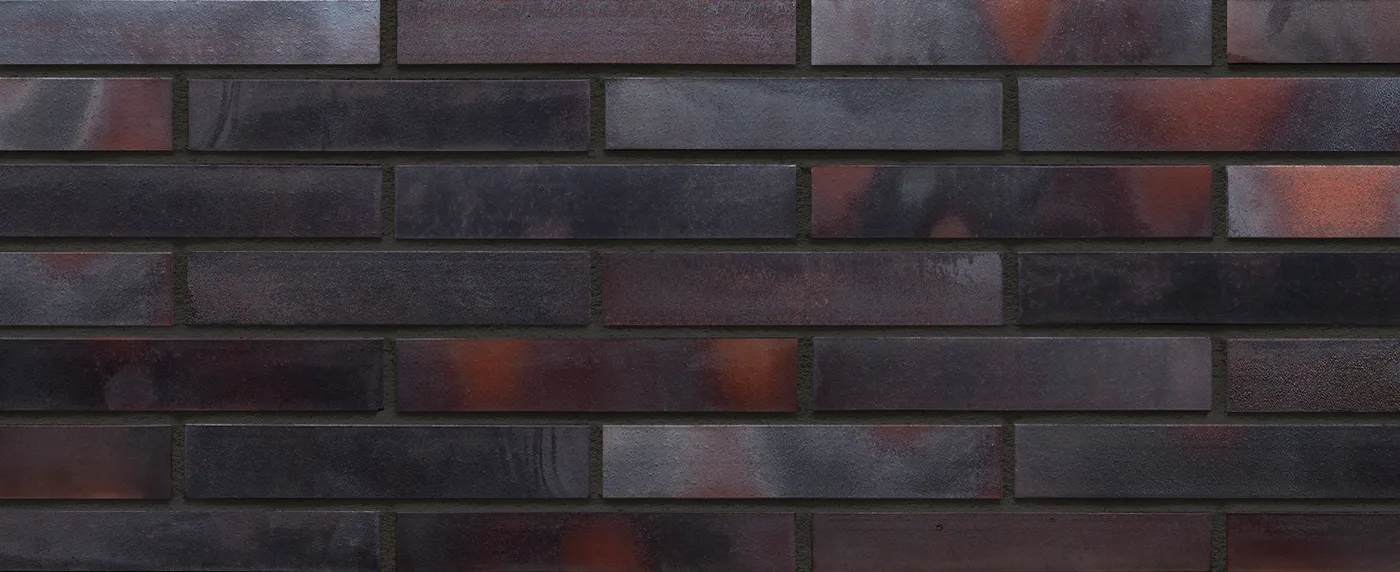

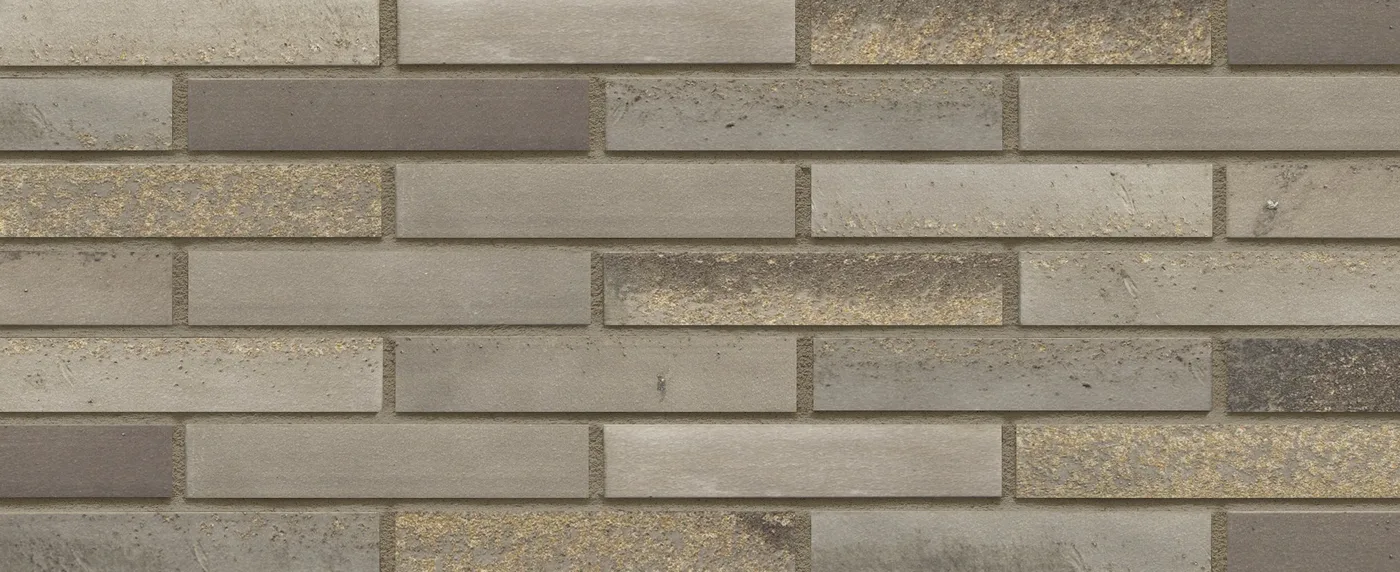

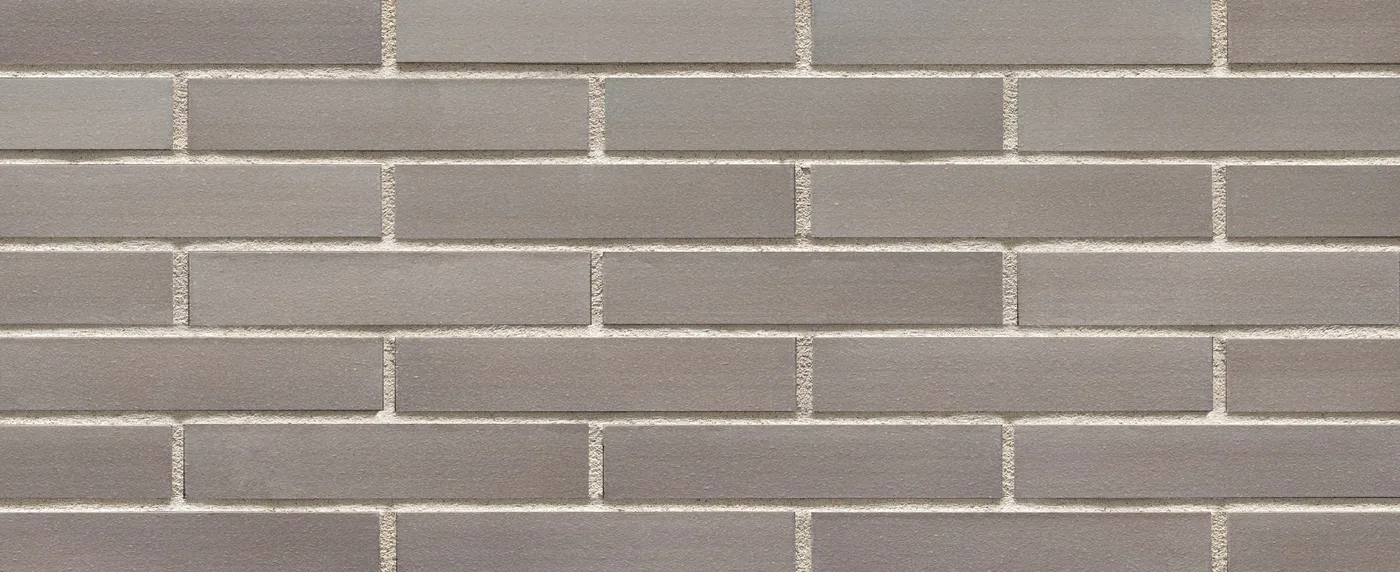

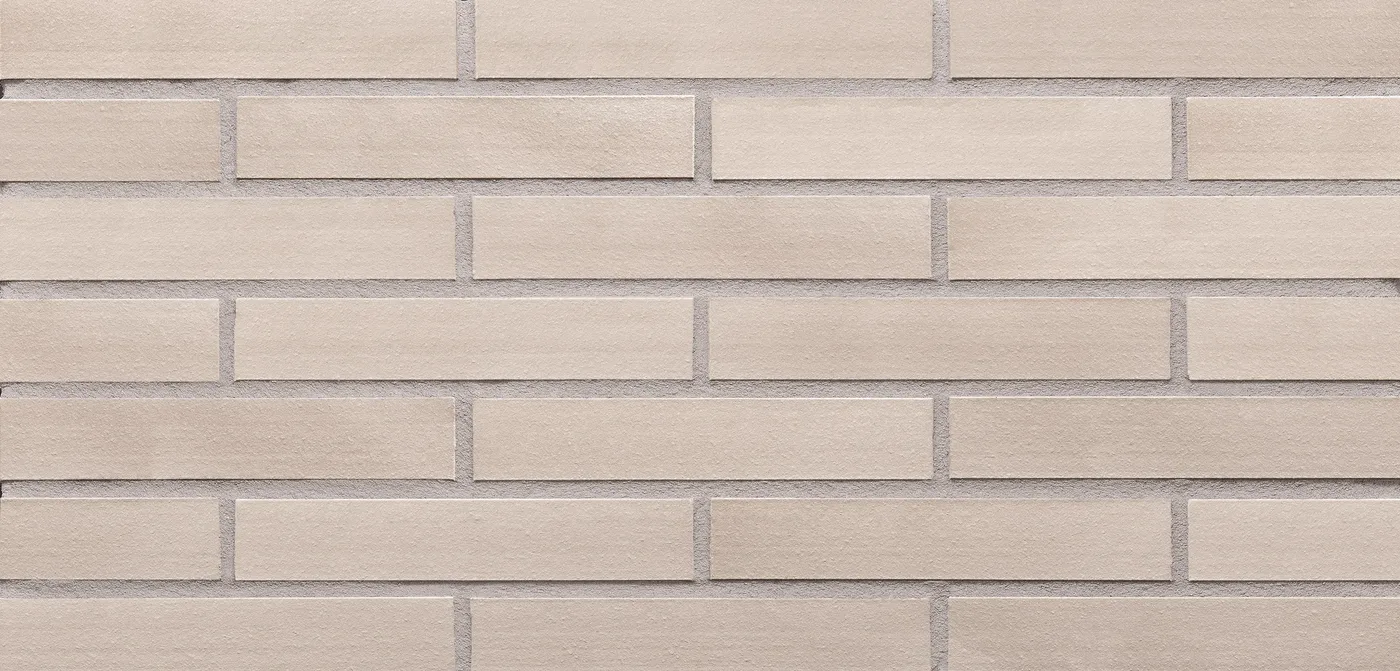

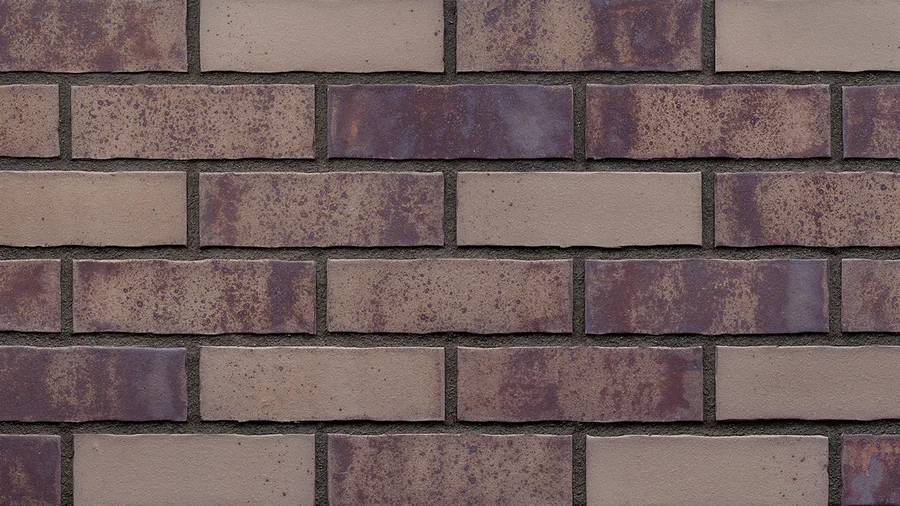

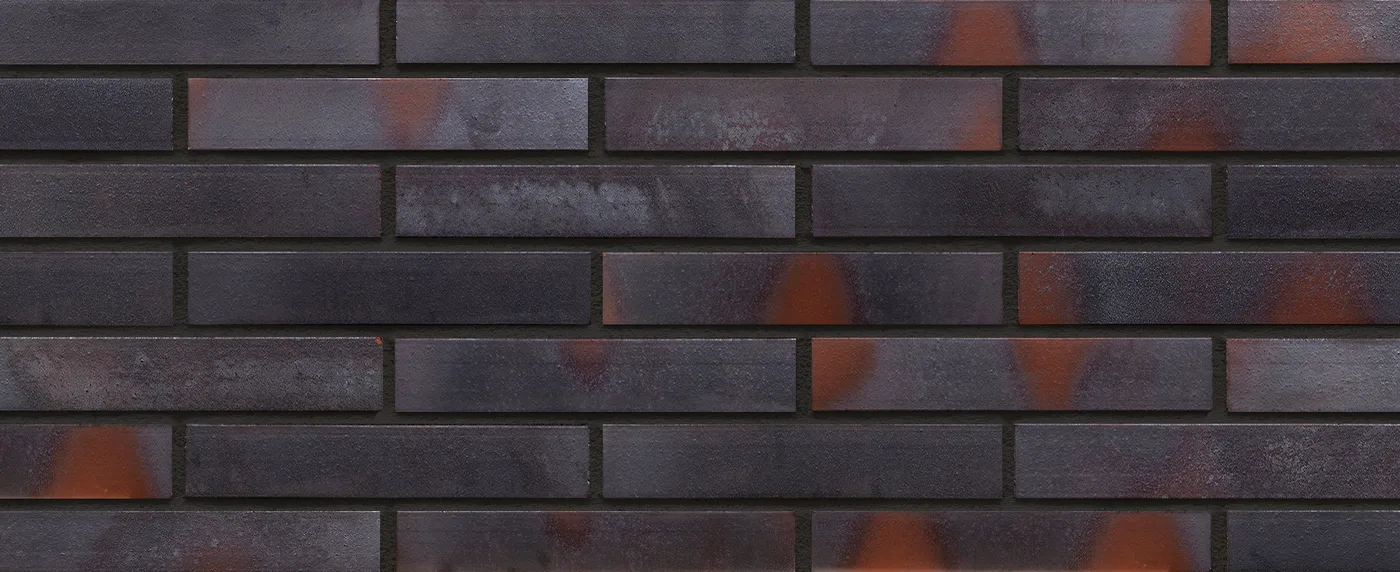

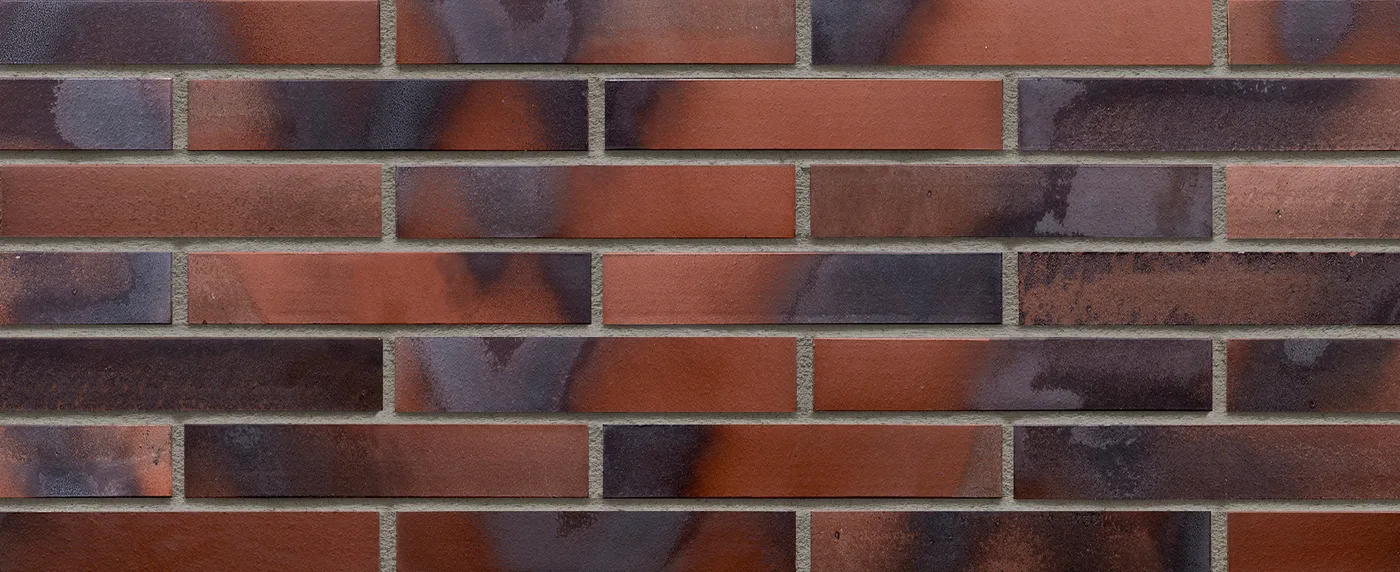

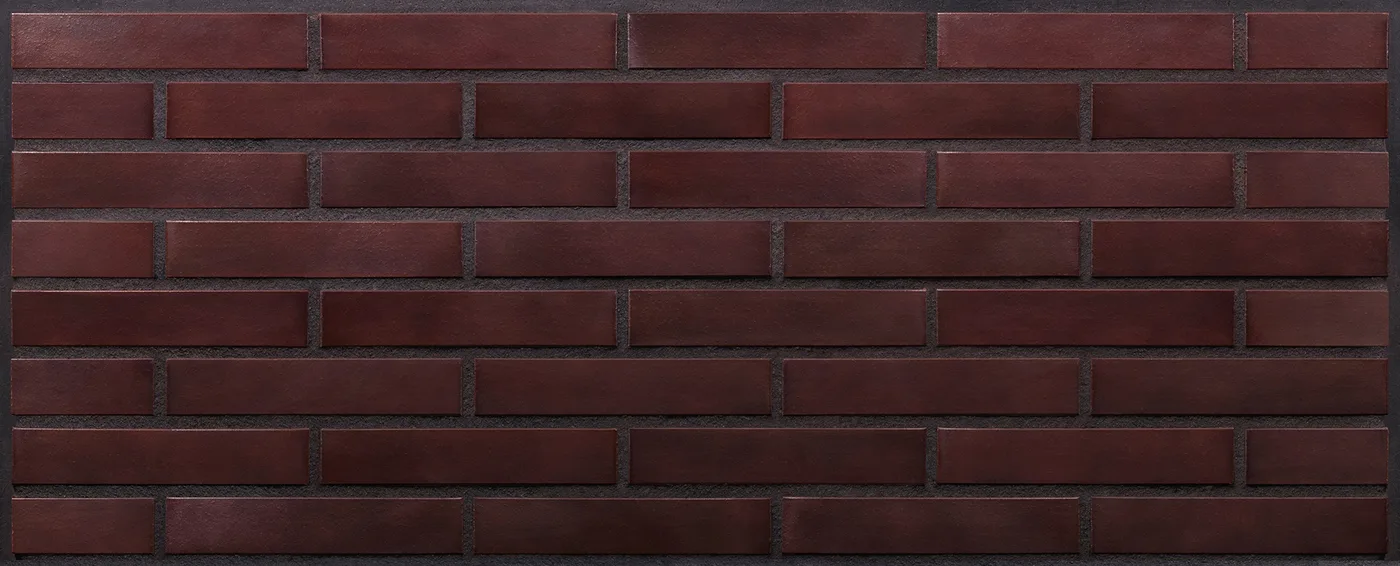

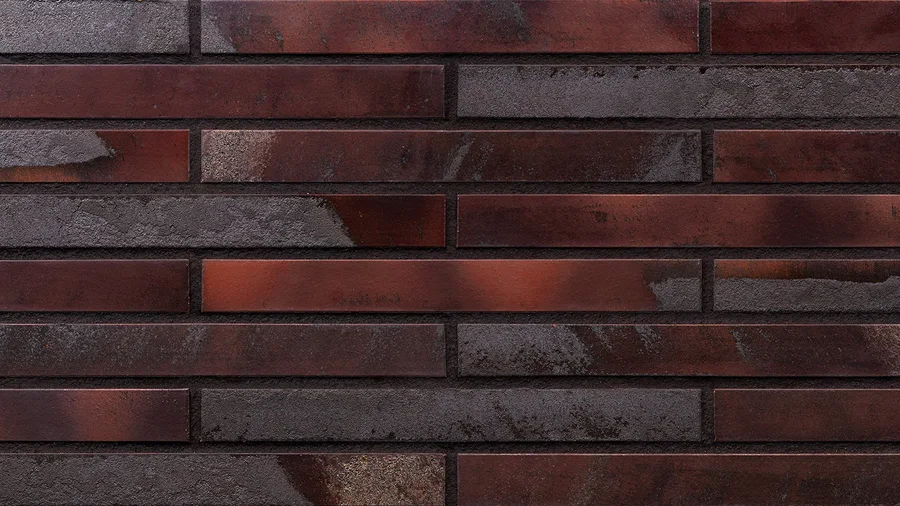

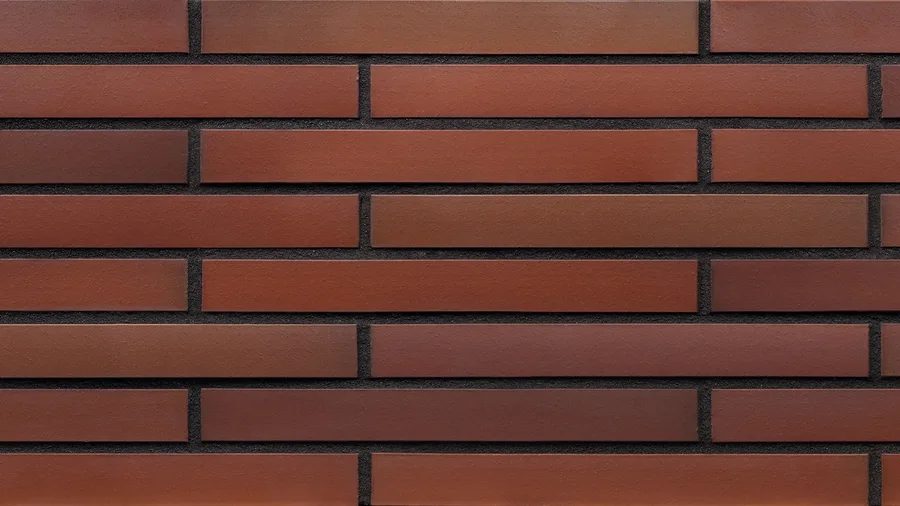

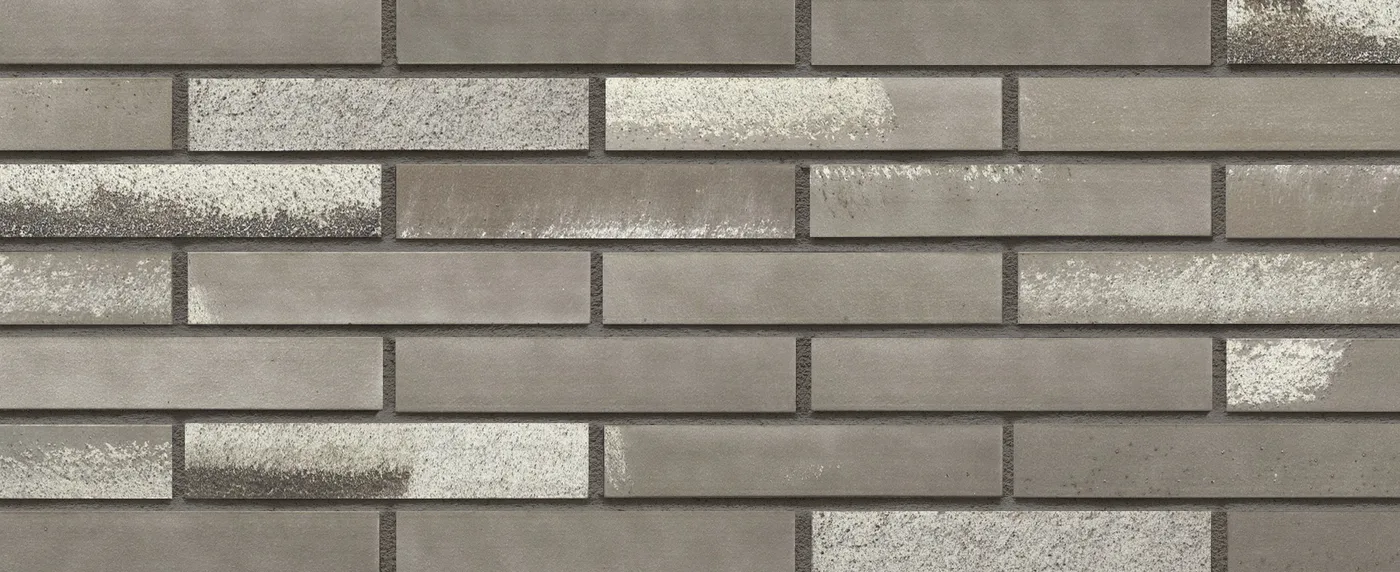

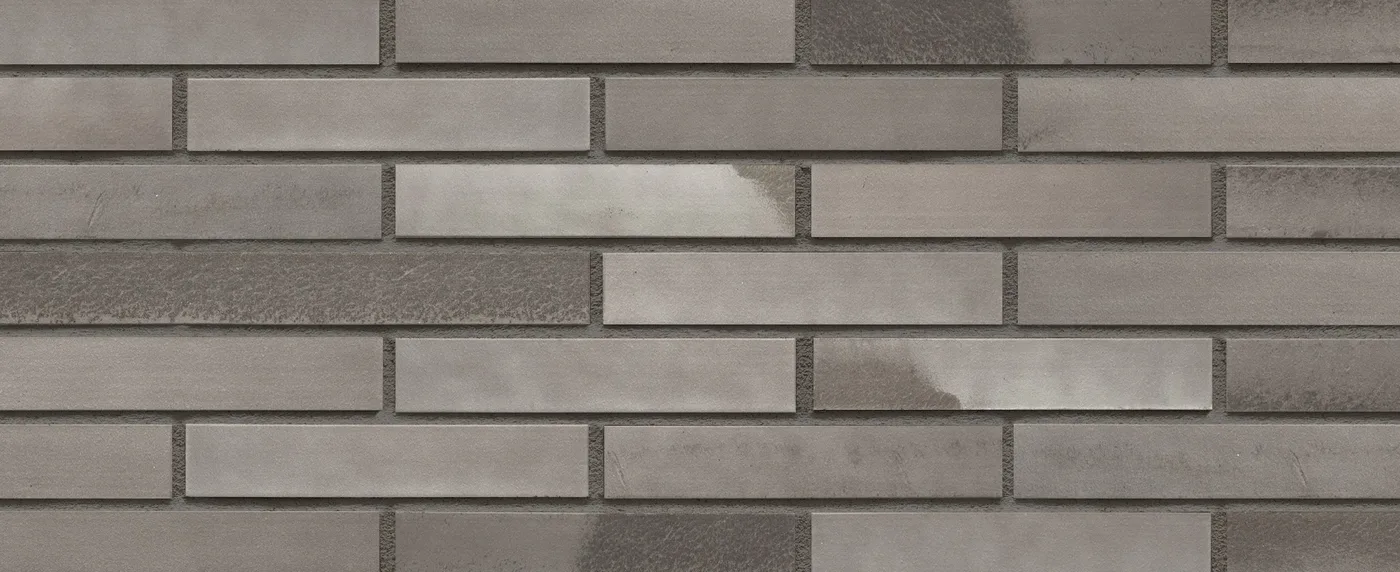

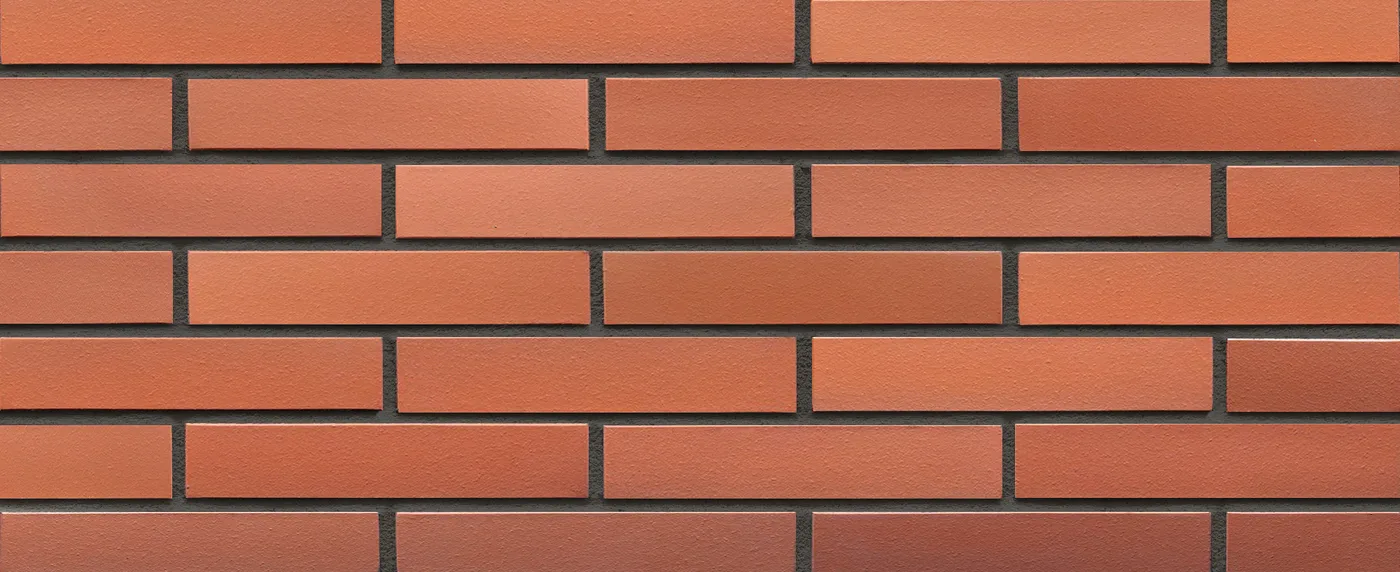

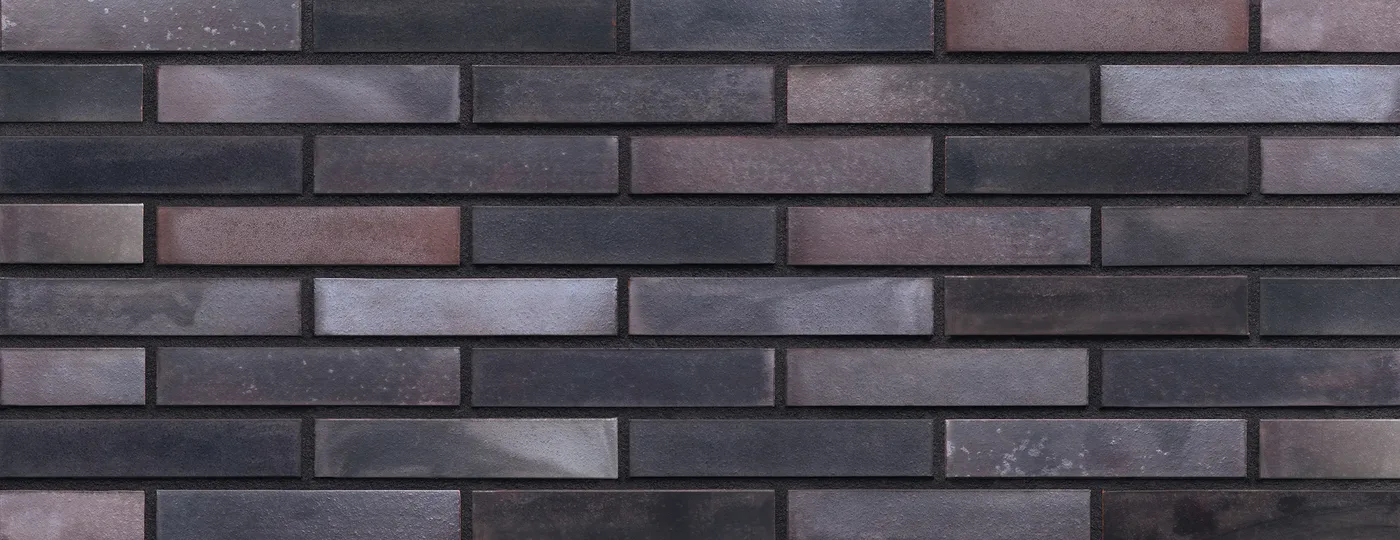

Norman. $

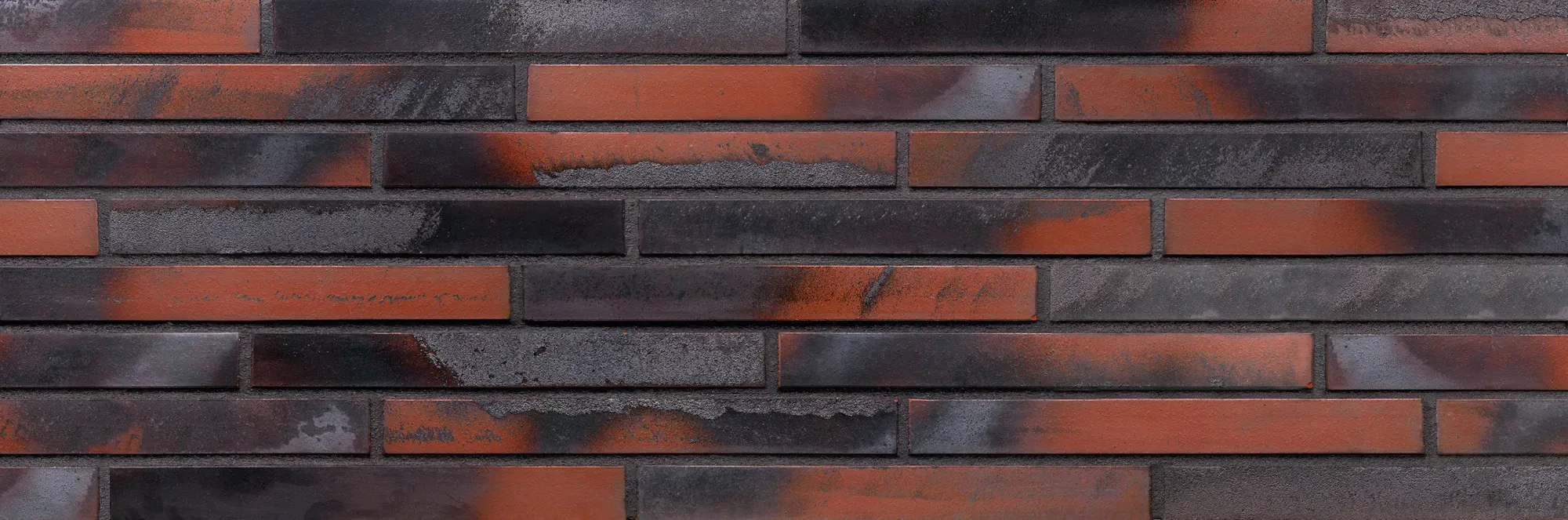

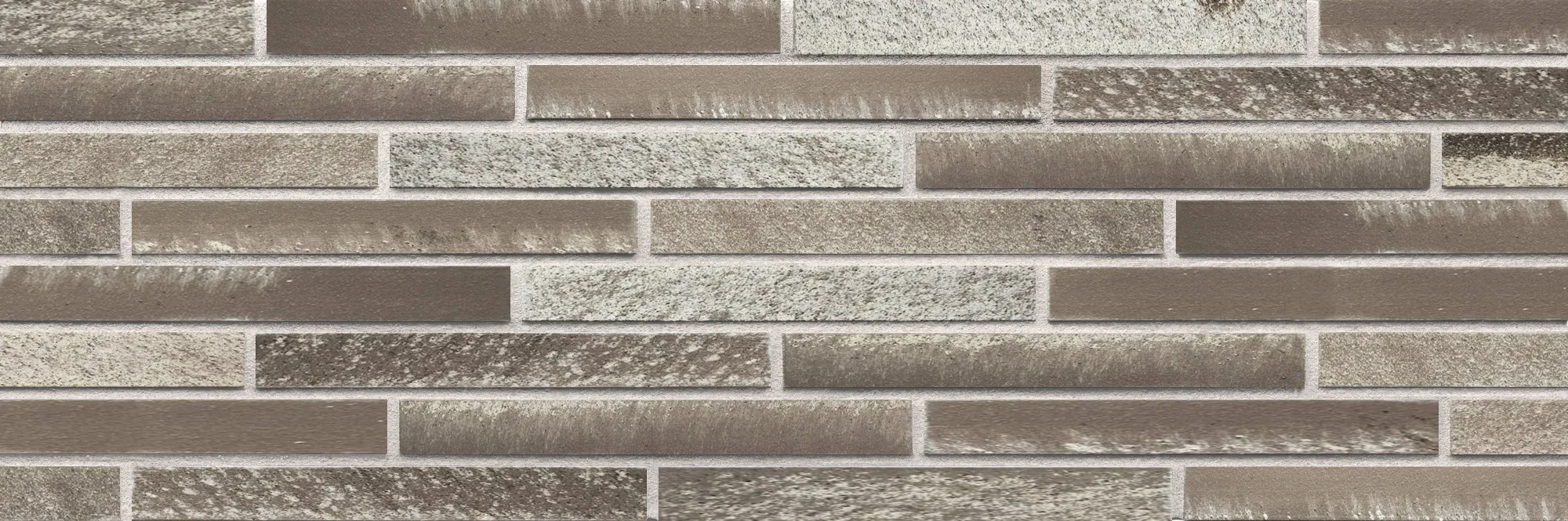

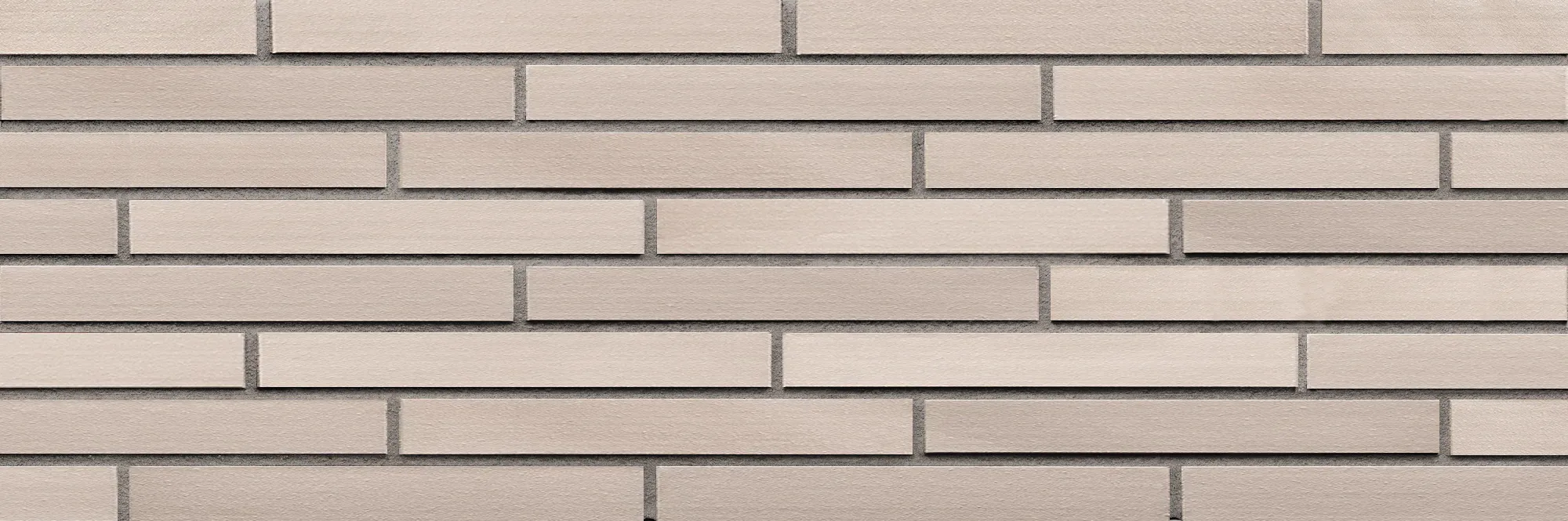

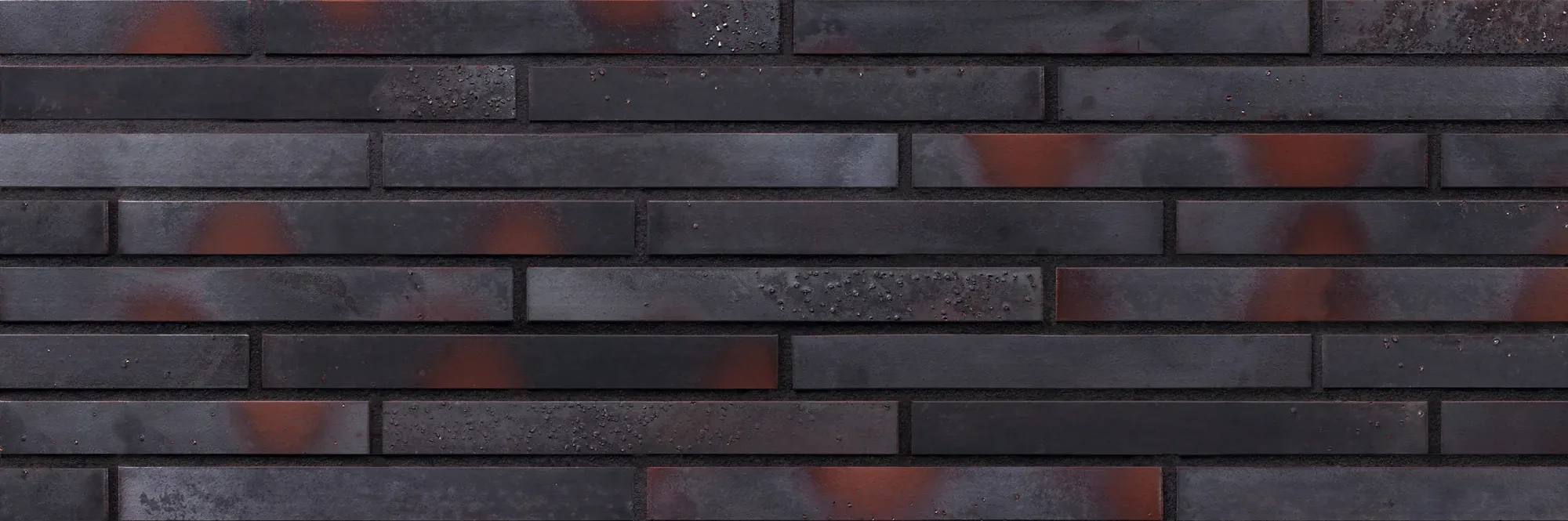

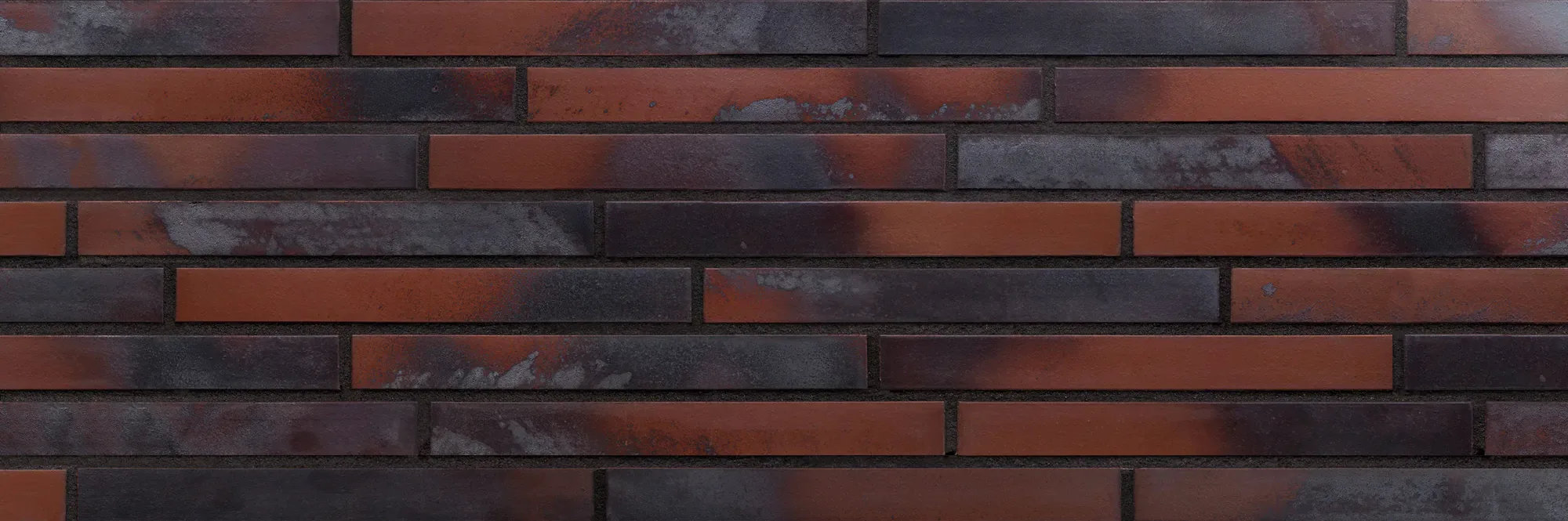

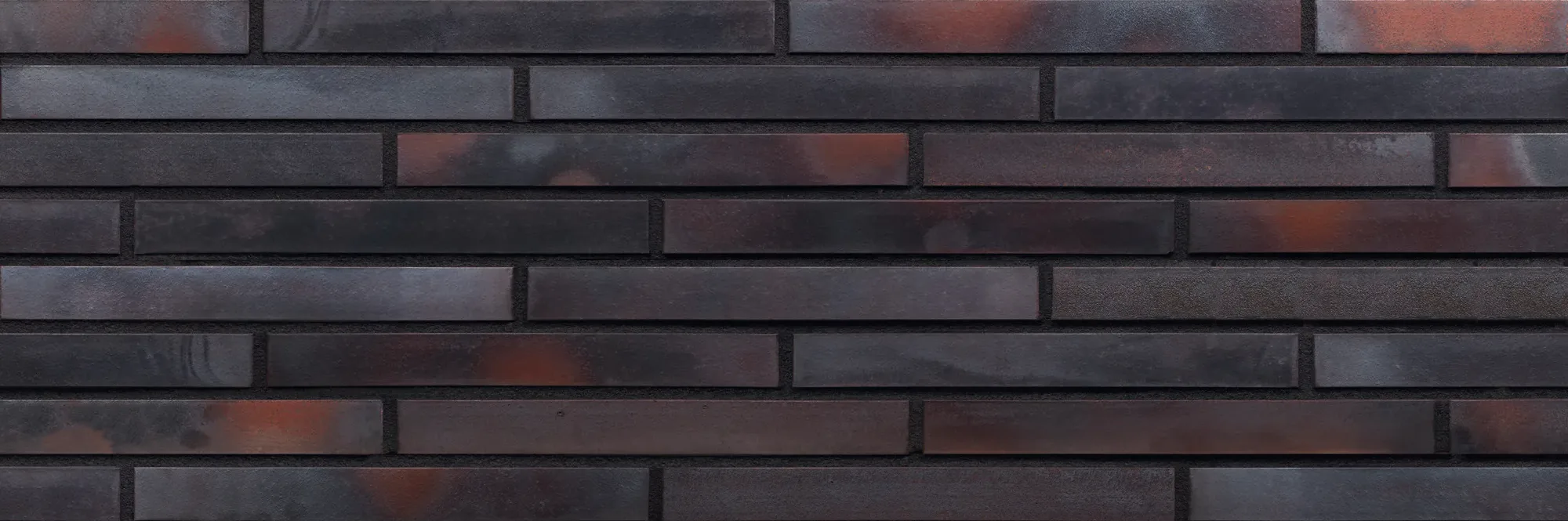

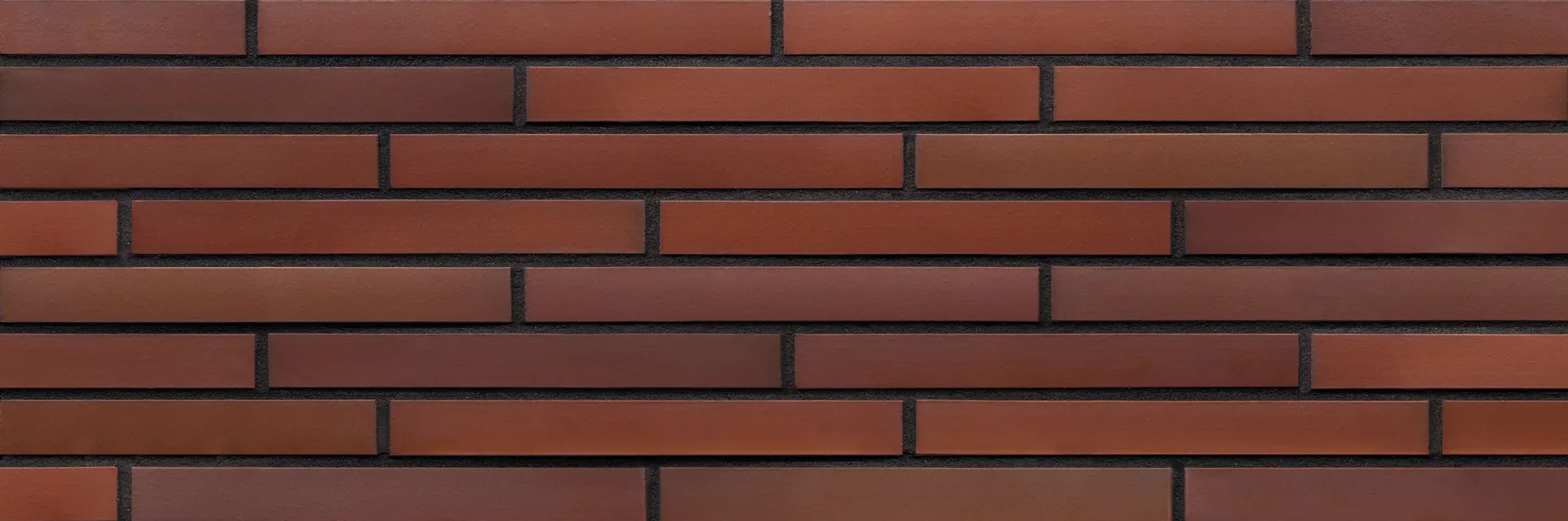

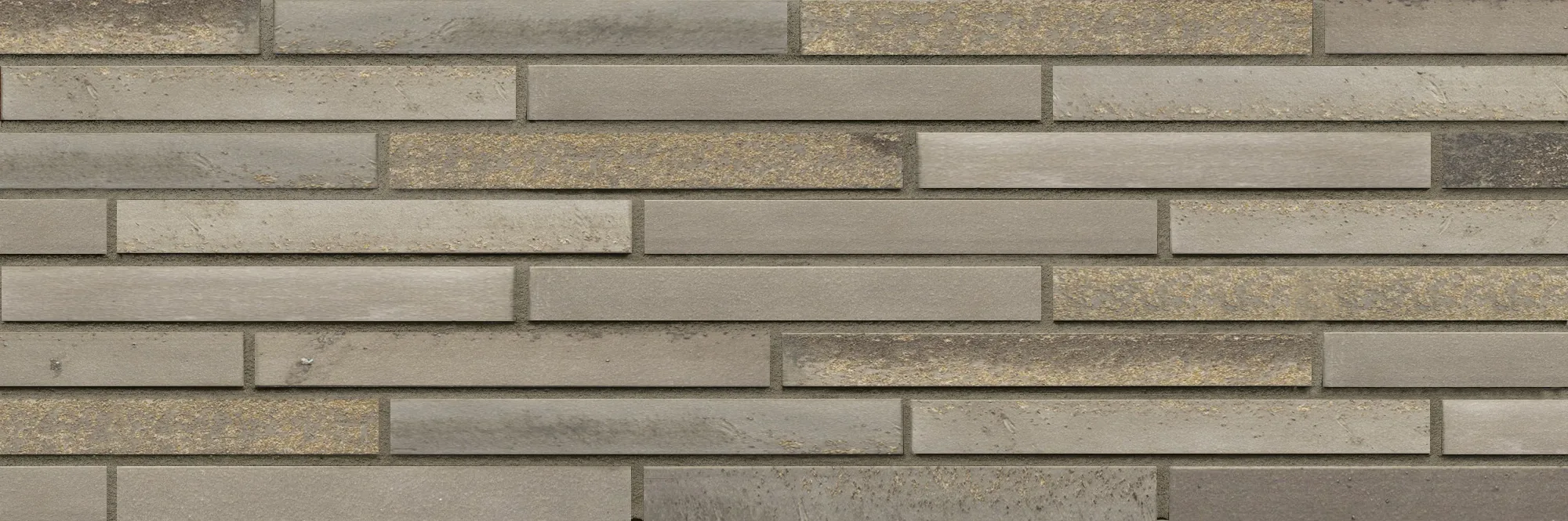

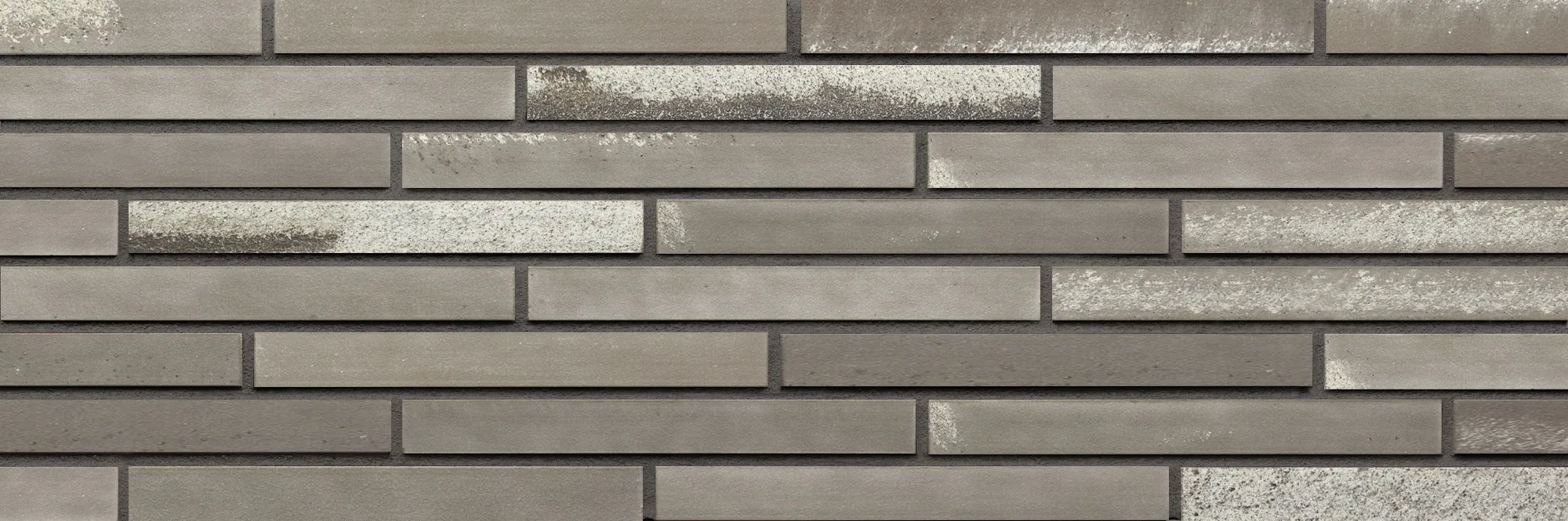

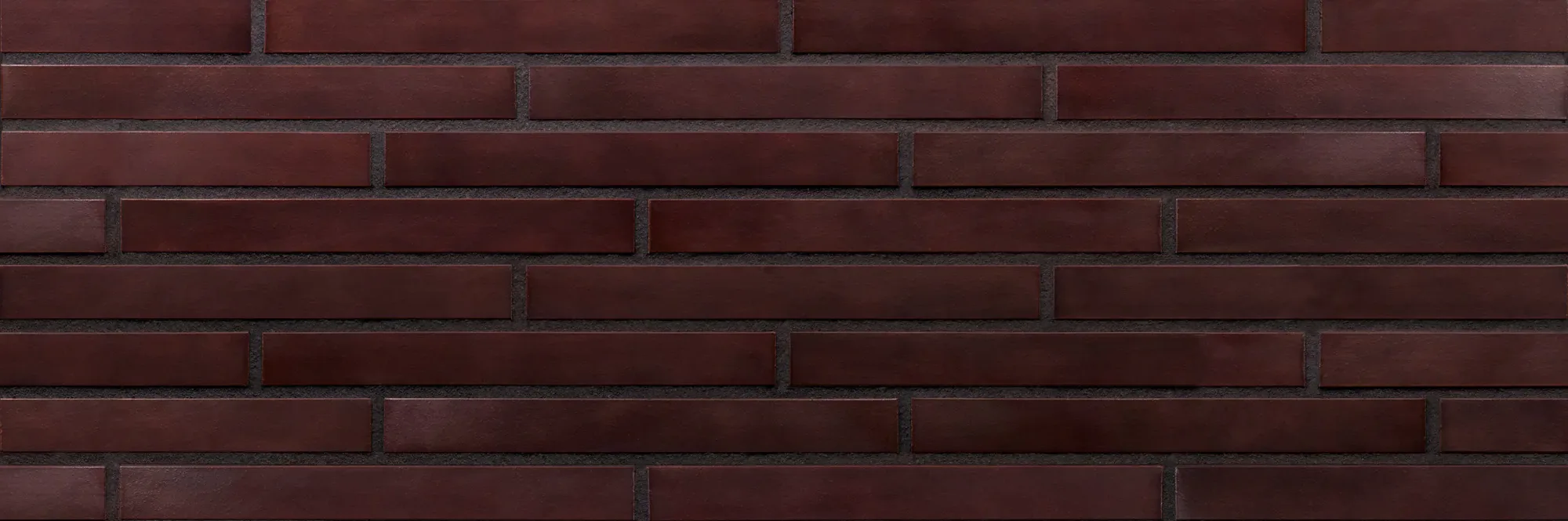

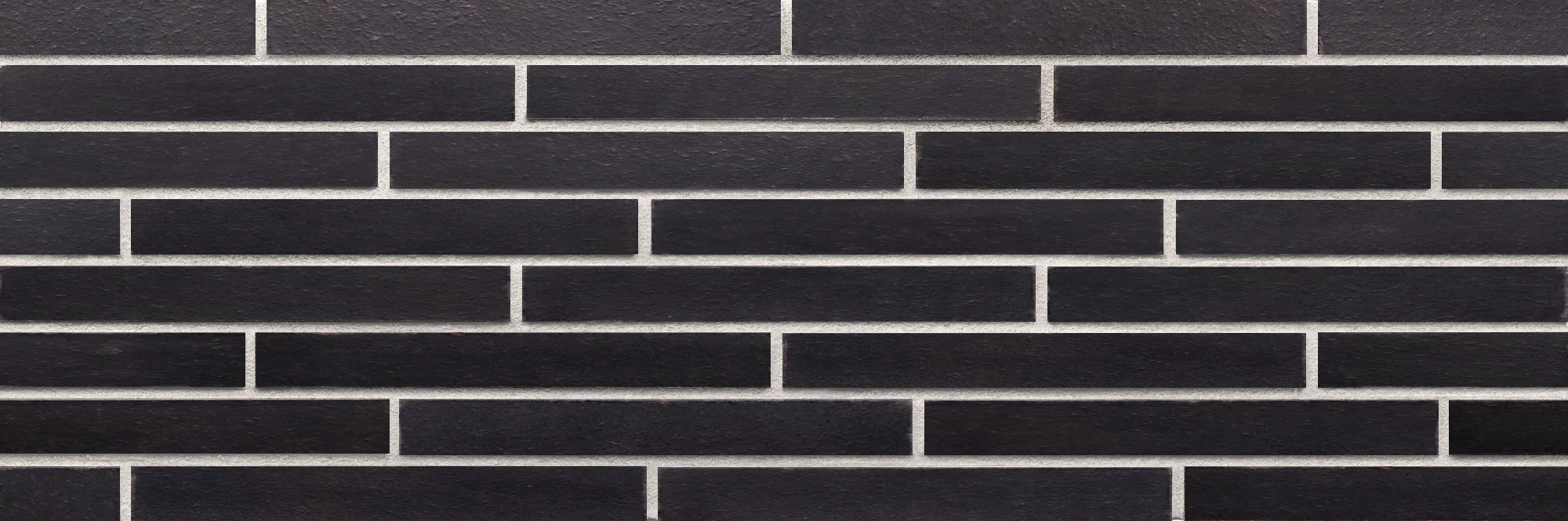

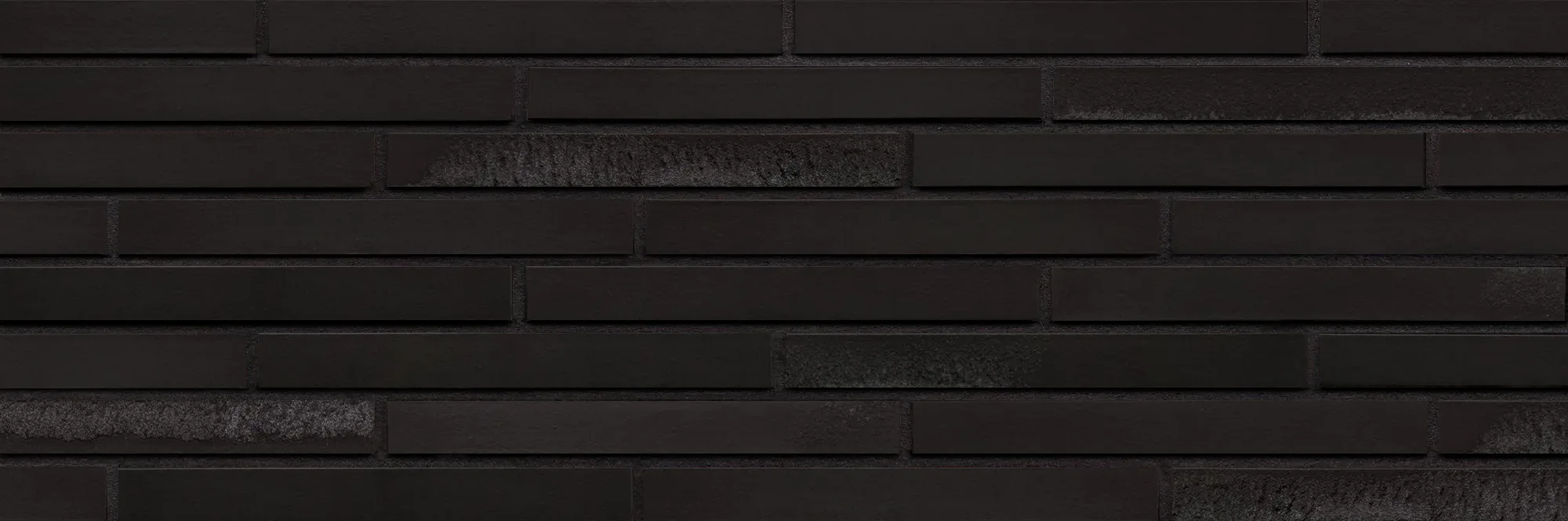

Meridian. $$$

Face sizes.

Roman 1-9/16 by 11-5/8 in. Thickness from your rep.

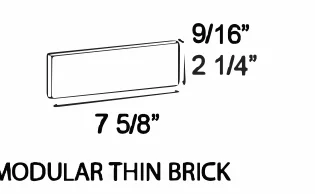

Modular 2-1/4 by 7-5/8 by 9/16 in.
Expanded Modular 2-3/4 by 9-3/16 in. Thickness from your rep.
Norman 2-1/4 by 11-5/8 by 9/16 in.
Meridian 2-1/4 by 15-5/8 by 9/16 in.

Expanded Modular keeps the modular proportion, three courses to one brick length, at a larger scale. Five brick with joints run 48 in. and five courses rise 16 in., about five brick per square foot. Fifteen brick and fourteen joints run 11 ft 11-9/16 in., so it suits a 12 ft bed. It sits in King Klinker's lowest price band.

King Klinker thin brick face sizes drawn to one scale: Roman, Modular, Norman, Meridian and Expanded Modular

Test results.

Freeze thaw pull-out, ASTM C666 Procedure B Standard: at least 150 psi on all ten panels, five of them after 300 freeze thaw cycles. King Klinker: exceeded it by at least 27 percent on every clay body.
Cold water absorption About 3 percent. PCI allows 6 percent for nonglazed brick.
Efflorescence, ASTM C67 Standard: none. King Klinker: none.
Size Every size meets TBX tolerance and the PCI dimensional tolerance.
Warpage Every size meets the TBX warpage standard.

Tested per ASTM C67/C67M, ASTM C650 and ASTM C666/C666M, in accordance with the PCI Specification for Thin Brick. Red clay body report 8914-20944 and white clay body report 8914-22399, both dated 20 May 2020. Brown clay body report dated 4 October 2019. All three reports are in the documents below.

Made to fit the Advanced liners.

King Klinker makes these formats to fit the Advanced liner molds. The King Klinker plant keeps Advanced liners on site and test fits production brick into them before a pallet ships, so the brick a producer opens on the casting bed drops into the liner it was made for. King Klinker fires it at a plant built in 2013 with Siemens controls and German machinery.

Advanced liners for each format.

FormatBondLinerSheetSpec sheet
ModularHalf bond1012KK XL72 by 42.667 in.PDF
ModularHalf bond1008KK XL48 by 42.667 in.PDF
ModularThird bond1013KK XLFrom your repFrom your rep
Expanded ModularHalf bond7000KK XL48 by 38.4 in.PDF
Expanded ModularStacked bond7750KK XL48 by 38.4 in.PDF
NormanHalf bond4000KK XL48 by 42.667 in.PDF
NormanThird bond4013KK XL48 by 42.174 in.PDF
NormanStacked bond4750KK XLFrom your repFrom your rep
MeridianHalf bond9000KK XL48 by 42.667 in.PDF
MeridianBond line9007KK XL48 by 42.667 in.PDF
MeridianThird bond9013KK XL48 by 42.667 in.PDF
MeridianStacked bond9750KK XL48 by 42.667 in.PDF
RomanAnyFrom your repFrom your repFrom your rep

Packing figures by format and clay body.

Weight is brick only. A container holds 45,000 lb.

FormatBrick per sq ftPieces per bundleSq ft per palletLb per sq ft, brown or red bodyLb per sq ft, white body
Modular6.86484905.214.84
Expanded ModularAbout 522From your repFrom your repFrom your rep
Norman4.5224725.204.80
Meridian3.38124405.525.52
RomanFrom your repFrom your repFrom your repFrom your repFrom your rep
Open the brick calculator

Two or three colors, one facade.

King Klinker blends two or three of its colors in set proportions and calls the result Chameleon. Any blend comes in through your Advanced rep.

See Chameleon blends

Size and warpage tolerances.

TBX size tolerance
3 in. and under ± 1/16 in.
Over 3 to 4 in. ± 3/32 in.
Over 4 to 6 in. ± 1/8 in.
Over 6 to 8 in. ± 5/32 in.
Over 8 to 12 in. ± 7/32 in.
Over 12 to 16 in. ± 9/32 in.
PCI size tolerance
Up to 8 in. +0 / -1/16 in.
Up to 12 in. +0 / -3/32 in.
TBX warpage
8 in. and under 1/16 in.
Over 8 to 12 in. 3/32 in.
Over 12 to 16 in. 1/8 in.
PCI warpage
Up to 12 in. 1/16 in.

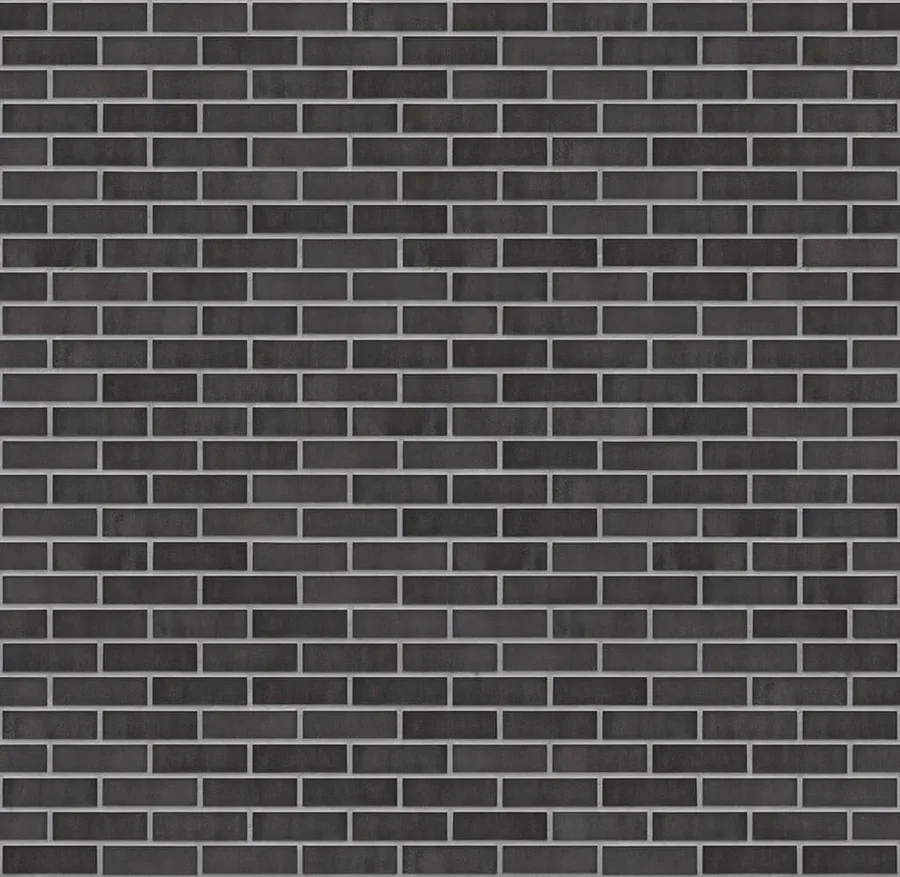

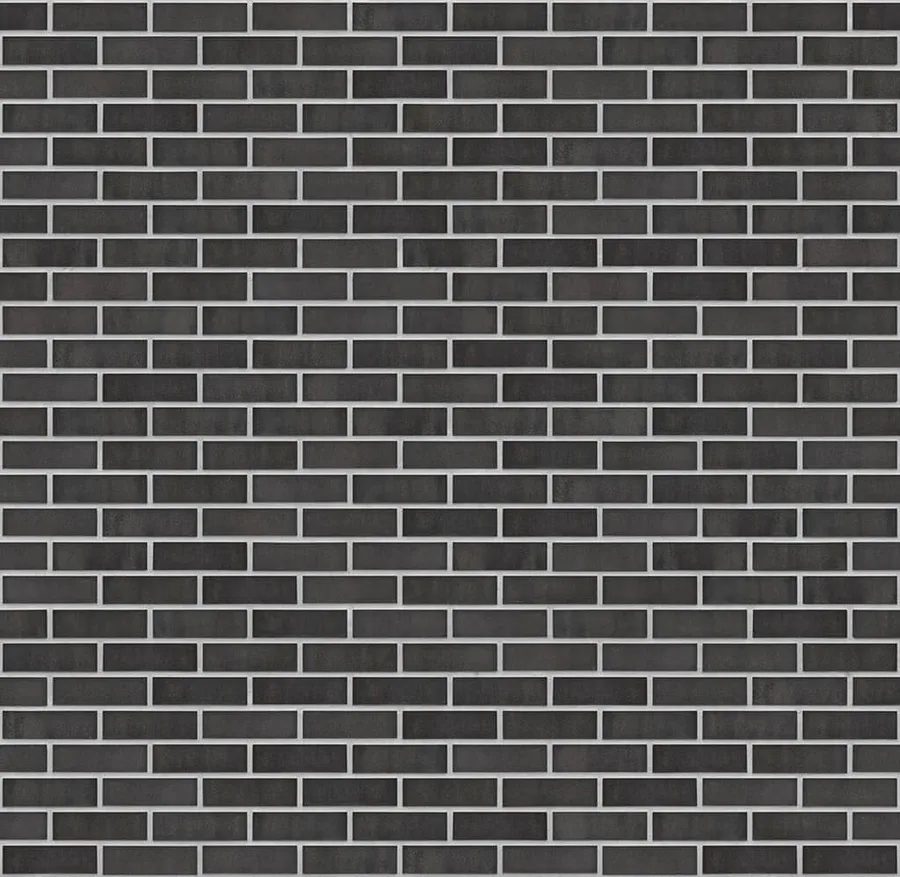

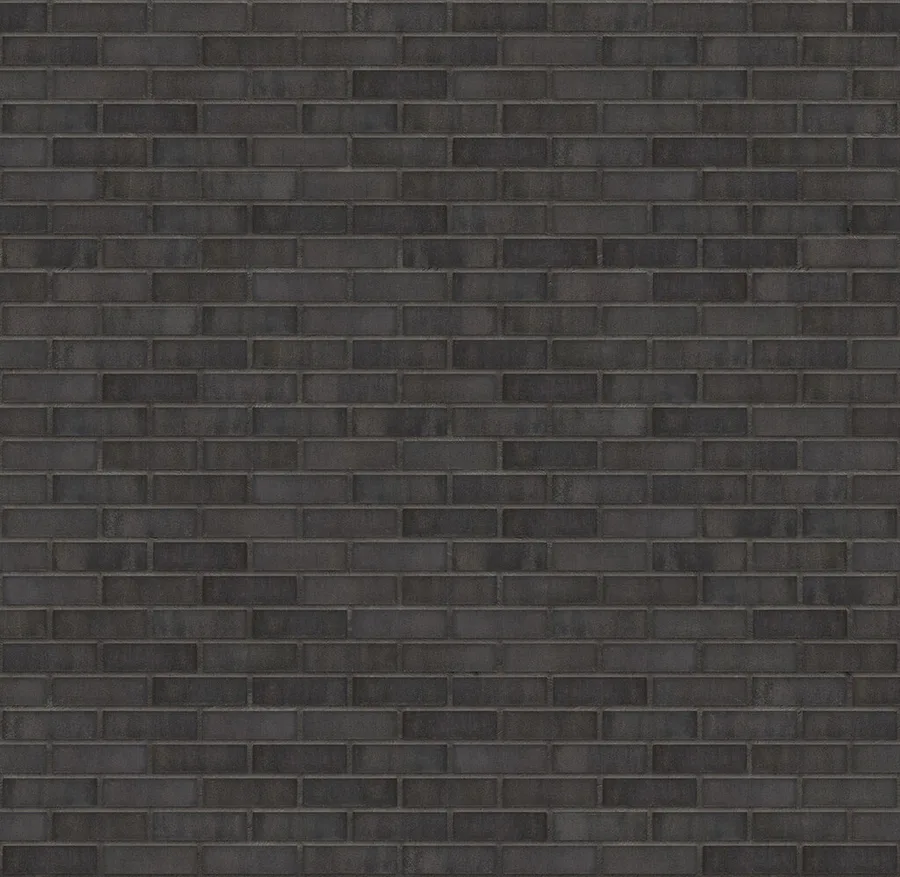

The same brick, different joint colors.

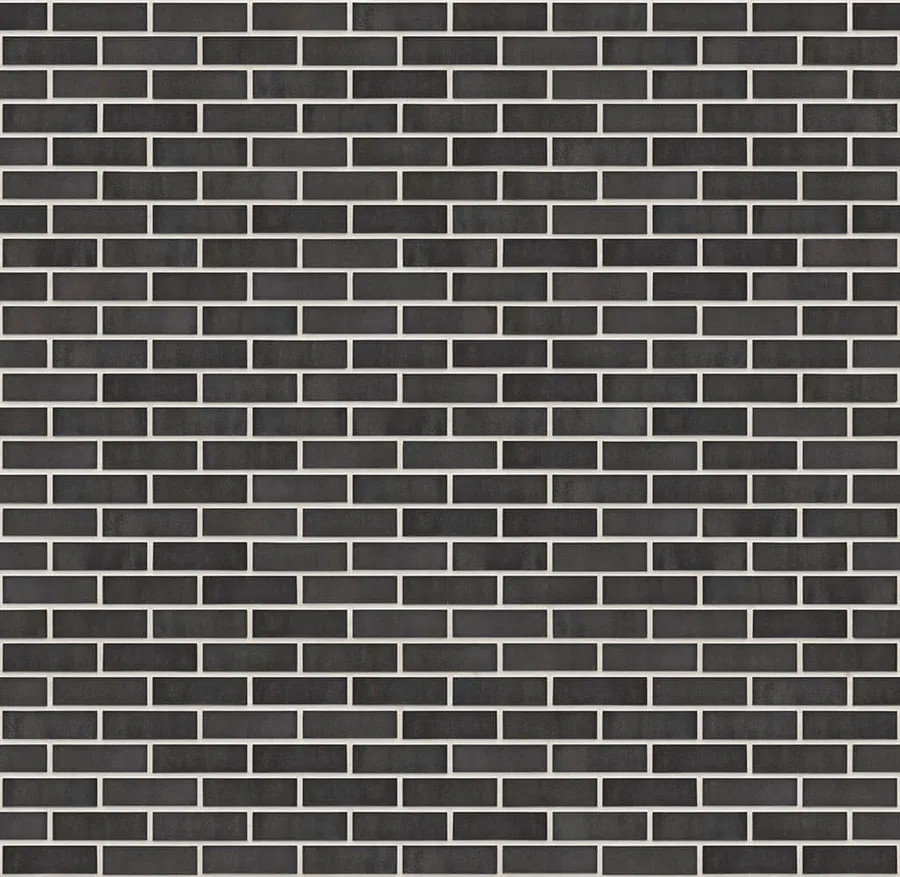

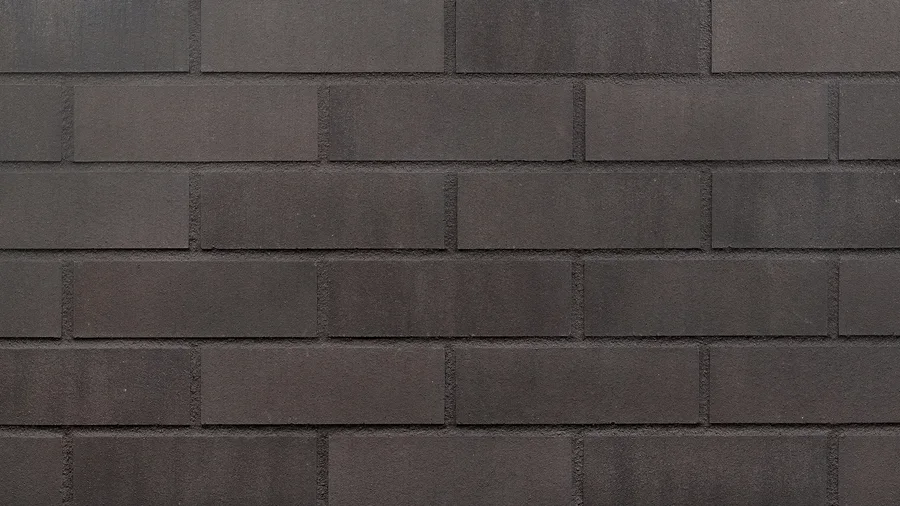

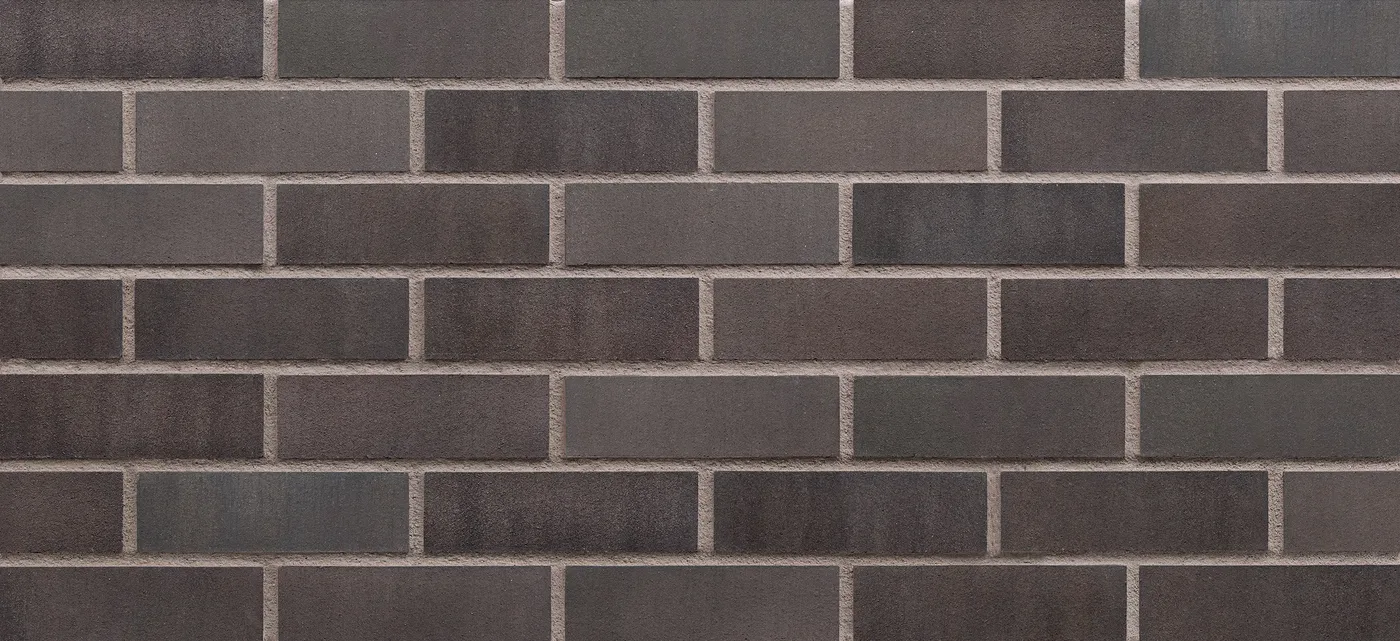

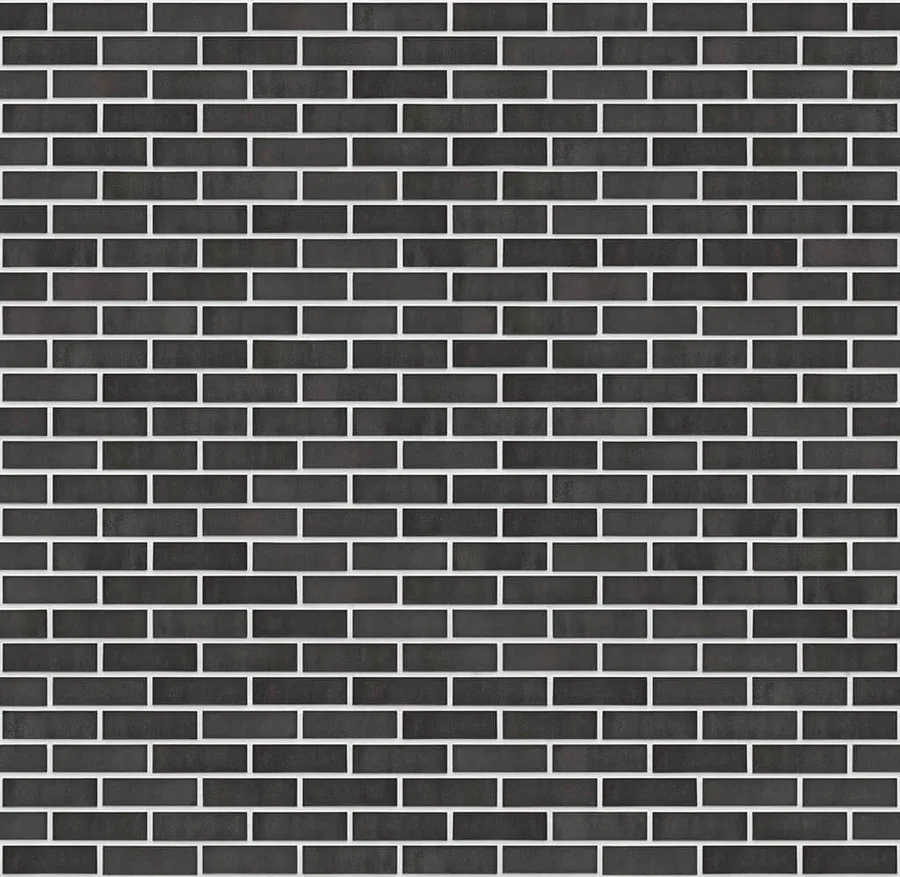

Iron Rock, photographed by King Klinker. In a precast panel the joint is the concrete matrix, and a tinted matrix sets its color.

Inside the King Klinker factory.

Clay to fired brick at the King Klinker plant in Poland. One minute 49 seconds, with sound.

Video, King Klinker.

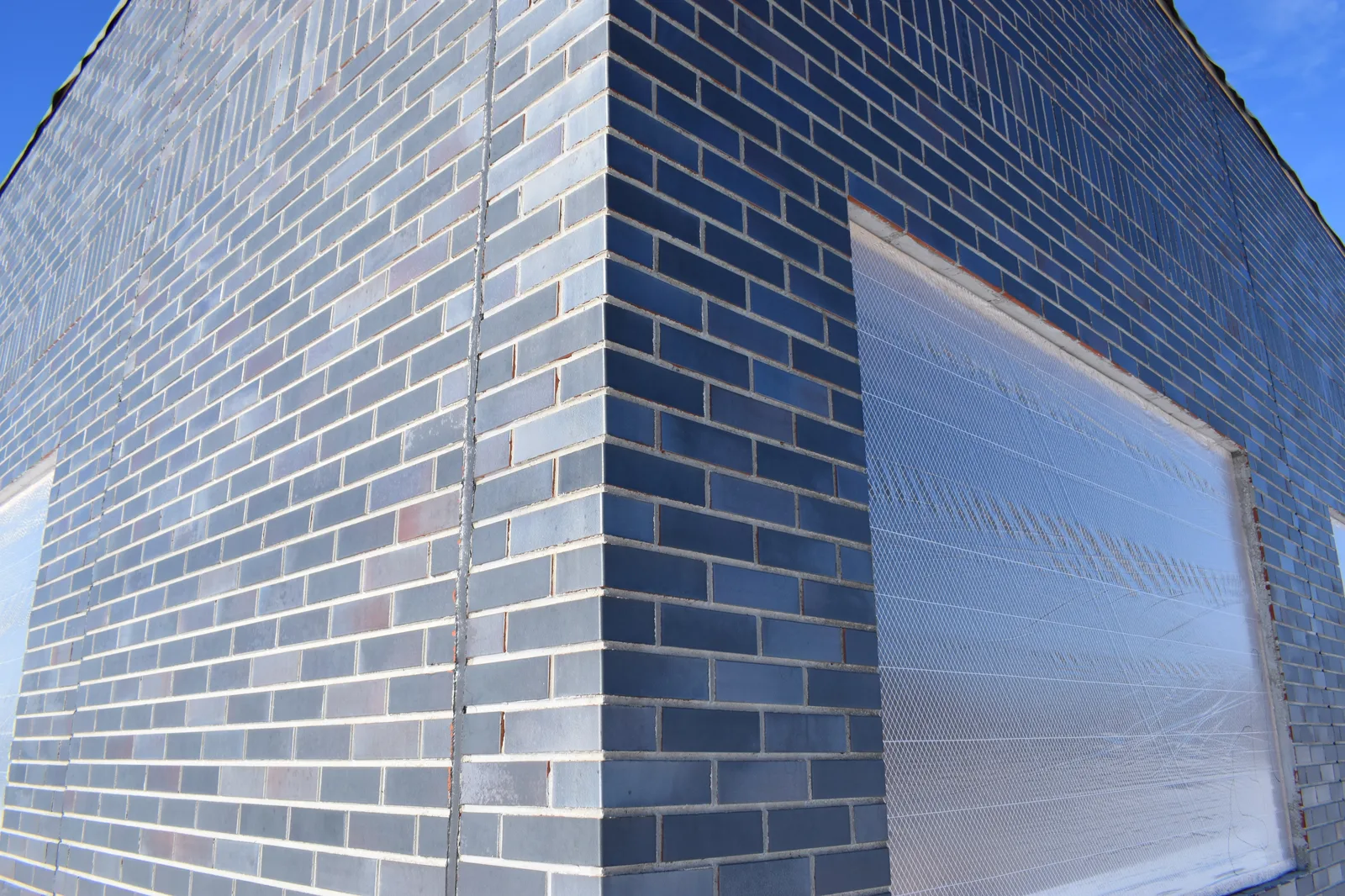

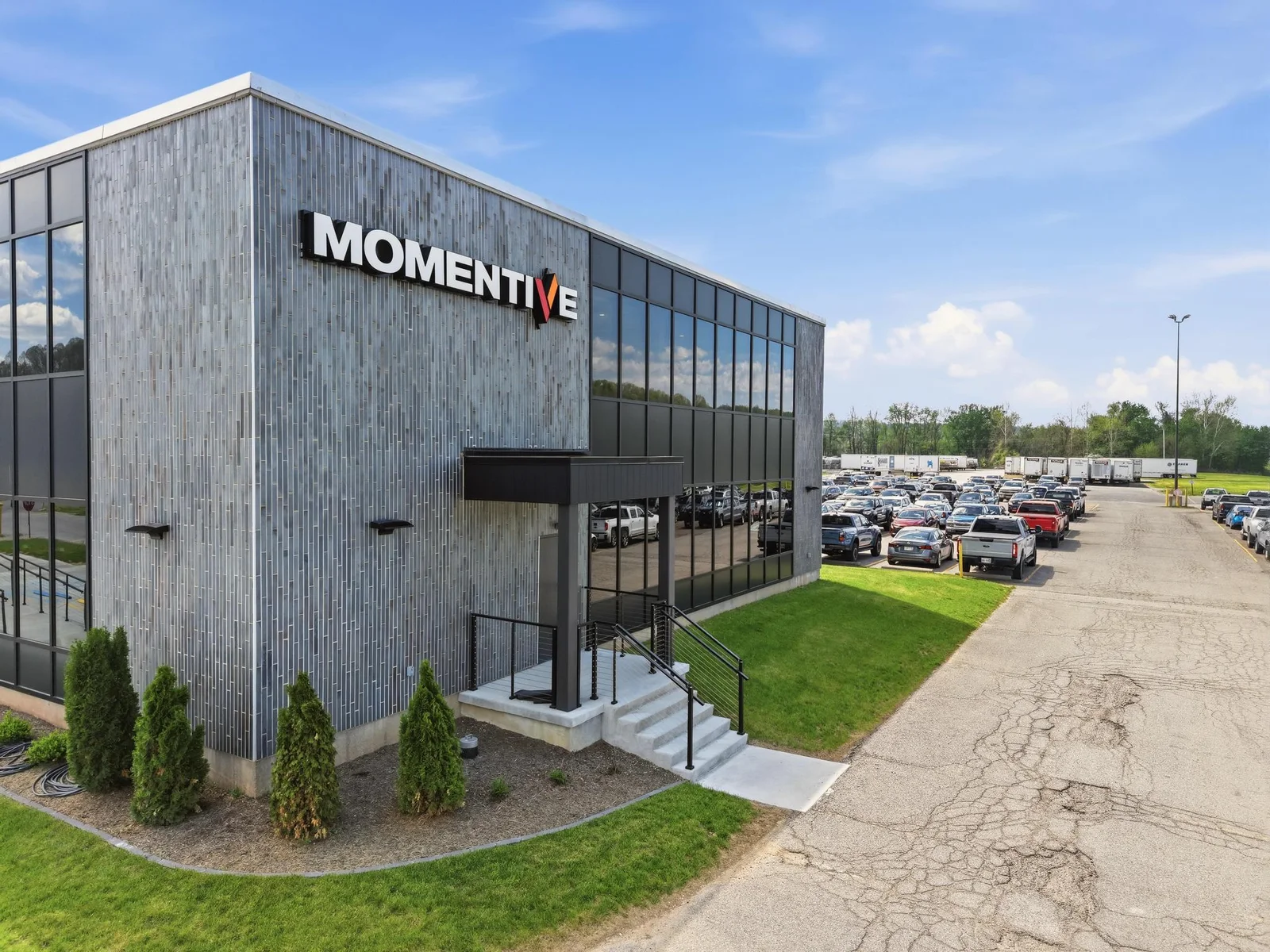

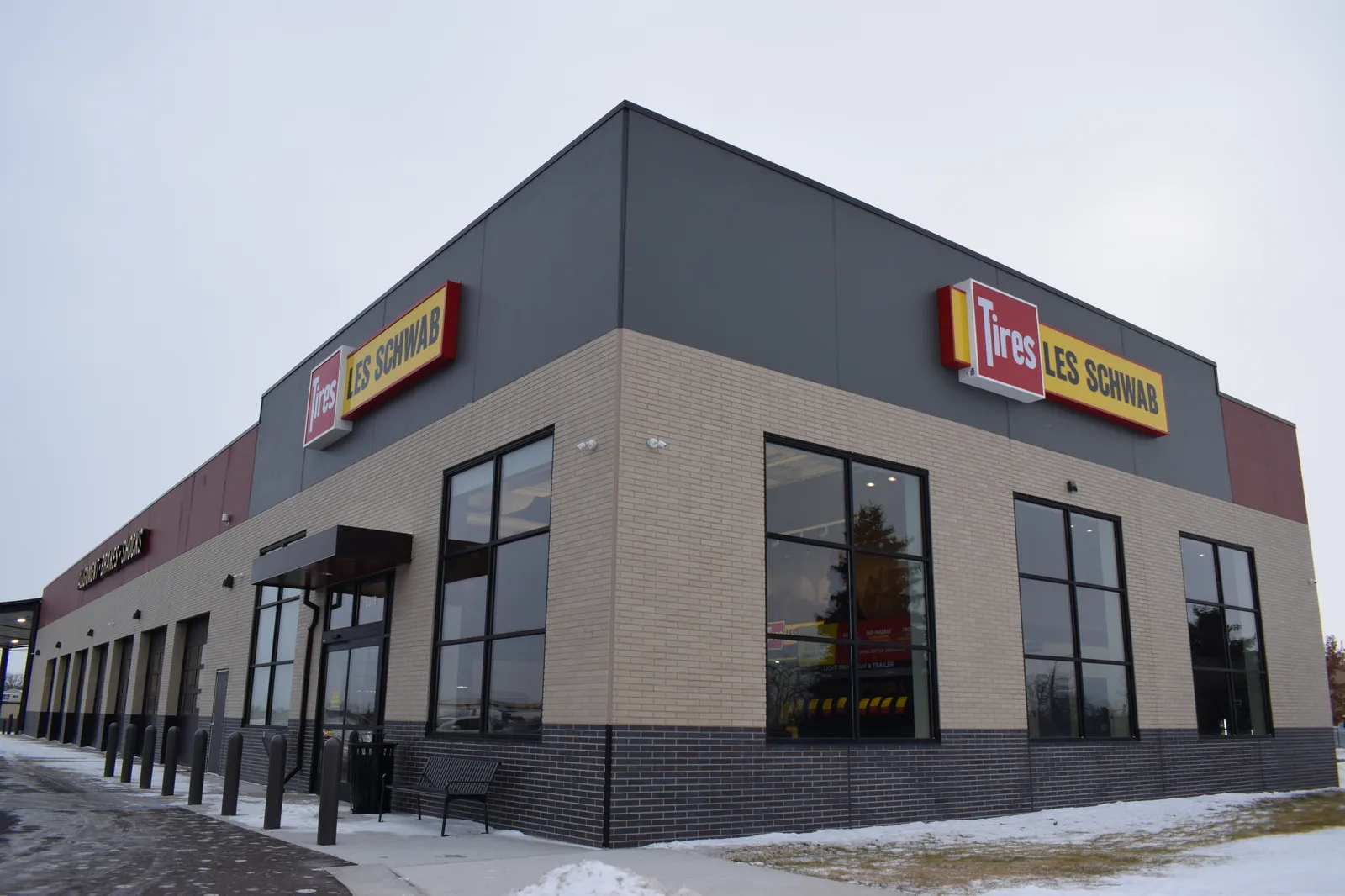

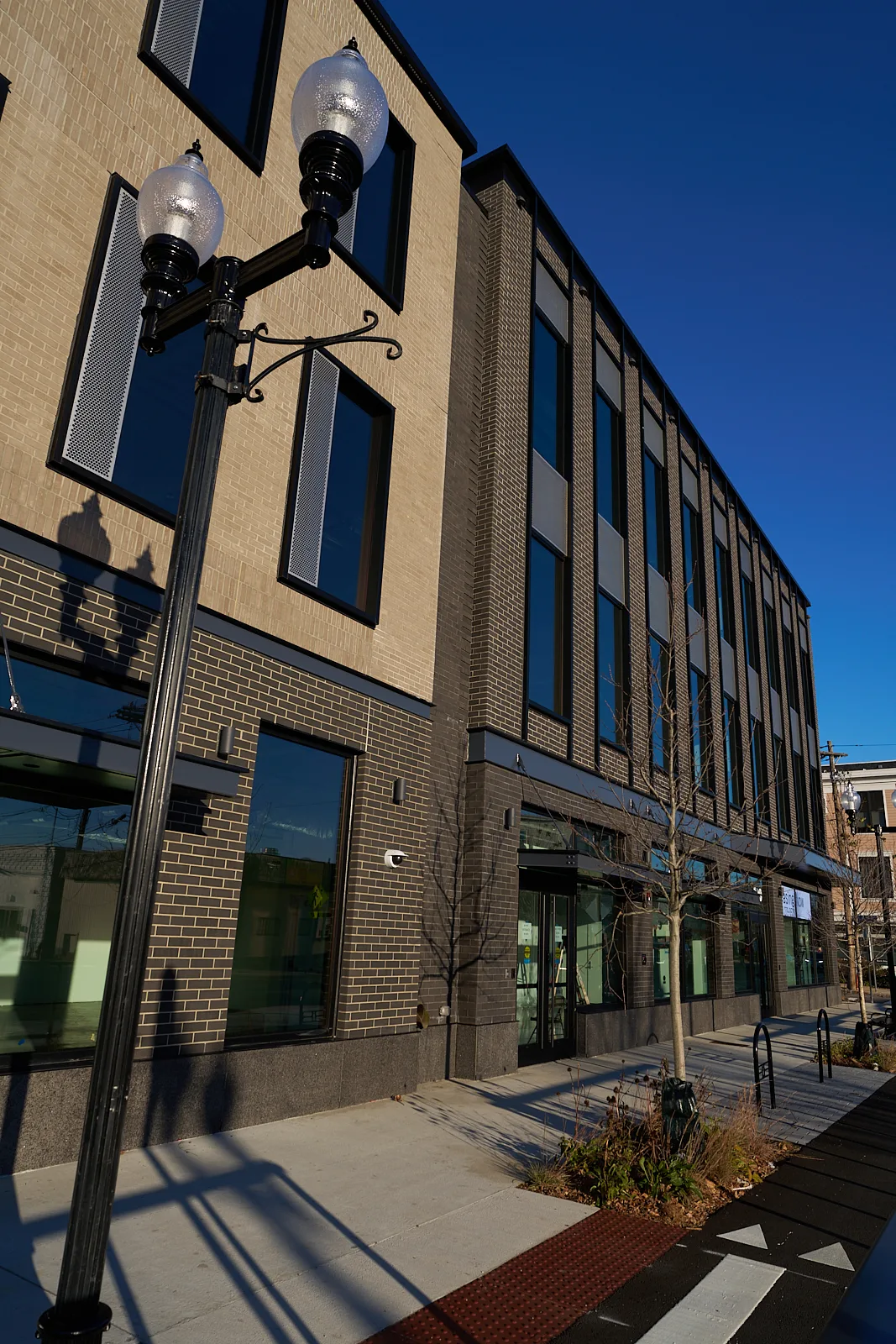

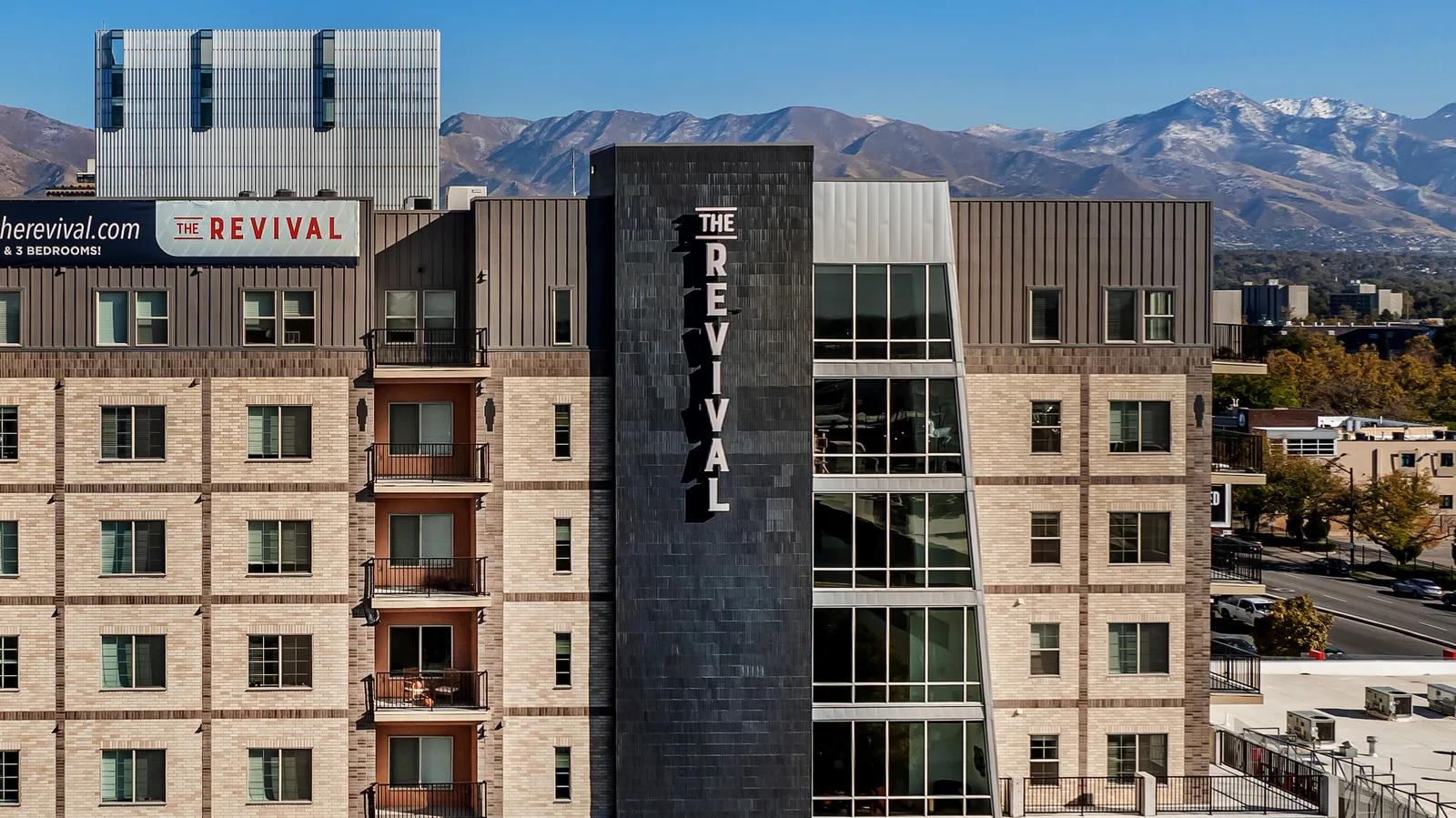

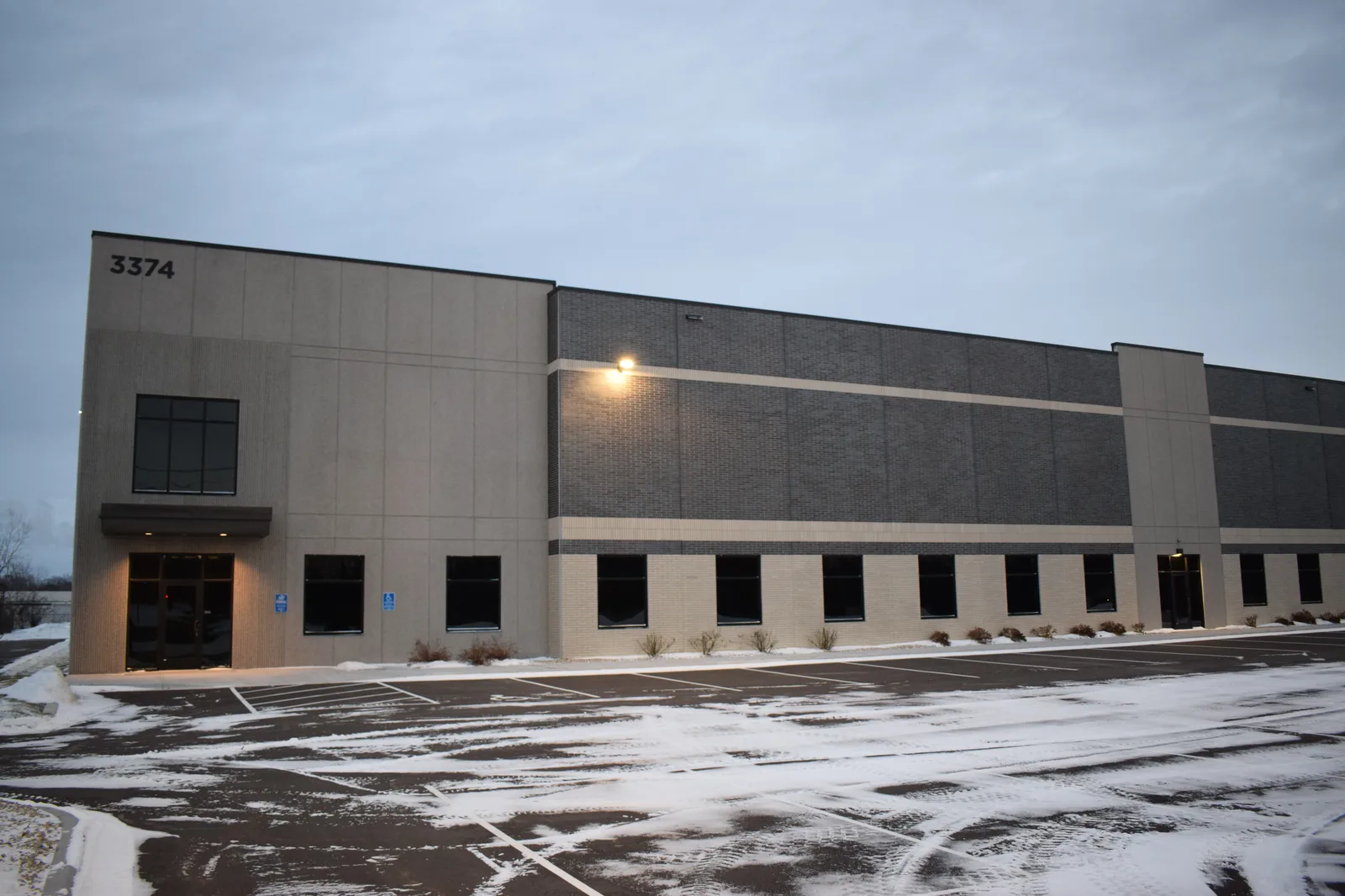

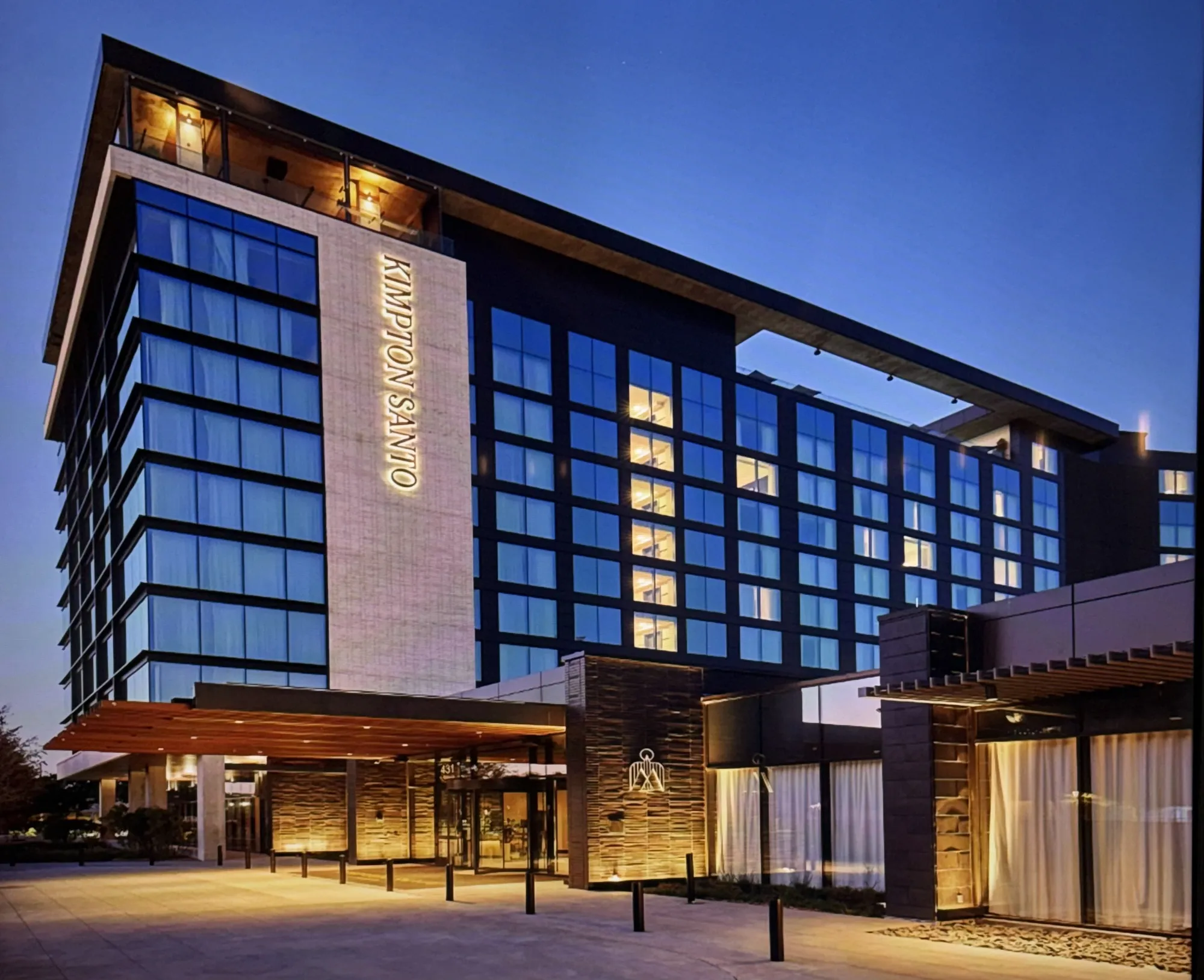

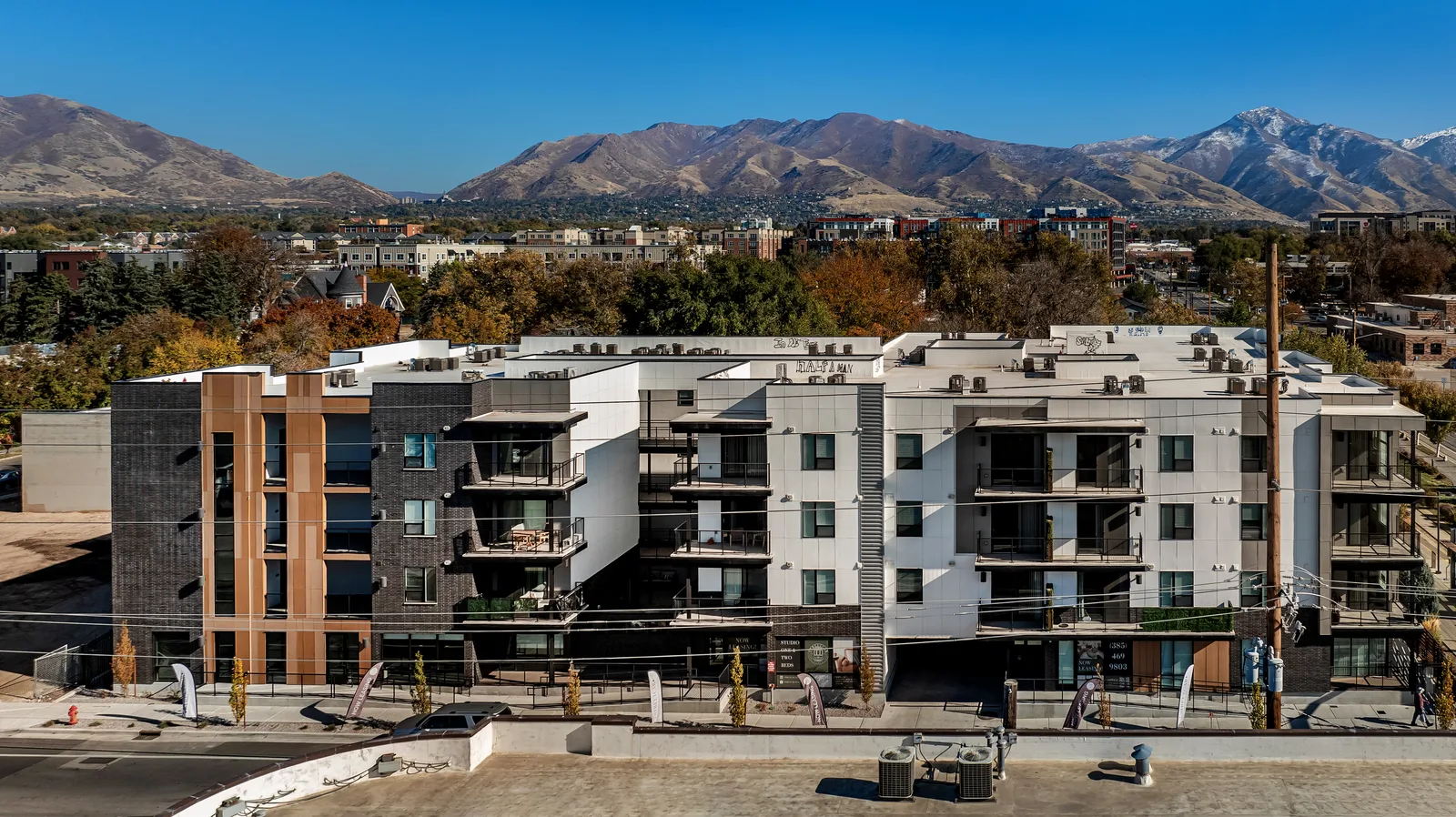

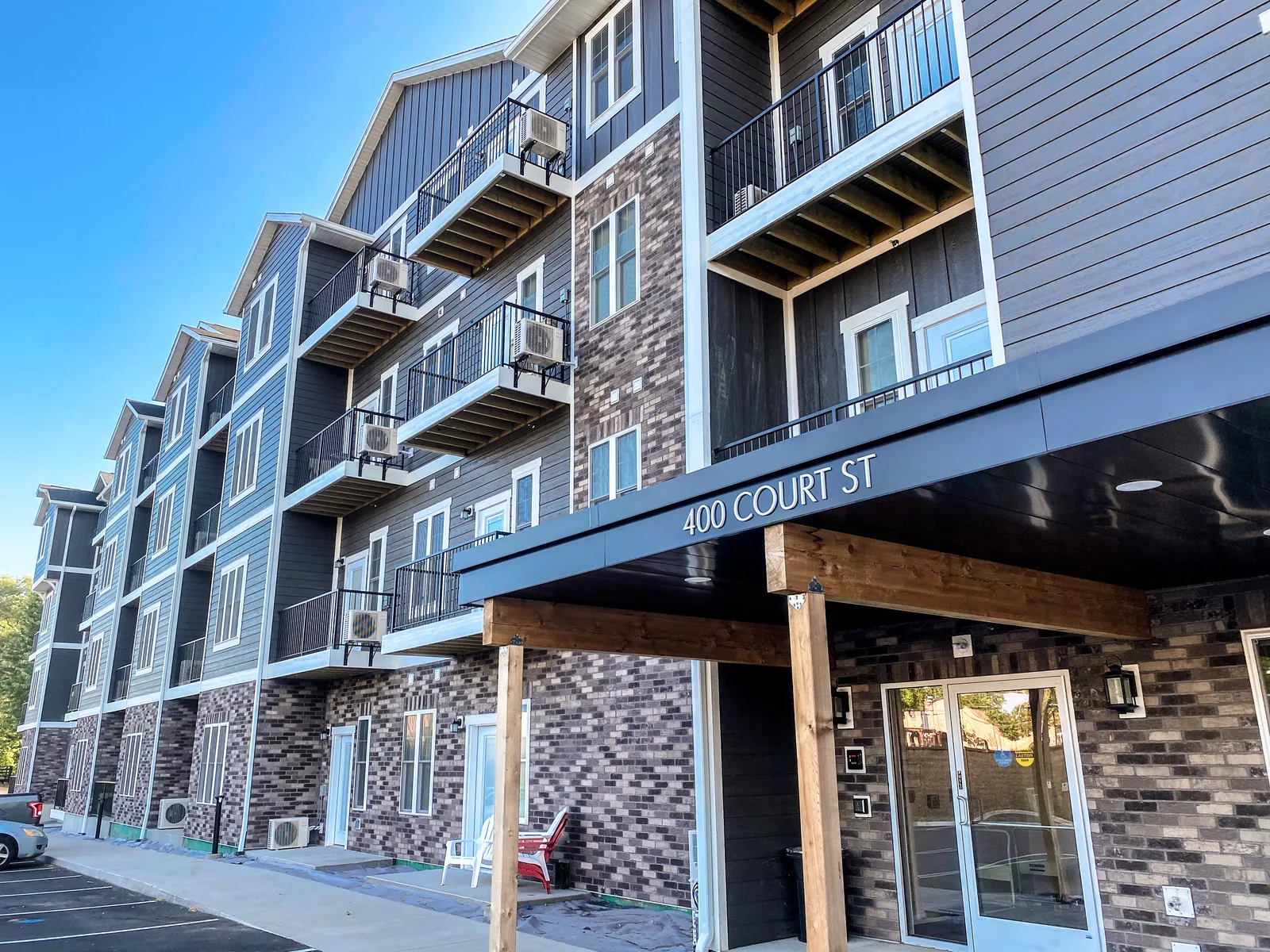

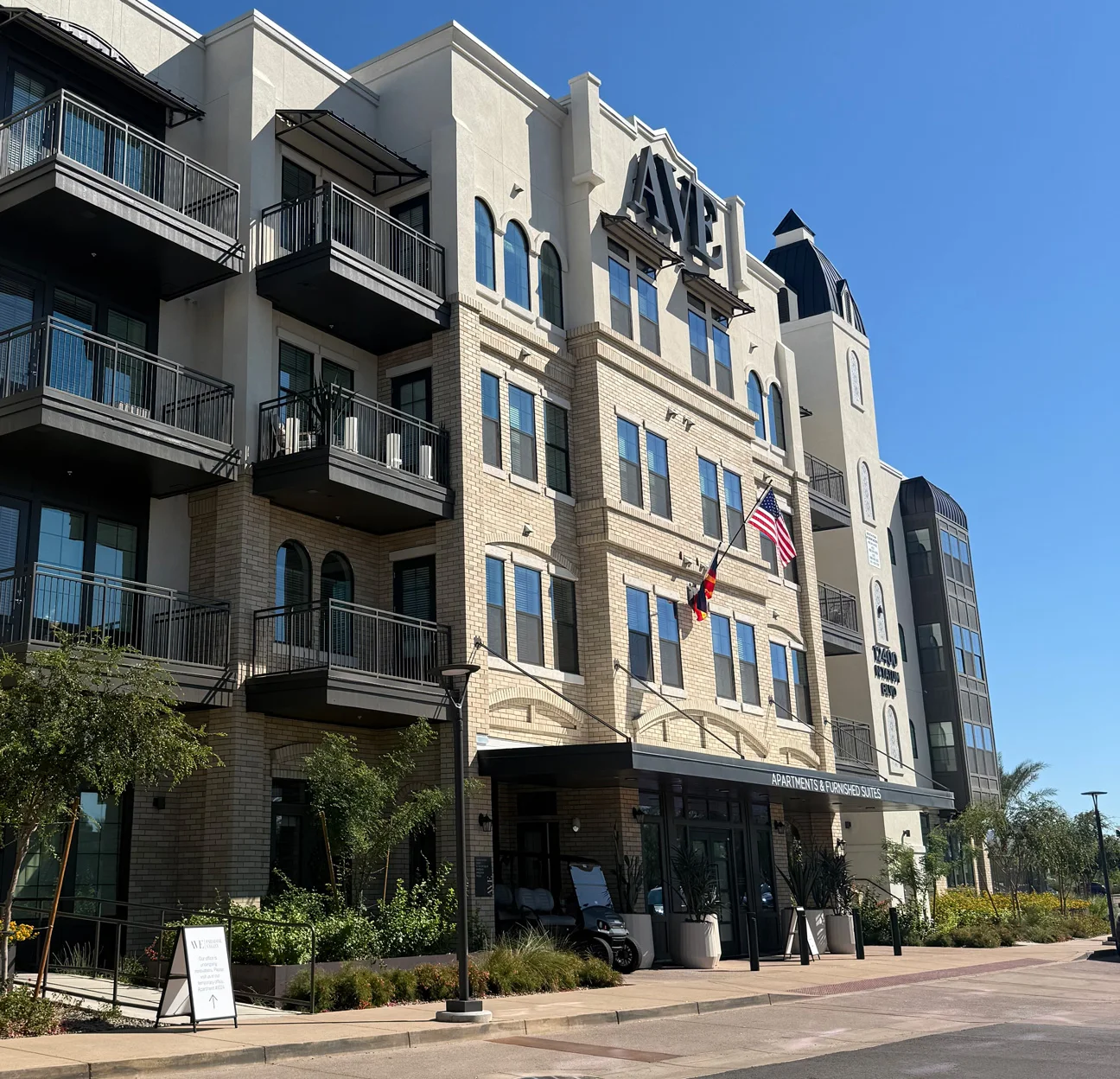

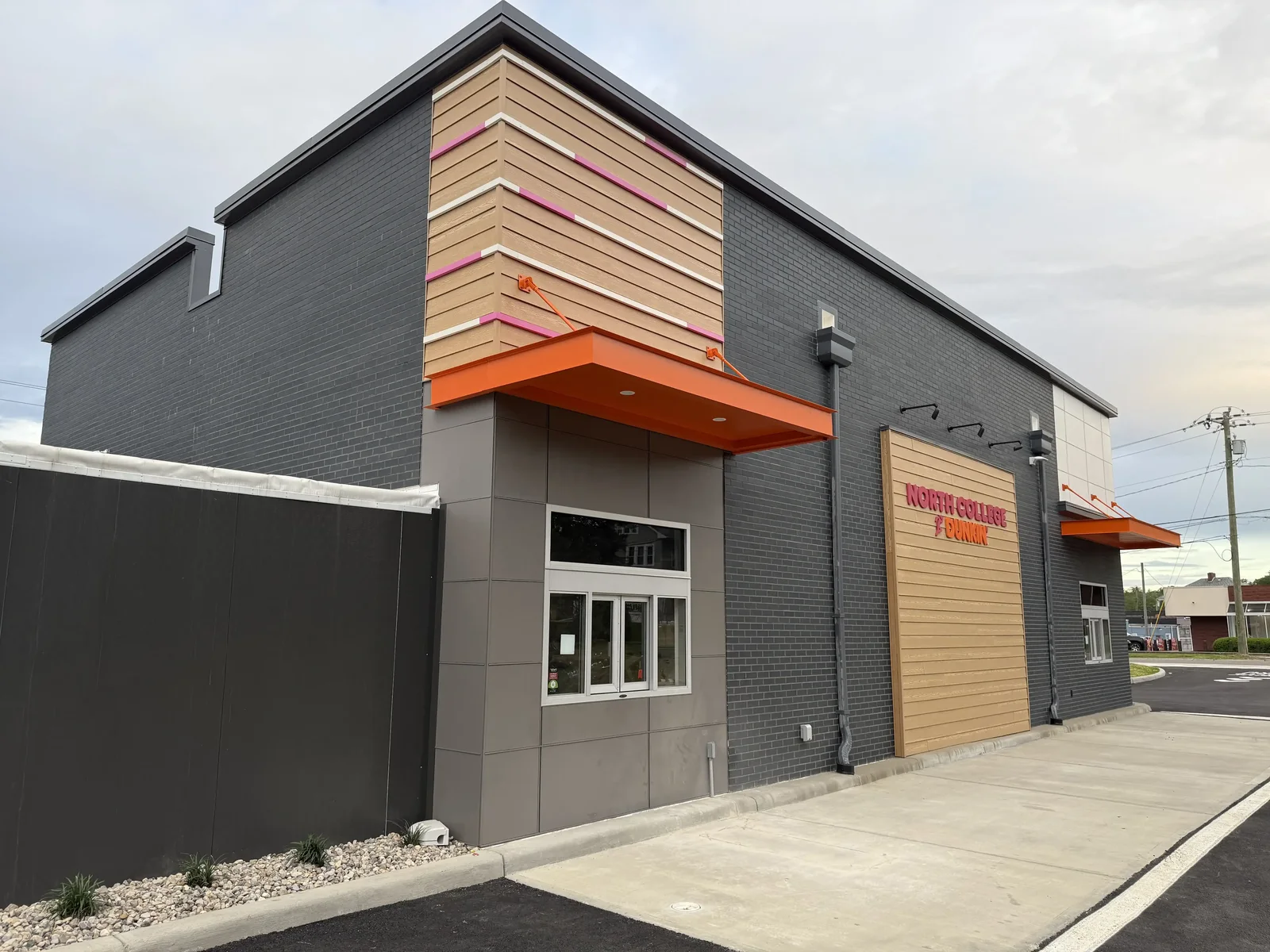

King Klinker on US buildings.

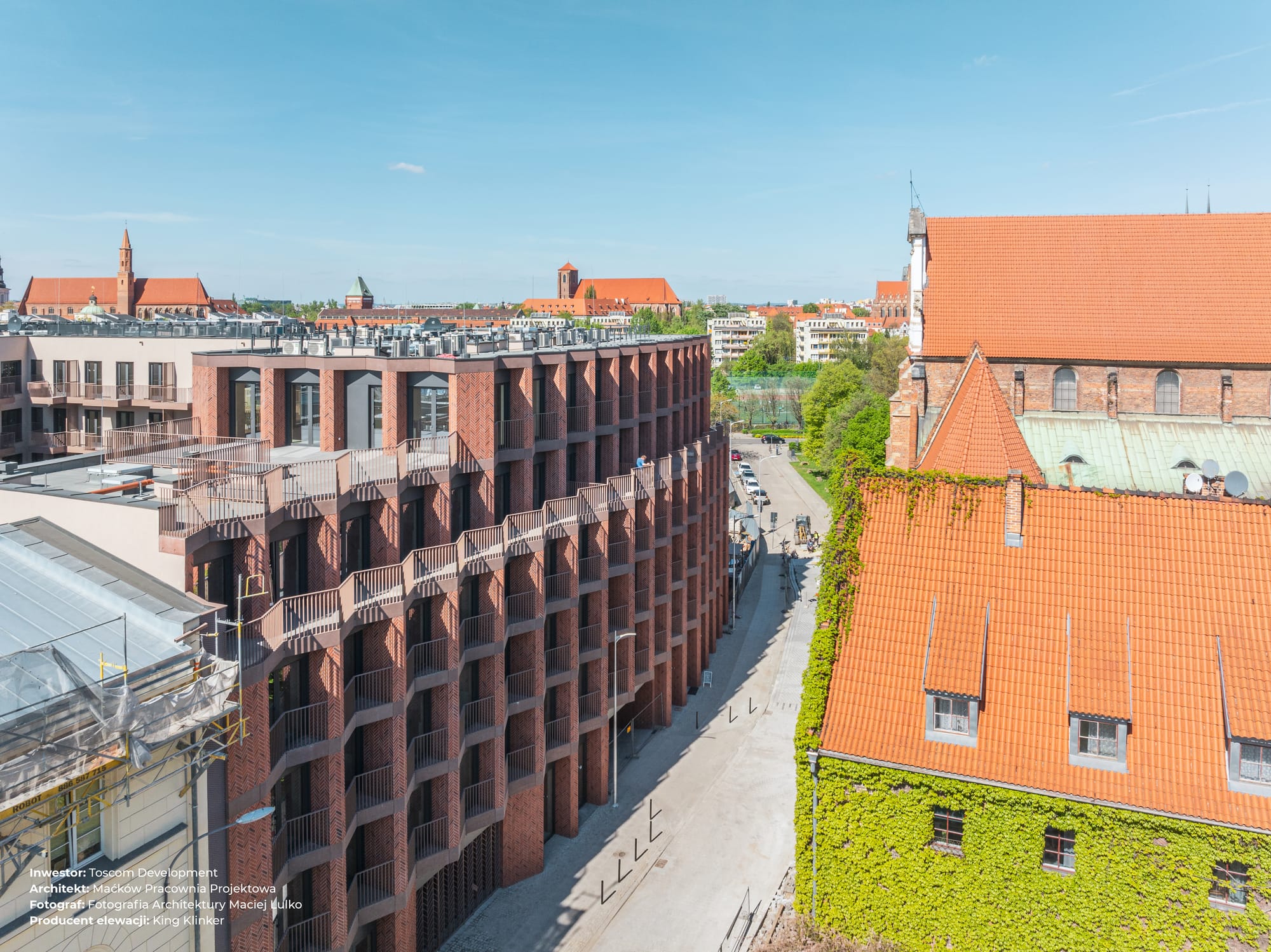

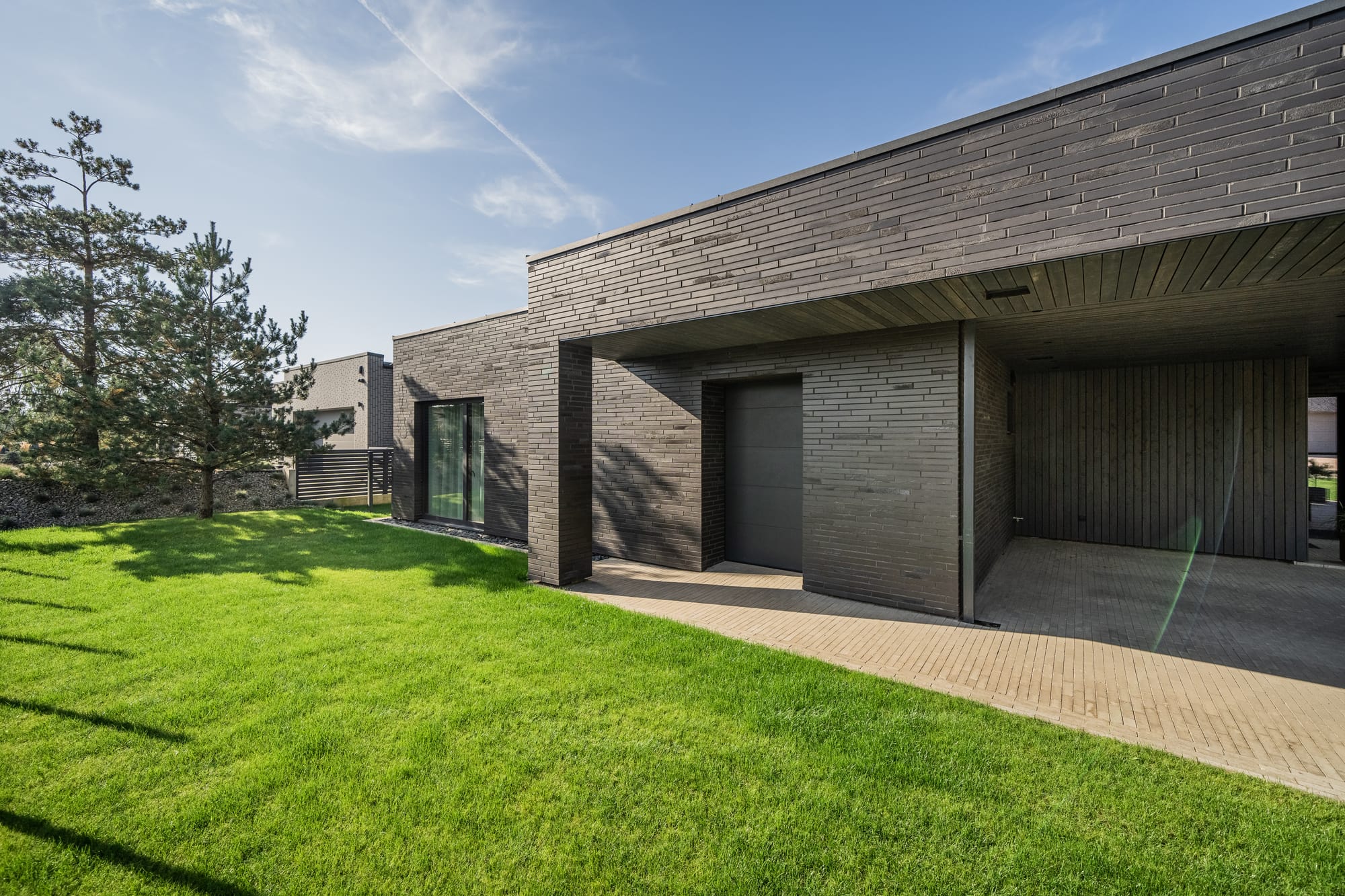

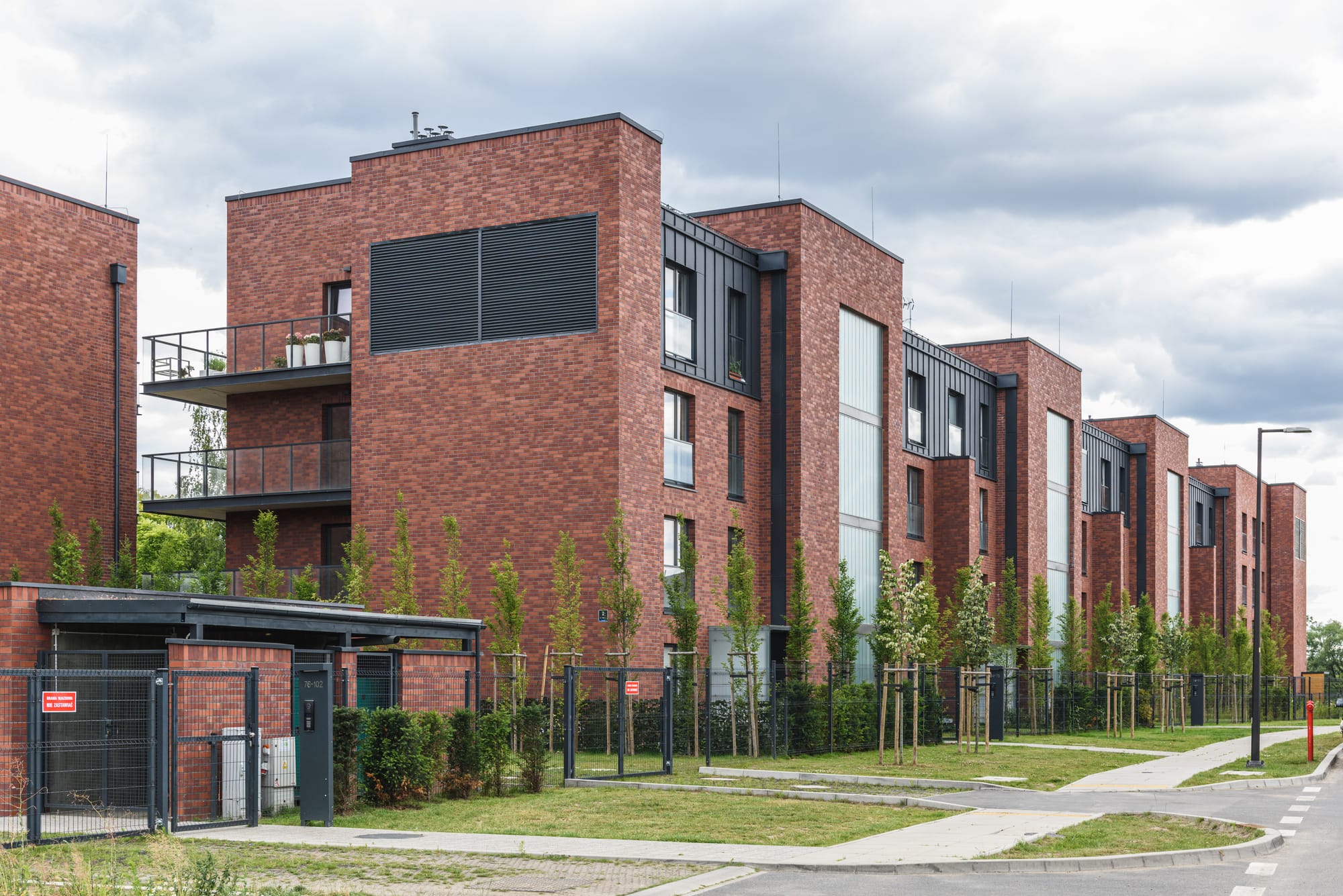

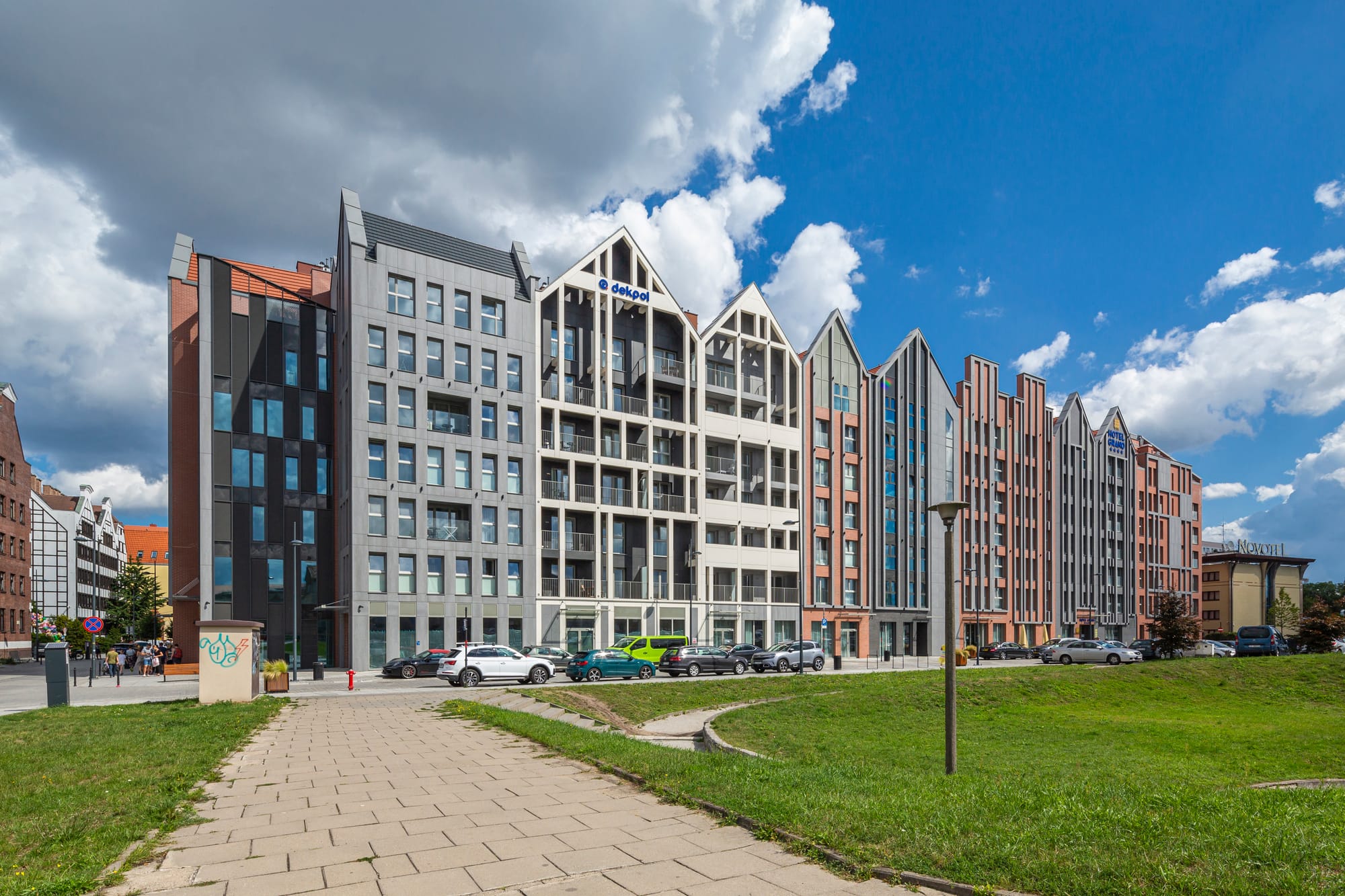

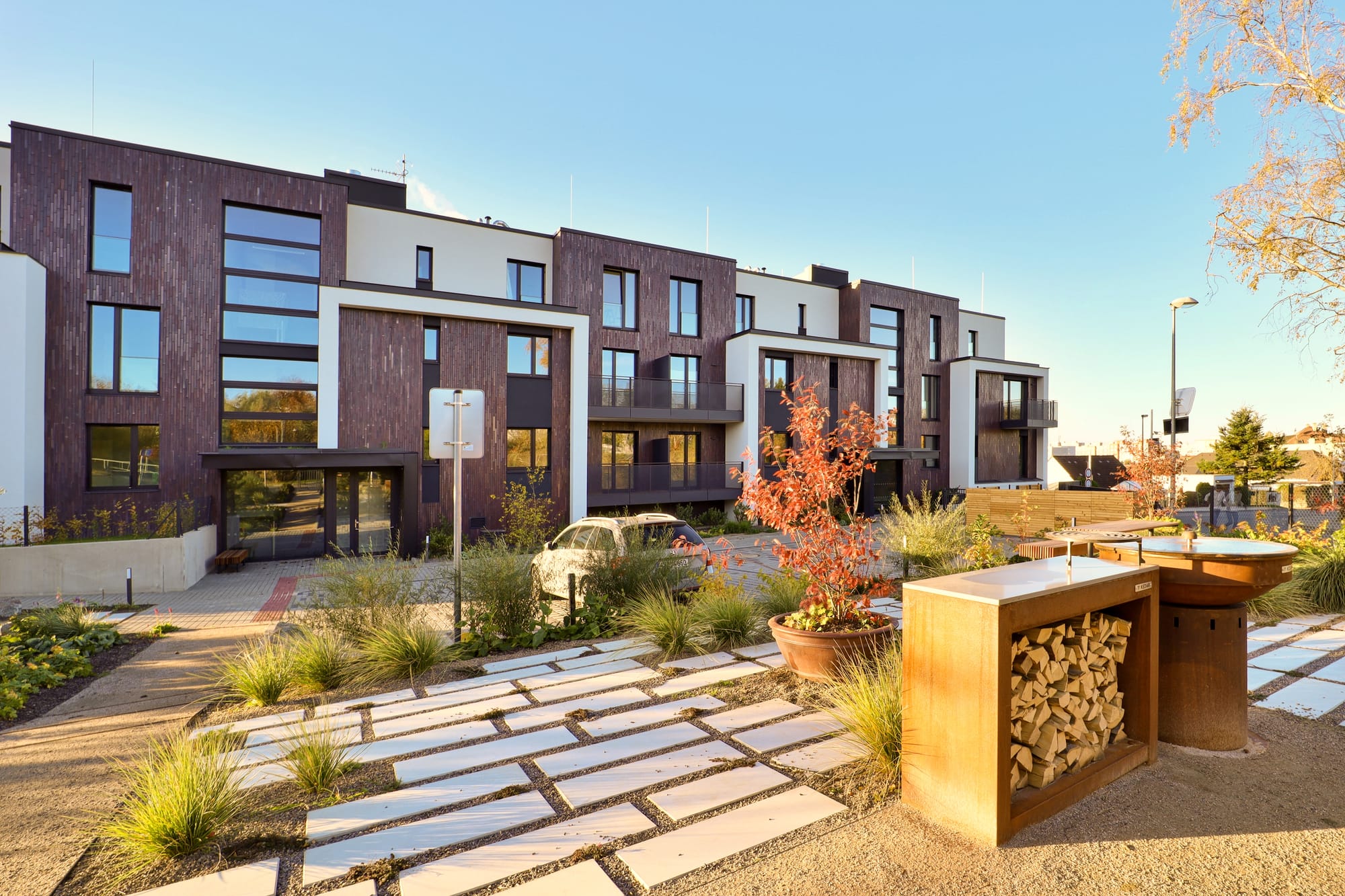

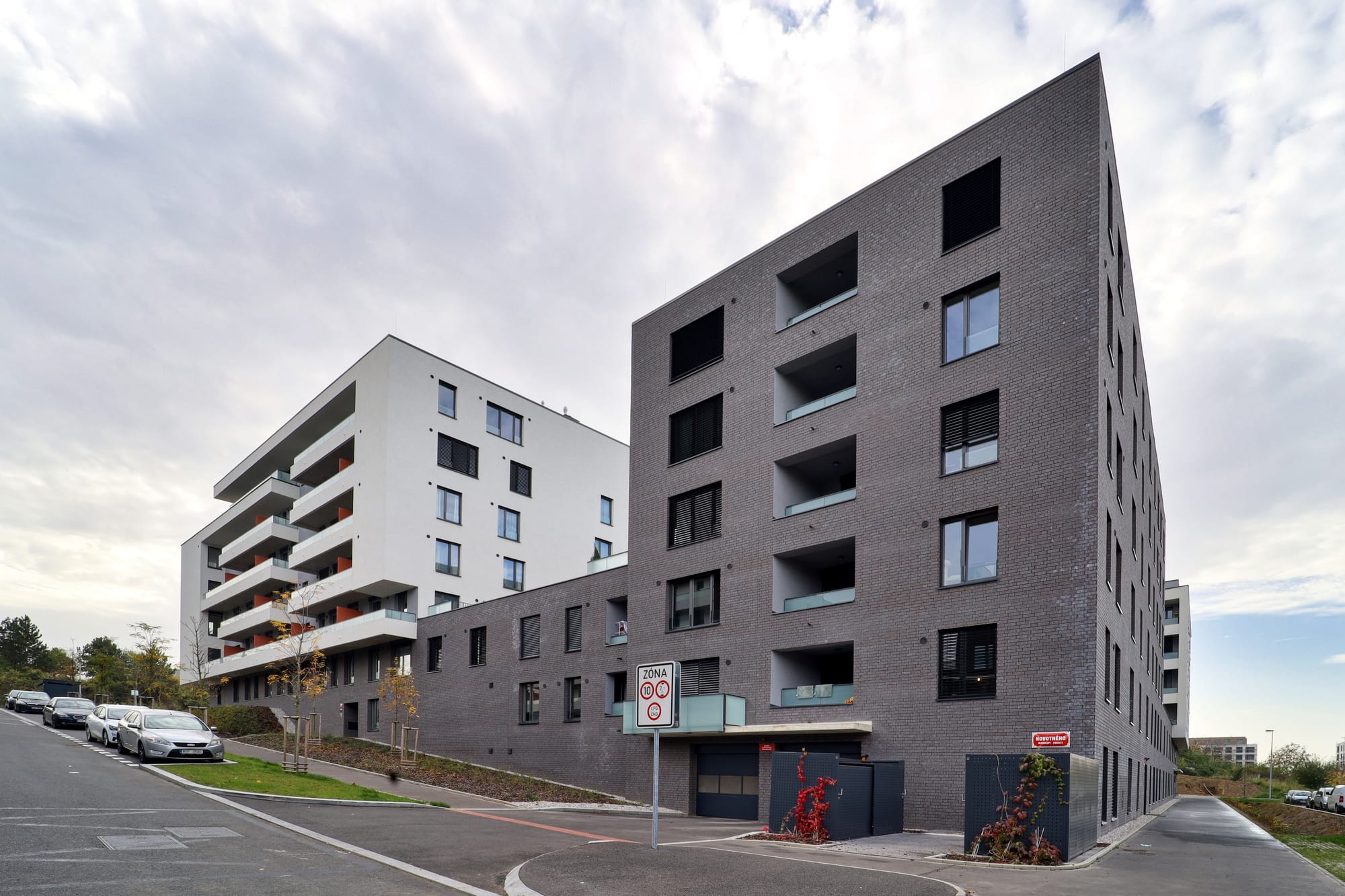

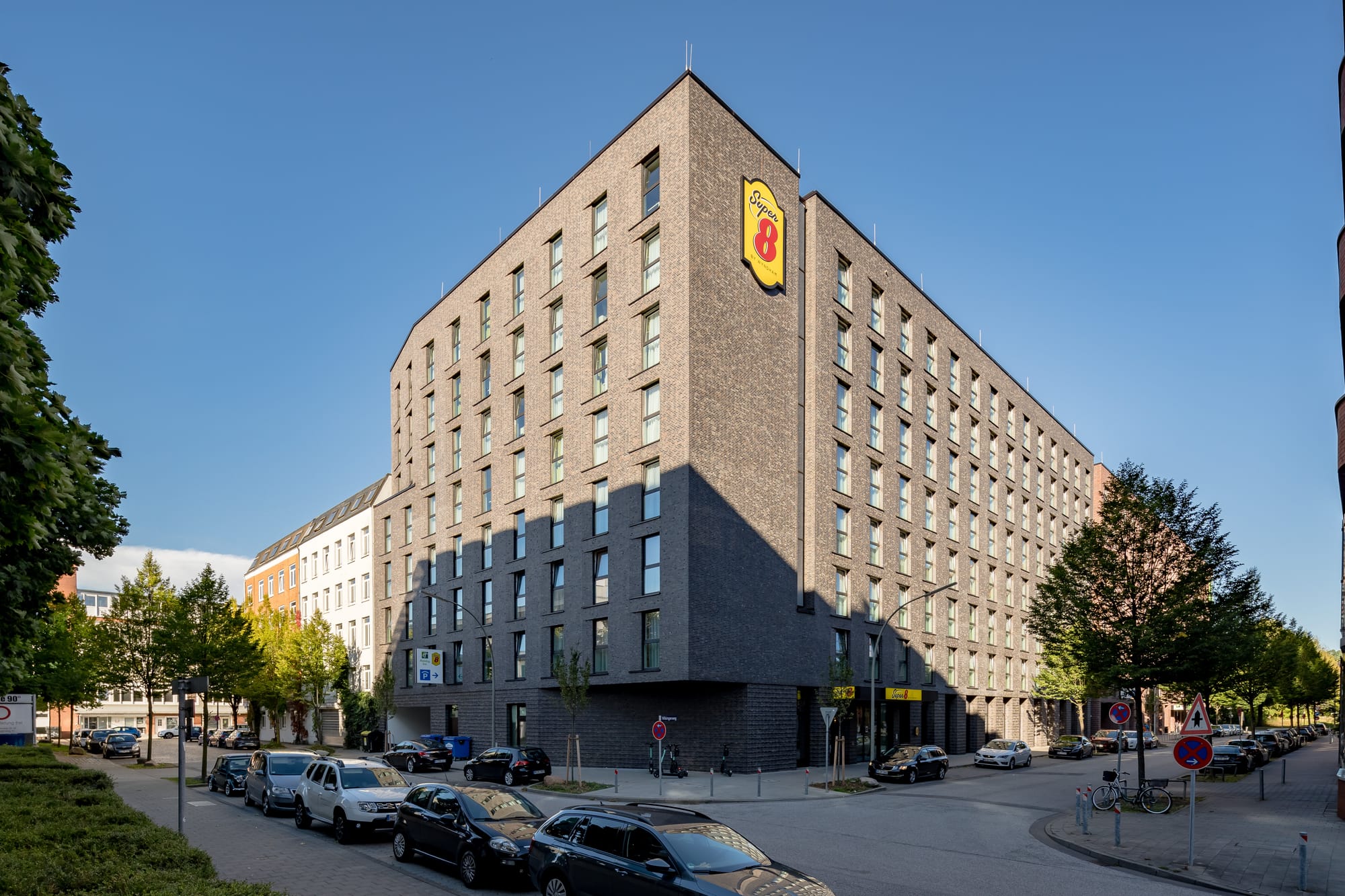

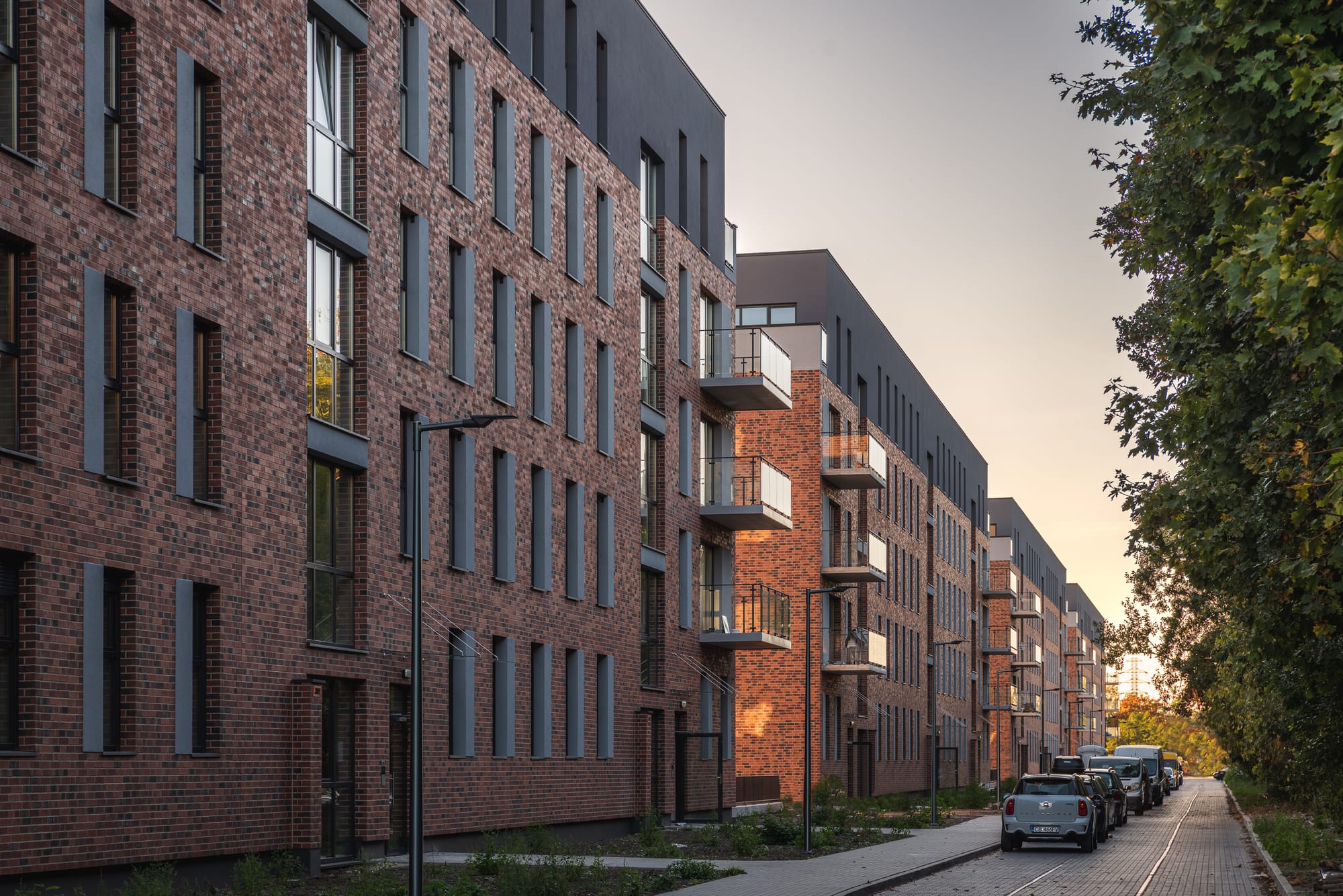

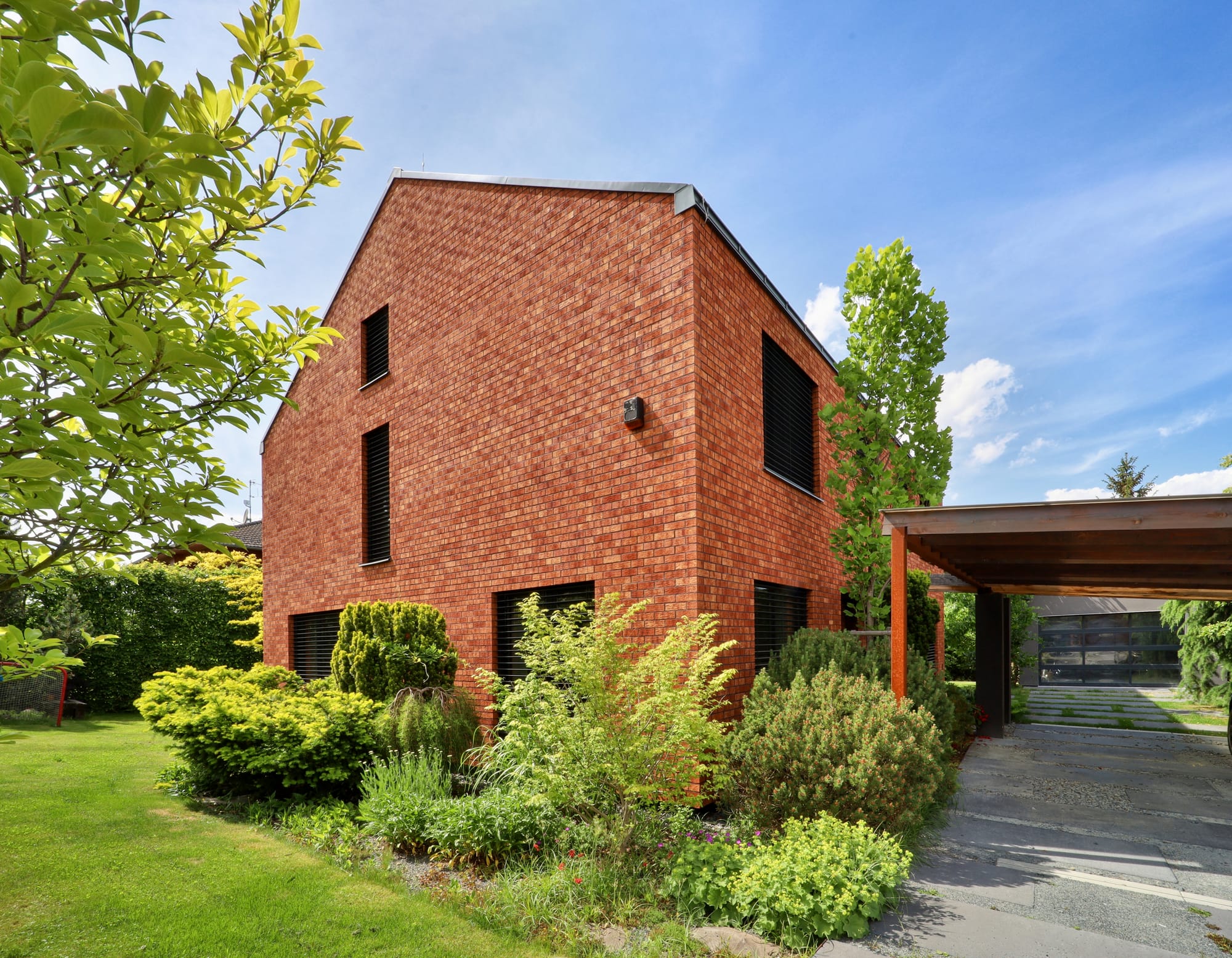

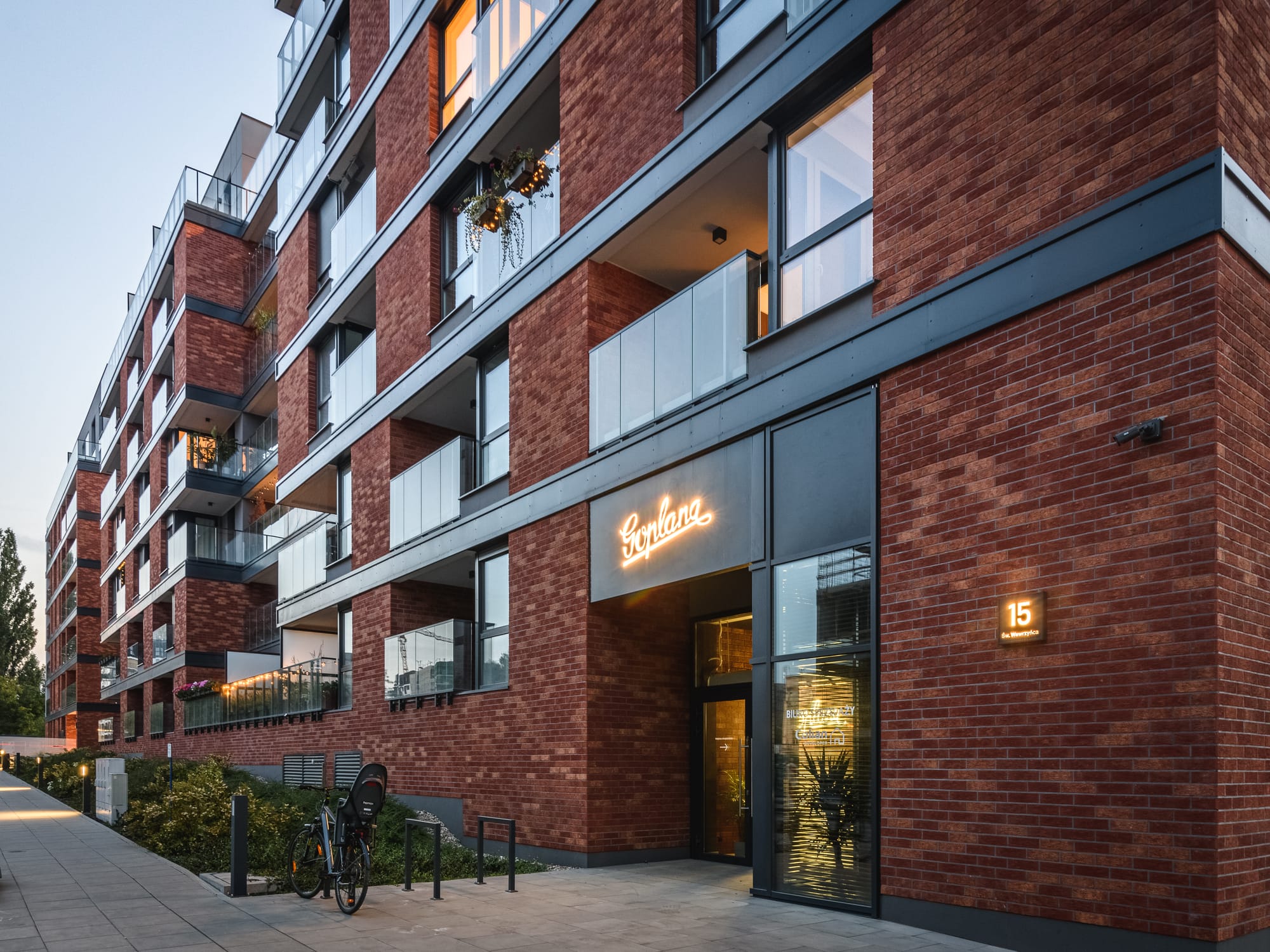

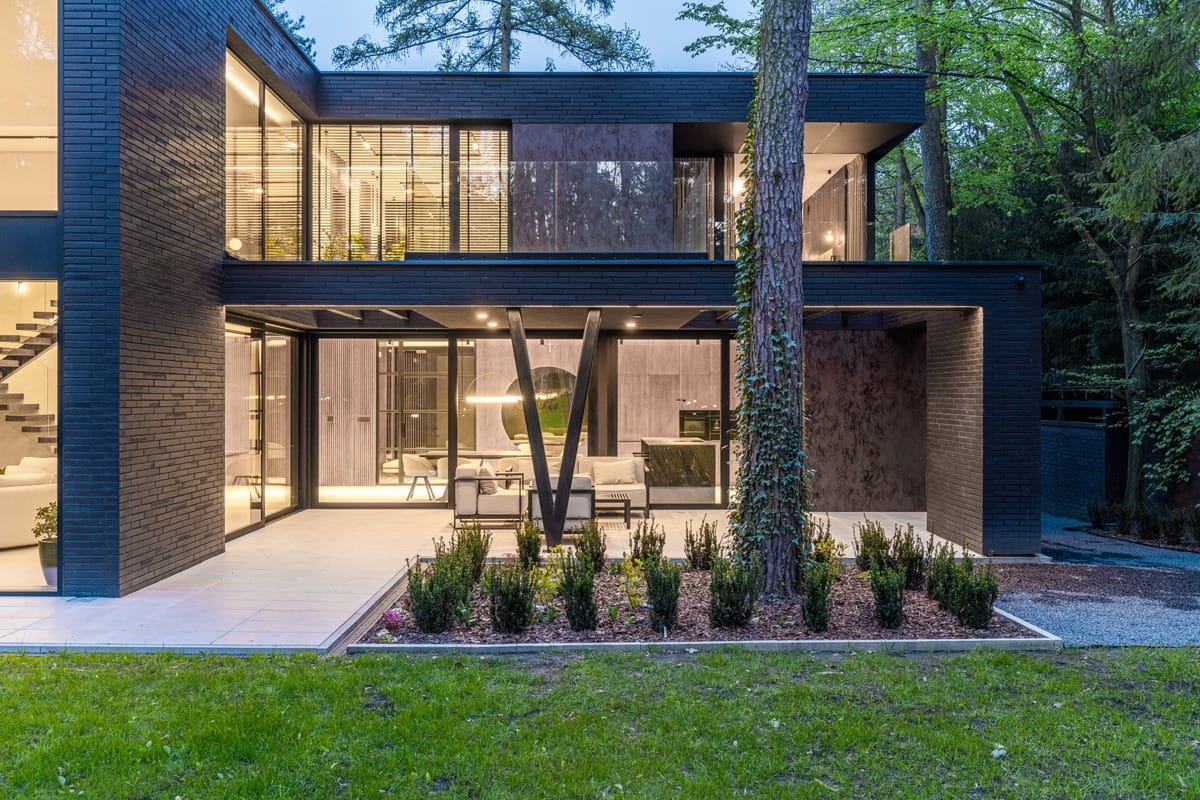

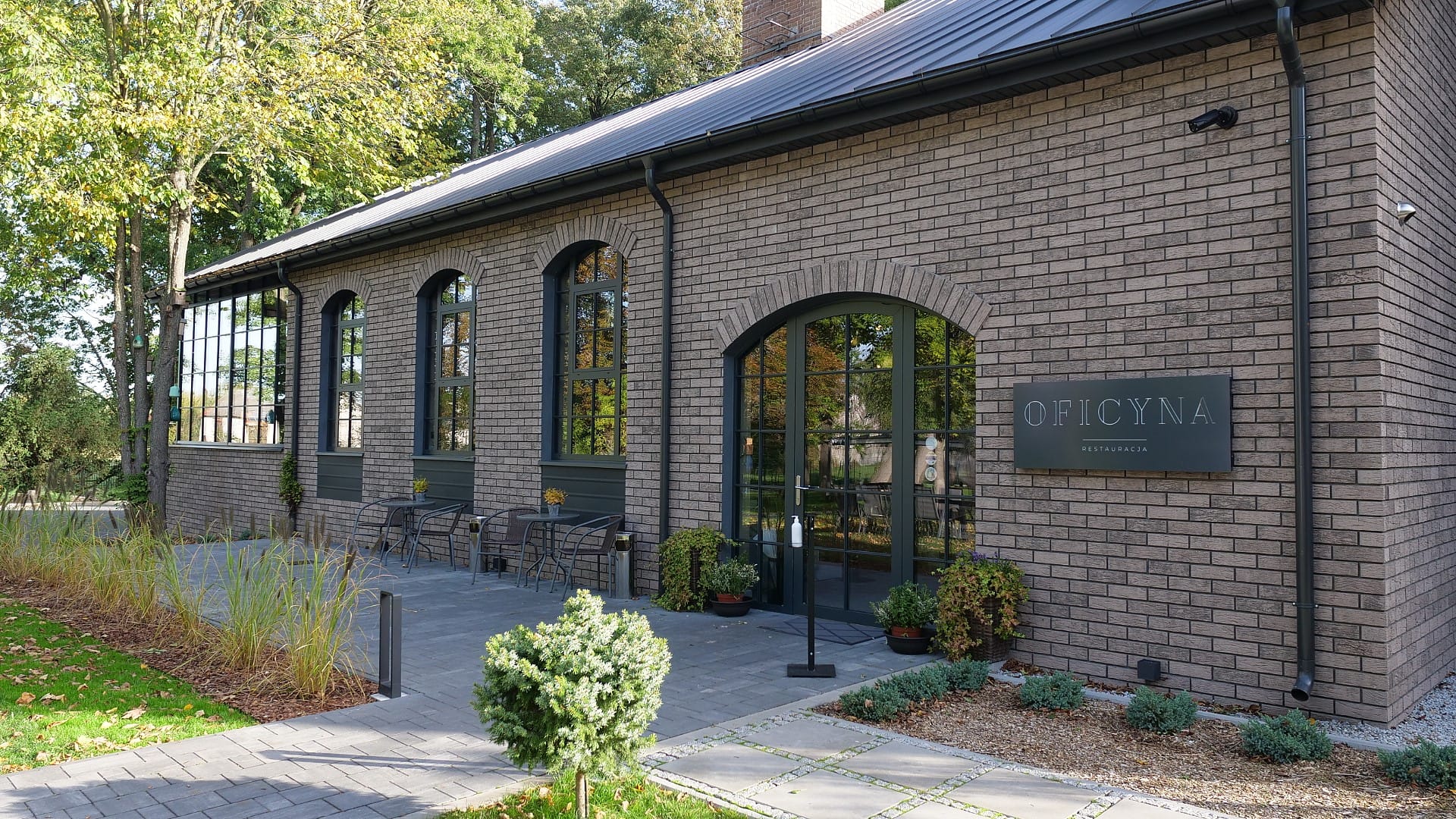

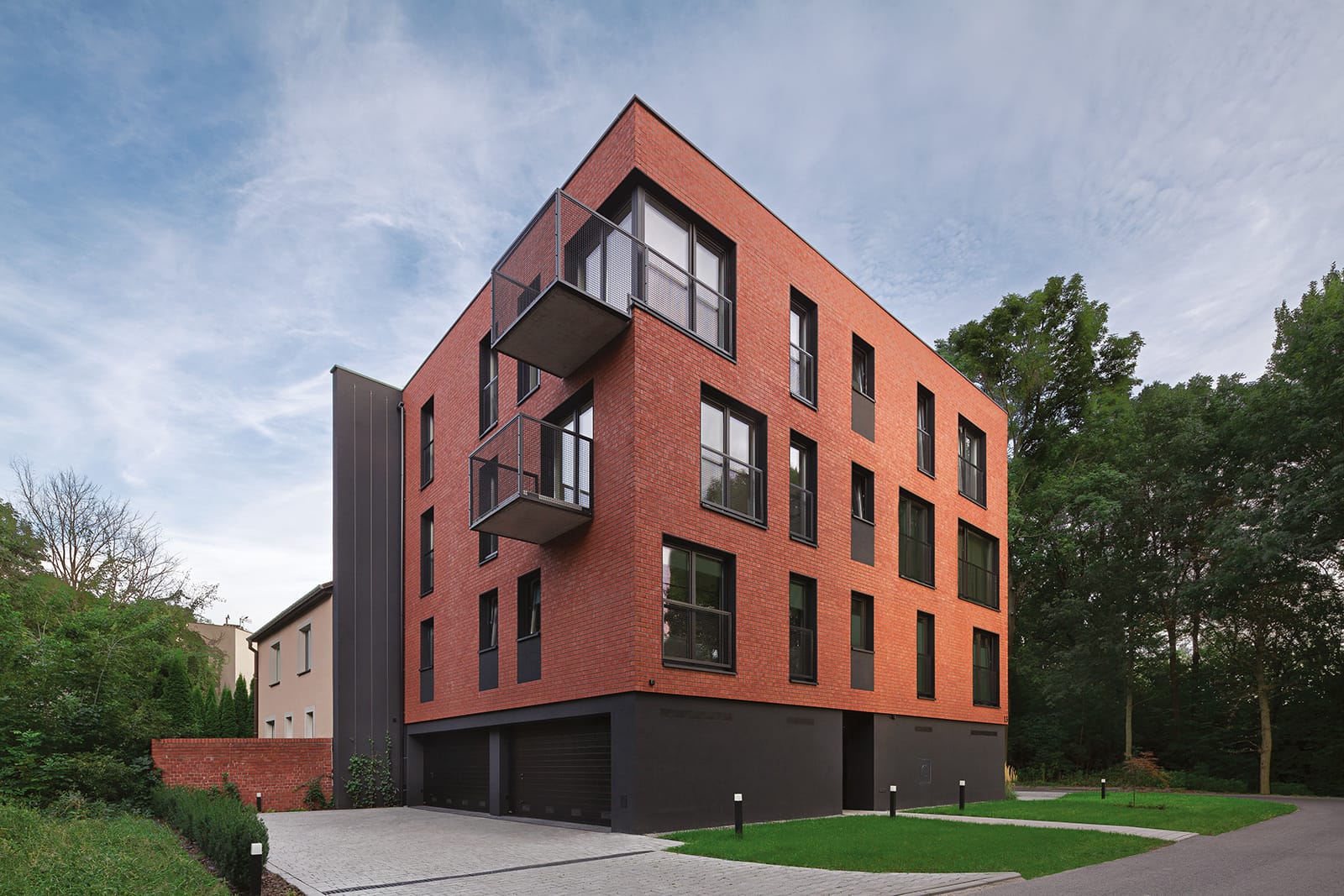

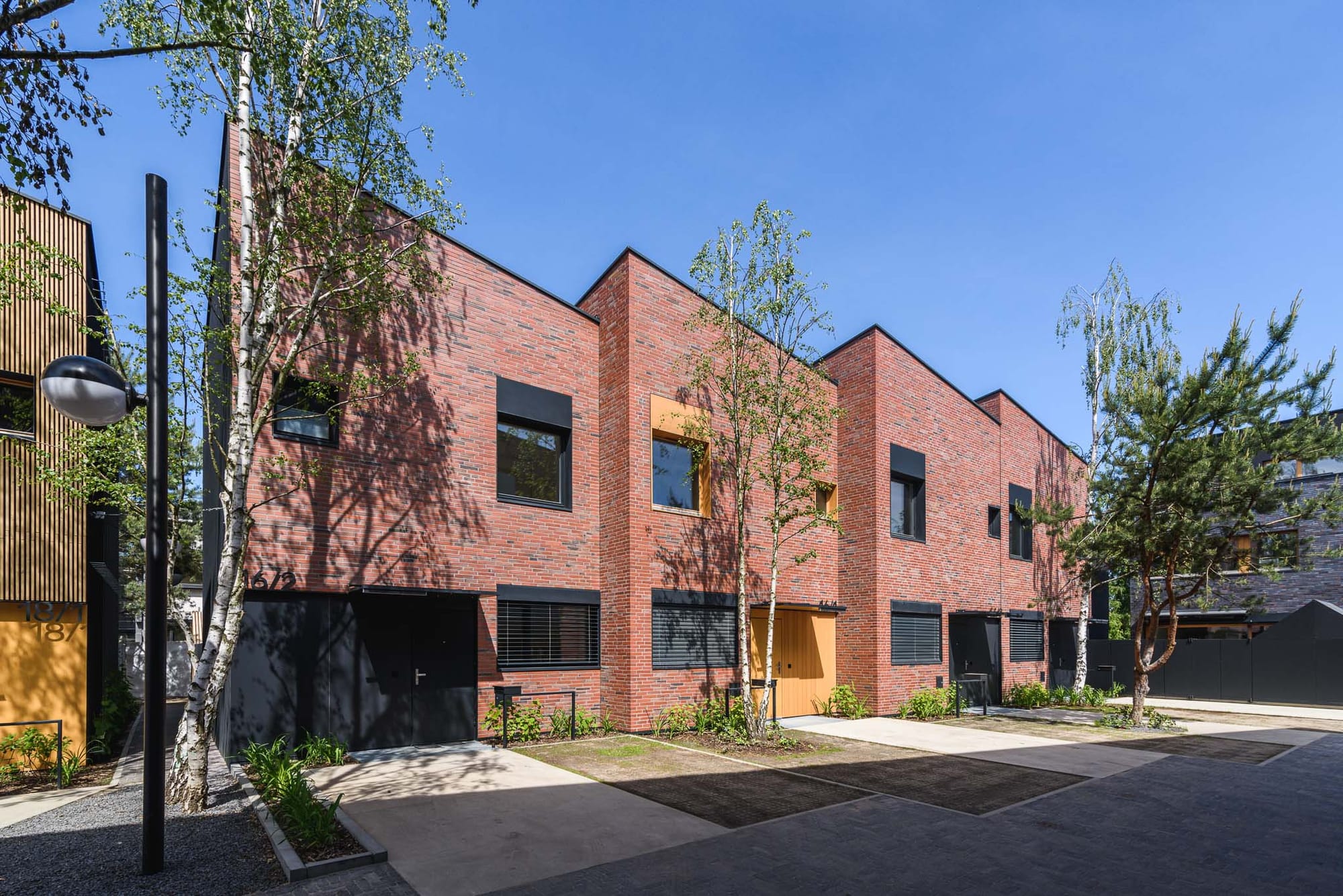

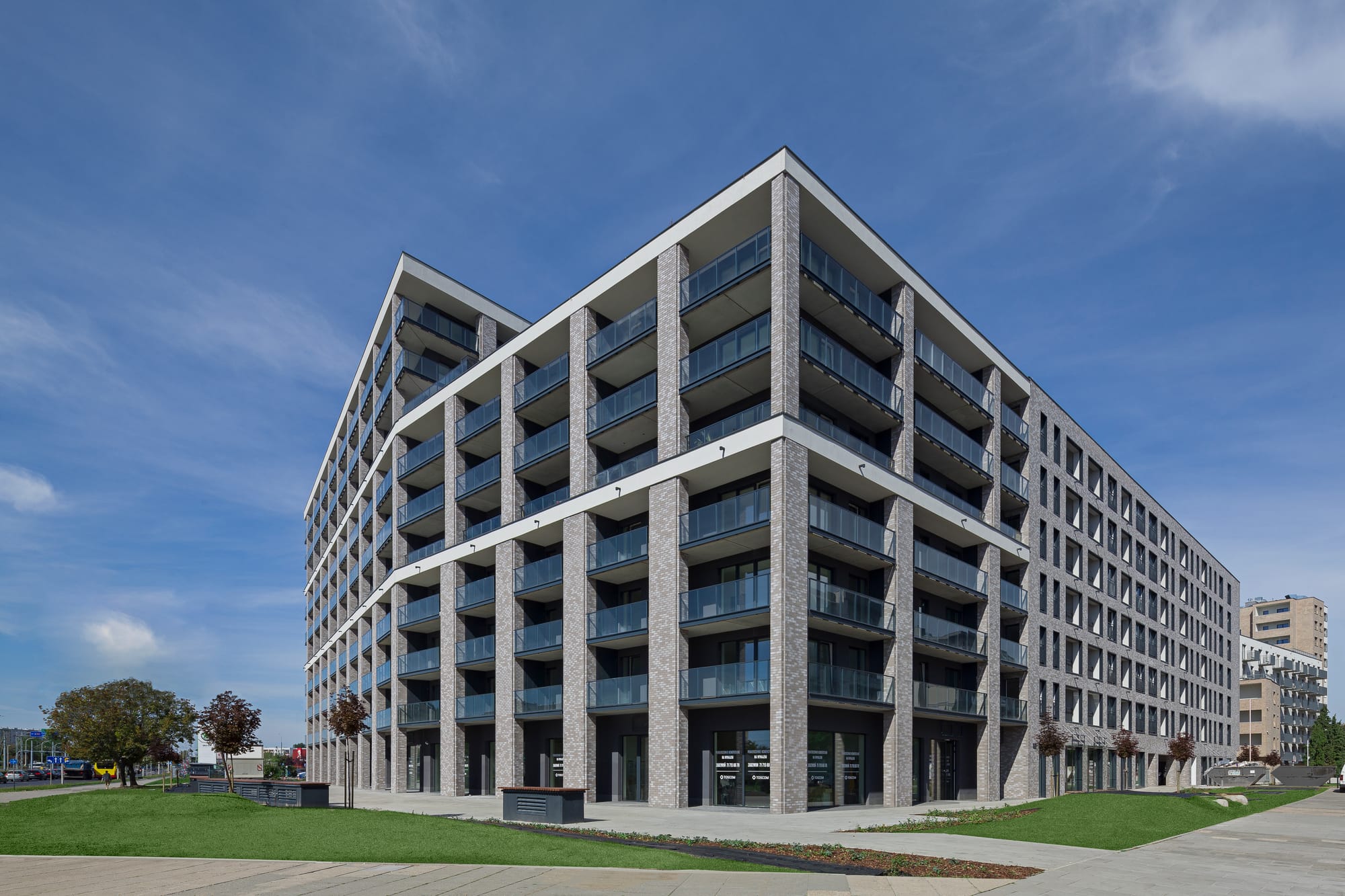

European projects, laid as brick slips.

Documents.

King Klinker 3-part specification, Section 04 23 13 PDF
PCI Specification for Embedded Clay Thin Brick, effective May 4, 2016 PDF · Word
PCI certification letter From your Advanced rep
PCI test report, red clay body PDF
PCI test report, brown clay body PDF
PCI test report, white clay body PDF
ASTM C1088 test results, red clay body PDF
ASTM C1088 test results, brown clay body PDF
ASTM C1088 test results, white clay body PDF
Safety data sheet PDF
BIM objects, Revit and ArchiCAD BIMobject
Frost resistance, 1,000 cycles PDF
Water absorption and porosimetry, Keramik-Institut Meissen PDF
Declared properties, unglazed PDF
Declared properties, glazed PDF
Sizes, textures, edges and bonds PDF
Environmental product declaration 296/2022 PDF
ISO 9001 certificate PDF
Advanced liner spec sheets 1008KK, 1012KK, 7000KK, 7750KK, 4000KK, 4013KK, 9007KK, 9013KK, 9750KK, 9000KK

Price band by size.

Bands run from $ to $$$$ and compare one size with another across every maker Advanced carries. Your rep quotes the job.

Norman $
Expanded Modular $
Modular $$
Roman $$
Meridian $$$

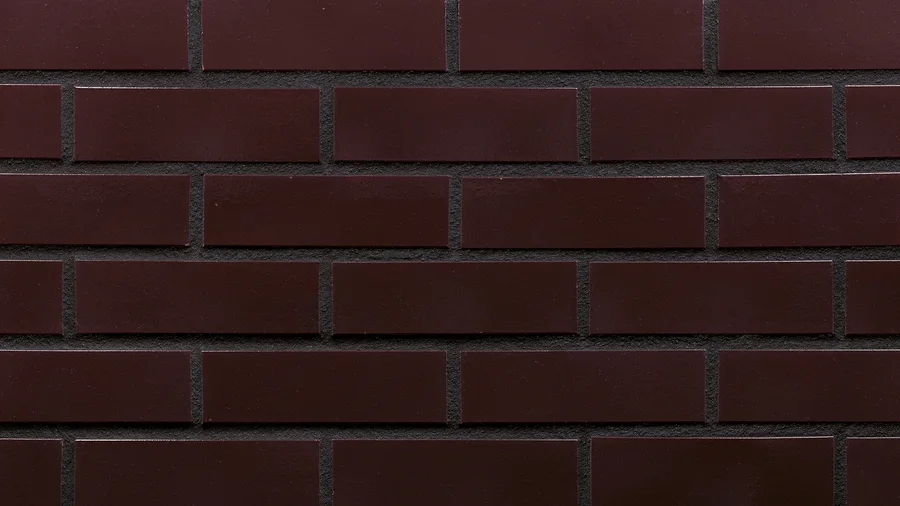

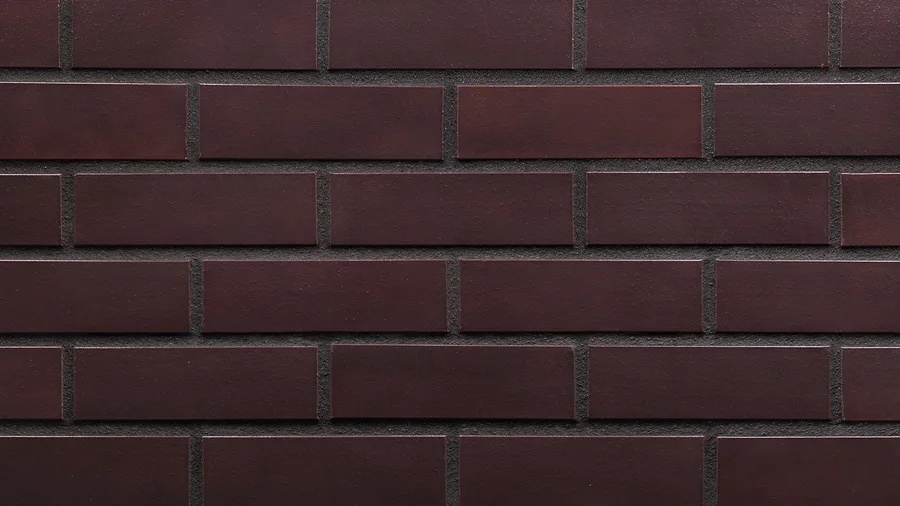

Glazed Expanded Modular $$, Norman $$, Roman $$, Meridian $$$

Draft a specification with King Klinker brick.

Six steps to a Section 03 45 00 draft with King Klinker already entered as the brick, delivered to your inbox as a Word file. The calculator sizes the order for the same brick.

Draft a specification Brick calculator

Request a King Klinker sample.

Brick boards, displays and loose brick are stocked and ship to a plant or an office.

Request a sample Contact a rep
