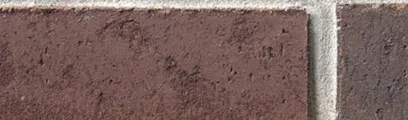

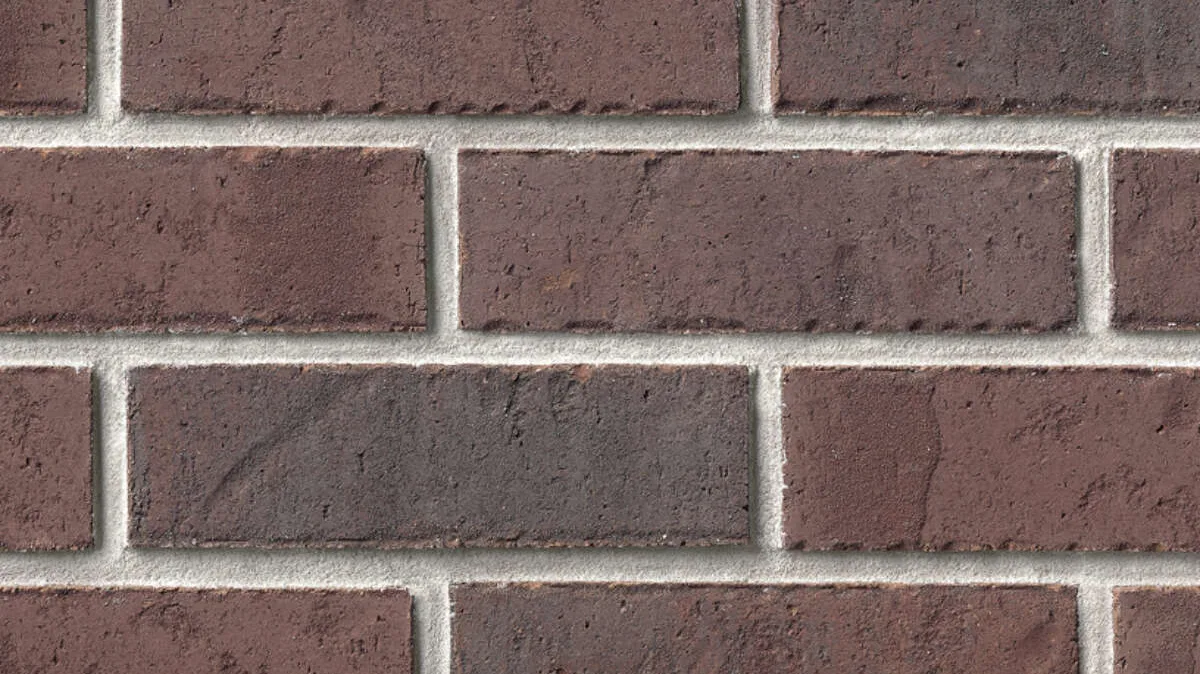

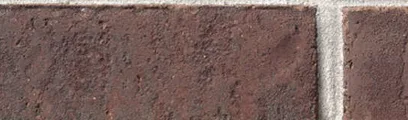

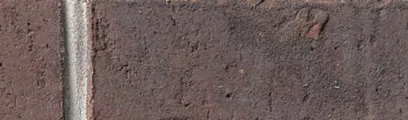

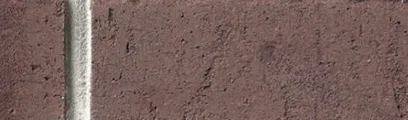

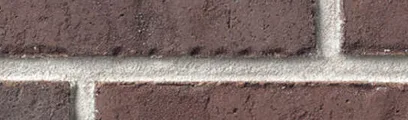

Grand River General Shale thin brick
Grand River is a General Shale thin brick in the Red/Orange color group with a standard clay face. It is made in Modular. It is outside PCI tolerances, and General Shale issues a PCI letter of variance for it. Advanced Formliners distributes it for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- Red/Orange
- Sizes and price band
- Modular $$$
- Manufacturer
-
General Shale - Face texture
- Standard clay
- Thickness
- 5/8" (.625)
Specification
Sizes and shapes
- Modular Flat: 5/8" x 2-1/4" x 7-5/8" (.625 x 2.25 x 7.625)
- Modular Corner: 2-1/4" x 7-5/8" x 5/8" x 3-1/2" return
Textures
Standard clay
Packaging and coverage
Not stated
Figures here come from General Shale's published data. Confirm quantities and availability with your Advanced rep before you order.
More of this color
Casting it into a panel
Advanced makes the liner that holds this brick and distributes the brick itself, so the two are specified together.
Colors near this one
Request a sample
Liner and thin brick samples ship to a plant or an office.
