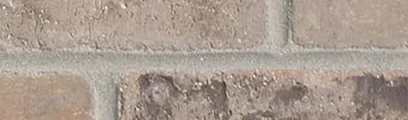

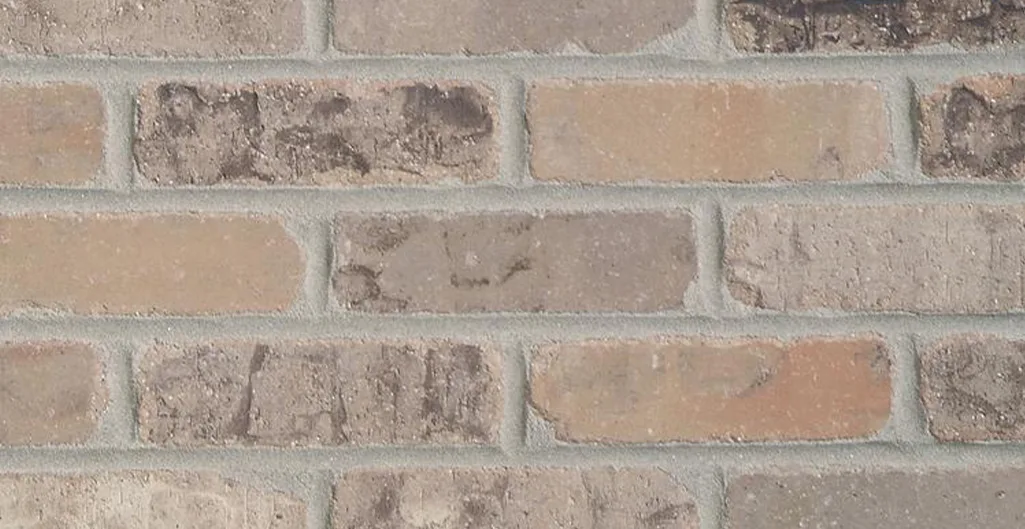

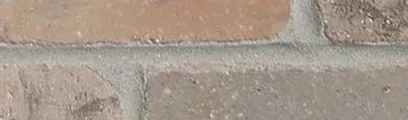

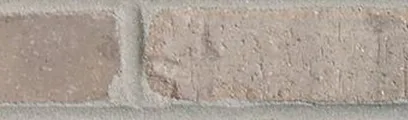

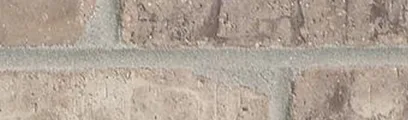

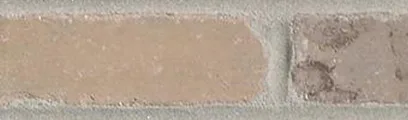

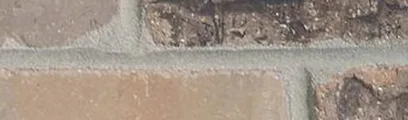

Ironworks General Shale thin brick
Ironworks is a General Shale thin brick in the Brown/Tan/Buff color group. It is made in Modular. It is outside PCI tolerances, and General Shale issues a PCI letter of variance for it. Advanced Formliners distributes it for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- Brown/Tan/Buff
- Sizes and price band
- Modular $$$
- Manufacturer
-
General Shale - Face texture
- Kiln-fired, tumbled edge
- Thickness
- 1/2" (product page / data sheet: saw cut to approx 1/2" after firing), 3/4" standard for precast/tilt-up, 1" or thicker special order (precast brochure)
Specification
Sizes and shapes
- Thin Brick Flat: 1/2" W x 2-1/4" H x 7-5/8" L
- Thin Brick Corner: 1/2" W x 2-1/4" H x 7-5/8" L, return length on request
- Precast/tilt-up (Denver): Modular 2-1/4" x 7-5/8" face, 6.849 pcs/sq ft
- Precast Modular Corner: 2-1/4" H x 7-5/8" L x 3-5/8" return, 4.57 pcs/linear ft
- Precast Modular Edge Cap: 1.5 pcs/linear ft
- Other sizes special order (precast brochure)
Textures
Kiln-fired, tumbled edge
Standards and testing
ASTM C1088 TBX (precast tech bulletin: meets TBX except chips on tumbled units); data sheet 04 71 13: manufactured to C1088 TBX, TBS, TBA as applicable; weight under 15 psf
Packaging and coverage
Box: flats 7 sq ft; corners 5 linear ft (approx 3.75 sq ft) at 3/8" joint (Thin Brick Code Compliance bulletin). Pieces per box not published.
Figures here come from General Shale's published data. Confirm quantities and availability with your Advanced rep before you order.
