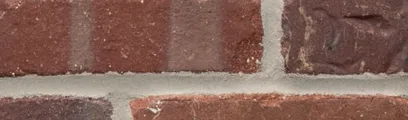

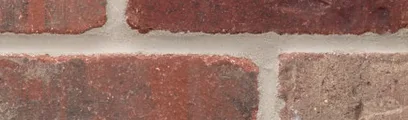

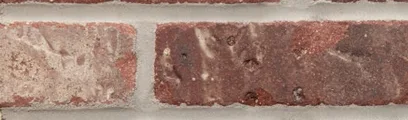

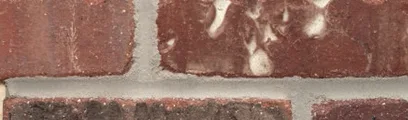

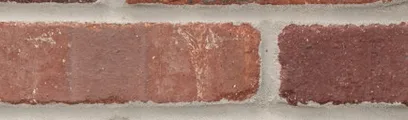

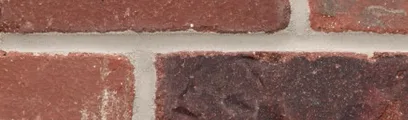

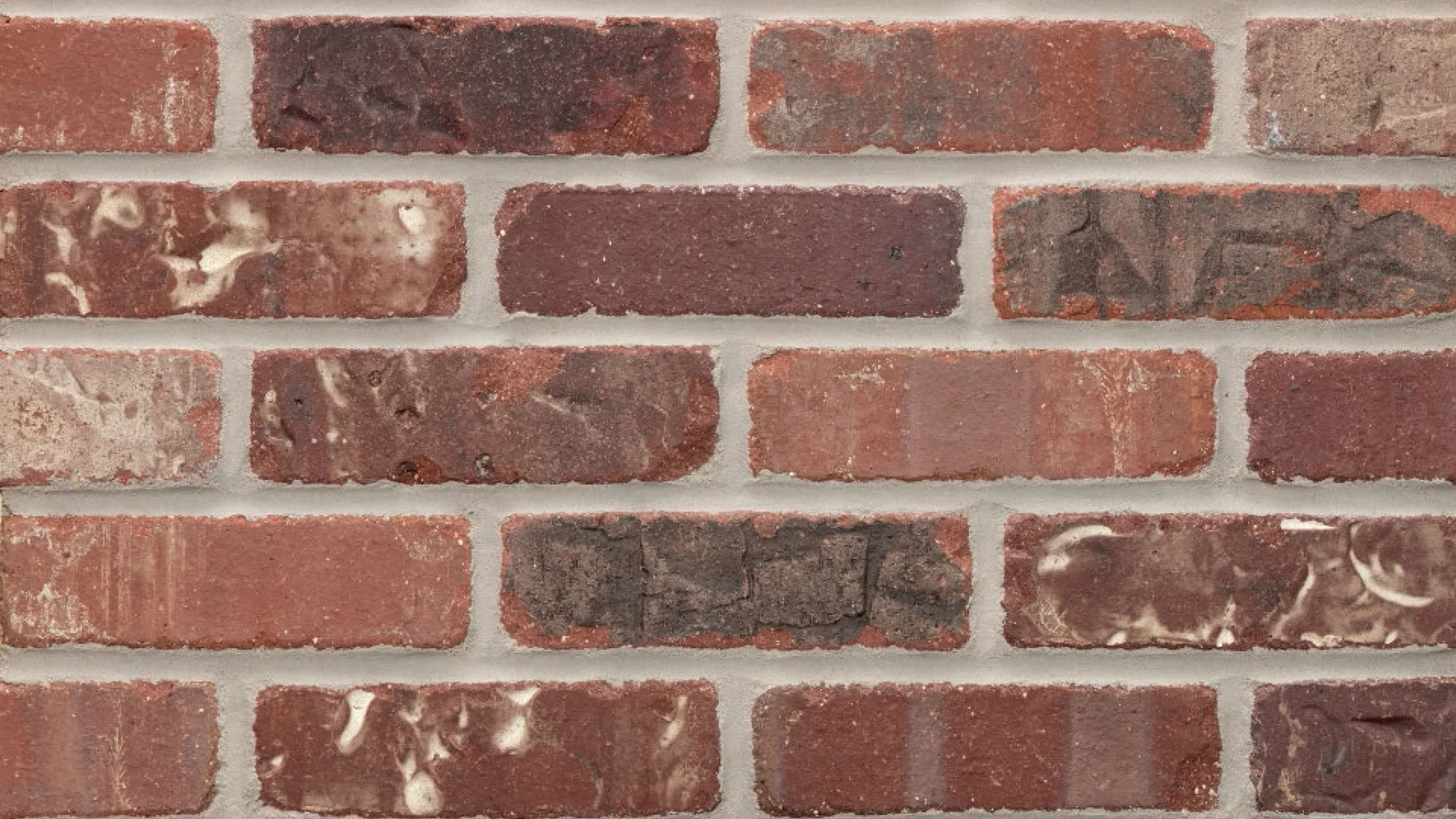

Stillwater General Shale thin brick
Stillwater is a General Shale thin brick in the Multi-color/Other color group. It is made in Modular. It is outside PCI tolerances, and General Shale issues a PCI letter of variance for it. Advanced Formliners distributes it for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- Multi-color/Other
- Sizes and price band
- Modular $$$
- Manufacturer
-
General Shale - Face texture
- Kiln-fired, cut thin
- Thickness
- 1/2"
Specification
Sizes and shapes
- Thin Brick Flat: 1/2" W x 2-1/4" H x 7-5/8" L
- Thin Brick Corner: 1/2" W x 2-1/4" H x 7-5/8" L, return length on request
Textures
Kiln-fired, cut thin
Standards and testing
ASTM C1088, Type TBX, TBS or TBA, per the General Shale thin brick data sheet
Packaging and coverage
Box: flats 7 sq ft; corners 5 linear ft (approx 3.75 sq ft) at 3/8" joint (Thin Brick Code Compliance bulletin). Pieces per box not published.
Figures here come from General Shale's published data. Confirm quantities and availability with your Advanced rep before you order.
More of this color
Casting it into a panel
Advanced makes the liner that holds this brick and distributes the brick itself, so the two are specified together.
Colors near this one
Request a sample
Liner and thin brick samples ship to a plant or an office.
