Castle Forge
King Klinker thin brick, distributed by Advanced Formliners for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- Red/Orange
- Sizes and price band
- Norman $, Meridian $$$, Roman $$
- Manufacturer
-
- Face texture
- Smooth, Ribbed, Scored, Chamfered
- Thickness
- 9/16"
For precast
| Clay body | Red |
|---|---|
| Color through the body | Yes |
| Production season | All year round |
| Maximum corners to flats ratio | 15% |
| Precast sizes | Norman and Meridian |

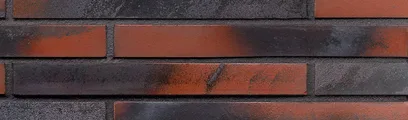

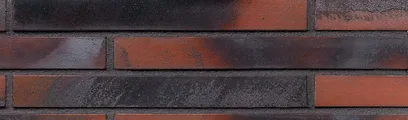

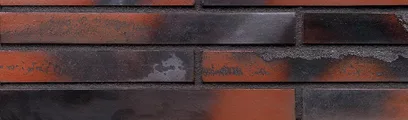

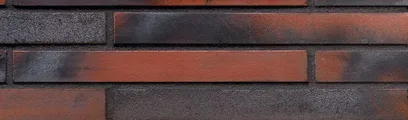

Photographed in these sizes
-

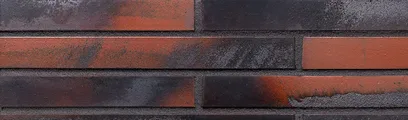

Norman -

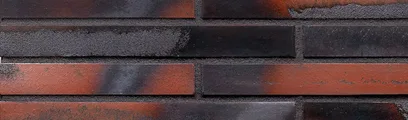

Meridian
The same brick, different joint colors
-

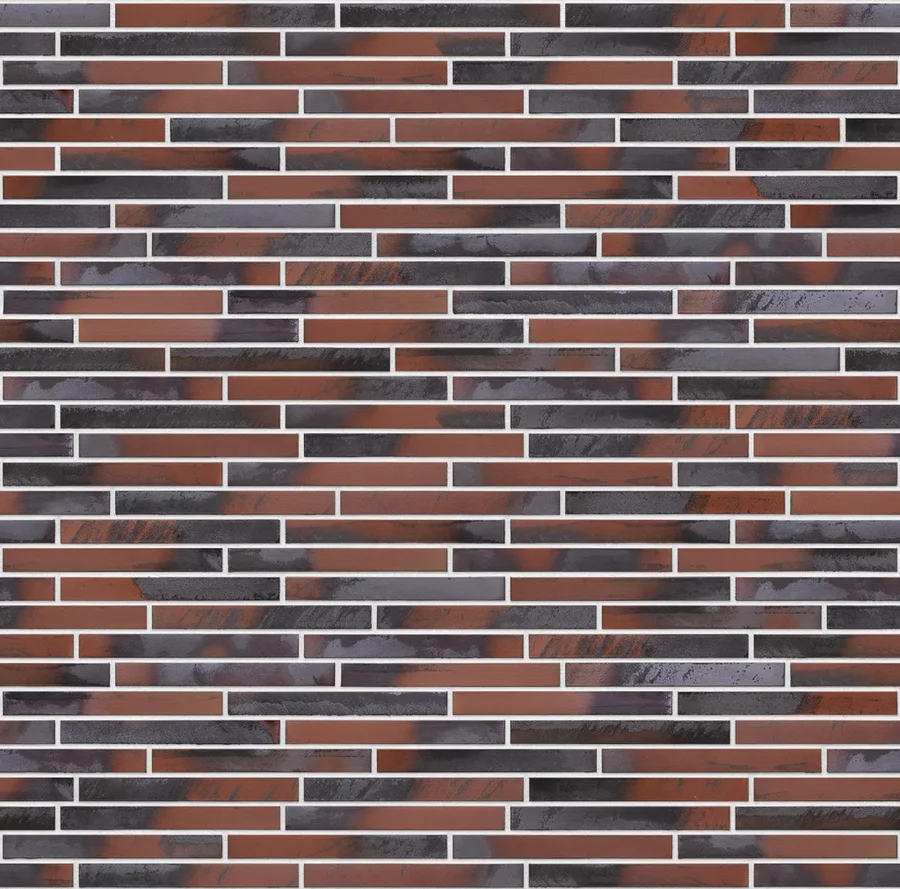

White -
Light Gray -

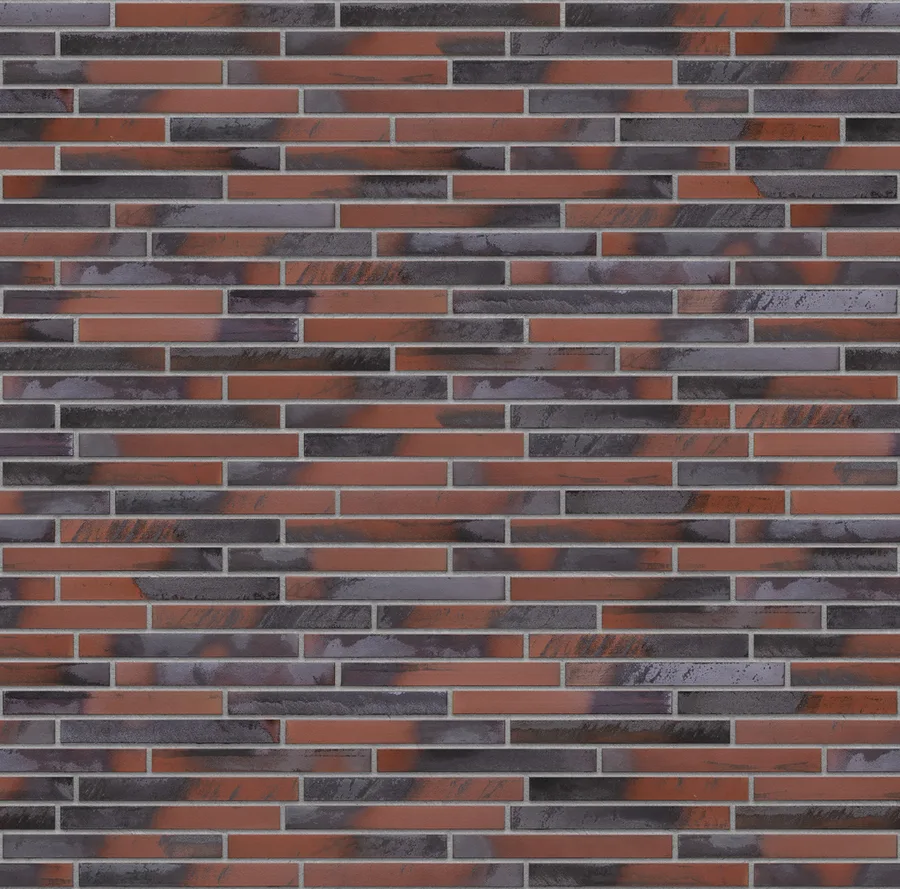

Medium Gray -

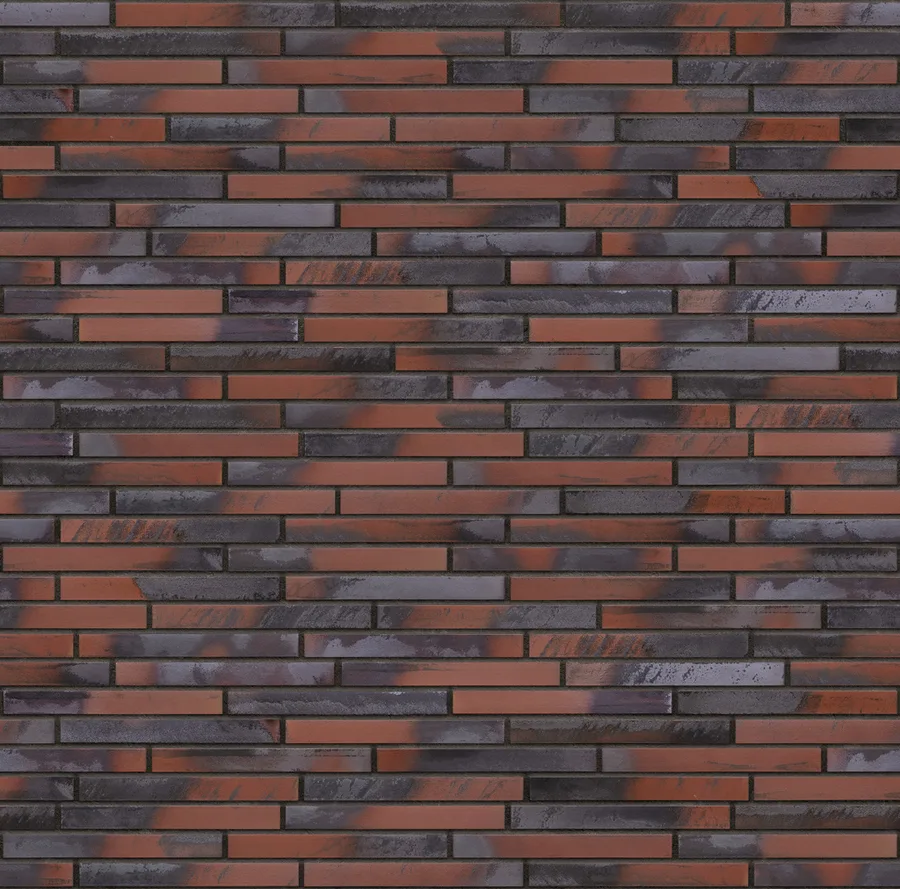

Charcoal
Specification
Sizes and shapes
- Norman, 2-1/4 by 11-5/8 by 9/16 in.
- Meridian, 2-1/4 by 15-5/8 by 9/16 in.
Textures
Smooth, Ribbed, Scored, Chamfered
Standards and testing
ASTM C1088-24 Grade Exterior (and Interior), Type TBX/TBS; tested per ASTM C67 at Clemson University Bishop Materials Laboratory; Red clay body absorption 24h cold 2.4% / 5h boil 2.6%; efflorescence: not effloresced; warpage 0-2/32"; size within TBX
Figures here come from King Klinker's published data. Confirm quantities and availability with your Advanced rep before you order.
More of this color
Casting it into a panel
This color on a building.
Laid on site as brick slips, not cast into a panel. Your rep can send a cast sample in this color.
-

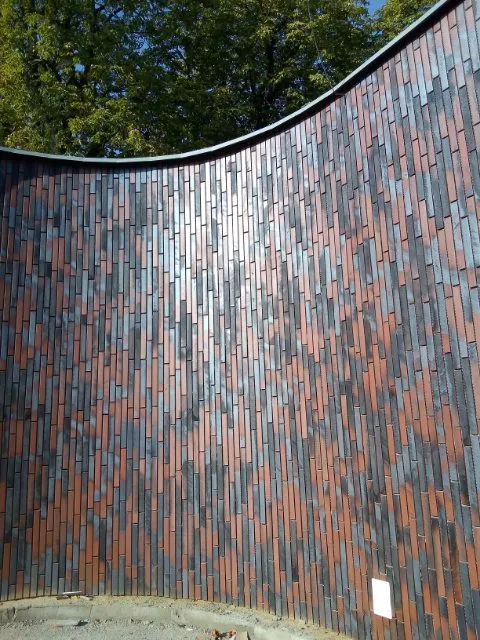

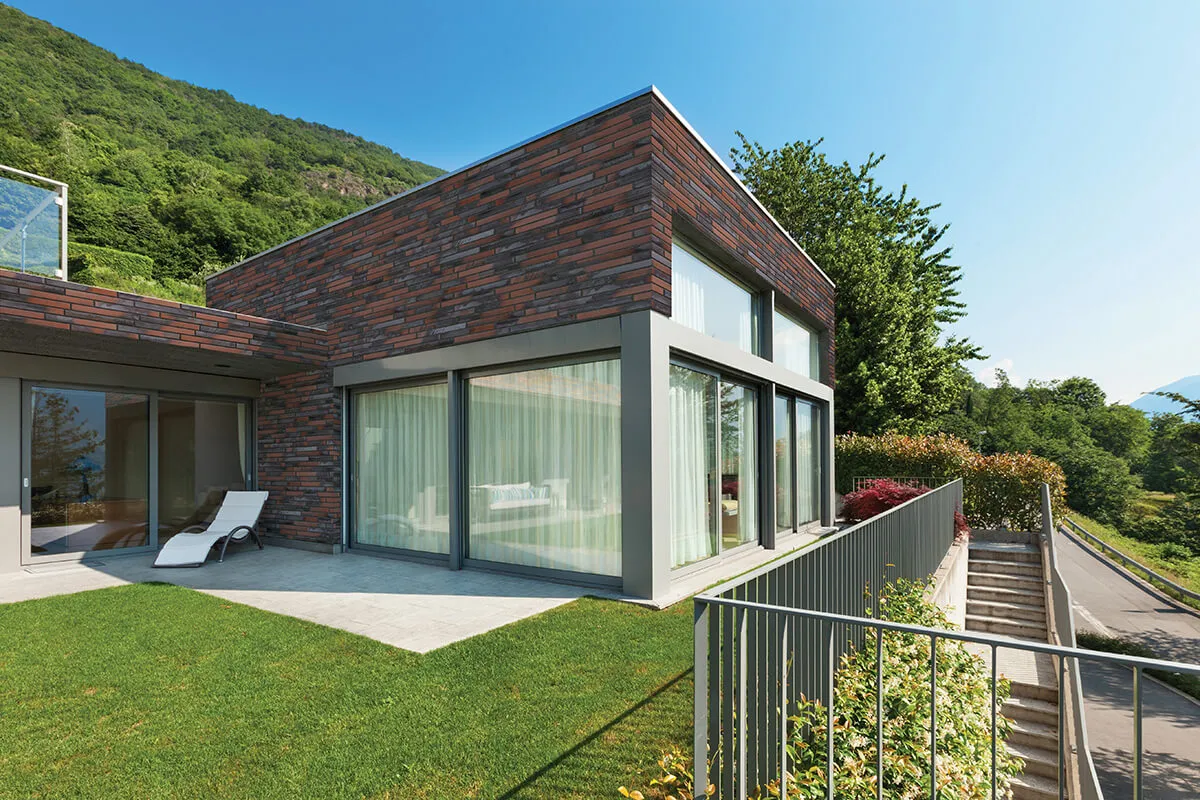

King Klinker Castle Forge, brick slips laid on site. Image, King Klinker. -
King Klinker Castle Forge, brick slips laid on site. Image, King Klinker.
Colors near this one
Request a sample
Liner and thin brick samples ship to a plant or an office.
