Ice Power

King Klinker thin brick, distributed by Advanced Formliners for precast, tilt-up and adhered work across the United States and Canada.

Request a sample King Klinker documents and ordering Revit and BIM files

Color family: Black/Gray
Sizes and price band: Modular $$, Norman $, Expanded Modular $, Meridian $$$, Roman $$
PCI: Meets PCI tolerances and standards
Manufacturer
Face texture: Smooth, Ribbed, Scored, Chamfered
Thickness: 9/16"

For precast

Clay body	White
Color through the body	Yes
Production season	May to October
Maximum corners to flats ratio	5%
Precast sizes	Modular, Expanded Modular, Norman and Meridian

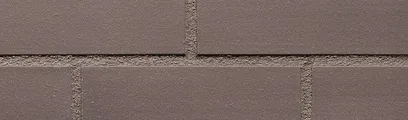

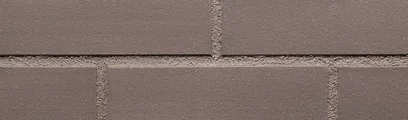

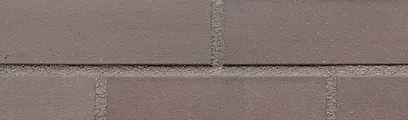

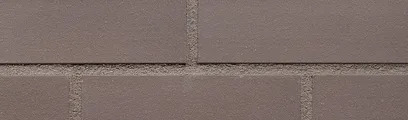

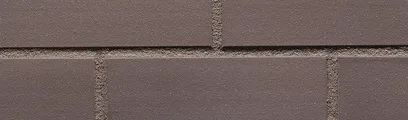

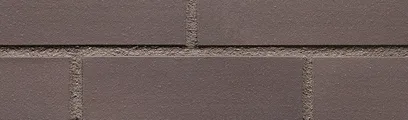

Photographed in these sizes

Modular
Norman
Meridian

The same brick, different joint colors

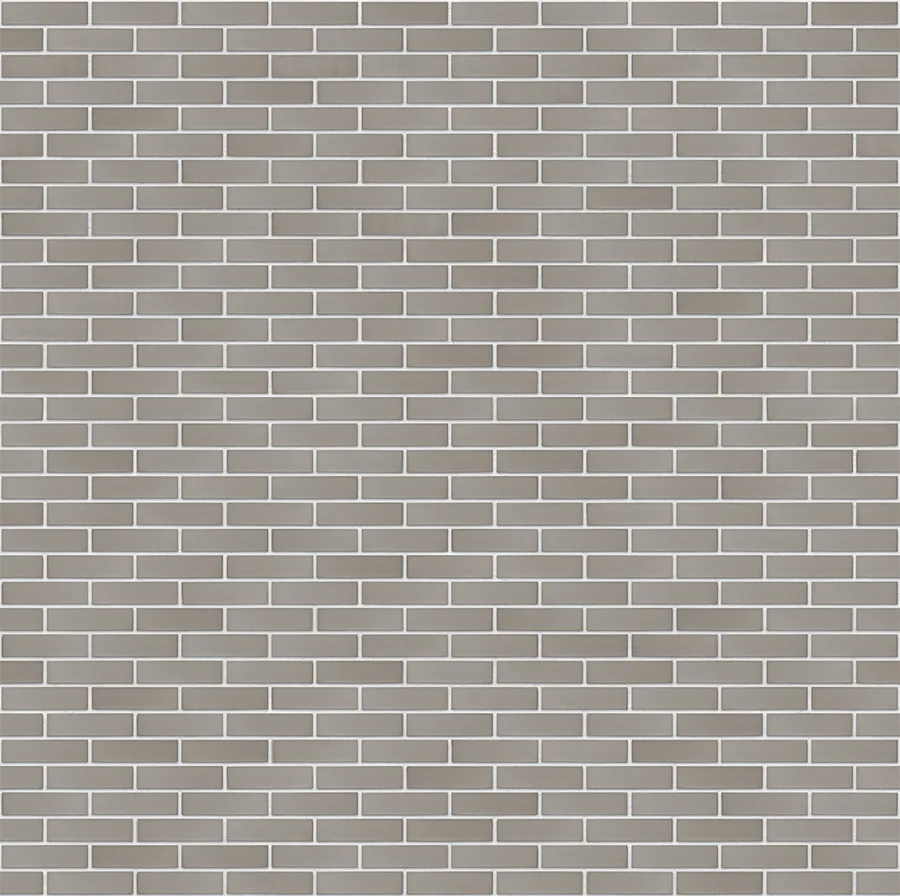

White

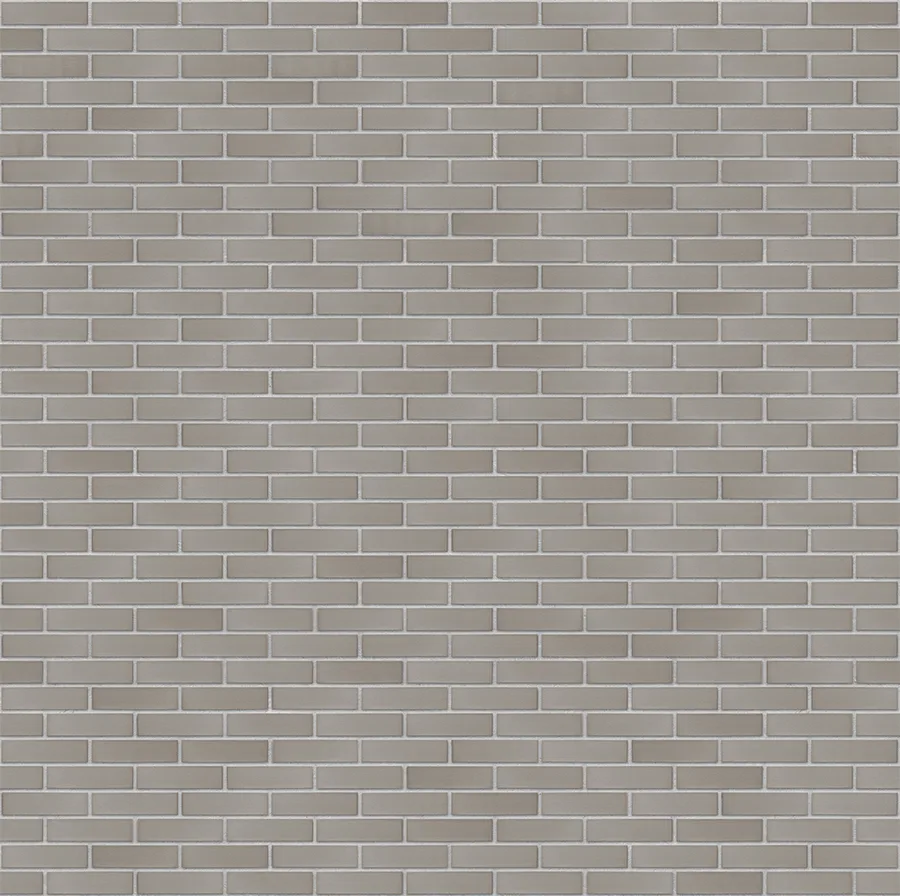

Light Gray

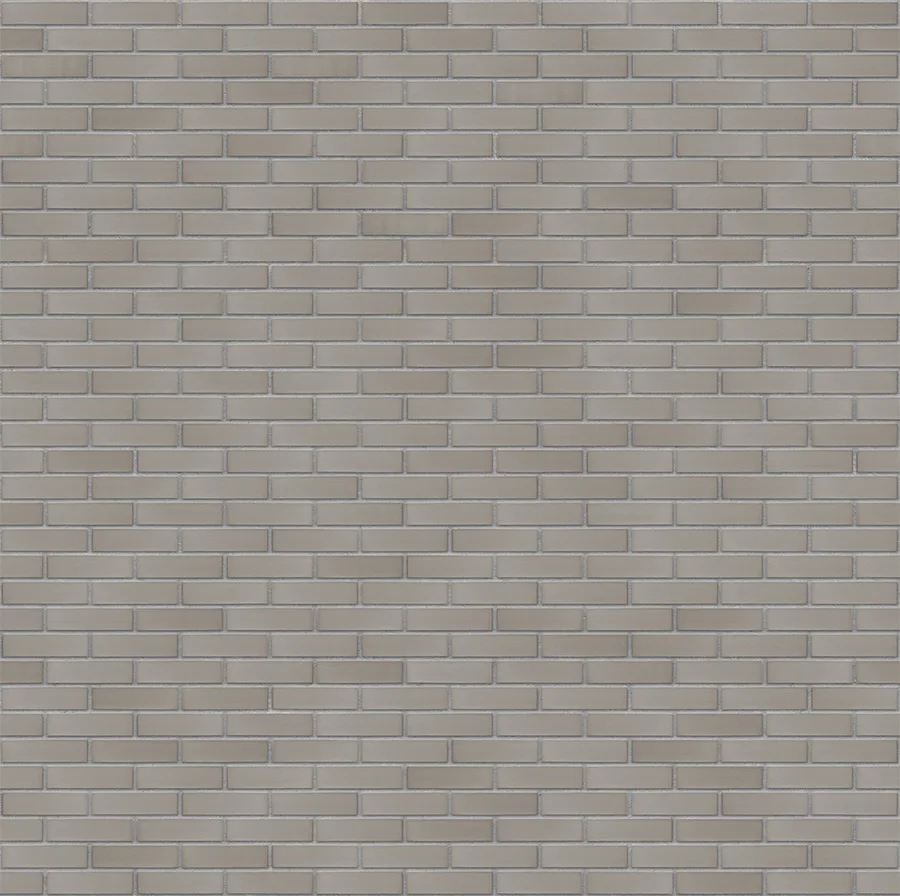

Medium Gray

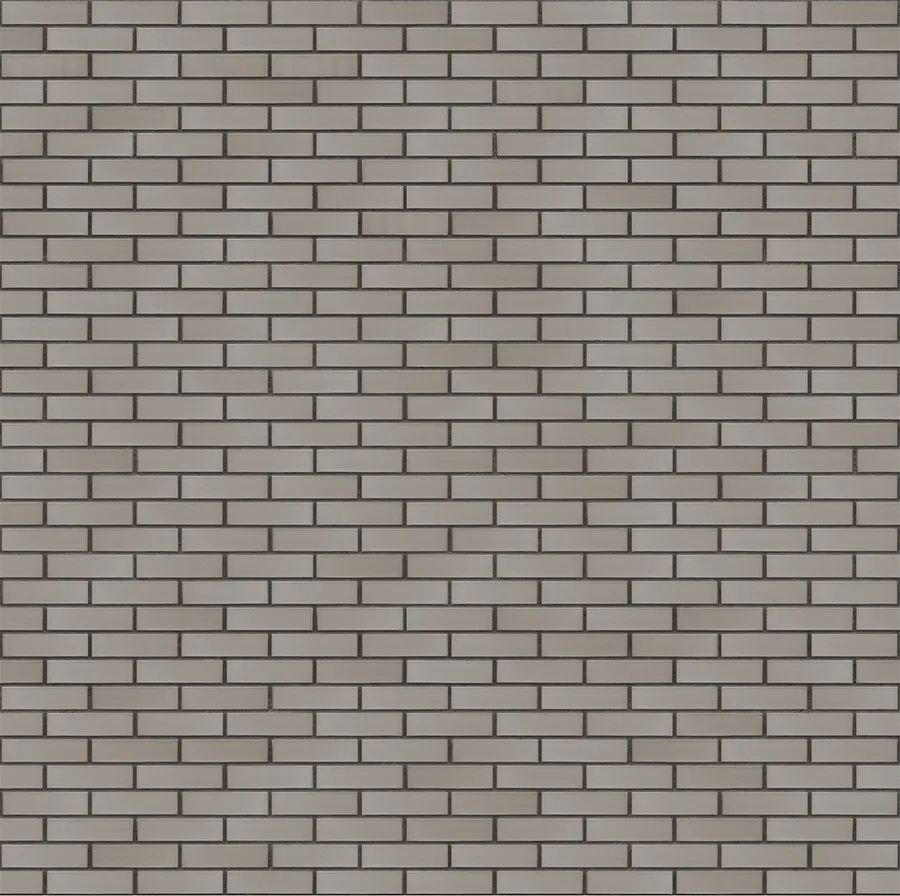

Charcoal

Specification

Sizes and shapes

Modular, 2-1/4 by 7-5/8 by 9/16 in.
Expanded Modular, 2-3/4 by 9-3/16 in.
Norman, 2-1/4 by 11-5/8 by 9/16 in.
Meridian, 2-1/4 by 15-5/8 by 9/16 in.

Textures

Smooth, Ribbed, Scored, Chamfered

Standards and testing

ASTM C1088-24 Grade Exterior (and Interior), Type TBX/TBS; tested per ASTM C67 at Clemson University Bishop Materials Laboratory; White clay body absorption 24h cold 3.2% / 5h boil 3.5%; efflorescence: not effloresced; warpage 0-2/32"; size within TBX; Clemson report 14431-35813 (11/17/2025) on Ice Power Modular Size 7-5/8 x 2-1/4 x 9/16: 24h cold 3.2%, 5h boil 3.5%, saturation coef 0.94, not effloresced, Grade Exterior, Interior, Type TBX, TBS

Figures here come from King Klinker's published data. Confirm quantities and availability with your Advanced rep before you order.
