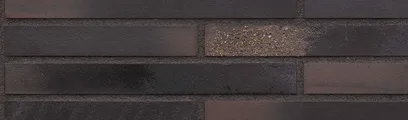

Urban Blend
King Klinker thin brick, distributed by Advanced Formliners for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- Multi-color/Other
- Sizes and price band
- Modular $$, Norman $, Expanded Modular $, Meridian $$$, Roman $$
- Manufacturer
-
- Face texture
- Smooth, Ribbed, Scored, Chamfered
- Thickness
- 9/16"
For precast
| Clay body | Brown |
|---|---|
| Color through the body | Yes |
| Production season | All year round |
| Maximum corners to flats ratio | 15% |
| Precast sizes | Modular, Expanded Modular, Norman and Meridian |

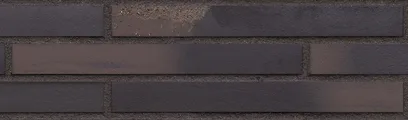

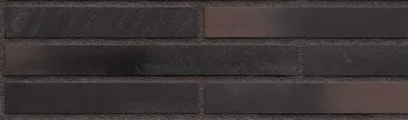

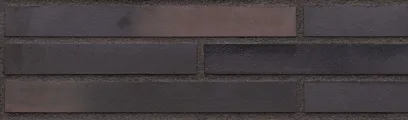

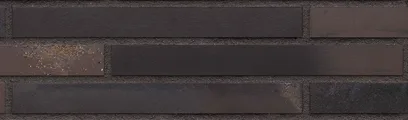

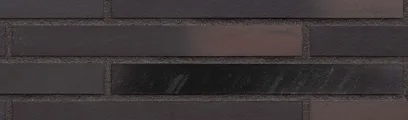

Photographed in these sizes
-
Modular -
Expanded Modular -
Norman -
Meridian
The same brick, different joint colors
-

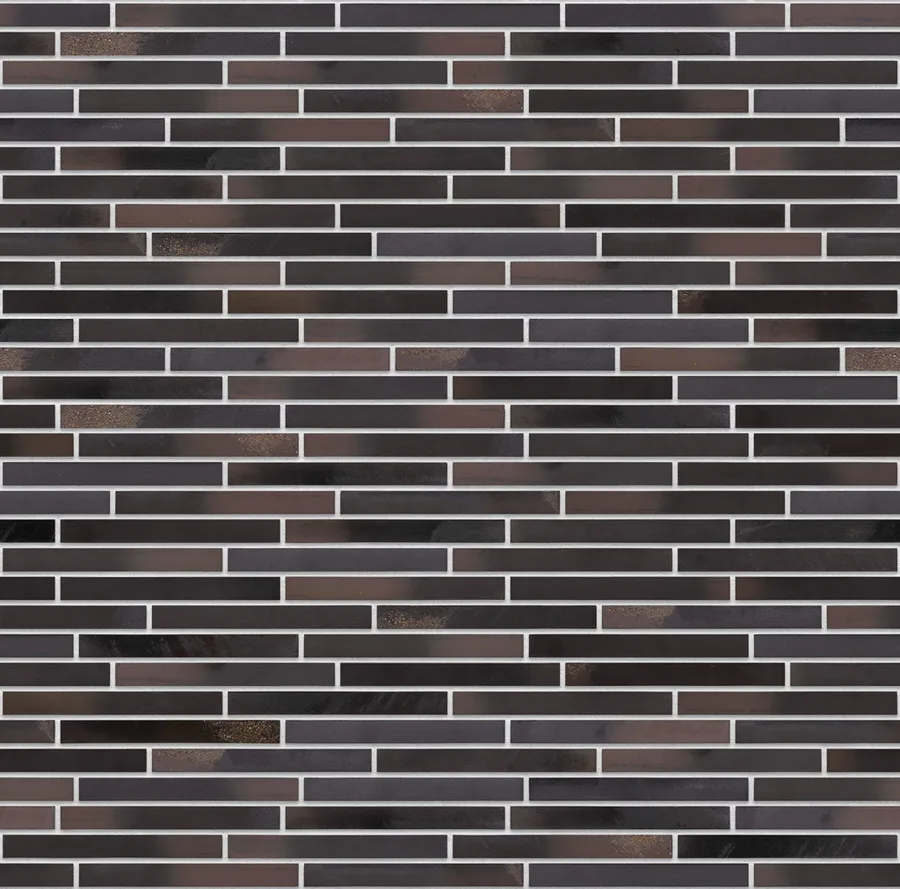

White -
Light Gray -
Medium Gray -

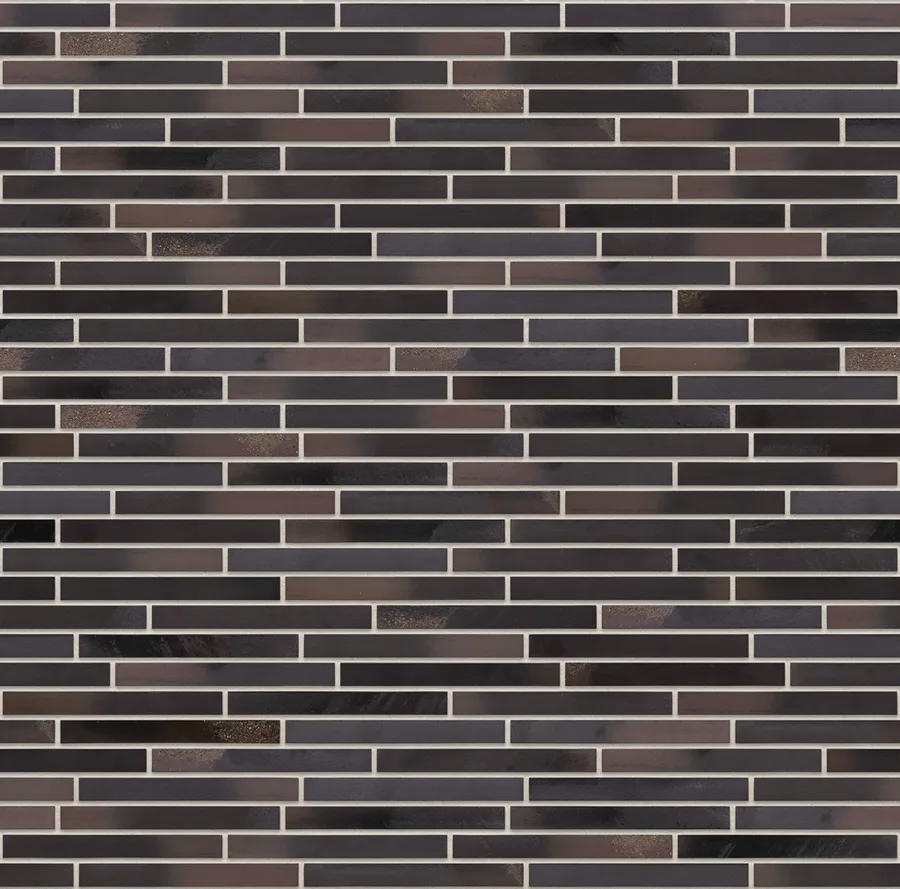

Tan -

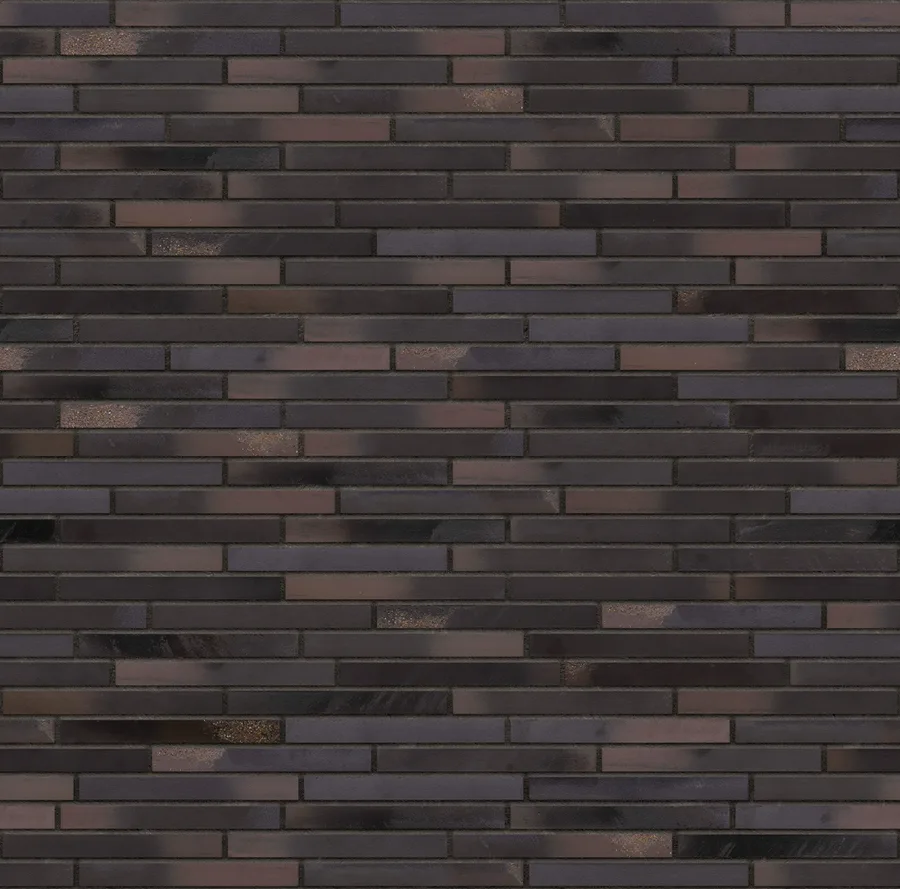

Charcoal
Specification
Sizes and shapes
- Modular, 2-1/4 by 7-5/8 by 9/16 in.
- Expanded Modular, 2-3/4 by 9-3/16 in.
- Norman, 2-1/4 by 11-5/8 by 9/16 in.
- Meridian, 2-1/4 by 15-5/8 by 9/16 in.
Textures
Smooth, Ribbed, Scored, Chamfered
Standards and testing
ASTM C1088-24 Grade Exterior (and Interior), Type TBX/TBS; tested per ASTM C67 at Clemson University Bishop Materials Laboratory; Brown clay body absorption 24h cold 1.1% / 5h boil 1.6%; efflorescence: not effloresced; warpage 0-2/32"; size within TBX
Figures here come from King Klinker's published data. Confirm quantities and availability with your Advanced rep before you order.
More of this color
Casting it into a panel
Colors near this one
Request a sample
Liner and thin brick samples ship to a plant or an office.
