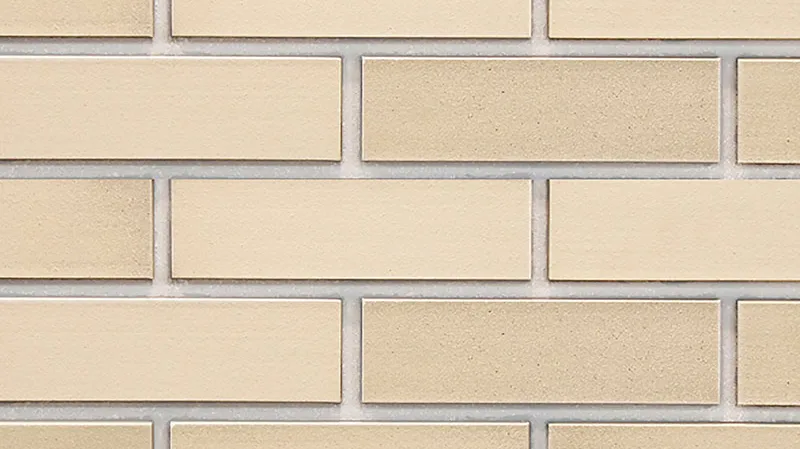

151 Commons Flashed
MetroBrick thin brick, distributed by Advanced Formliners for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- White/Cream
- Sizes and price band
- Modular $$, Norman $$$, Utility $$$, King
- Availability
- Not on the maker's current color list. Confirm it with your rep.
- Manufacturer
-
- Face texture
- Range, flashed
- Thickness
- 5/8 in (all thin brick sizes); tolerance +0/-1/16 in under 8 in, +0/-3/32 in 8 to 12 in
Specification
Sizes and shapes
- Modular 2 1/4 x 7 5/8 in (field); Modular 90 deg corner 2 1/4 x 3 5/8 x 7 5/8; Modular 135 deg corner; Modular edge cap
- King 2 5/8 x 9 5/8 in (field); King corner 2 5/8 x 2 3/4 x 9 5/8; King edge cap
- Norman 2 1/4 x 11 5/8 in (field); Norman corner 2 1/4 x 3 5/8 x 11 5/8; Norman edge cap
- Utility 3 5/8 x 11 5/8 in (field); Utility corner 3 5/8 x 3 5/8 x 11 5/8; Utility edge cap
- Full brick (FBX grade) in Modular, Norman, King, Utility; custom sizes on request
Textures
Range, flashed
Standards and testing
ASTM C1088 Type TBX Select exterior grade (exceeds); ASTM C67 absorption <3% (std max 5%); saturation coefficient <3% (waived <8%) except 100 Alabaster 8%; efflorescence none; chipping <2%; MOR >500 psi; compressive 10,000 psi; freeze-thaw C67 passed 3,000 cycles; C666 Proc B brick-in-concrete passed 300 cycles / >150 psi; C482 shear bond >150 psi; C650 chemical not affected; meets/exceeds PCI Specification for Embedded Clay Thin Brick (2016); dovetail back
Packaging and coverage
Per Packaging_Information.pdf: Modular field 52 pcs/carton, 7.58 sf/carton, 6.86 pcs/sf, 60 cartons (3,120 pcs, 454.8 sf) per pallet, 5.27 lb/sf; Modular kerfed 104 pcs/carton; Norman field 40 pcs/carton, 8.75 sf/carton, 4.57 pcs/sf, 54 cartons (472.5 sf)/pallet; King field 40 pcs/carton, 8.33 sf/carton, 4.8 pcs/sf, 55 cartons (458.15 sf)/pallet; Utility field 20 pcs/carton, 6.67 sf/carton, 3.0 pcs/sf, 72 cartons (480.24 sf)/pallet; corners and edge caps 16 to 24 pcs/carton depending on size (see PDF). Estimating page: Modular 7.0 pcs/sf, King 4.8, Norman 4.8, Utility 3.0; corners 4.3 to 4.7 pcs/lin ft
Figures here come from MetroBrick's published data. Confirm quantities and availability with your Advanced rep before you order.
Casting it into a panel
Advanced makes the liner that holds this brick and distributes the brick itself, so the two are specified together.
