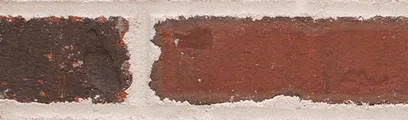

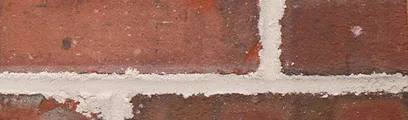

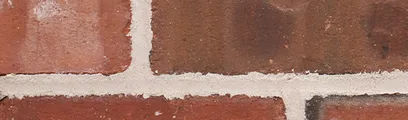

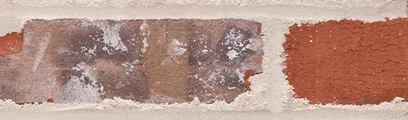

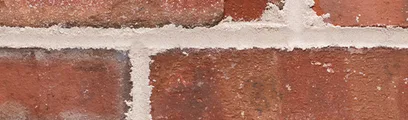

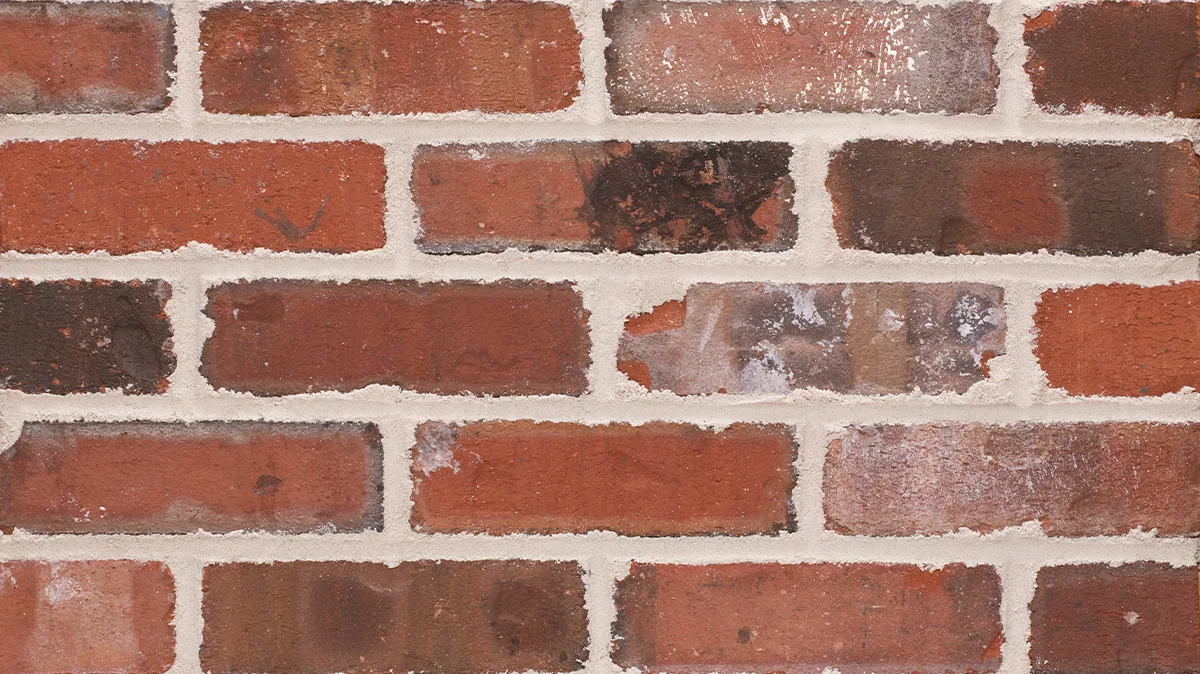

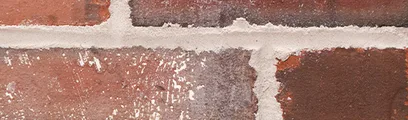

Ole Tappan General Shale thin brick
Ole Tappan is a General Shale thin brick in the Multi-color/Other color group with a rumbled edge face. It is made in Modular. It is outside PCI tolerances, and General Shale issues a PCI letter of variance for it. Advanced Formliners distributes it for precast, tilt-up and adhered work across the United States and Canada.
- Color family
- Multi-color/Other
- Sizes and price band
- Modular $$$
- Manufacturer
-
General Shale - Face texture
- Rumbled edge
- Thickness
- 1/2" (product page), Watsontown spec sheet: extruded 1/2" to 1-13/16"
Specification
Sizes and shapes
- Thin Brick Flat: 1/2" W x 2-1/4" H x 7-5/8" L
- Thin Brick Corner: 1/2" W x 2-1/4" H x 7-5/8" L, return length on request
Textures
Rumbled edge
Standards and testing
Watsontown thin brick tech specs: ASTM C67 tested to ASTM C1088 Type TBS and TBX (extruded, 1/2" to 1-13/16" thick), Type TBA (molded, 3/4" to 1-13/16"); PCI standard 1/2" to 1" thick, +0/-1/16"
Packaging and coverage
Not stated
Figures here come from General Shale's published data. Confirm quantities and availability with your Advanced rep before you order.
